60" Unimak #GS-160-C/RP-160-S, One-Sided Panel Laminator, 82 FPM, 144" panel length, 2-1/4" board thickness, 2026, new

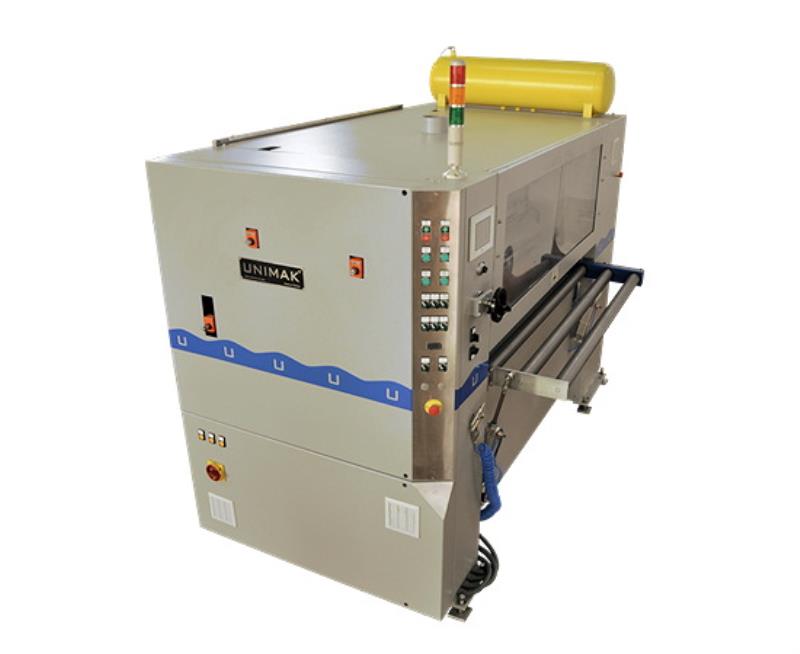

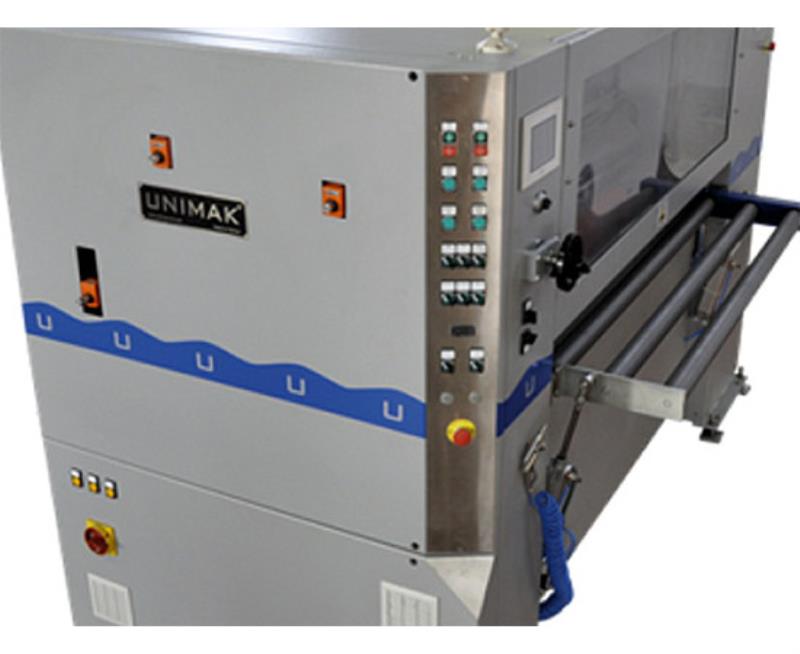

UNIMAK 160-S / RP 160-S 5-Foot Wide Single-Sided Hot Melt Lamination System (transfer conveyor between the machines not included)This is a proposal/quote for a UNIMAK Hot Melt Glue Spreader and Single Roller Press to be used with the customer's adhesive melting system and existing transfer conveyor. Panel Types: MDF, particleboard, all kinds of panels where adhesive application is required.Glue Types: Polyurethane Hotmelt (PUR) glue; Unfilled EVAWorking Speed: 5 - 25 meter/Min (16.4 - 82 FPM)Technical Specifications:Adhesive Spreader:Working Width: 200 - 1,600 mm (7-7/8" - 63"). Board Thickness: 4 - 40 mm (1/8" - 1-5/8"). Unwind Roll max. dia. 600 MM (23 - 1/2")Unwind Roll arbor dis. 76 MM (3")Upper Spreader Roller, Silicone Coated and Ø 240 MM (9-1/2"). Upper Laminating Roller: 300 MM – Rubber Covered (11 - 3/4"). Lower Transport Roller: 400 MM (15-3/4") Steel Single Roller Press:Working Width: 400 - 1,550 MM (15-3/4" - 61"). Panel Length : 500 MM - 3660 MM (20" - 144")Board Thickness: 12 MM - 60 MM (1/2" - 2-1/4"). Upper Spreader Roller, Silicone Coated and 240 MM (9-1/2"). Upper Dosing Roller: Ø 215 MM – Chromed (8-1/2"). Lower Transport Roller: Ø 240 MM – Silicone coated. Working Height 900 mm (35-1/2" +/- 1")Price includes (5) days of onsite installation labor for (1) technician. All travel and lodging expenses are to be billed at the time of installation. The customer will supply a Melting system including hoses and injection manifold to be installed in the Glue Spreader

Request More Information from Seller
