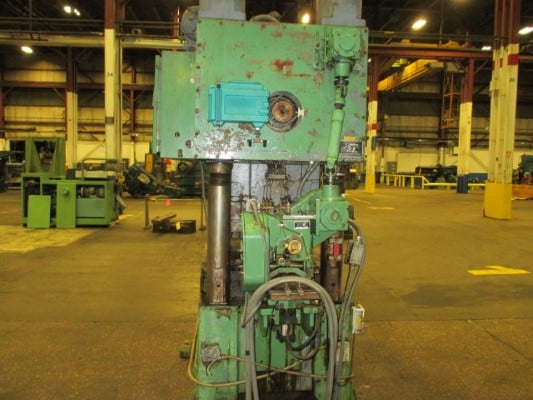

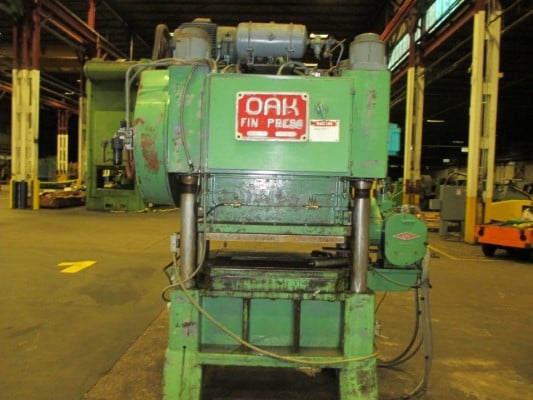

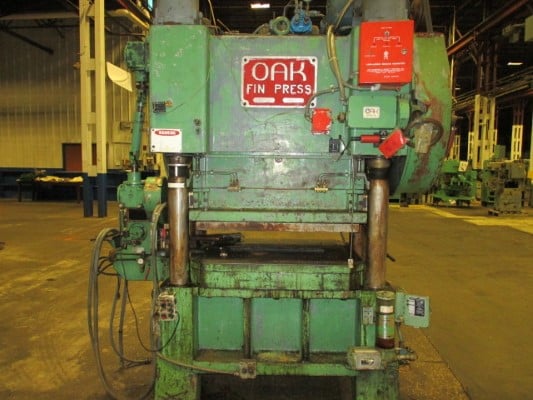

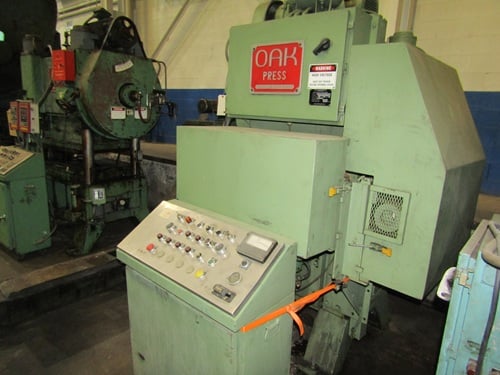

60 Ton, Oak #FP-2-42, High Speed Fin Press, 1-1/2" stroke, 16" shut height, 42" x 34" bed, 3" adjustment, 400 SPM

NEW 1967, REBUILT 1980
RATED CAPACITY (TONS) ................... 60
STROKE (STANDARD) ....................... 1-1/2"
SHUTHEIGHT TO BED ....................... 16"
SHUTHEIGHT ADJUSTMENT ................... 3"
WITHDRAWAL TRAVEL ....................... 4"
SPEED RANGE (SPM) ....................... 150 - 400
BED AREA ............(LR X FB)........... 42" X 34"
RAM AREA ............(LR X FB)........... 41-3/4" X 30"
BOLSTER AREA ........(LR X FB X THICK)... 42" X 34" X 4"
BED OPENING .........(LR X FB)............36" X 10"
WIDTH BET. POSTS ....(LR X FB)........... 42-1/2" X 20-1/2"
O.A.DIMENSIONS ......(LR X FB X HIGH).... 8' X 4'6" X 8'8" W/O MOTOR
EQUIPPED WITH: AIR CLUTCH
TIE ROD FRAME CONSTRUCTION

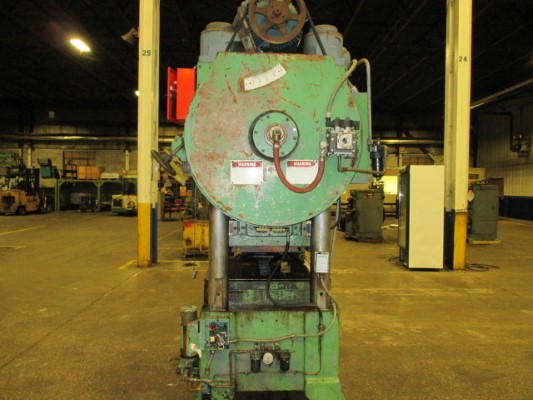

FLYWHEEL TYPE
DIRECT V-BELT MOTOR DRIVE
MAIN MOTOR - 7.5 HP 230V 3/60 865 RPM
SPEED ADJUSTABLE VIA DYNAMATIC #AF15100-0240
FREQUENCY CONTROLLER
HYDRAULIC PUMP - 2 HP 230-460v 3/60 1735 RPM
ALSO EQUIPPED WITH: A/ CONTROL CONSOLE
O.A. DIMENSIONS: 3'2" X 2'3" X 5'9" HIGH

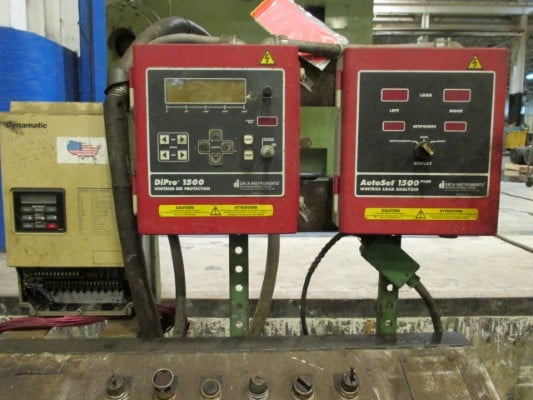

B/ DATA INSTRUMENTS,(WINTRISS CONTROLS GROUP) AUTOSET
1500 PLUS LOAD MONITOR, DIPRO 1500 DIE PROTECTION
UNIT, DATA INSTRUMENTS SHADOW V LIGHT CURTAIN.
C/ LINK LOGIC BNRAKE MONITOR
D/ VAMCO #TS6 ROLL FEED, 6" CAPACITY
E/ TRANS CON STEEL BELT CONVEYOR SN 90-60 WITH
1/2 HP 208/230/460V DRIVE 3 PH 60 CYC 1140 RPM
MOTOR (BUILT 7/90), ON WHEELS FOR PORTABILITY.
O.A. DIMENSIONS: 10'4" 2'2" X 6' HIGH
