6" x 6" x 1/2" Peddinghaus #Peddimax-110/140, Hydraulic Ironworker, 110 Ton punch, 20" throat, 22 SPM, 2" stroke

Product Description

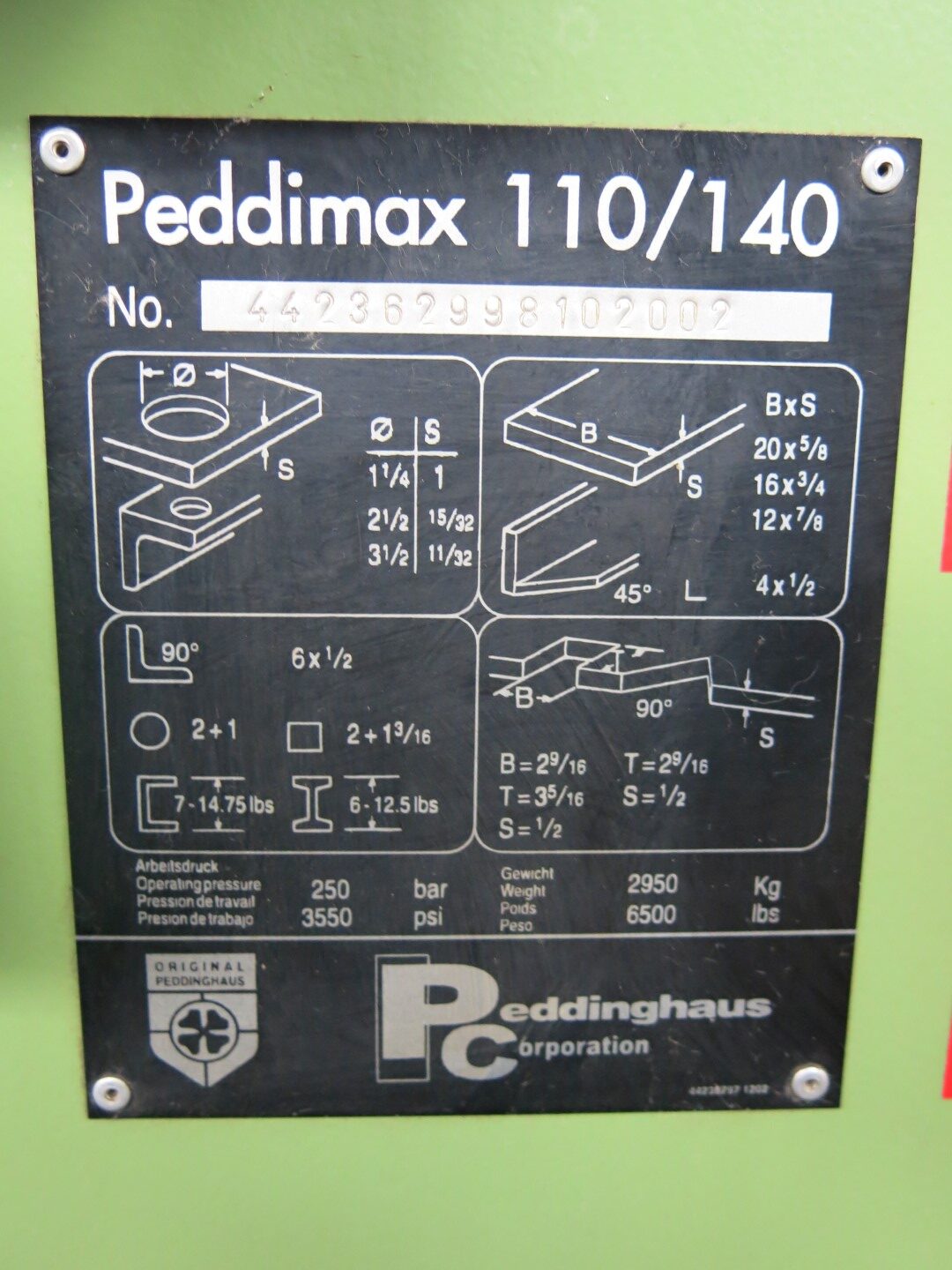

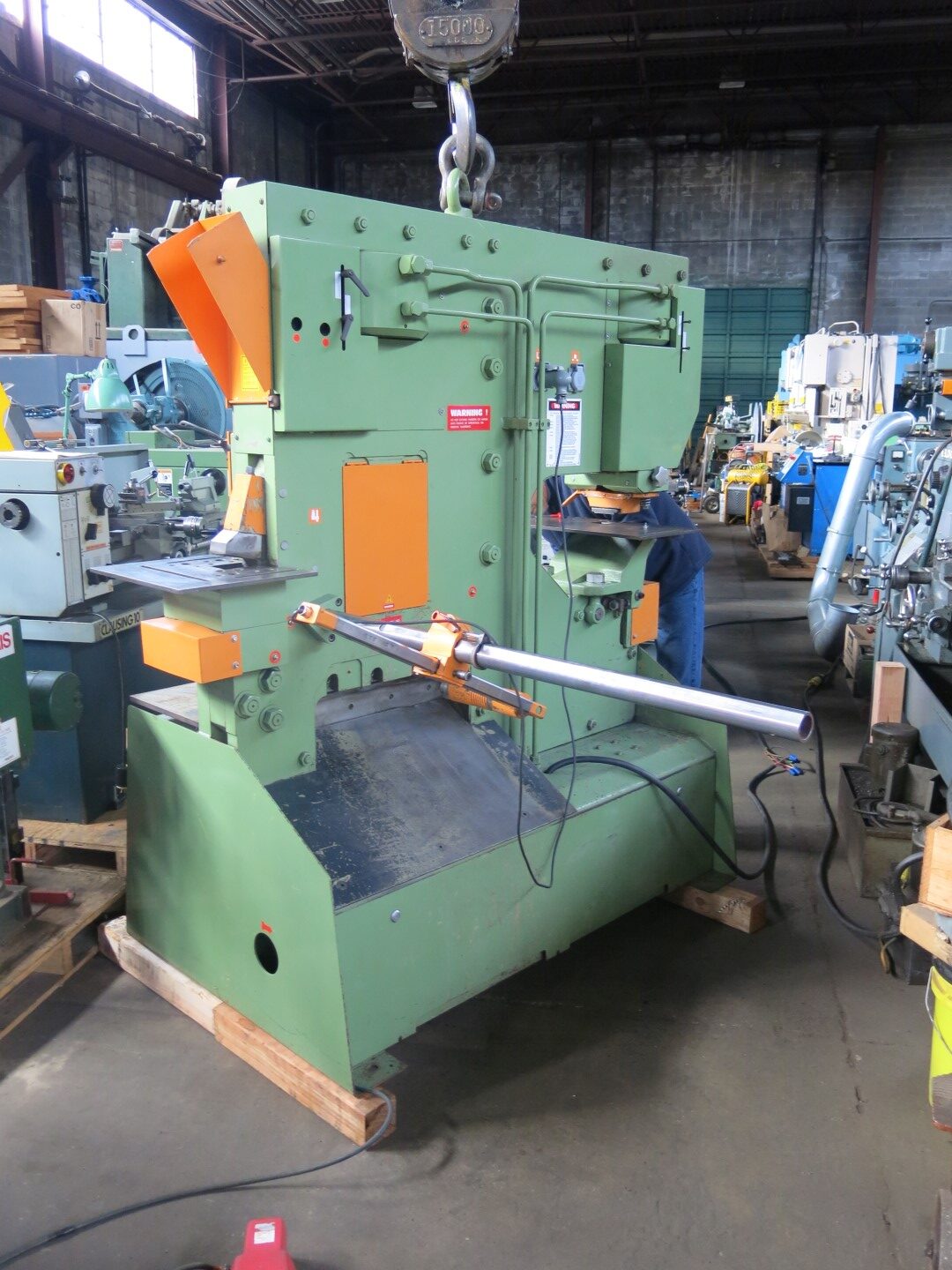

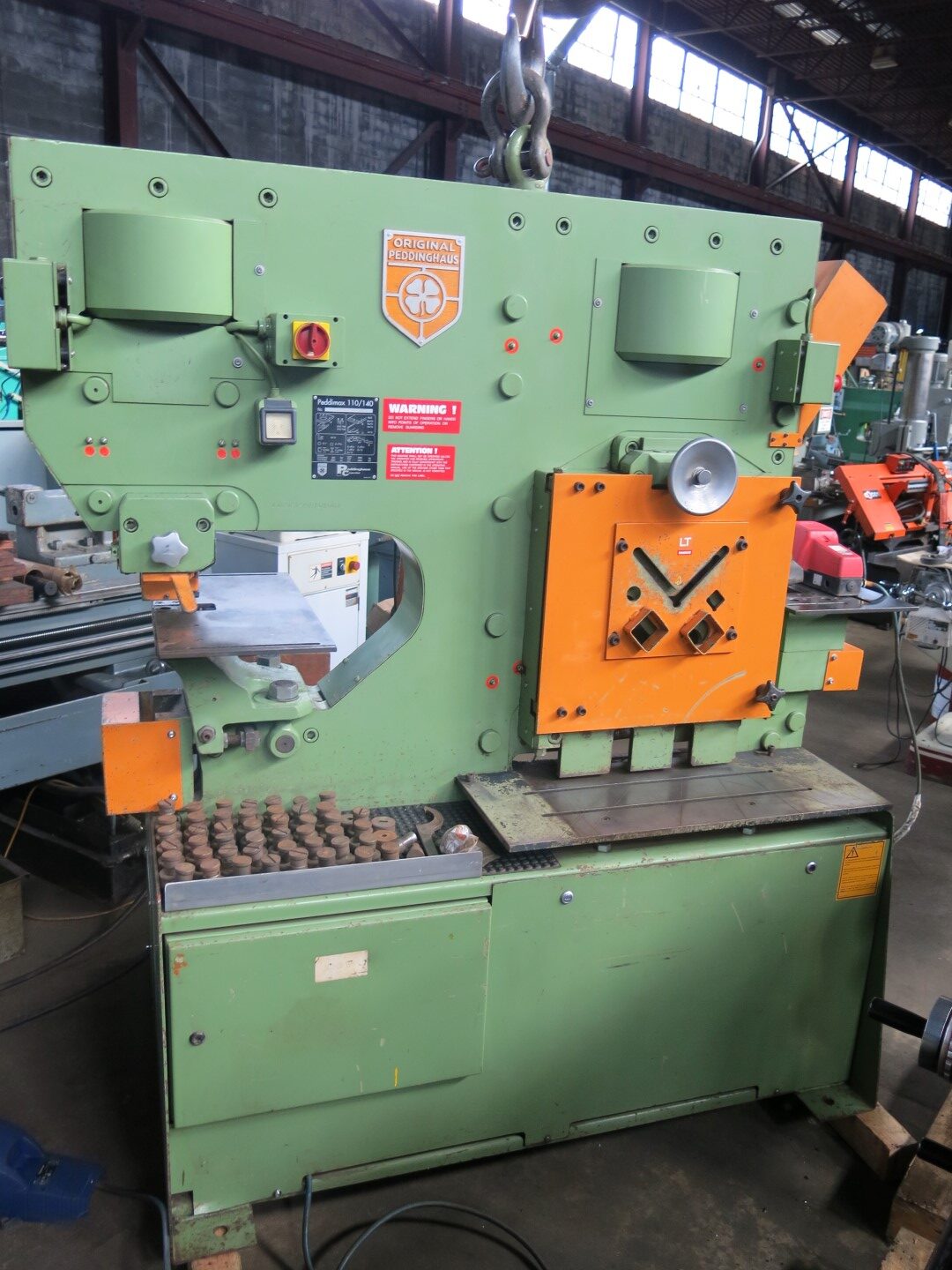

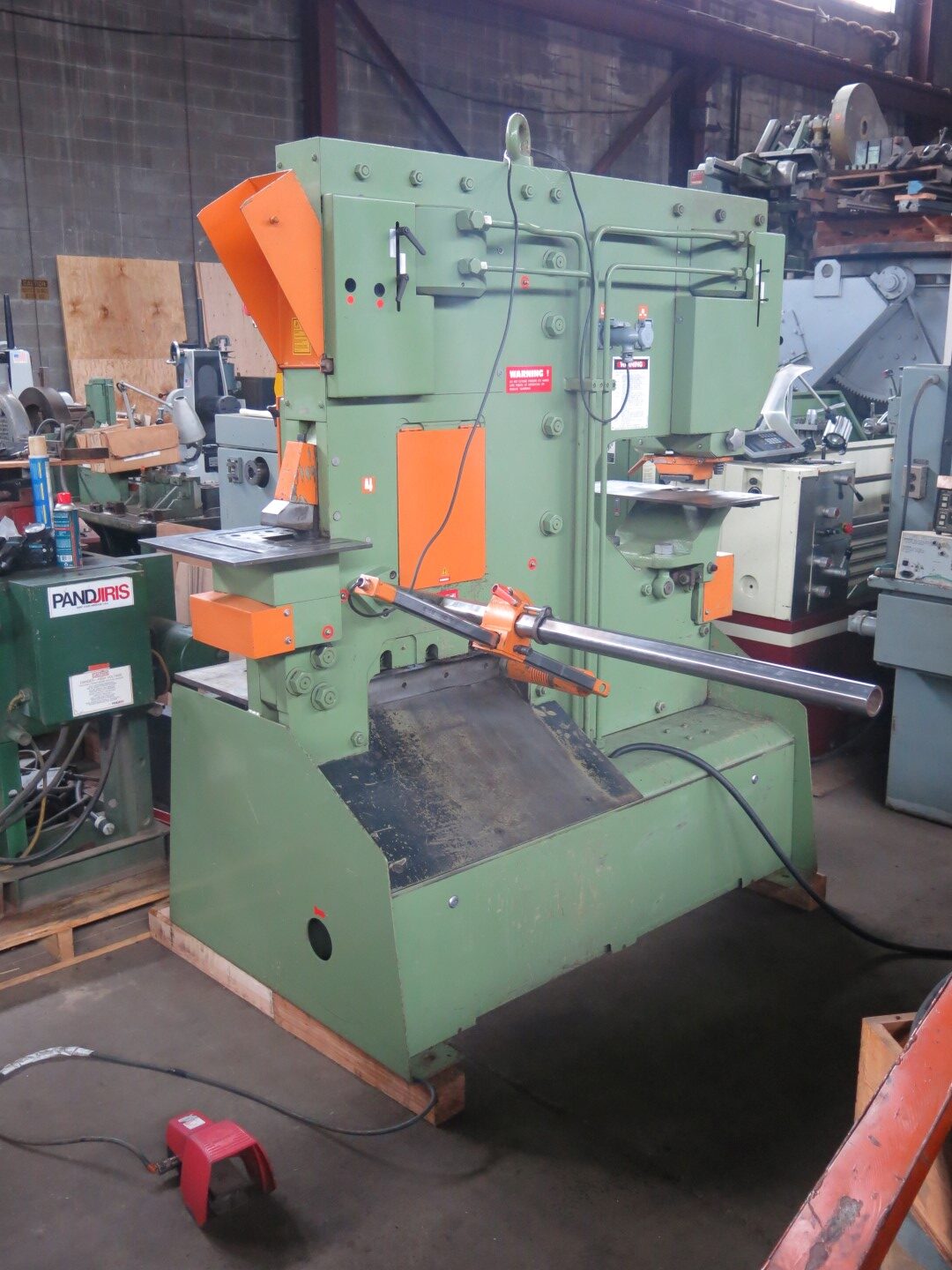

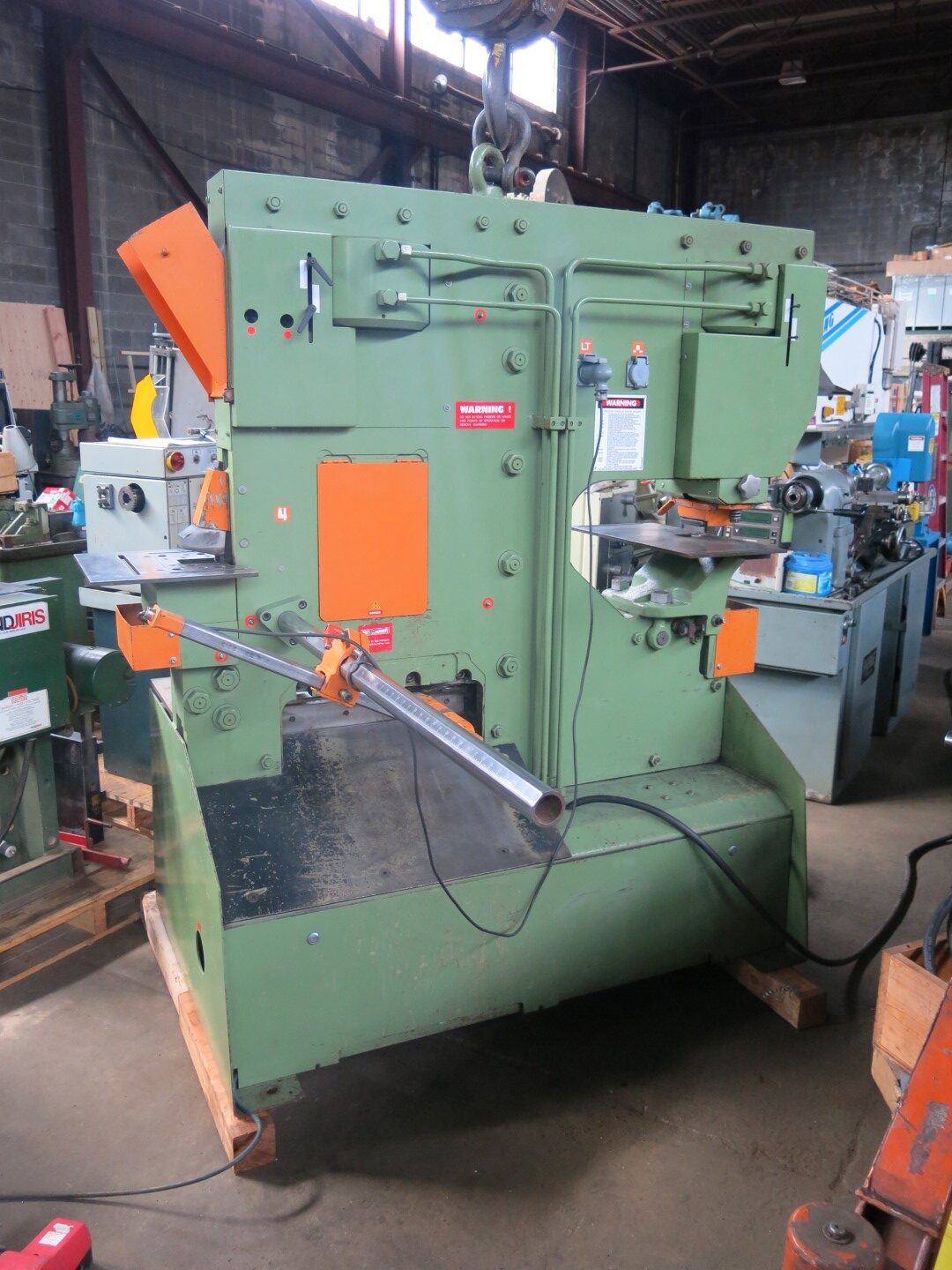

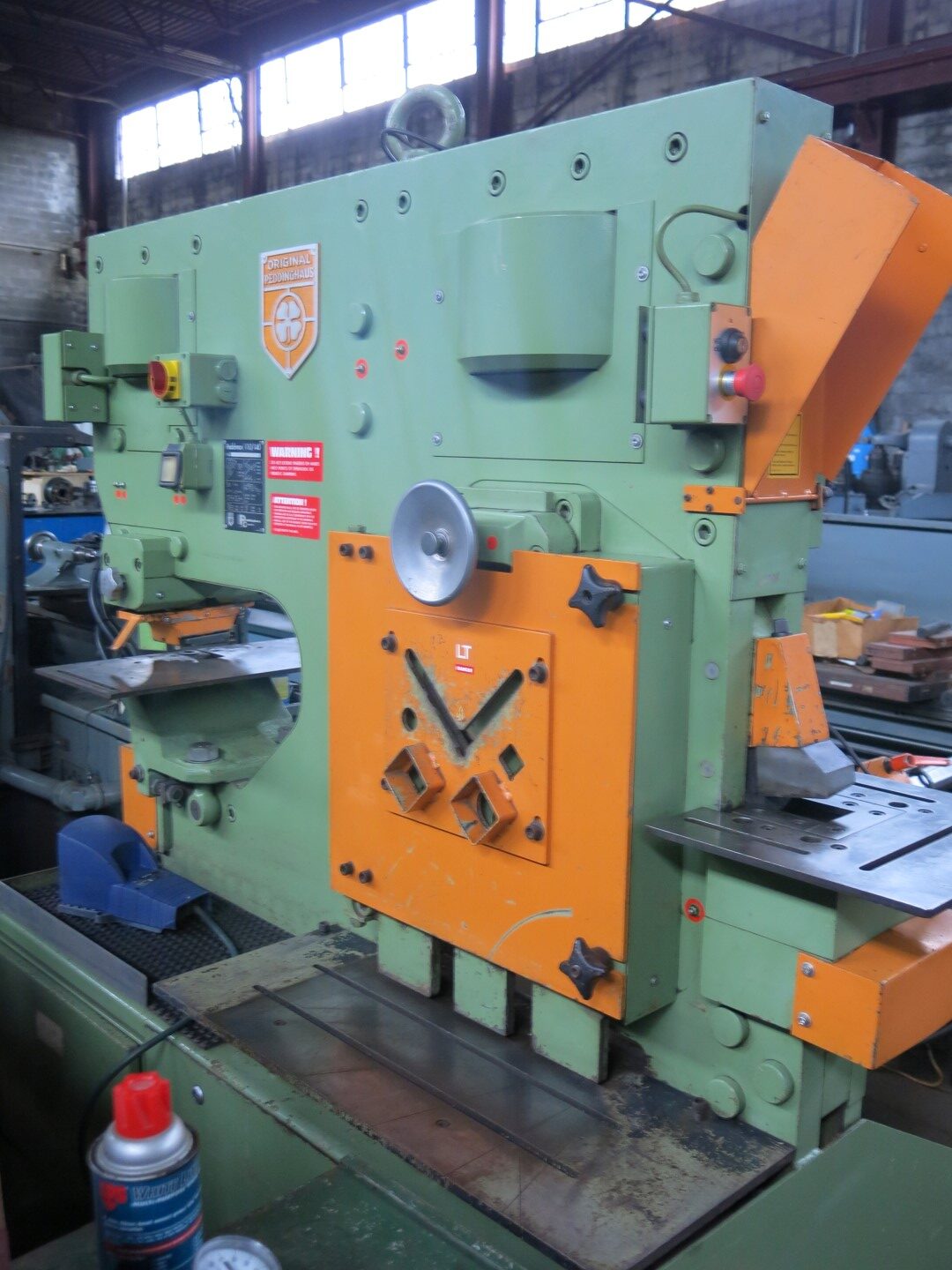

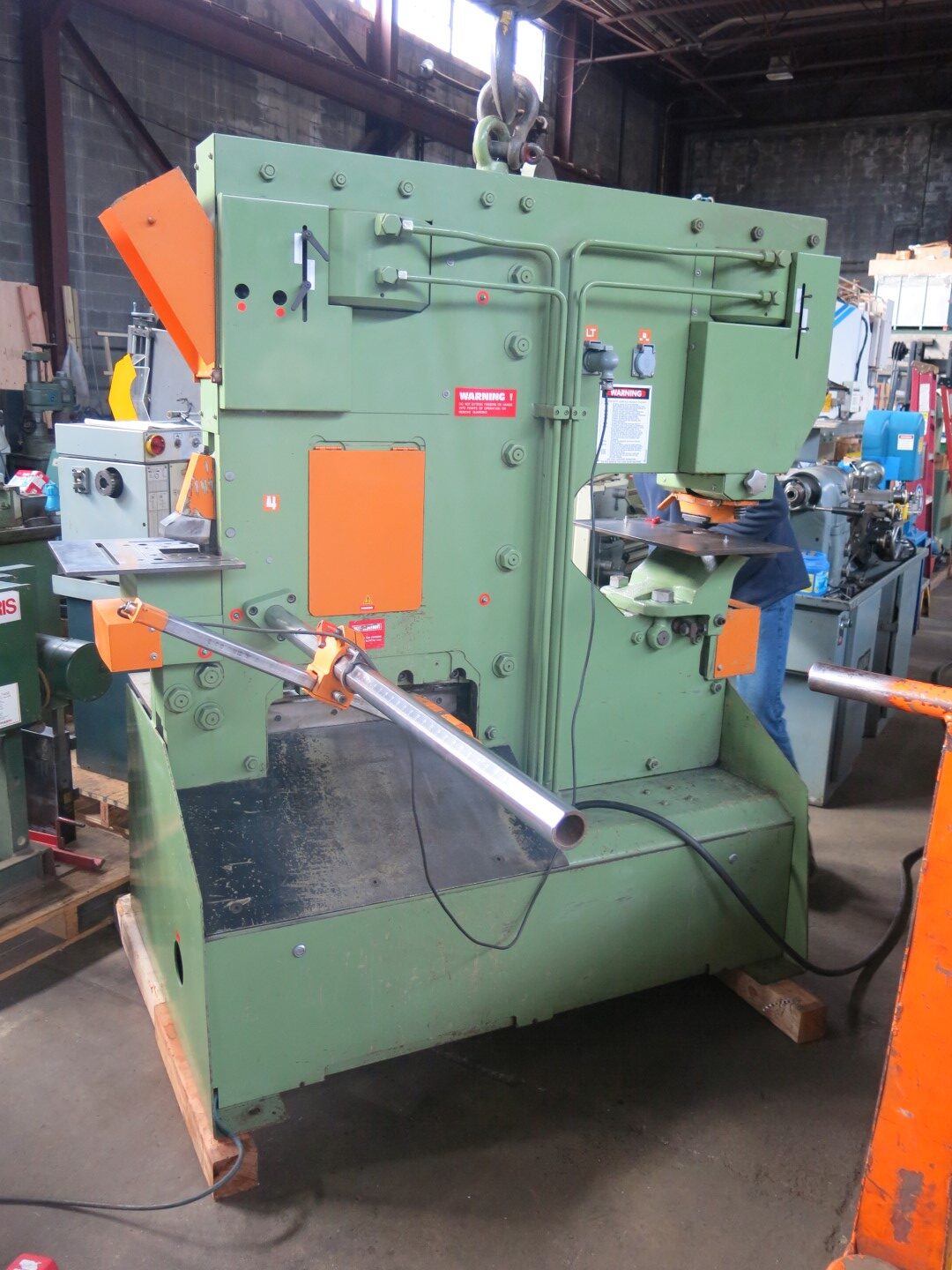

Peddinghaus Peddimax 110/140 Hydraulic Ironworker

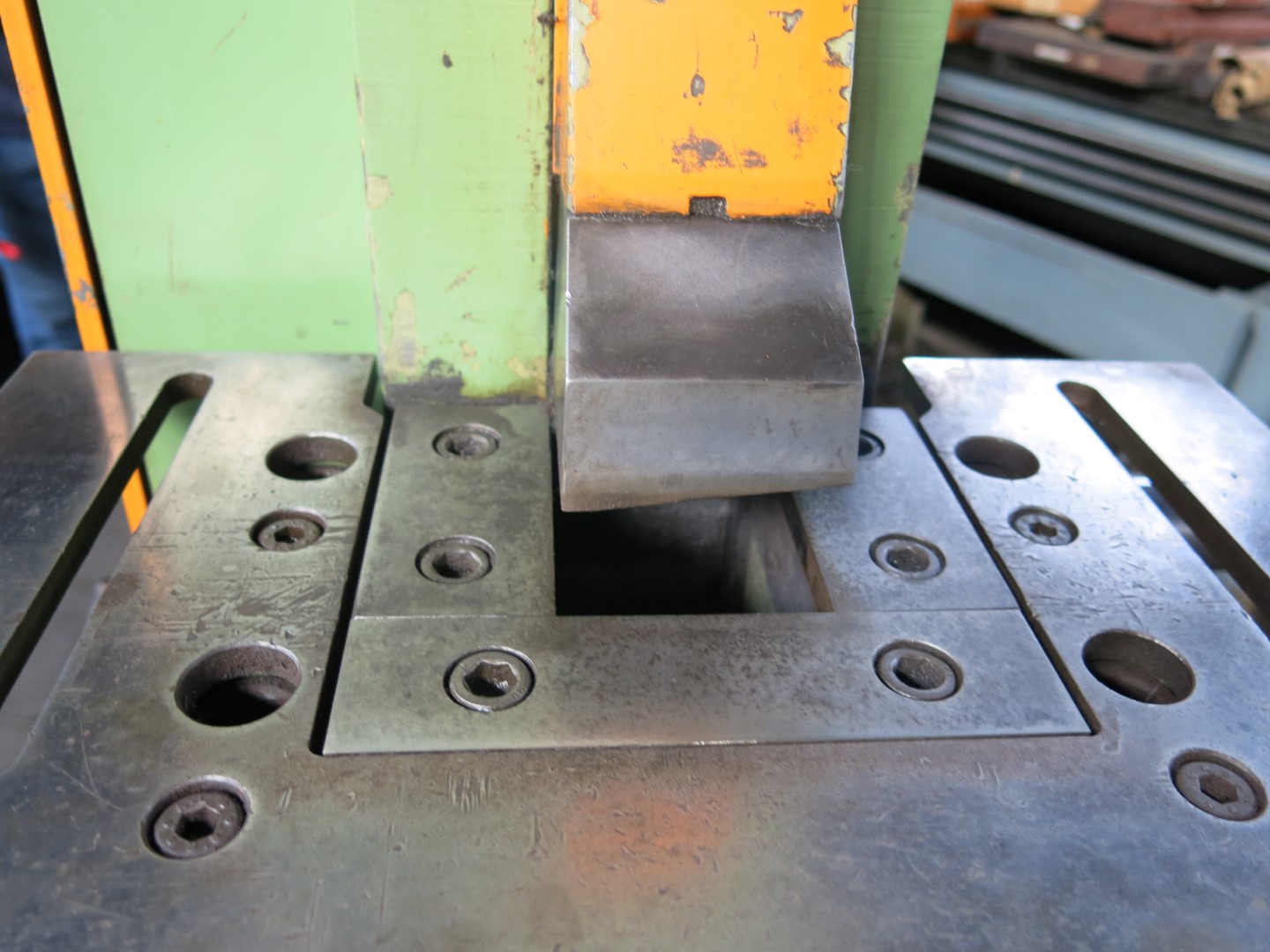

Punch Tonnage: 110 Ton
Punch Stroke: 3/8″ – 2″
Punch Capacity: 1.25″ x 1″
Punch Throat Depth: 20″
Punch Strokes Per Minute: 22

Shear Tonnage: 140 Ton
Flat Bar Shear Capacity: 20″ x 5/8″; 16″ x 3/4″; 12″ x 1″
Flat bar shear length: 20-1/4″
Flat bar shear working height: 28-3/8″

Angle shear capacity- 90 degree: 6″ x 6 ” x 1/2″
Angle shear capacity- 45 degree: 4″ x 4″ x 1/2″
Round bar capacity: 2″ and 1″
Square bar capacity: 2″ and 1-3/16″

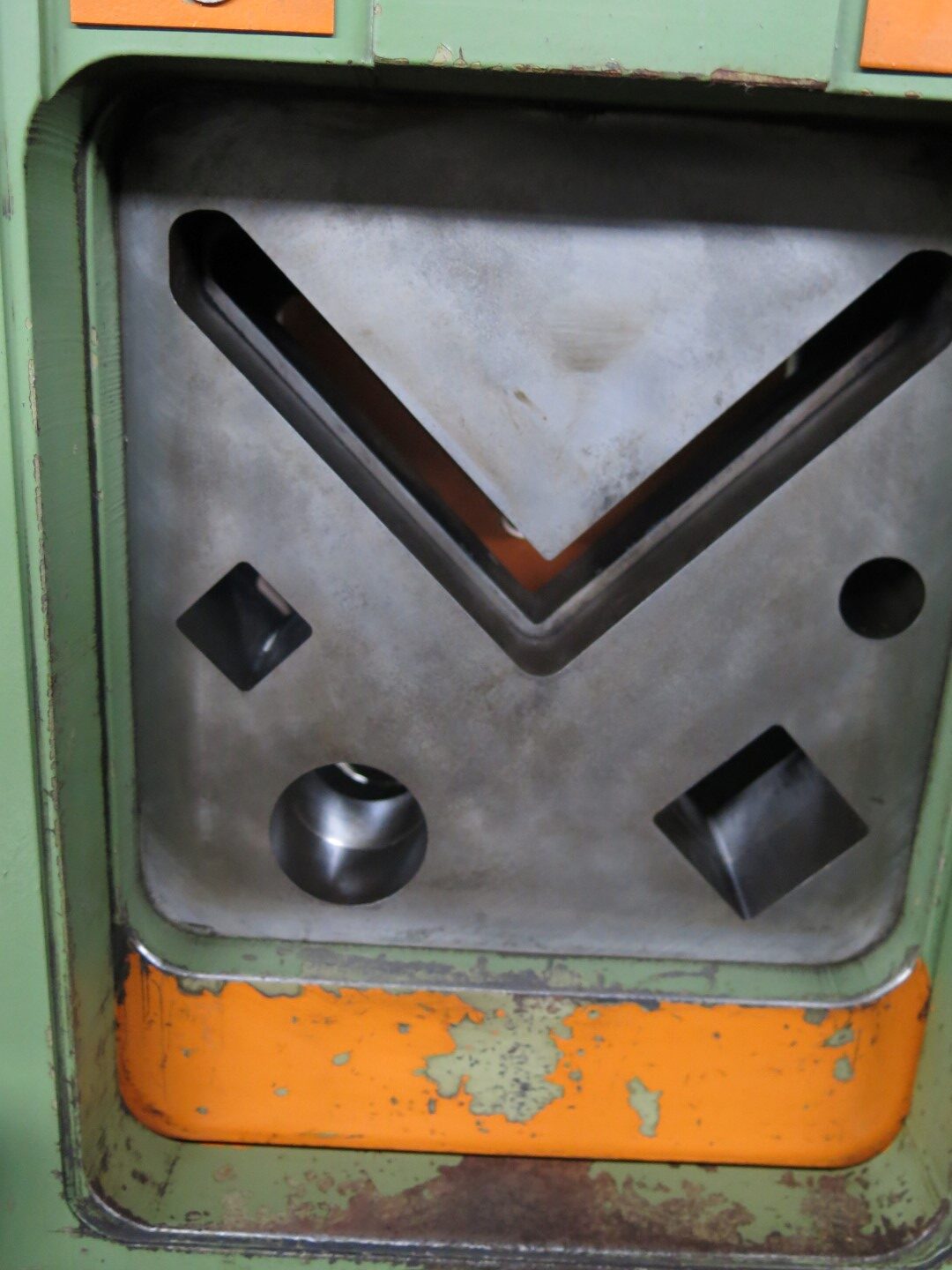

Notcher capacity, plate: 1/2″ square, 1/2″ triangular
Notcher capacity, angle: 3″ x 3/8″ square, 3″ x 3/8″ triangular
Notch width: 2-9/16″ square
Notch depth: 3-5/16″ square, 2-9/16″ triangular
Notch station working height: 45-1/2″ to center of blades
I-beams: 6″ H x 12.5 lbs
Flanges: 7″ H x 14.75 lbs

Oil capacity: 28 gallon
Motor: 10 HP
Volts: 230 / 460
Max Amperage: 30.8 / 15.4

Approx Machine Dimensions (l x w x h): 78″ x 41″ x 82″
Approx Machine Weight: 6,500 LB

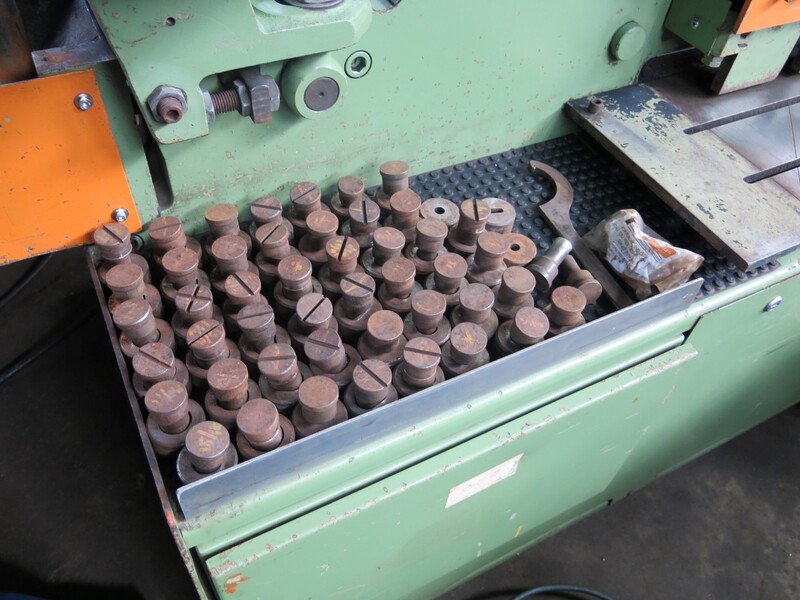

Comes with a nice selection of punches and wrench.

***ALL ORIGINAL PAINT- MACHINE DID NOT SEE MUCH USE***
