For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Andrew Valitt
973-49...> Show Seller's Phone Number 973-497-7600 Let the seller know you found their listing on Surplus Record!
Description

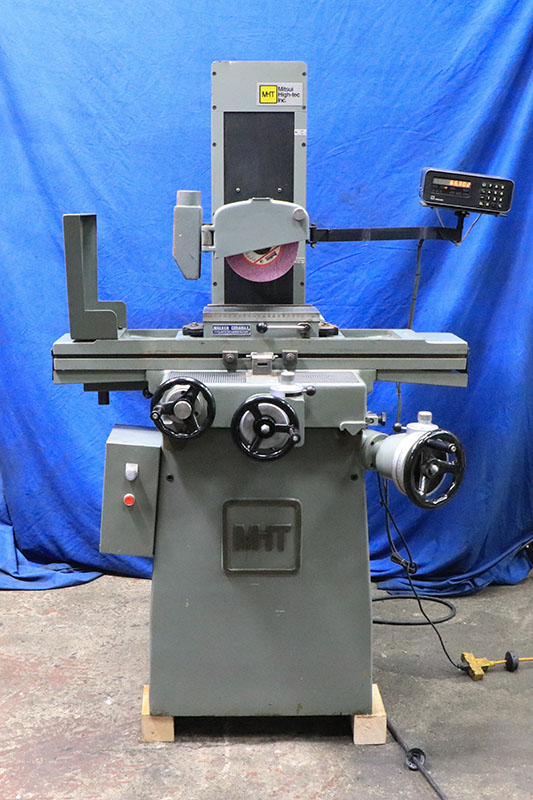

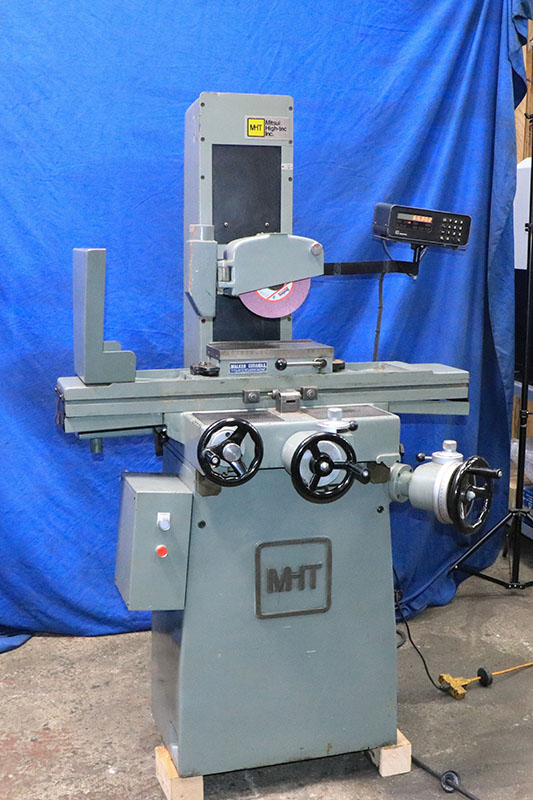

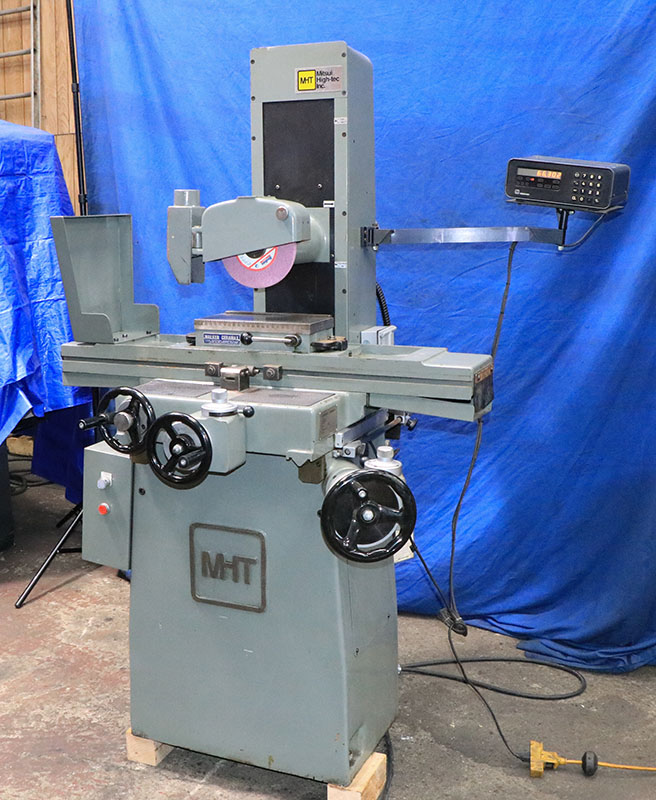

6" X 12" MITSUI…"HIGH-PRECISION"
(MADE IN JAPAN)
HAND FEED SURFACE GRINDER
w/ROLLER BEARING TABLE
** FINE FEEDS FOR CROSS& VERTICAL AXES
(.000050" GRAD.)
** DIGITAL READOUT DISPLAY **
MODEL: MSG-200MH… S/N:91067509… NEW:
WIDTH& LENGTH GROUND ..................... 6" x 12"
TABLE TO SPINDLE CENTER .................. 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ... 11"
LONGITUDINAL TABLE TRAVEL ................ 15"
CROSS TRAVEL ............................. 8"

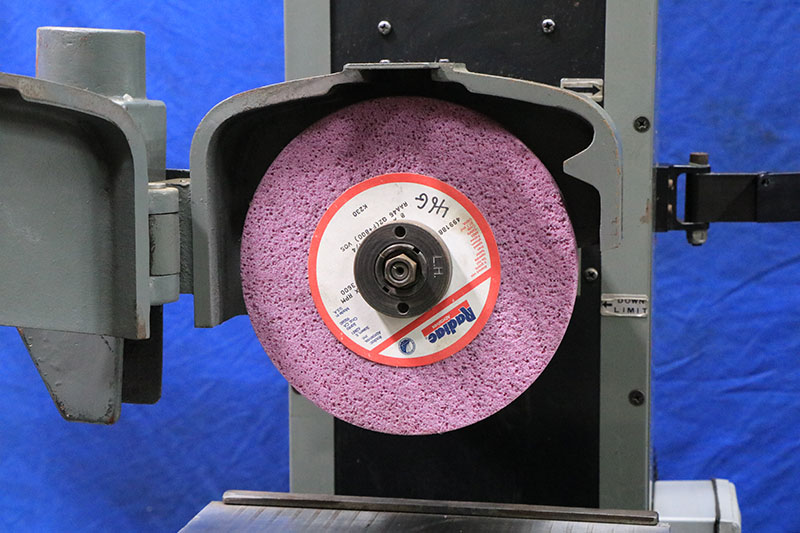

GRINDING WHEEL CAPACITY .......... 8" x″/4" x 1-1/4"
CROSS FEED PER REV. OF HANDWHEEL
(.001" GRAD.) .......................... 0.100"
VERTICAL FEED PER REV. OF HANDWHEEL
(.0001" GRAD.) ......................... 0.0500"
FINE FEED SYSTEM FOR CROSS FEED,
GRAD. TO ............................... 0.00005"
FINE FEED SYSTEM FOR VERT. FEED,
GRAD. TO ............................... 0.00005"
APPROX. WEIGHT ........................... 1,500 LBS.
APPROX. DIMENSIONS ................ 58" x 46" x 71"H
EQUIPPED WITH:

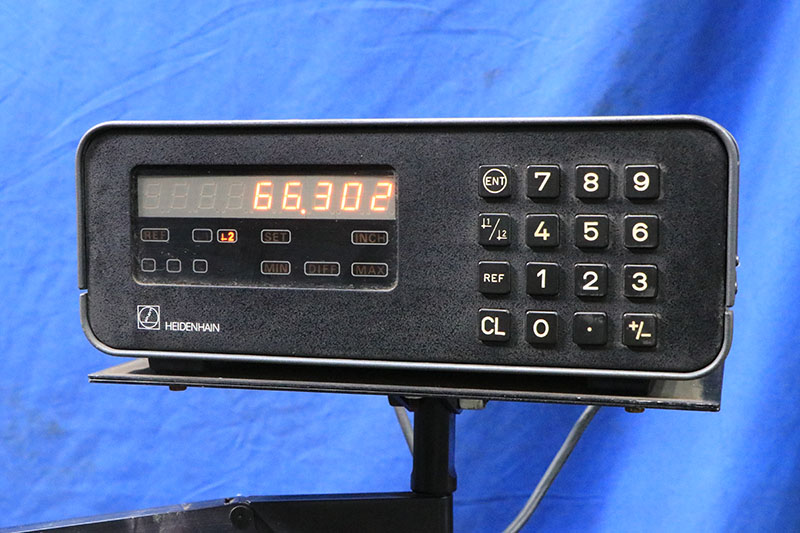

"HEIDENHAIN" 1-AXIS DIGITAL READOUT DISPLAY
FINE FEED OPTIONS FOR BOTH CROSS& VERTICAL AXES,
0.000050" GRADUATION ON DIALS
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...
DRIVEN BY CABLE SYSTEM
HARDENED… REPLACEABLE STEEL WAYS ON TABLE,
CARRIAGE/SADDLE… COLUMN
CROSS FEED HANDWHEEL (.0001" VERNIER)
PRECISION CARTRIDGE SPINDLE DESIGN
1-1/3 HP SPINDLE MOTOR
AUTOMATIC LUBRICATION SYSTEM

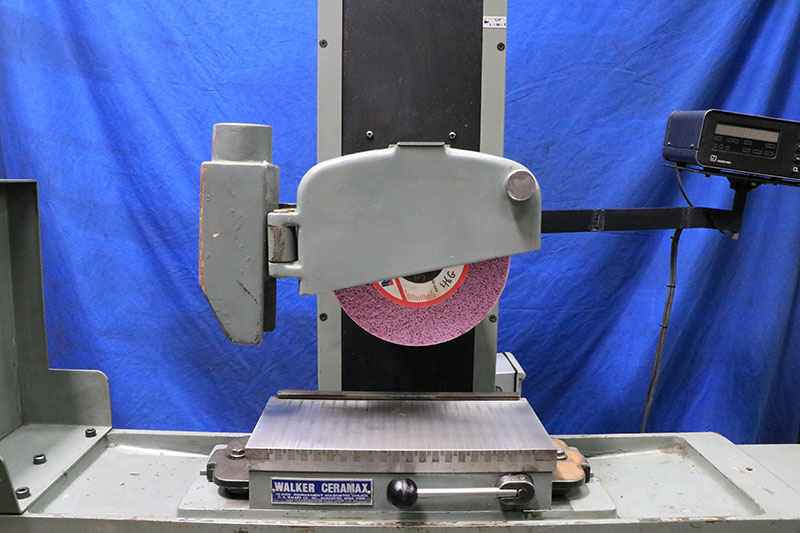

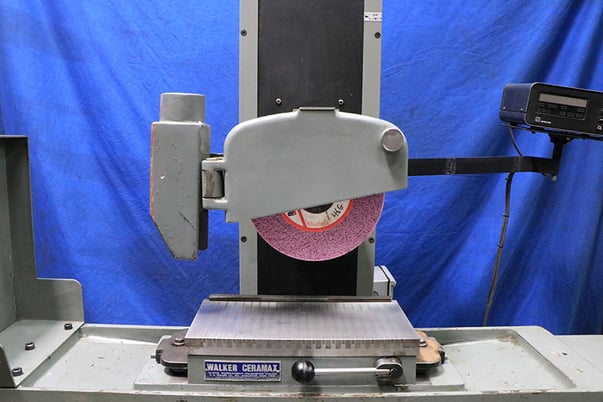

6" X 12"…"O.S. WALKER"…"CERAMAX" FINE-DIVISION
PERMANENT MAGNETIC CHUCK
MACHINE IS WIRED FOR″/60/220 VOLT ELECTRICS
Link to video: https://youtu.be/SLPpbzz8OvM?si=IWfASl7_N8n4VIvY
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
** JUST BEAUTIFUL - ORIGINAL PAINT **
** EXCELLENT CONDITION& APPEARANCE **
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed …
JUST ADDED!

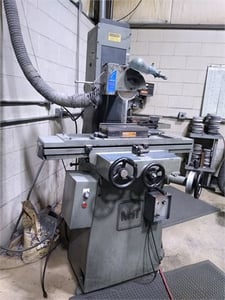

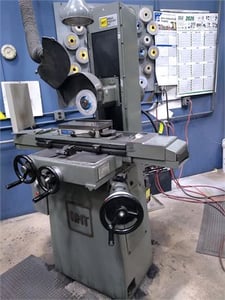

6" x 12" Mitsui MHT #MSG-200MH, surface grinder, 8" x 3/4" x 1-1/4" wheel
