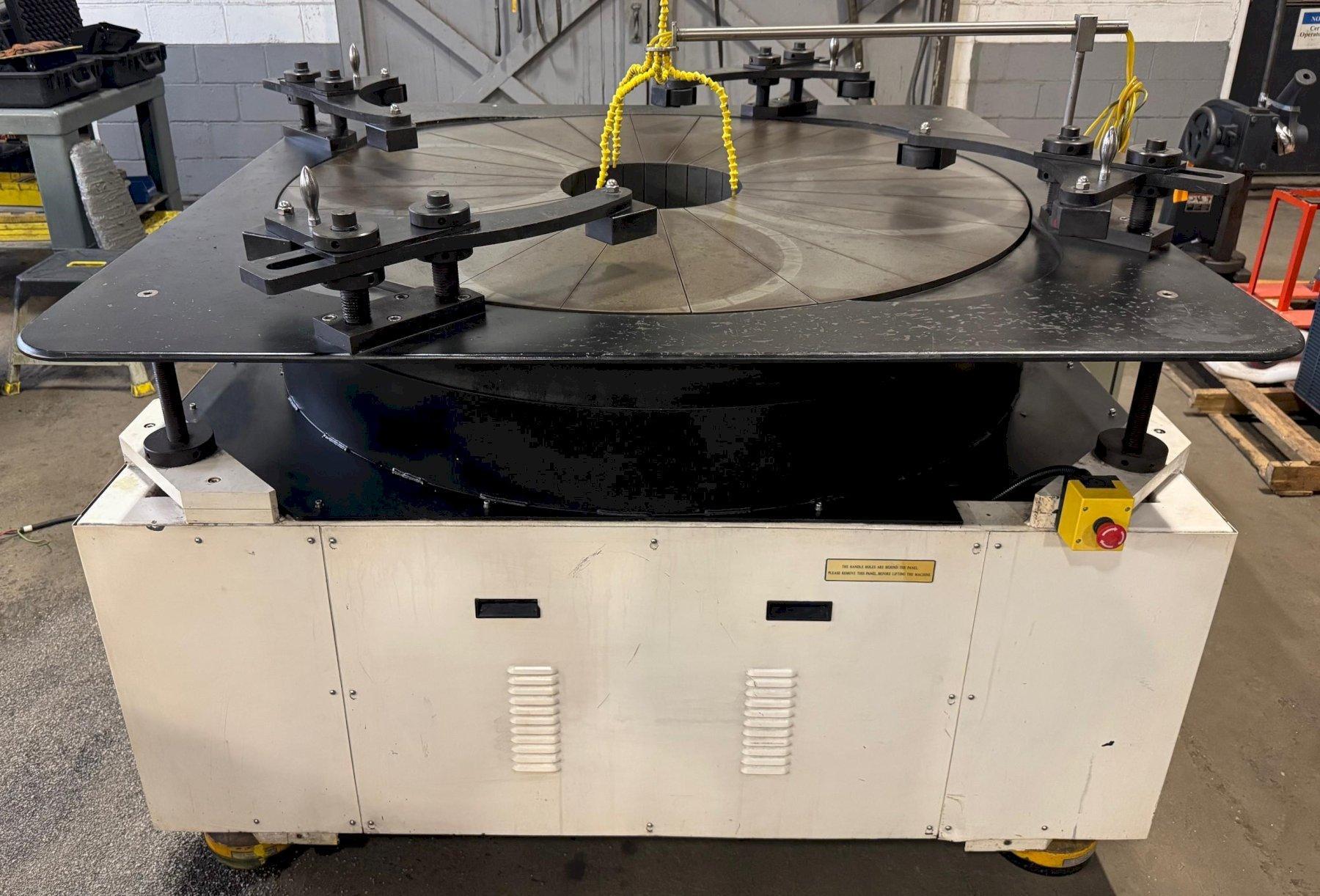

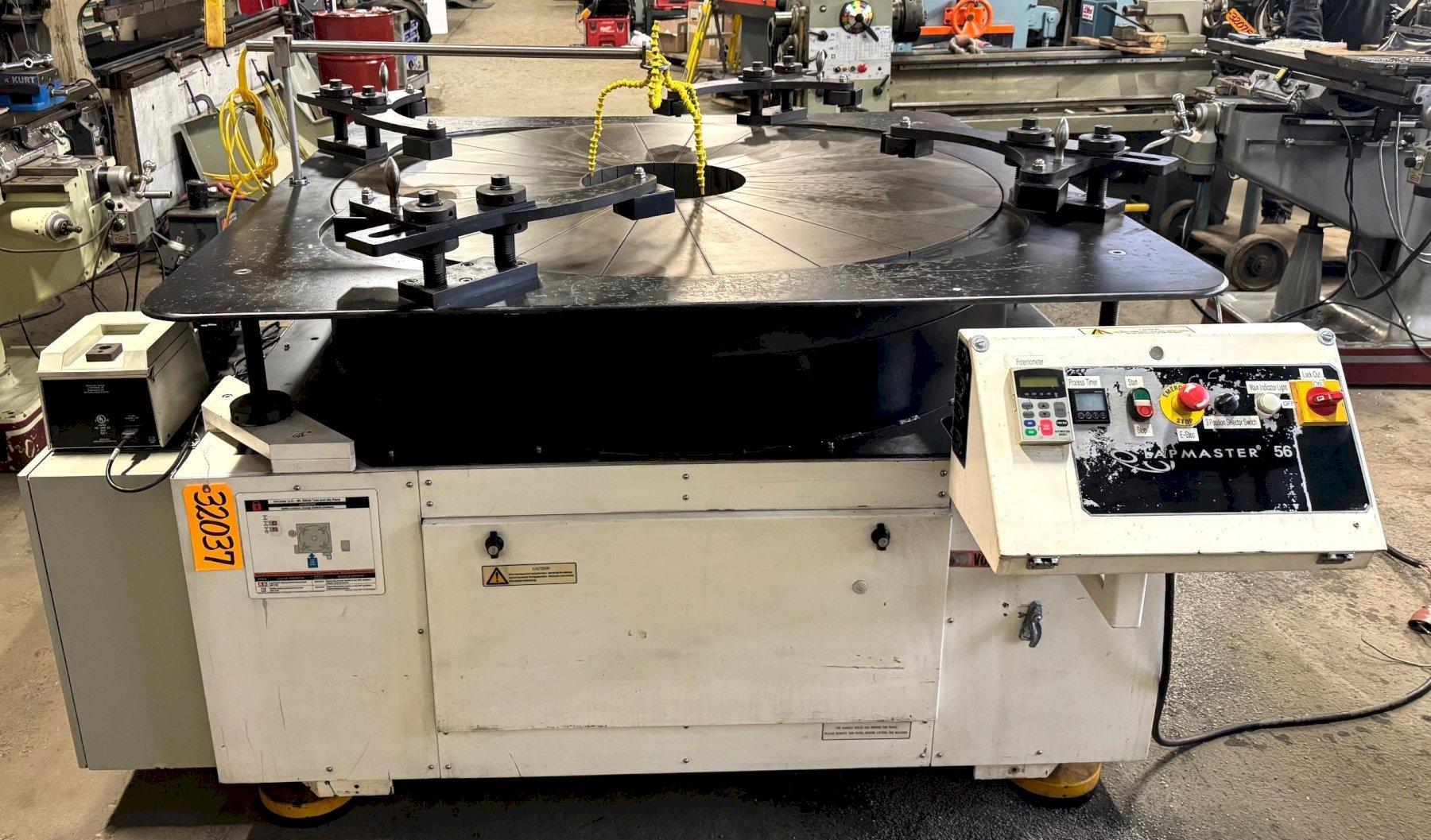

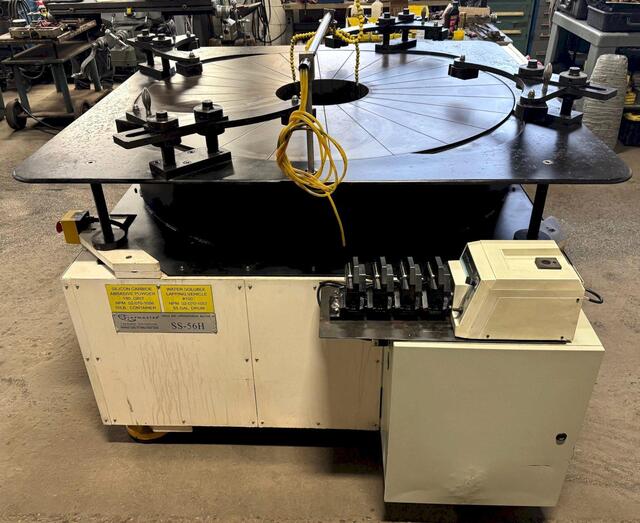

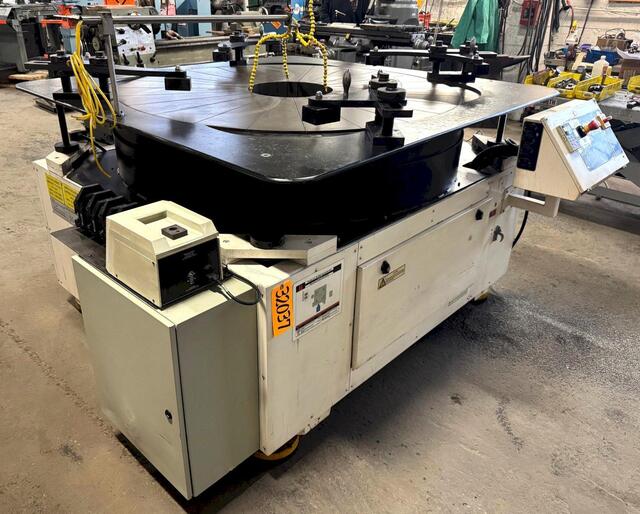

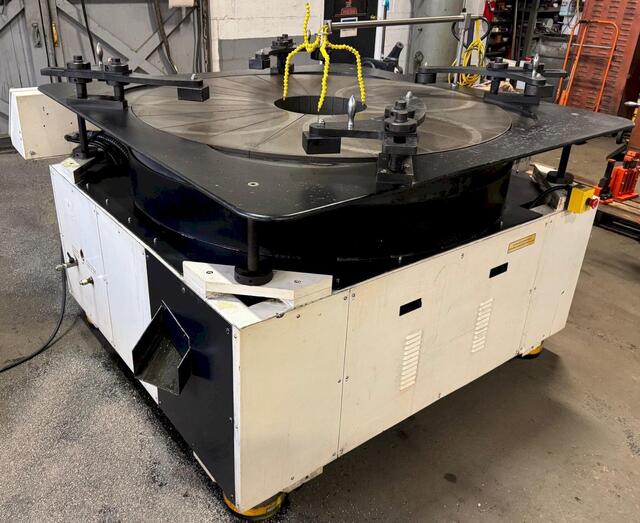

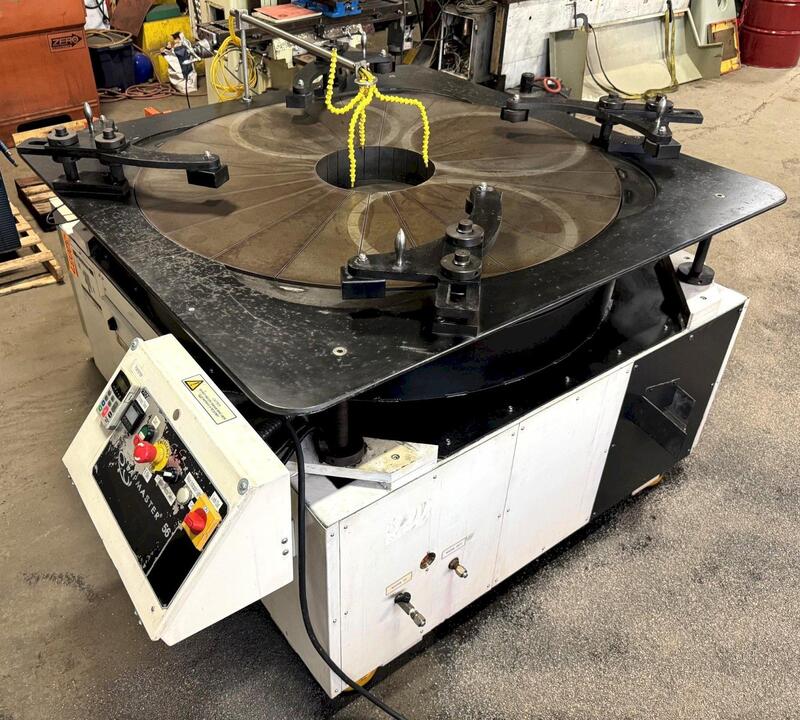

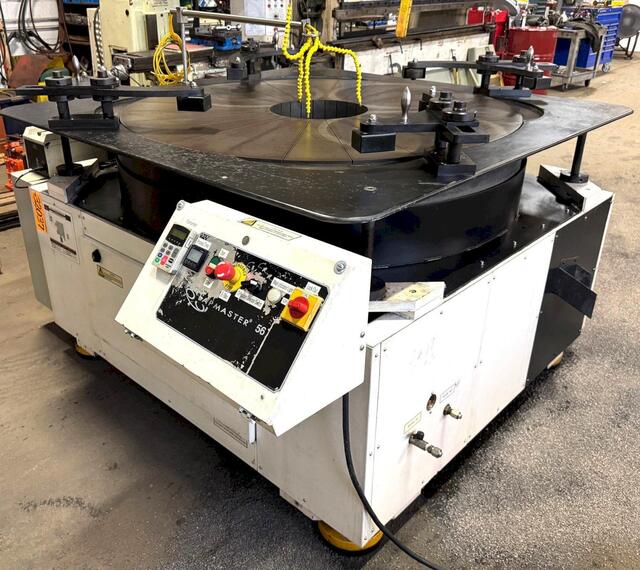

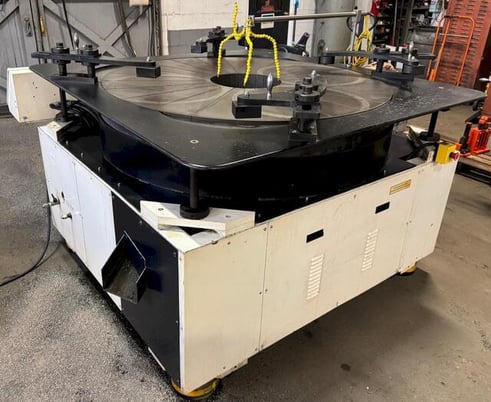

56" Lapmaster #SS-56H, Lapping Machine, (4) Rings Open Face, V-Speed, 2011

LAPMASTER PRECISION LAPPING MACHINE

MODEL: SS-56H
SERIAL NUMBER : SH56H10001 Year: 2011

GENERAL SPECIFICATIONS

Four Ring Style Open Face Machine
Heavy Duty Floor Standing Base
For Production Parts Up To: 20-3/4" Diameter
Lapping Plate Diameter: 56" O.D. x 14-1/2" I.D.
Conditioning Ring Size: 23" O.D. x 20.8" I.D.
Lap Plate Speed, Variable, Approximately: 0 to 70 RPM

EQUIPPED WITH

15 HP Main Drive Motor

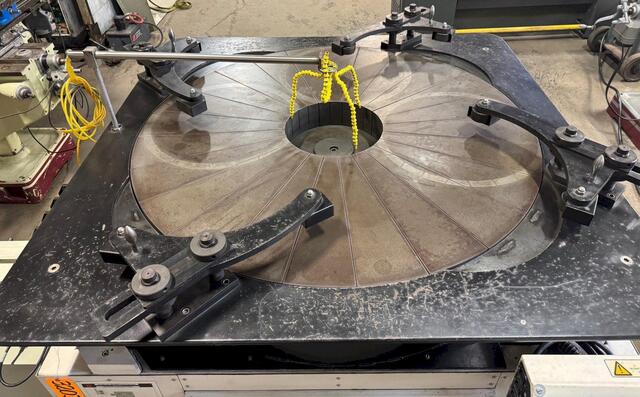

56" Diameter Cast Iron Segmented Lapping Plate (4-1/2" Thick)
(4) Cast Iron Slotted Conditioning Rings (6" High)
(4) Adjustable Ring Roller Guides (Yokes)
Peristaltic Slurry Pump w/Four Way Slurry Feeder
Graymills Slurry Pump and Tank Unit
Overhead Four-Way Slurry Distributor

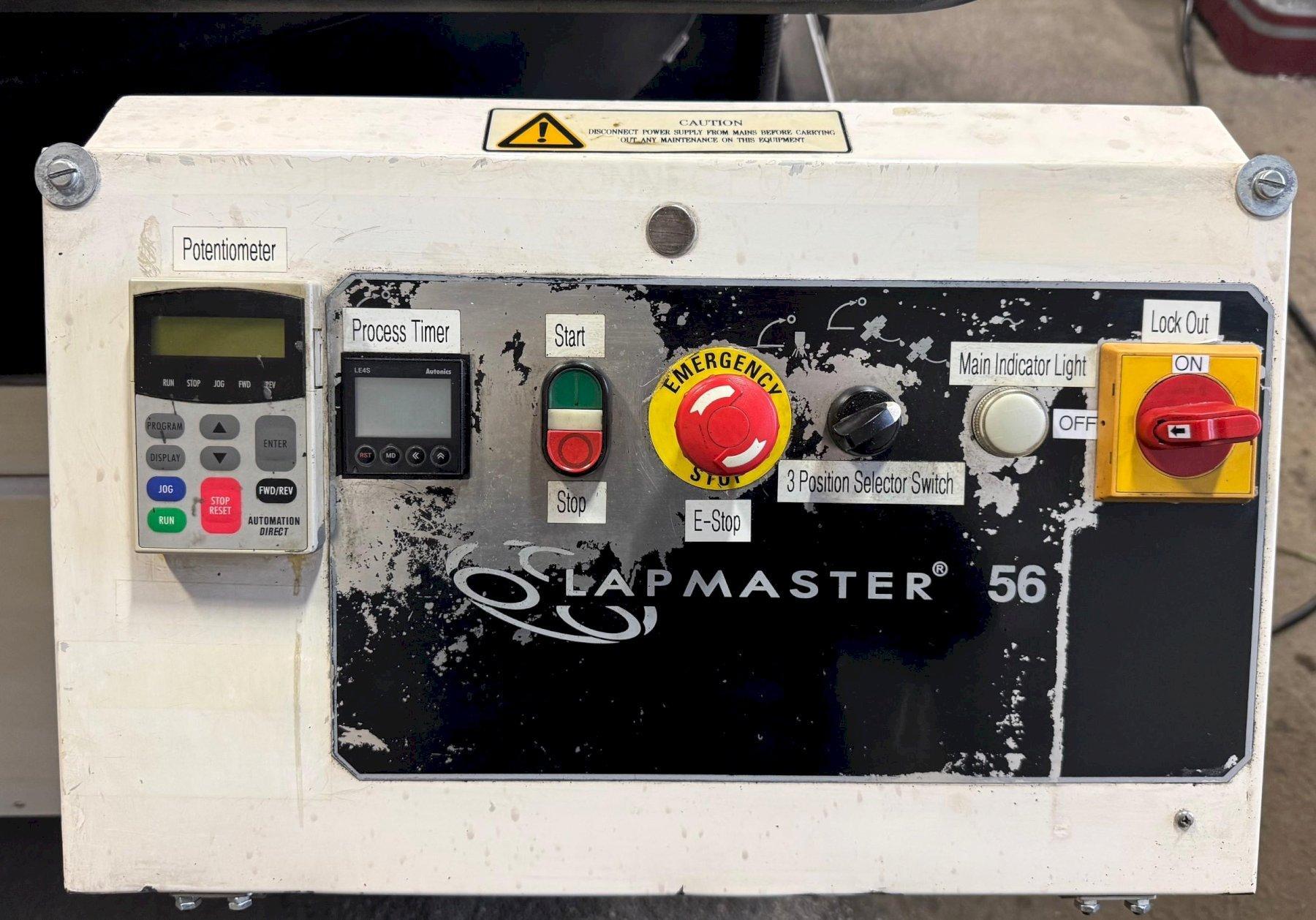

Automatic Cycle Timer Control
Variable Speed Control
Outside Parts Loading Table
Inlet & Outlet Connections For Water Cooling Of Lap Plate
(4) Additional Used Conditioning Rings (4" High)
User's Manual

Approximate Machine Dimensions: 86" x 81" x 66"H
Approximate Machine Weight: 9500 Lbs.

New price today as equipped approximately $160,000.00 with a minimum leas time of 18 to 20 weeks.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
