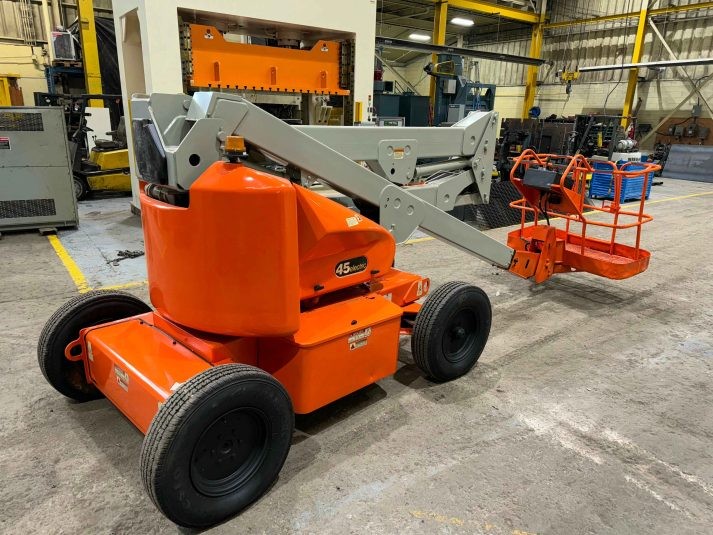

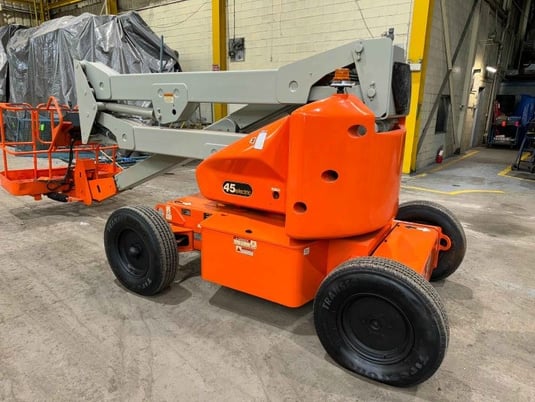

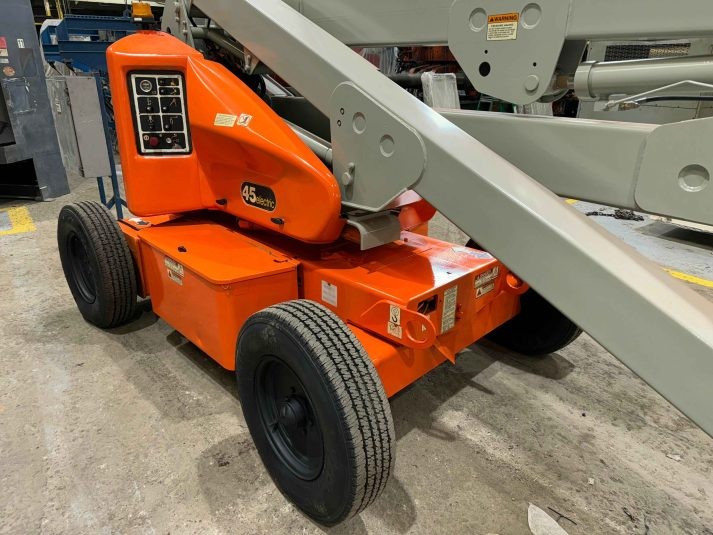

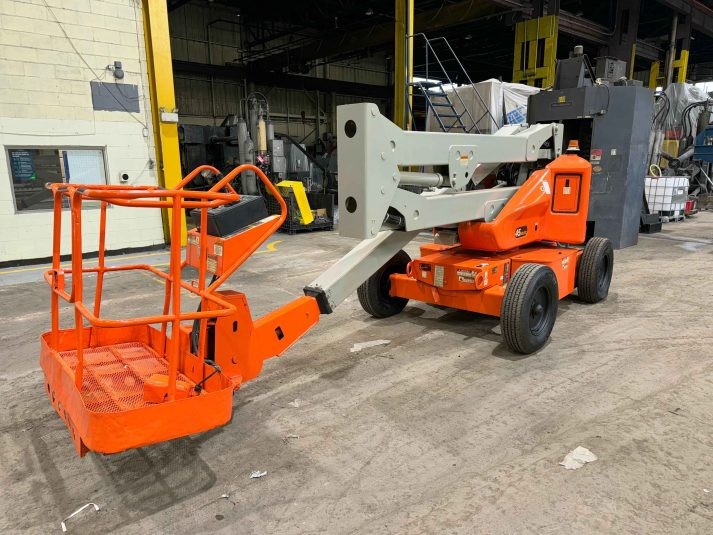

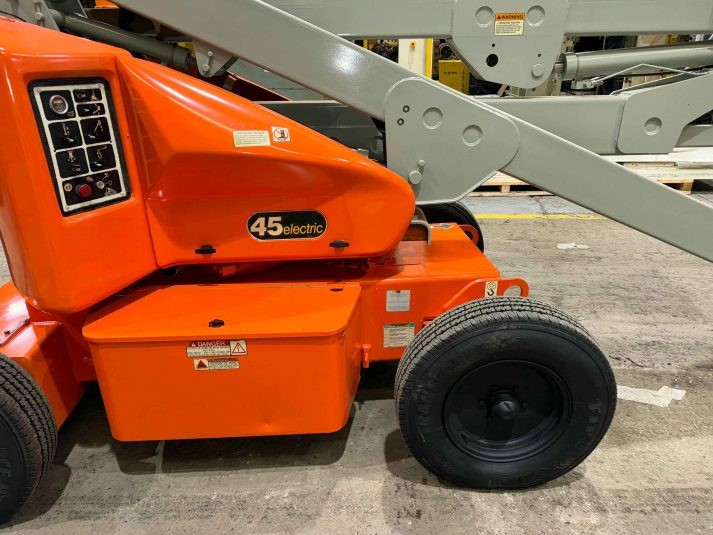

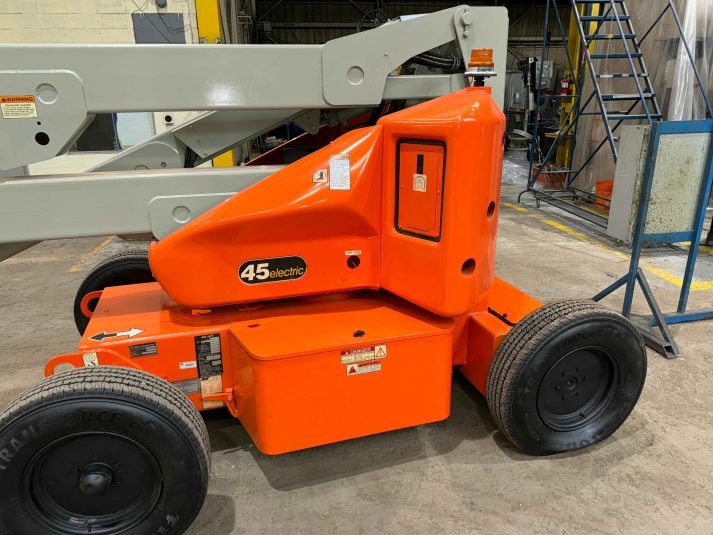

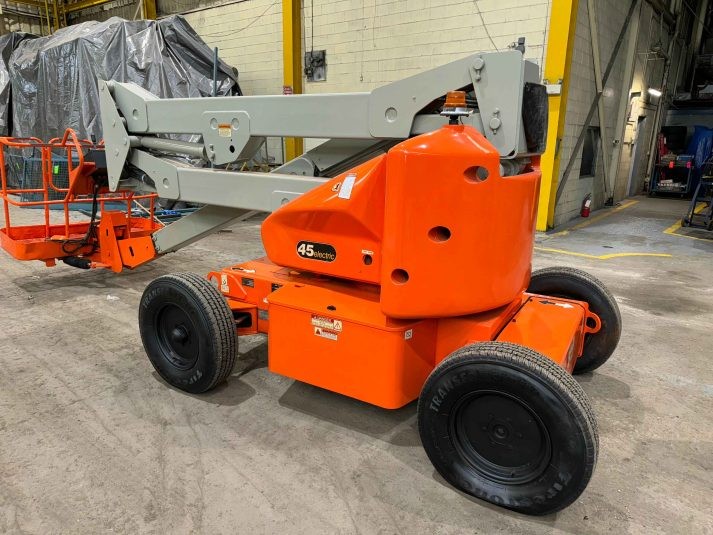

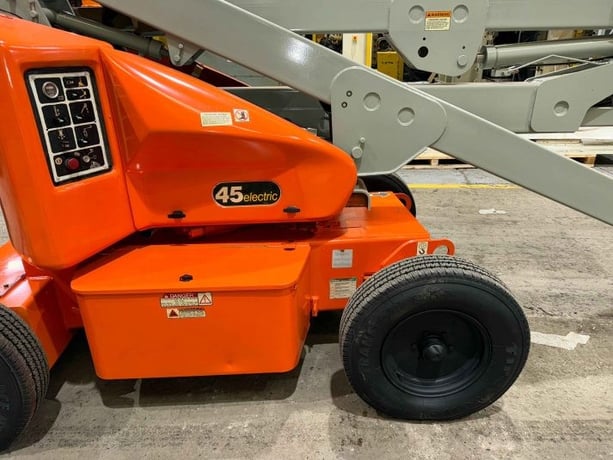

500 lb. JLG #45Electric, Electric Boom Lift, 45' Platform Height

Power Source

Batteries : 8 x 6V, 370 A-h
Electrical System: 48 Volts DC

Performance

Drive Speed - Platform Lowered: 3.2 mph / 5.15 km/h
Gradeability - 2WD: 30 %
Platform Capacity: 500 lb / 226.80 kg
Platform Capacity - Unrestricted: 500 lb / 226.80 kg
Swing: 360 Degrees
Swing Type: Non-Continuous
Turning Radius - Outside 10 ft 4 in. / 3.15 m
Jib - Range of Articulation: 141 Degrees

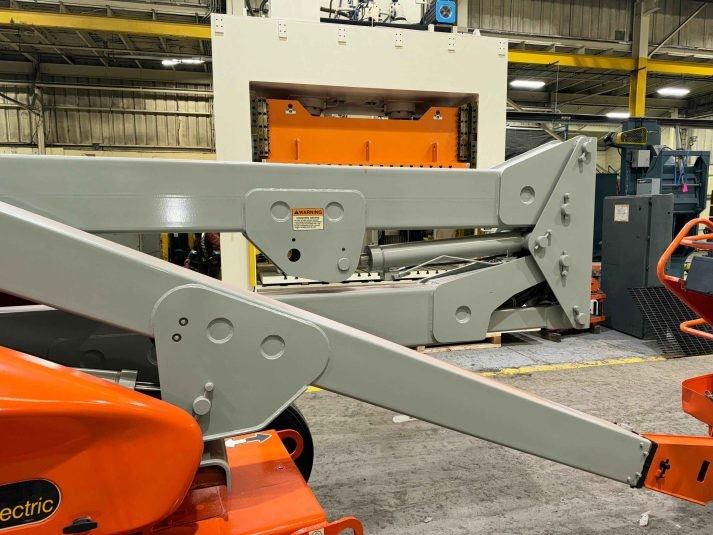

Reach Specifications:

Horizontal Jib Rotation: 0 Degrees
Horizontal Outreach: 23 ft 9 in. / 7.24 m
Platform Height: 45 ft / 13.72 m
Up and Over Height: 25 ft 3 in. / 7.7 m

General:
Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L Machine Weight: 14400 lb / 6531.73 kgMaximum Ground Bearing Pressure: 110 psi / 7.70 Kg/cm2

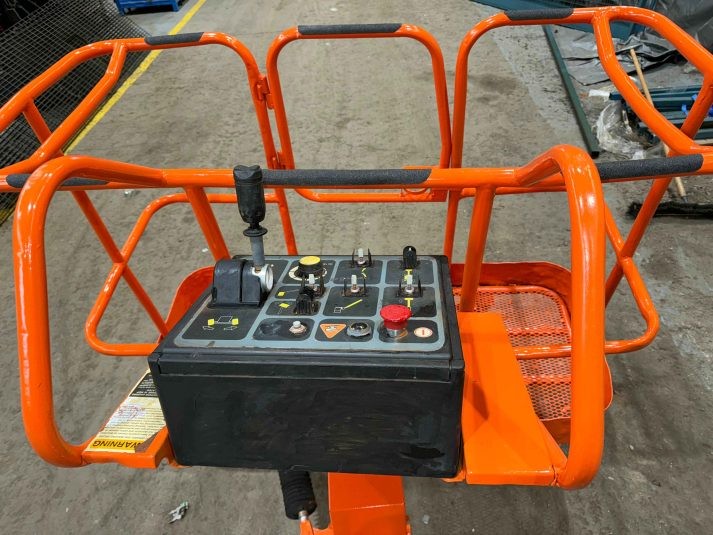

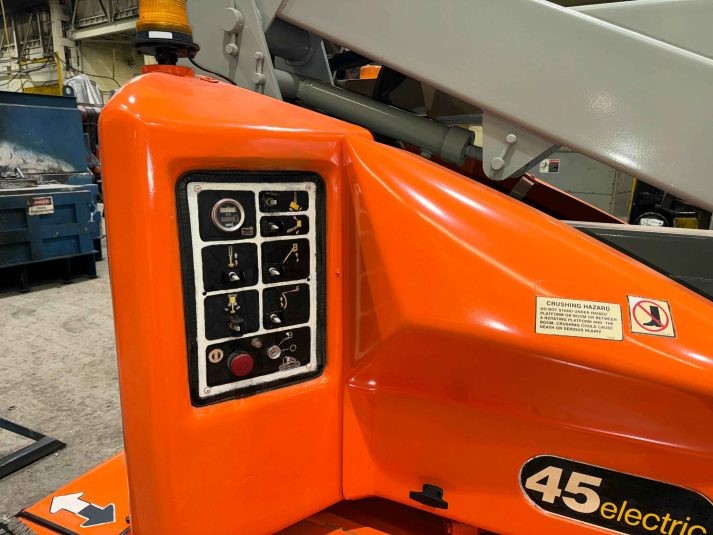

Control

Platform Height: 45 ft / 13.72 m

Machine Width: 5 ft 9 in. / 1.75 m

Platform Capacity - Unrestricted: 500 lb / 226.80 kg
