50 Ton, Dake #19-175, moveable frame press, 30" x72" table, 8-1/2" head travel, #13137

Description

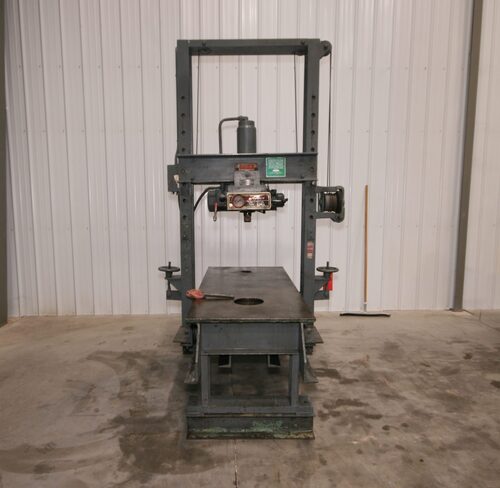

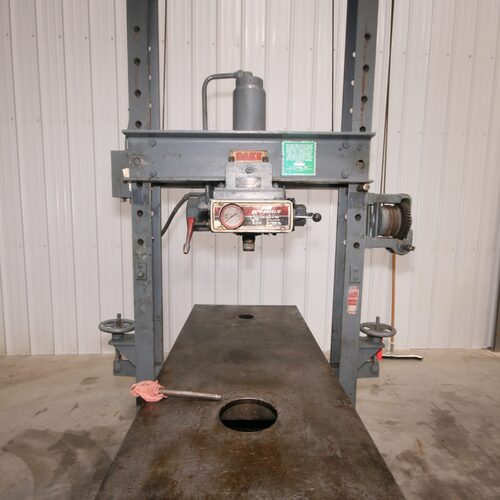

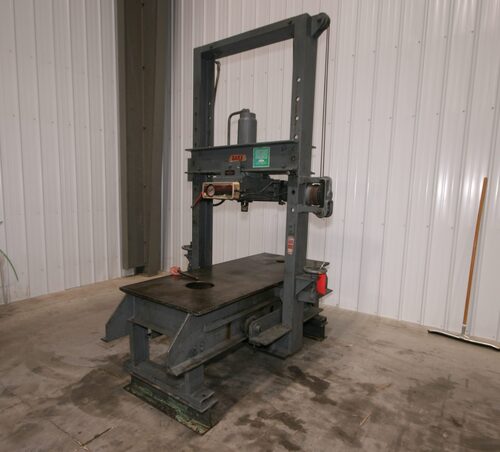

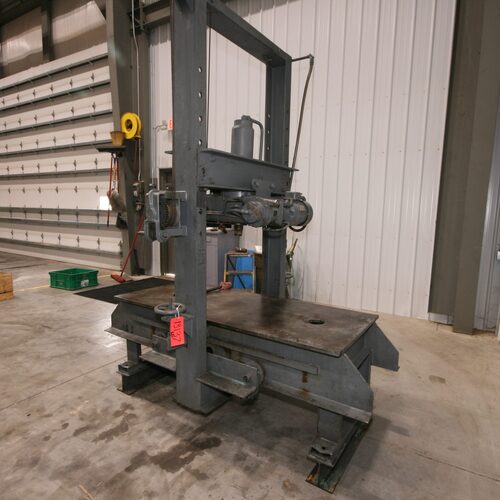

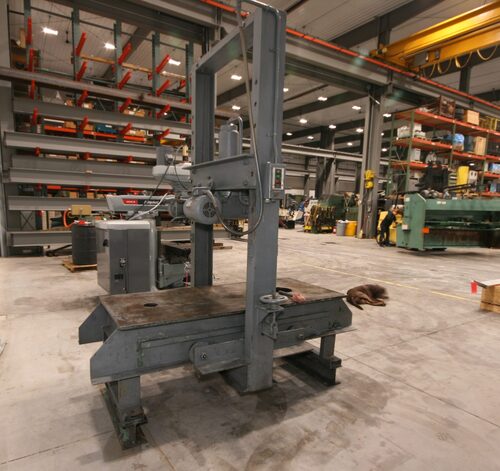

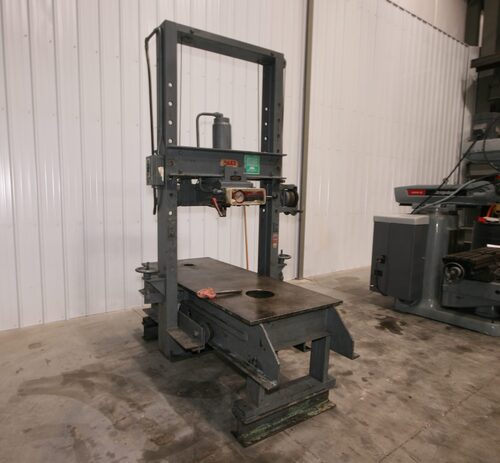

Dake 50 Ton Moveable Frame Press, Model 19-175

Serial # 161758
Asset # 13137

Specifications:
Capacity 50 Tons
Table Height 24”
Table Width 30”
Width Between Uprights 33 ¾”
Max. Distance Ram to Table 35”
Min. Distance Ram to Table 5”
Min. End of Table Center Line Ram 11”
Table Length 72”
Diameter Opening 8”
Centerline Ram to Front 15 ½”
Centerline Ram to Back 19”
Head Travel (Left) 8 ½”
Head Travel (Right) 8 ½”
Ram Speed Approach 40 IPM
Ram Speed Pressing 7 IPM
Motor 2 HP/1800 RPM
Overall Height 105”
Overall Width 60”
Overall Length 84″

Preliminary Specifications – Subject to Verification
