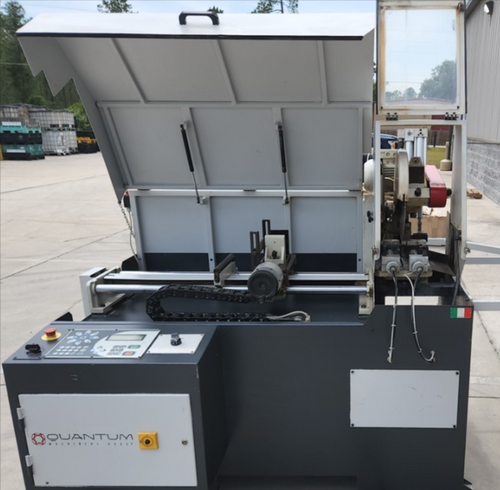

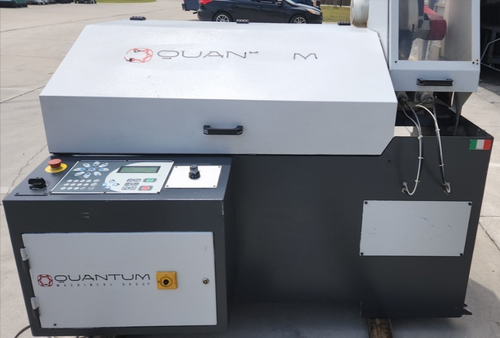

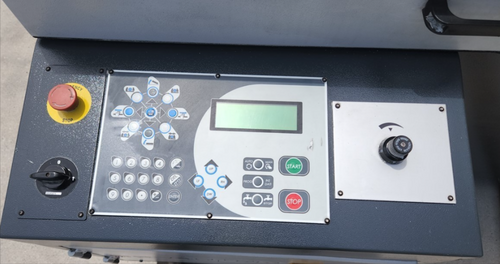

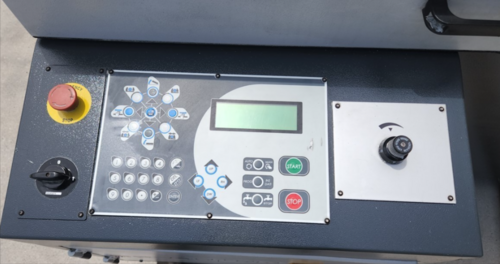

5.5" Quantum #MACC-TA-400-A, Fully-automatic Aluminum Cutting Saw, 2017

Manufacturer: Quantum
Year: 2017
Cutting Capacity: 5.50
Stock # 4736

For Sale by Southern Fabricating Mchy Sales

Gold Level Dealer
Surplus Record Dealer Since 2015
  Dan McCurdy
  813-44...> Show Seller's Phone Number 813-444-4555 Let the seller know you found their listing on Surplus Record!

Description

5.5" Capacity Fully-Automatic Non-Ferrous Aluminum Cutting Saw with 3,000 RPM Blade Speed, Two Pneumatic Vices and Bar Support Arm with Bar Stop
GENERAL SPECIFICATIONS
Maximum Vice Opening: 7”
Round Tube Cutting at 90° (Straight Cut): 5-1/2"
Square Tube Cutting at 90° (Straight Cut): 4-1/4"
Solid Round Cutting at 90° (Straight Cut): 2-1/4"
Rectangular Tube Cutting at 90° (Straight Cut): 3-7/8" x 7"
Blade Size: 400 x 2.5 x 32mm Bore Carbide Tip
Blade Speed: 3,000 R.P.M.
Weight: 1,125 lbs. (510 kg.)
Maximum Vice Opening: 7” (180mm)
Overall Dimensions: 150” W X 63” L X 67” H
INCLUDES: 3,000 RPM Blade Speed, Two Pneumatic Vices and Bar Support Arm with Bar Stop

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
