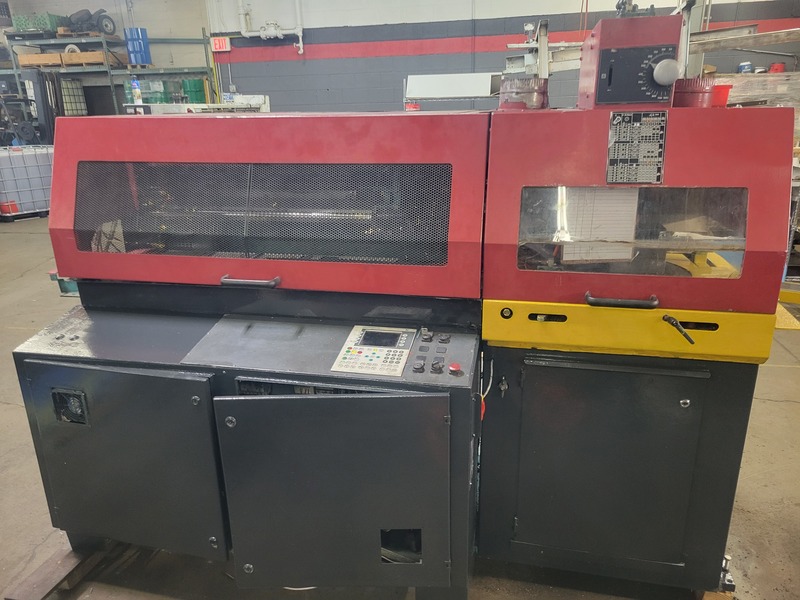

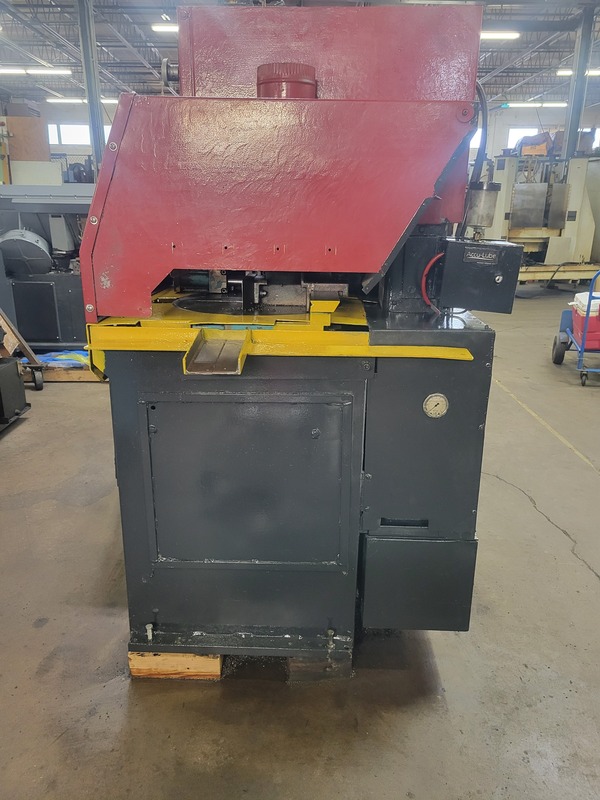

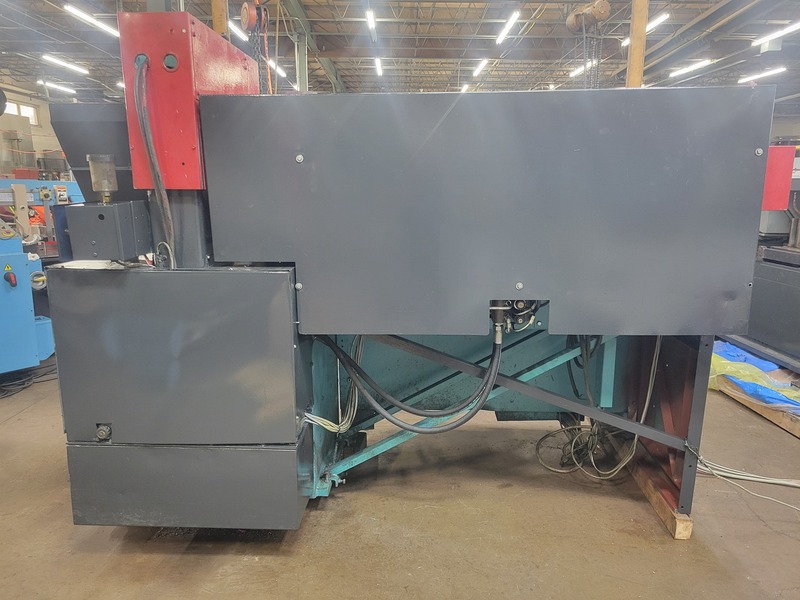

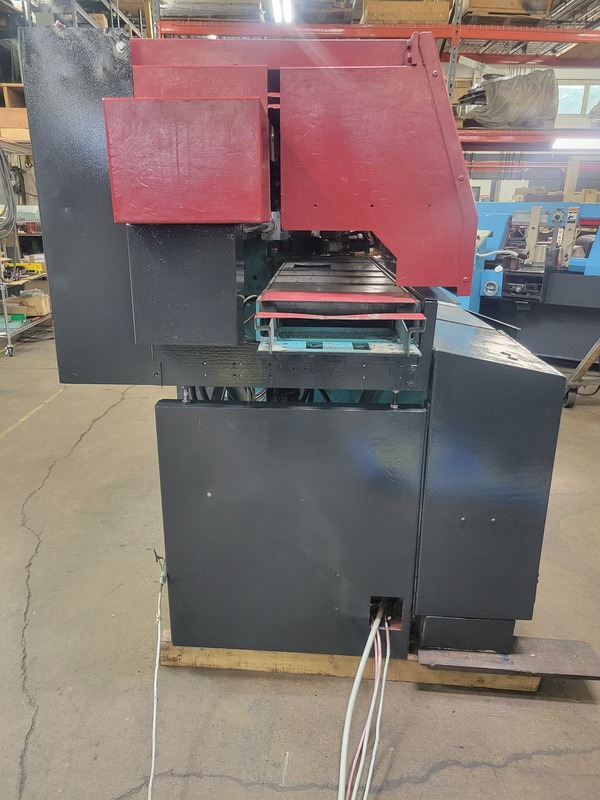

5.1" Kaltenbach #KKS-400NA, automatic, programmable circular saw for straight and miter cutting, ferrous and non-ferrous metals, 2007

Kaltenbach Automatic, Programmable Circular Saw for Straight and miter cutting Ferrous and non-ferrous metals, 15.74" Blade 5.1" Capacity Rd. at 90 degrees, Complete with Bundle loader
Universal Automatic Circular Sawing Machine for Straight & Miter Cutting of
Ferrous & Non-Ferrous Metals - Saw New in 2007, Loader New in 2008
Saw Blade 15.75" Diameter
Working Range
Round 90 or 45 degrees 5.1"
Square 90 degrees 4.7 "
Flat 90 degrees 12" x 0.8" *
Flat 45 degrees 9.6" x 1.1" *
* Reduced in automatic mode
with infeed gripper max.7.4"
Hydraulic system 2.4 HP
Motorized length setting 0.50 HP
Coolant pump 0.13 HP
Cutting Speeds With Std Blade 50/100 SFM
Technical Data (Continued)
Saw Blade Feed Infinitely variable to a chart 0- 40 Inches/Min.
Rapid return stroke 130 IPM
Material Feed Gripper Cut length range (standard). .39" to 80"
Weight Machine without accessories, 3,750 lbs.
- Robust back fence with adjustable work-stop,
is via crank handle and allows movement 1.6"
A scale is provided.

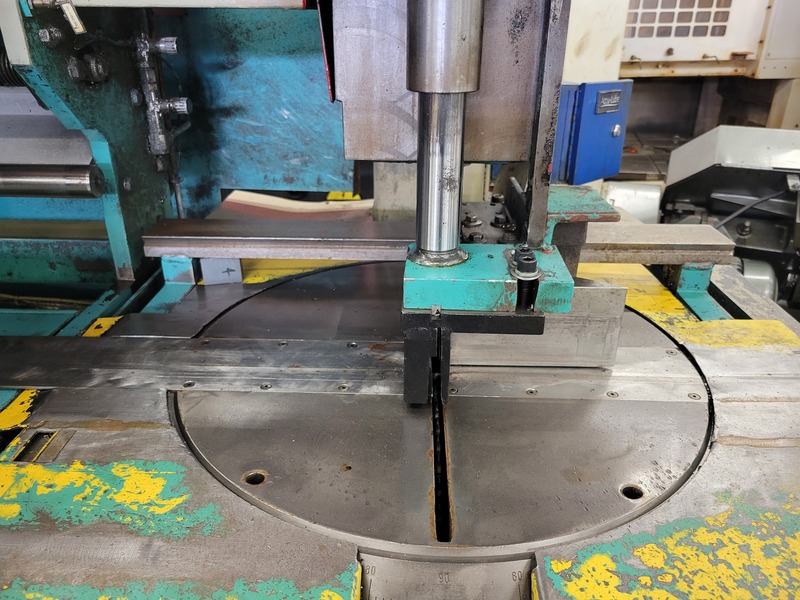

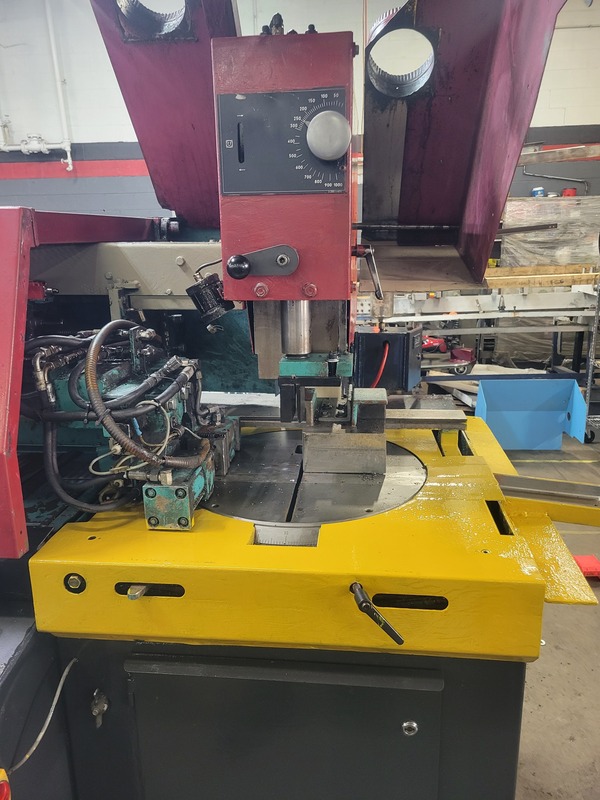

- KALTENBACH upstroke blade technology with plasma-nitrified rotating table for straight and miter
cuts. Table rotates from 0o - 180o. Positive stops, which can be overridden, are provided at 45ol90ol-
450.
- Clamping bridge with hydraulic vertical long stroke clamping cylinder 5.3". Clamping on both sides
of the cut. Presetting via crank handle.
supports material on both sides of the cut. Adjustment
maximum to the front and 2.8" maximum to the rear.
- Material feed gripper, left of machine, for cut lengths from .39" - 80.0"(40.0" per stroke). Minimum
height of sharp-edged material0.20". Front gripper is adjustable and has a stroke of 2.8". Rear
gripper has relief stroke to prevent material being damaged on return stroke. Automatic recognition
of material being in the gripper via spring-loaded touch plate and limit switch. Minimum end piece in
straight cutting is 3.1". Ball bearing mounted transport rollers measure 2.4" x 13". Maximum
material width in automatic mode is 7.5" (reduced when using quick-change clamping jaws). Feed
gripper unit can be swung up out of the way (electrically interlocked) to allow semi-automatic
operation. The safety protection hood has to be closed during cutting process.
- NC preselection for programming up to 20 programs, with up to 20 saw orders each. Bar or quantity
oriented processing. Automatic motorized length setting. Subtracting piece counter with automatic
switch-off function. For urgent jobs, data can be entered directly without having to store it.
- Hydraulic saw blade feed, infinitely variable to a chart.
- Electronic blade height setting via push button. Toothed segment with encoder. Automatic reset at
machine start.
- Raisable safety hood for machine and feed gripper unit, with electrical interlock.
- Working area illumination.
- Large electrically interlocked machine door facilitates saw blade and chip sprocket changing.

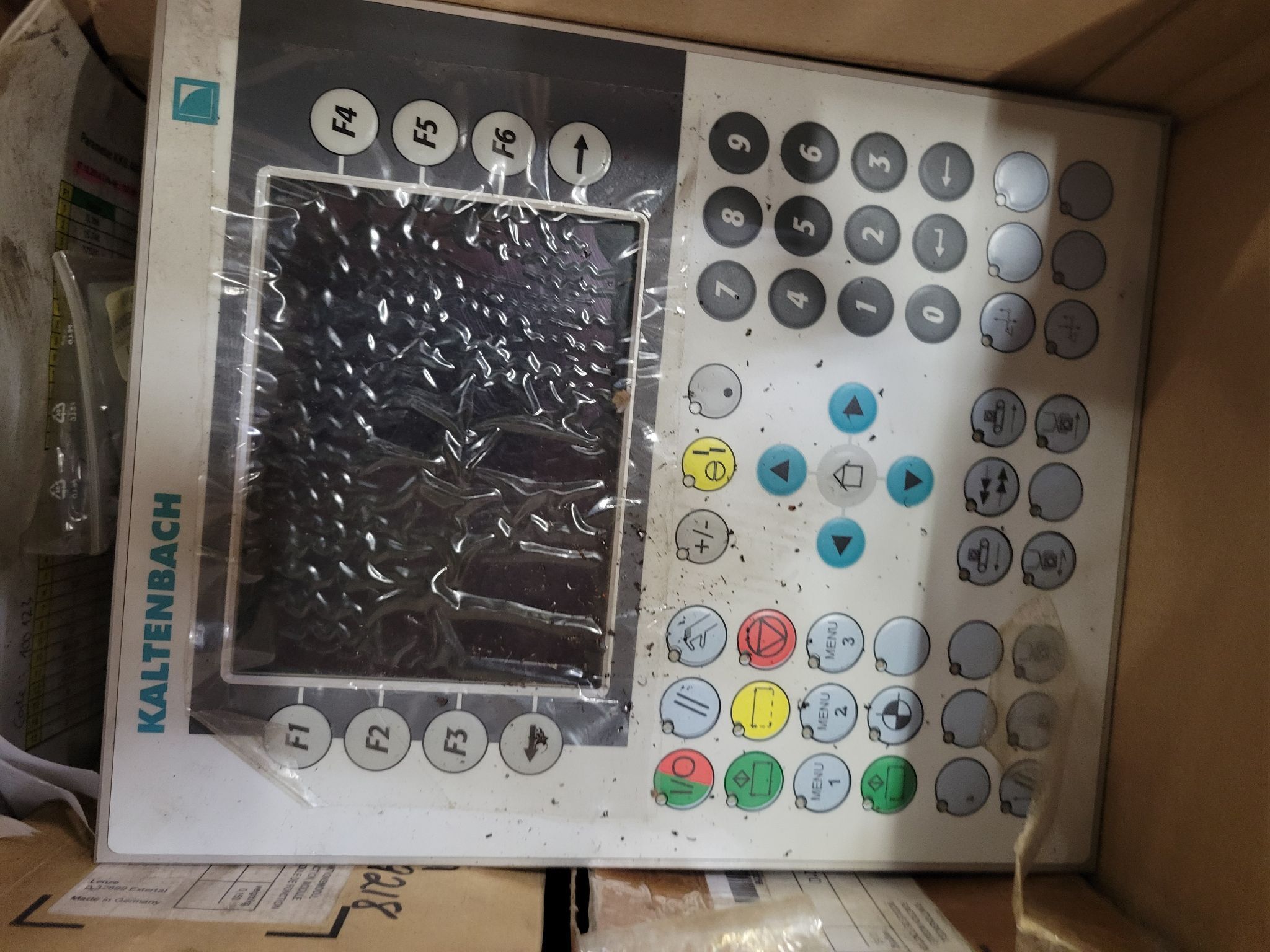

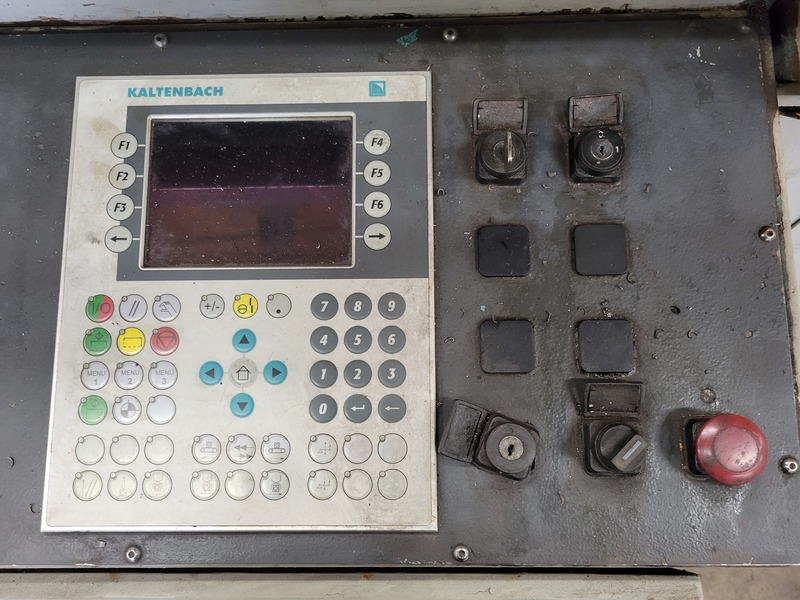

- PLC control with control cabinet. Ergonomic arrangement of control elements. Lockable switch is
provided for set-up mode.
- Hydraulic power pack (delivery 6.5 GPM).
W167 N5905 Greenway Circle . Menomonee Falls, Wl 53051
Phone: (262) 703-0400 . Fax: (262) 7B-4477
Item ll04 - Standard Equipment (Continued)
- Coolant system with pump. Coolant is supplied to both sides of the blade immediately prior to
entering the cut. Coolant flow can be adjusted externally from the operator position.

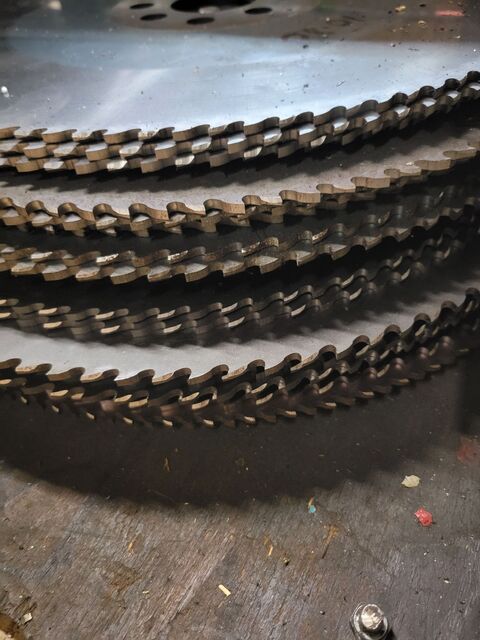

- Saw blade 400 mm diameter. Chip drawer runs on ball bearings. Pin chip wheel and roller type chip
remover for the saw blade. First filling of hydraulic oil, gearbox oil, coolant, tools, and manual.
Sales Price $59,900
Item ll04 -KKS 400 NA, including all standard equipment
Included Equipment
Item 1111 - Hydraulic horizontal clamp, presetting to material width, stroke 0.3"
Item 1180 - Hydraulically retractable trim-cut device. Lever for automatic
endpiece regulation. Trim-cut length adjustable. Required for
automatic loading magazines
Item9999 - Coolant atomizer system in addition to flood coolant system
(compressed air necessary).

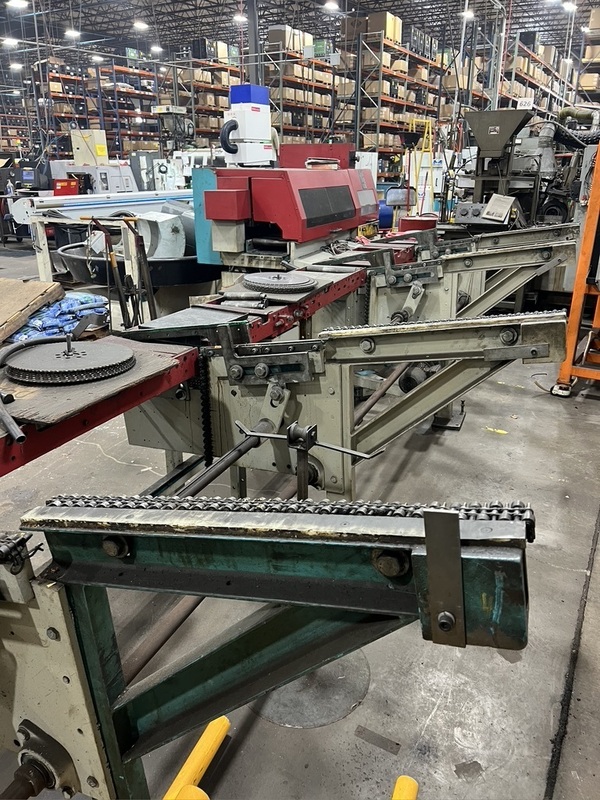

Item6962 - Automatic Inclined Magazine LM for round and square material
Sliding brackets attached to the magazine and lifting arms (no
adjustment of the angle of inclination required).
The inclined magazine comprises the input roller conveyor and basic equipment which is designed
for initial stock lengths 6' - 20' (16'for light sections). The individual components are pre-mounted and
connected by couplings and plug connections to the system. Basic version mounted on front side
of input roller conveyor.
Working Range: Round Material ......in 0.6' - 5.1"
Rectangular Material (width)..................... in 0.8' - 5.9"
Maximum Weight, per material bar, 20'.. lbs 1,650 lbs.
Maximum Weight, load for magazine..... lbs 8,800 lbs.
Storage Width ........43.3"
Input roller conveyor with ball-bearing supported transport rollers 2.4" x 13.0".
Drive via chain and sprocket at speeds of 24148 FPM.
Vertical guide rollers position the material on the input roller conveyor.
Central pre-adjustment of the material width with crank handle according to scale.
Electro-mechanical device for the separation of the bars coming from the magazine onto
the roller conveyor (drive 0.5 HP).
Item 6964 - Stillage for material bundles, width 28", mounted at the rear of the
magazine for stock lengths 20'...
