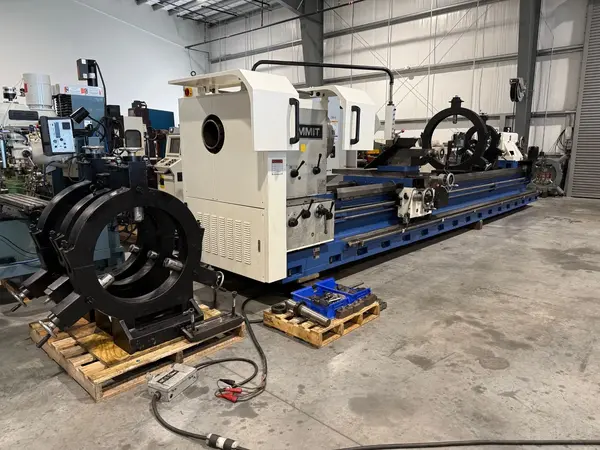

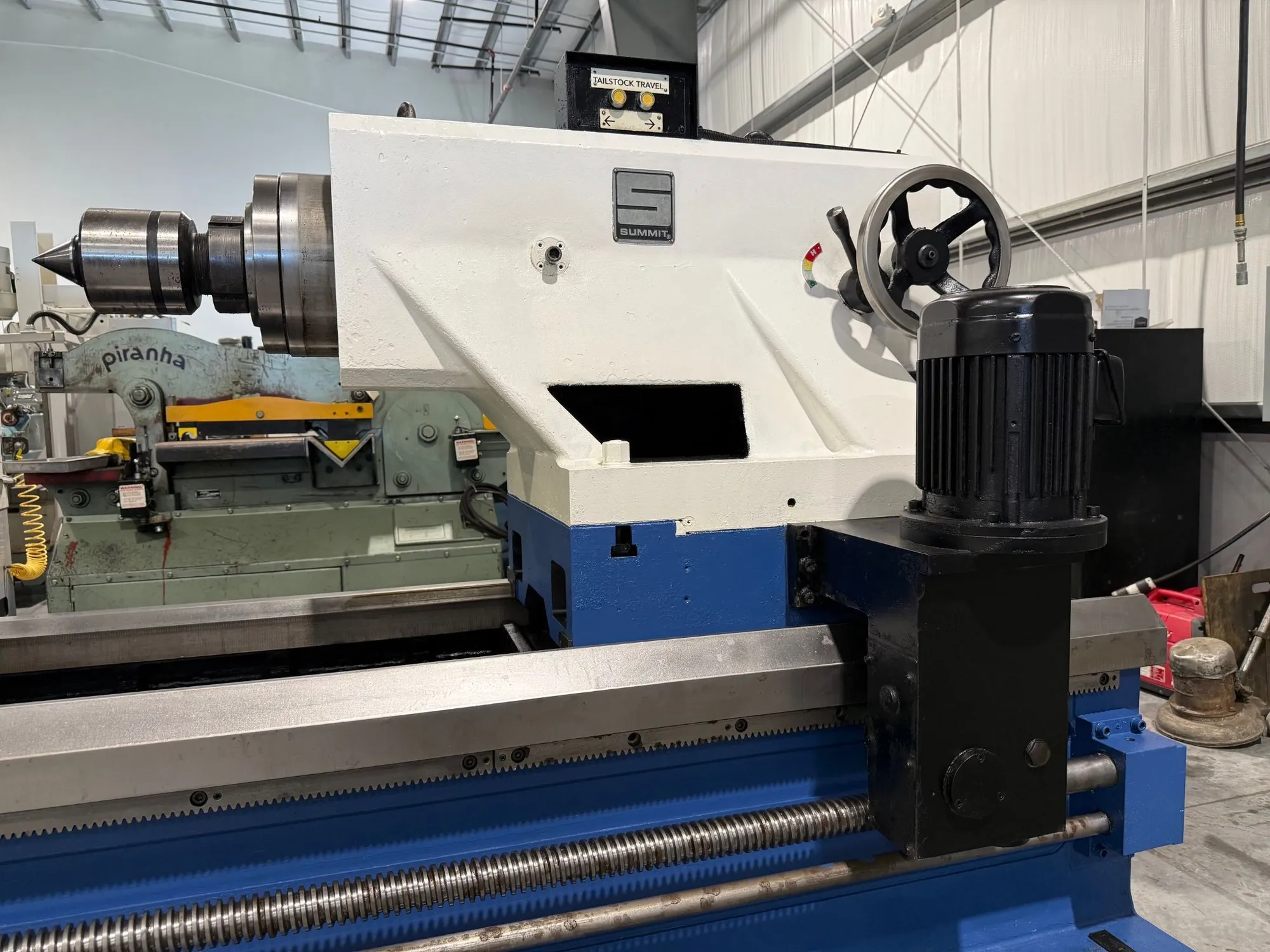

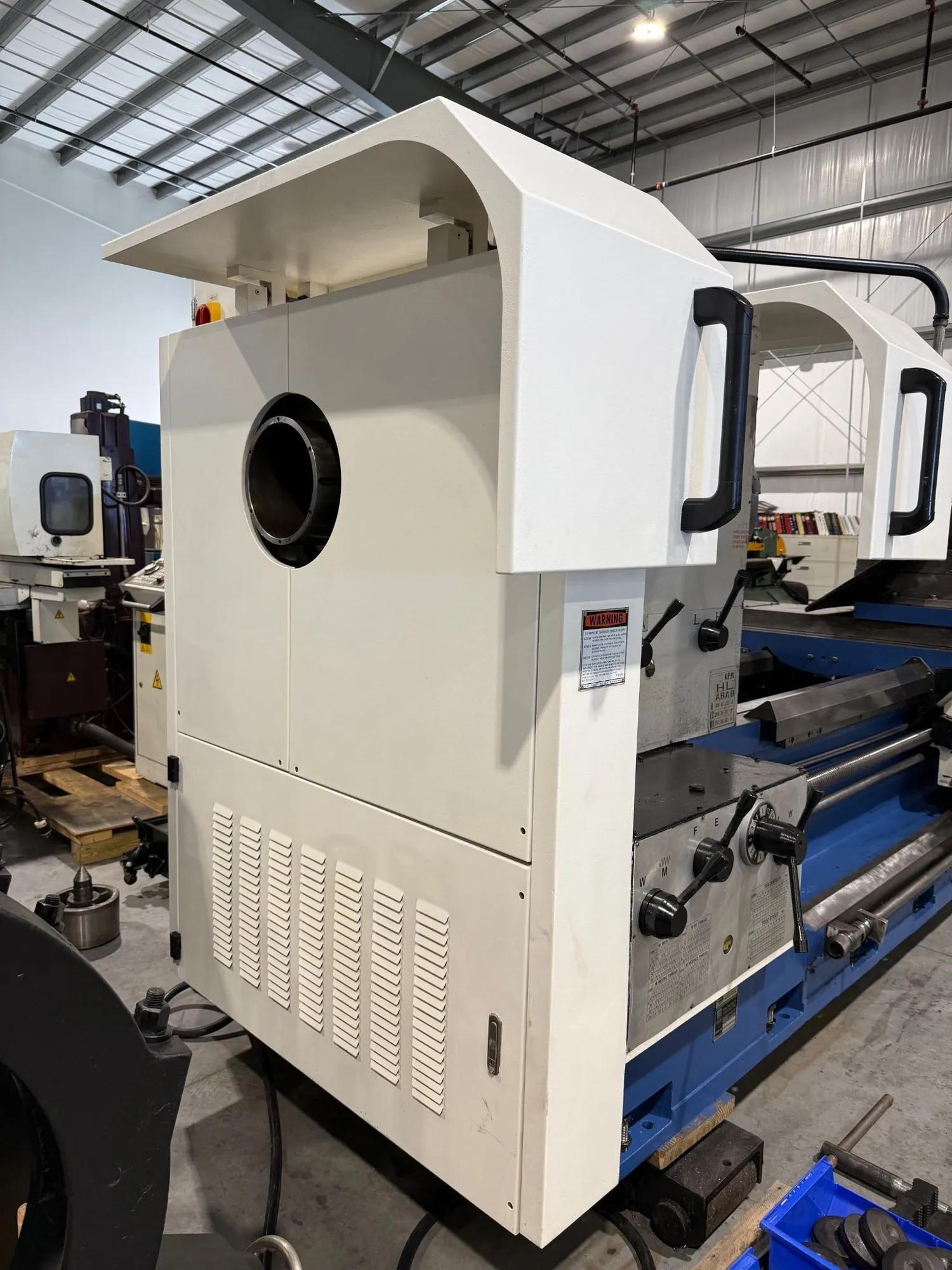

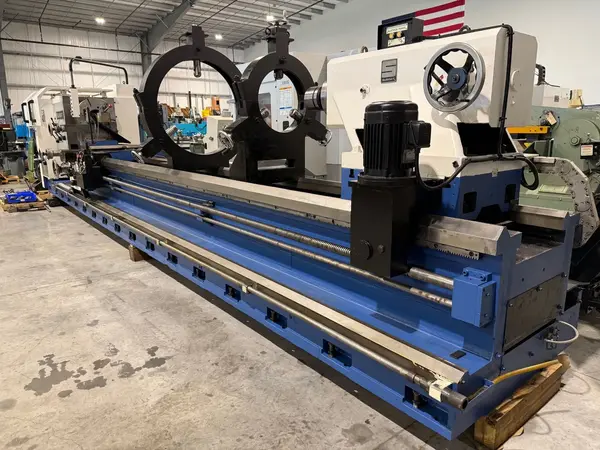

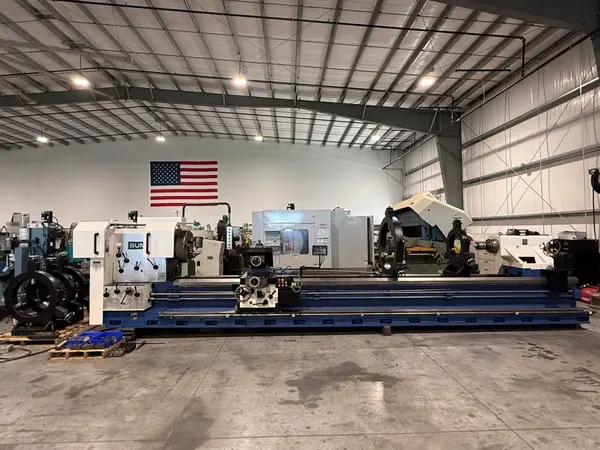

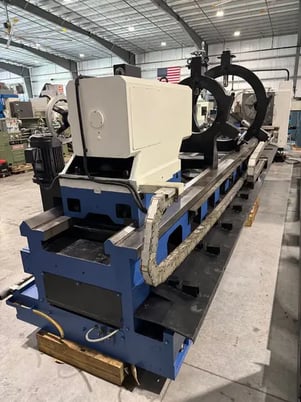

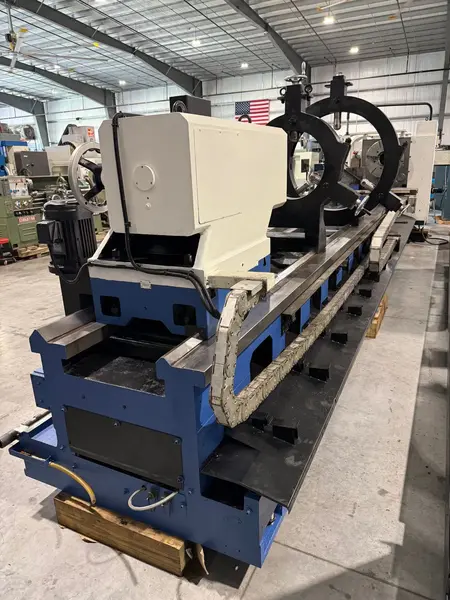

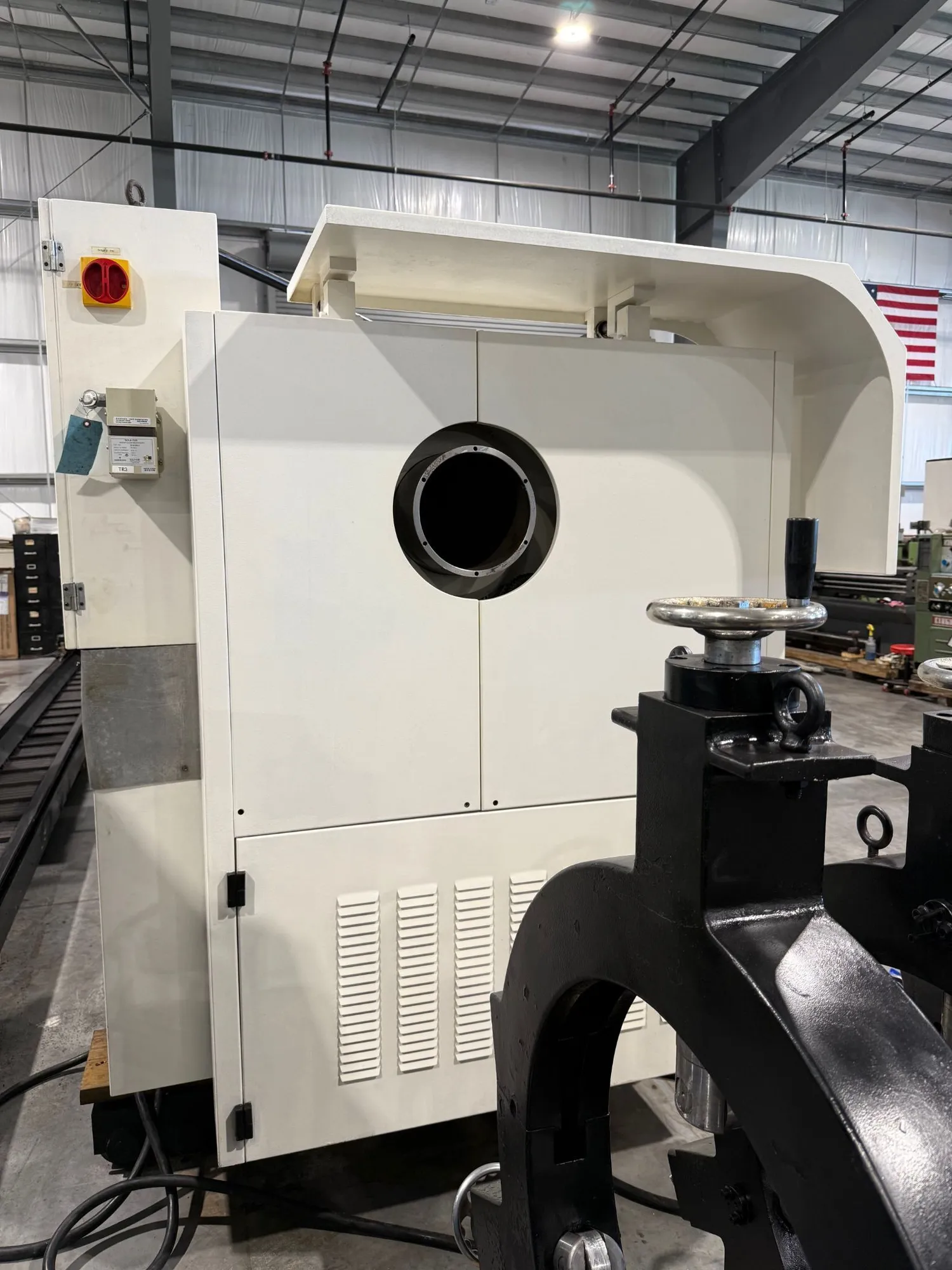

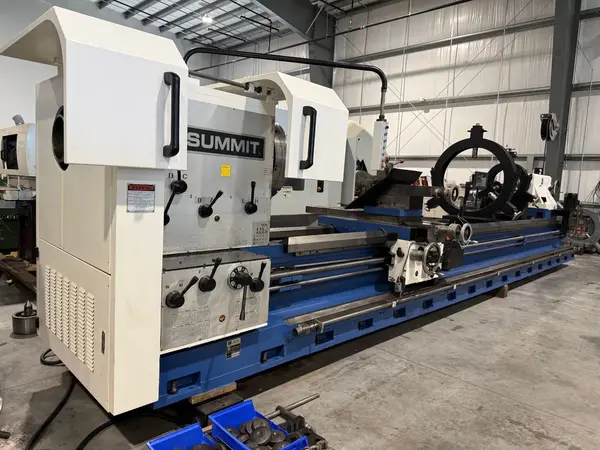

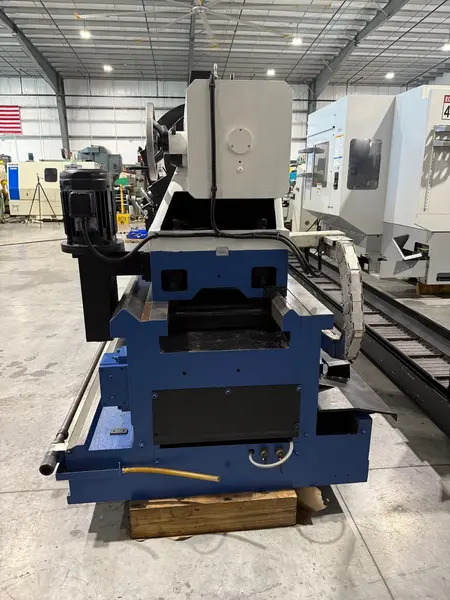

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628 Reference #7628 Model # 47-9x240 Serial # 13039 Year of manufacture- 2013’ Swing over bed- 47” Swing over cross slide- 32.6” Distance between centers- 240” Maximum workpiece between centers- 22,000 Lbs. (supported) Spindle nose- A2-15 Spindle bore- 9” Spindle speeds- (12) 6 – 400 R.P.M. Cross slide trave- 30.7” Compound travel- 13.7” Bed width- 31.5” Leadscrew diameter- 1.97” Longitudinal feeds- (48) .13 – 1.92 I.P.R. Cross feeds- (48) .065 - .96 I.P.R. Inch threads- (48) 1 – 15 T.P.I. Metric threads- (48) 2 – 30 mm Tailstock taper- #7 Morse taper Tailstock quill travel- 11.8” Tailstock quill diameter- 7.9”

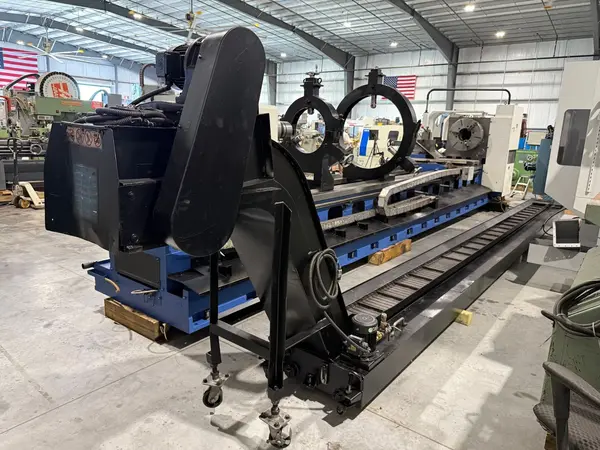

Equipped With Full cast HD Base design Power tailstock 2 Axis NEWAL DRO Digital Readout Full length chip conveyor 2 way power rapids 25” BISON “SET-TRU” 3 Jaw Chuck (5) Steady Restes Roller type- 35” Capacity, (2) 25” Capacity, 23” Capacity, 17” Capacity HD Live center Dead center DORIAN HD Tool Post 25” 3 Jaw Chuck Leveling Pads 40 H.P. Main motor Machine location- F.O.B. Sarasota, Florida Machine dimensions- 360” x 87” x 83” H Machine weight- 43,120 Lbs.
