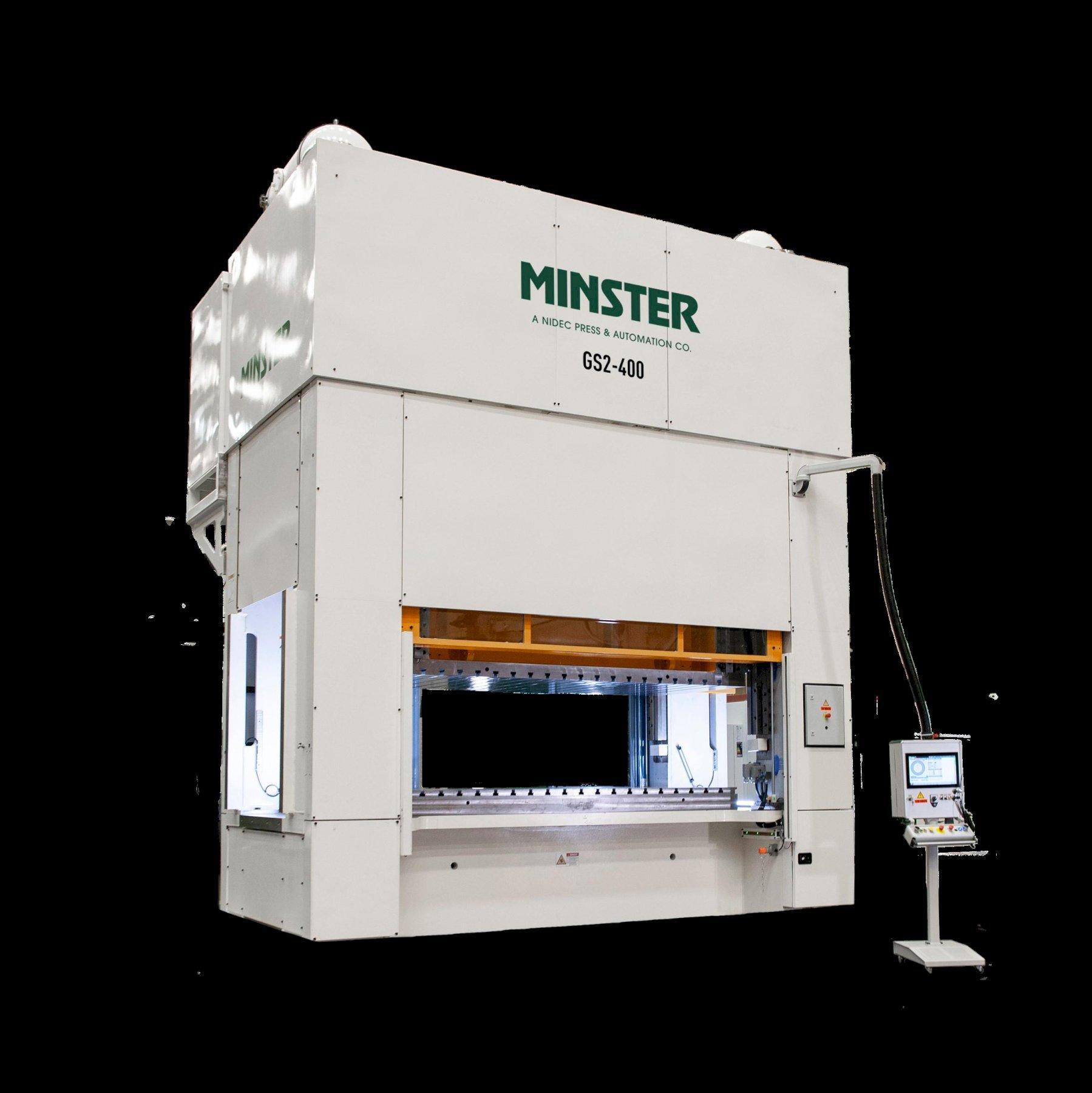

440 Ton, Minster #GS2-400-305x140-STD, straight side double crank 2-pt servo press, 13.8" stroke, 29.5" Shut Height, 110 SPM, 55" x120" bed, 55" passline, 2024, new

SPM 110

Tonnage 440 tons

Stroke 13.8 inches

Shut Height 29.5 inches

Vari Speed (Yes/No) yes

Bed W 55 inches

Bed L 120 inches

Crank (Single/Double) double

SPECIFICATIONS

Press Specifications

Model Number........................................................ GS2-400-305x140-STD

Force × Distance off Bottom.................................. 4000 kN x 6 mm (440 tons x 0.24 in.)

Energy..................................................................... 120 kJ (531 in-tons) @ 40 spm

Connection Points................................................... 2

Lube Unit Location................................................. Standalone Floor Level

Approximate Press Weight..................................... 82,000 kg (181,000 lbs.)

Scale and Display Units.......................................... Inch/Metric

Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications

Stroke Length.......................................................... 350 mm (13.8 in.)

Max. Speed - Continuous (reduced rating)............. 53 spm

Max. Speed in pendulum 150 mm *....................... 90 spm

Max. Speed in pendulum 125 mm *....................... 95 spm

Max. Speed in pendulum 100 mm *....................... 105 spm

Max. Speed in pendulum 80 mm *......................... 110 spm

* Rate depends on stroke profile and press mechanical properties

Area of Slide, R-L × F-B........................................ 3050 x 1400 mm (120 x 55 in.)

Slide Face Machining.............................................. Standard

Overload travel........................................................ 25 mm (0.98 in.)

Overload recovery time........................................... 120s

Maximum Upper Die Weight................................. 6,000 Kg (13,200 lbs.)

Press Bolster Specifications

Bolster Plate Material.............................................. Steel

Bolster Plate Thickness........................................... 190 mm (7.5 in.)

Area of Bolster, R-L × F-B..................................... 3050 x 1400 mm (120 x 55 in.)

Opening in Bolster, R-L × F-B............................... None

Bolster Plate Machining.......................................... Standard

Press Frame Specifications

Upright Passline Opening, F-B............................... 1400 mm (55 in.)

Area of Bed, R-L × F-B.......................................... 3050 x 1400 mm (120 x 55 in.)

Opening in Bed, R-L (F-B ribs) × F-B................... 2500 (3) x 350 mm (98.4 x 13.7 in.)

Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)

Shutheight, Maximum (SDAU).............................. 750 mm (29.5 in.) Bolster to Slide

Shutheight Adjustment........................................... 350 mm (13.8 in.)

Accuracy of slide adjustment.................................. 0.1 mm
