42" width x 24" H x 168" L, Conveyor oven #C98TULEP480V45KW, 150°C,

Here We Have:

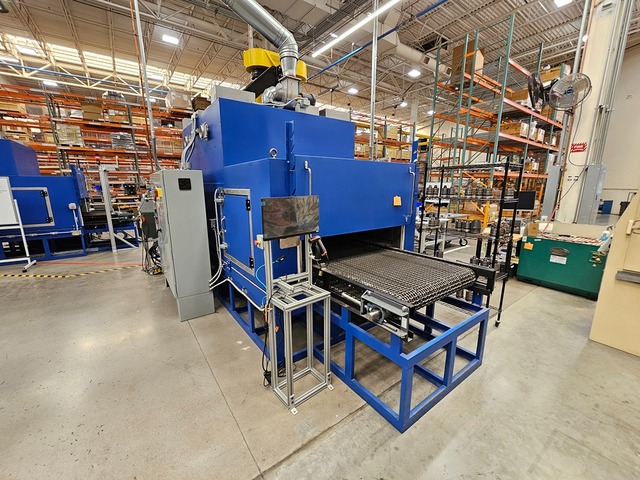

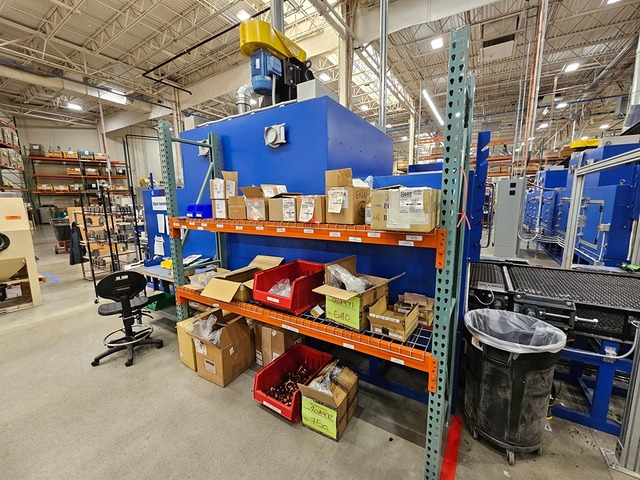

Conveyor Oven Model #C98TULEP480V45KW

The Conveyor oven is designed to operate at 150°C maximum temperature and includes the following special features:

• 4.5” thick insulated walls, ceiling and floor
• CRS exterior painted machine gray
• Aluminized interior
• Conveyor, 42”w x1x1 heavy duty flatwire with steel support bed 1,000 lb load

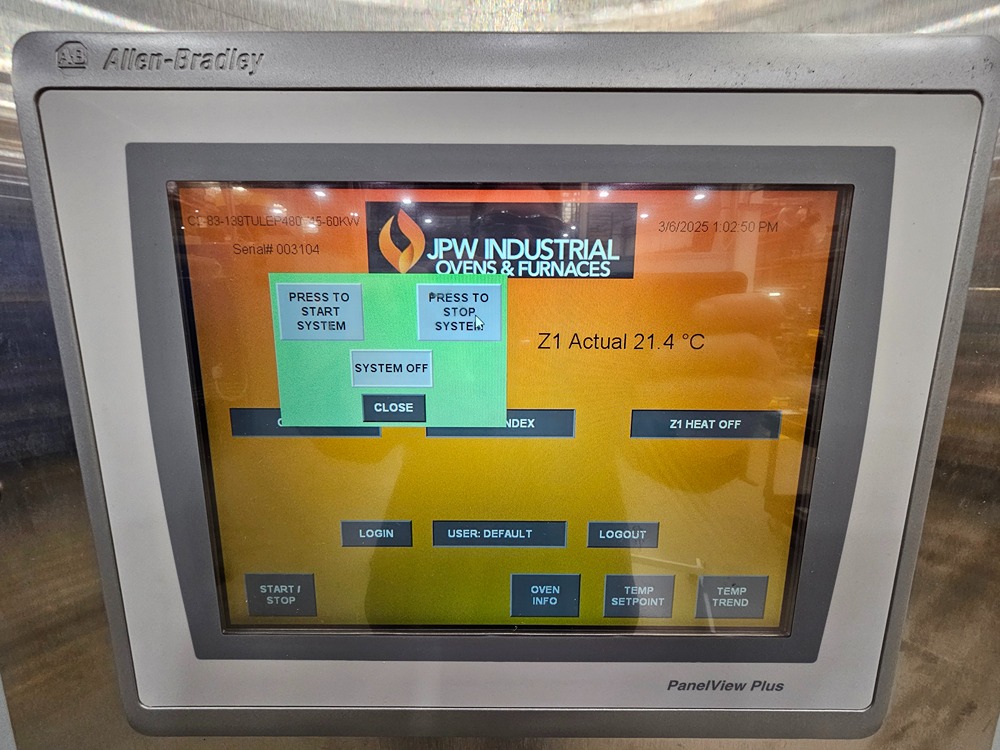

• AB PLC with HMI monitoring all devices with communications
• Watlow PM High limit
• Conveyor speed range of 1.25”-4.0” per minute constant
• Product sensor on outlet end to stop conveyor if sensor is made
• Adjustable crank doors on inlet and outlet – Max height open of 21”
• Skid frame bottom support to raise belt to 36” from floor
• Heated Zone operating at 70C-100C +/-3C
• Heated zone will have 45KW of heat
• UL Control panel 480V/3/60 – Nema 12
• load conveyor – 36” long
• Unload conveyor – 36” long
• Heated zone 168” lg x 42”’w x 24”h
• 1-high volume recirculation (plug design) 23,000 cfm –with a VFD operating at 18,000 cfm
• 600 cfm forced exhaust on a VFD
• Vertical down airflow
• Fused rotary disconnect
• E stops at each end of the conveyor
• Access doors positioned on the right-hand side (doubles as explosion relief if required)

Batch Oven Specifications:
Effective Work Area _3_’ __6_” W x _2’ _0__” H x _14__’ 0__” L- Zone 1
_
External Dimensions (Overall) _8_’ __9_” W x _11__’ _0__” H x _20__’ __4_” L

KW total ___45________ KW
Recirculation Fans 1 @ __23,000___ CFM; _10___ HP-
Electric 480/3/60, _75 amps, recommend a 100-amp breaker

Oven Construction:

Outside:
The exterior of the oven will be constructed of a full structural steel frame and skinned with 18 ga crs painted a machine gray

Inside:
The interior of the oven will be constructed of aluminized steel. The internal conveyor bed and belt will be steel construction.

Circulation system:
One high volume plug fan will be driven indirect by a 10 hp 1725 rpm motors generating 23,000 cfm of recirculation air in each zone. The air pattern will be vertical down returning through sidewalls. The circulation fans will be monitored by pressure differential switches in the event of the loss of circulation air the heating system will shut down.

Heating system:
45KW of incoloy sheathed heating elements located in the plenum separate from the work chamber to heat the air to the desired temperature. The plenum will be top mounted.

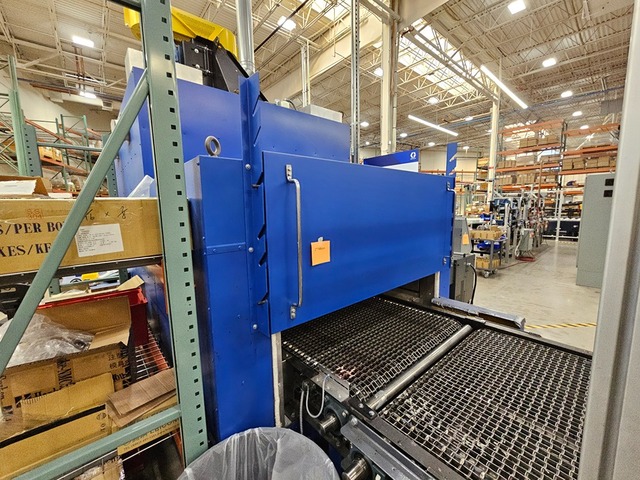

Doors:
The unit will have adjustable crank doors on each end that will open to 18” high

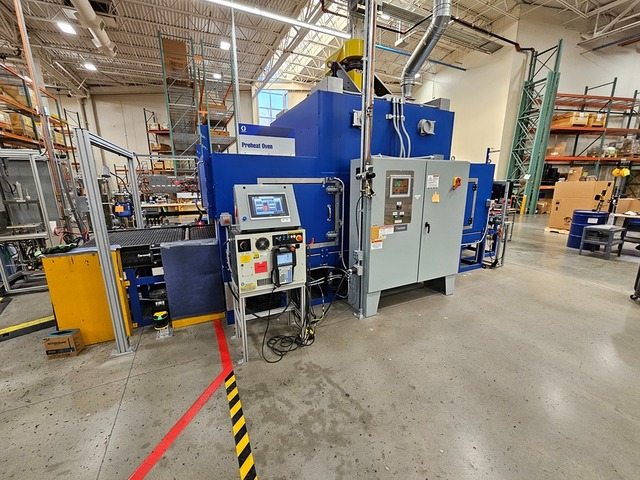

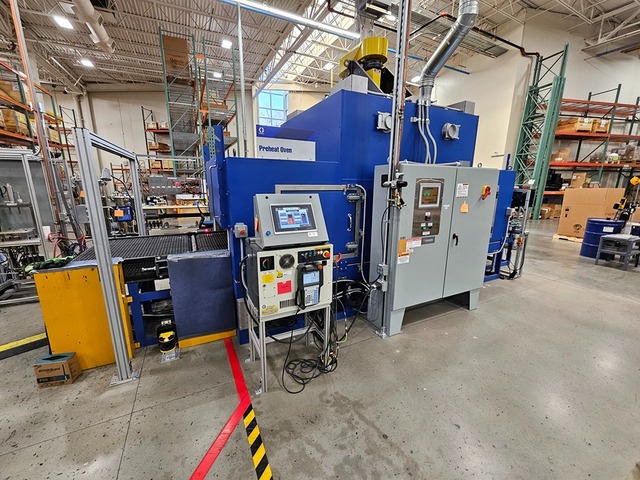

Control Console:
The control console will be mounted on the right-side center of the chamber. It will hold all the electrical components and be a Nema 12 and UL listed enclosure. The enclosure will have a cooling fan and filter on the intake.

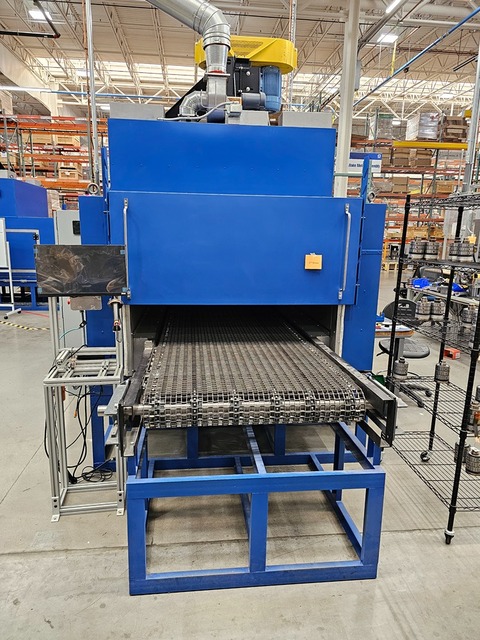

Conveyor/indexing: Heat zones and load/unload ends
The conveyor will be a 42” wide 1 x 1 flat wire. The drive end will have drive sprockets mounted on a 2” dia bearing shaft. The take up end will have sprockets mounted on a 2” dia bearing shaft with a tensioner at each side. The drive will be a continuous and indexing style gear box to achieve a 1.25-3 in/min speed. The drive motor will be an inverter ready motor. The load and unload will be 36” long each

Exhaust:
The unit will have a 600-cfm forced exhaust on a VFD

Base:
The oven will be mounted on a base that brings the working level of the oven to 36” from the plant floor the base will be insulated and be a skid design.
