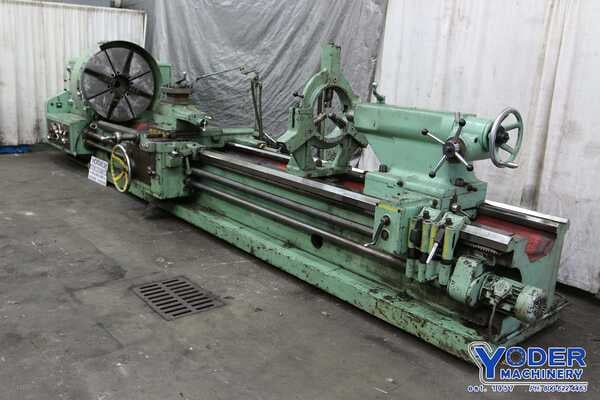

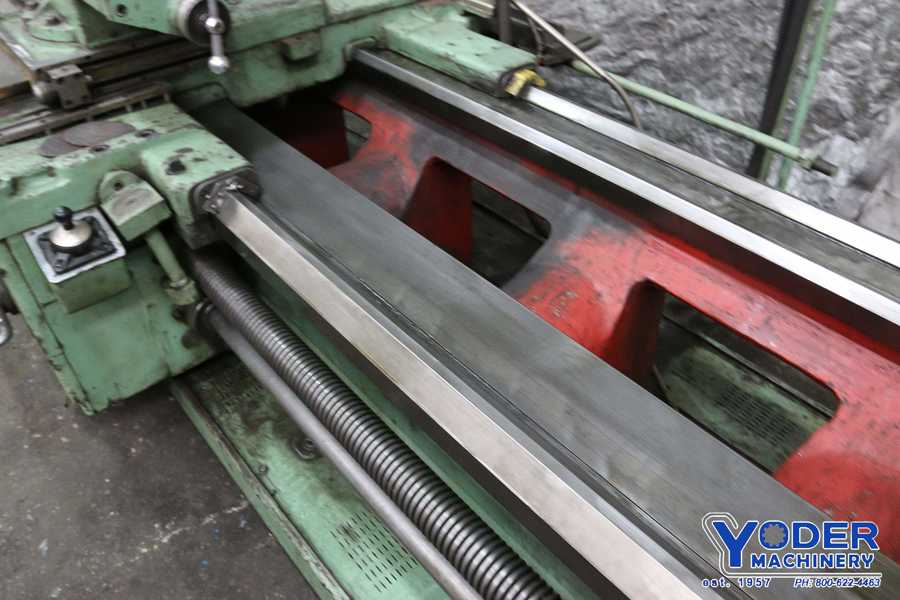

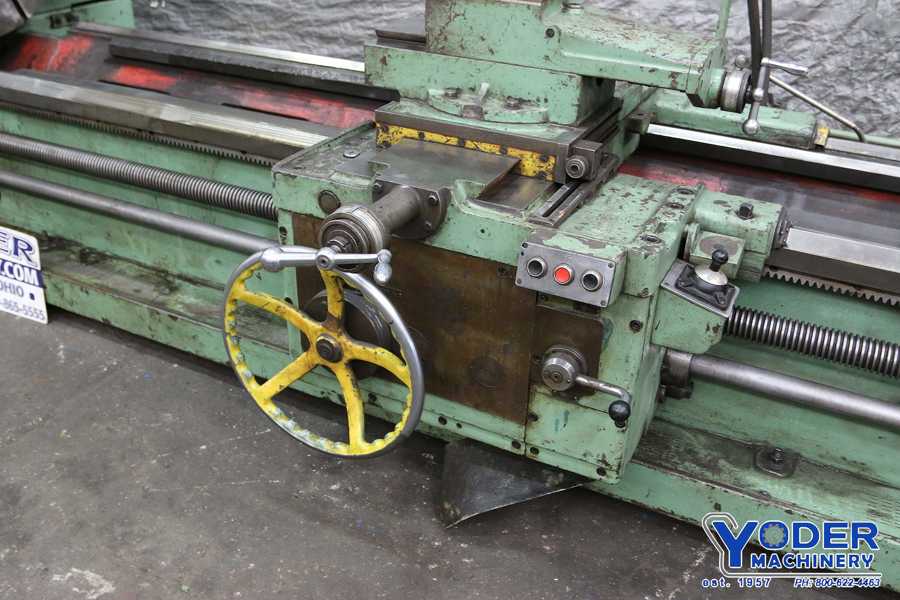

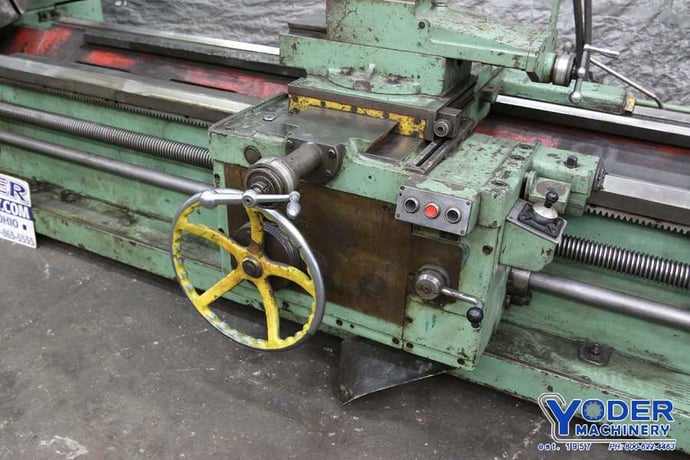

40" x 192" Stanko #165x5000, gap bed engine lathe, 26" SOCS, 4-jaw 39" chk, 1975, #69387

SERIAL ................................. 12061

MODEL .................................. 165X5000

YEAR INSTALLED ......................... 1975

SWING OVER WAYS ........................ 41"

SWING IN GAP .. 48"

SWING OVER CROSS SLIDE ................. 26"

DISTANCE BETWEEN CENTERS ............... 196" (16')

SPINDLE SPEEDS ......................... (24) 5 TO 500 RPM

LONGITUDINAL FEEDS ..................... .0008 TO 0.041 IPR

THREADS ................................ 1/4 TO 32 TPI

METRIC THREADS ......................... 1 TO 120 MM PITCH

DIAMETER OF SPINDLE HOLE ............... 3.75"

RAPID TRAVERSE ......................... 4 WAY

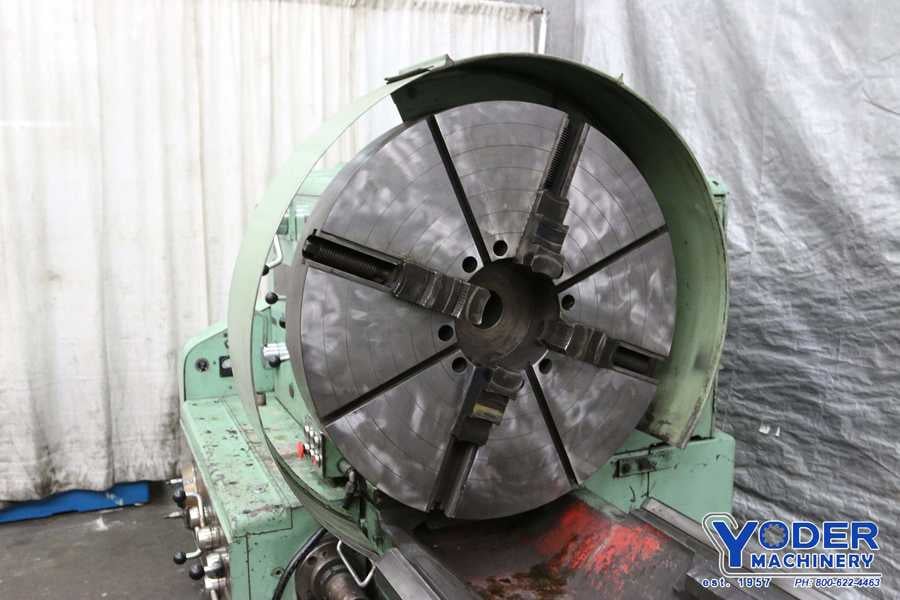

CHUCK .................................. 39" 4-JAW CHUCK

TAPER ATTACHEMENT ...................... YES

HARD WAYS .............................. YES

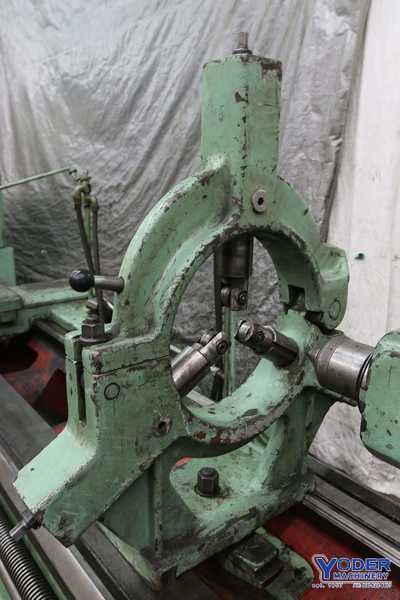

STEADY REST ............................ 15" 3 POINT ROLLER

FOLLOW REST ............................ YES

COOLANT ................................ YES

MOTOR .................................. 25 HORSEPOWER
