4" x 4" x 3/8" Scotchman #50514-EC, hydraulic ironworker, 50 ton, 6" throat, 2" die holder, punch, bar shear, notcher, 2023

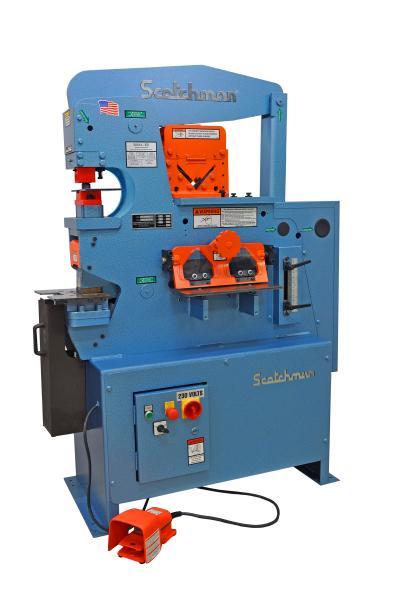

SCOTCHMAN HYDRAULIC IRONWORKER

MODEL: 50514-EC

STANDARD FEATURES

50 Ton Punch Station
Keyed Punch Ram For Safety
2" Die Holder
Punch Nut With Wrench and Stripper
One Round Punch & Die: Maximum Diameter 1"
Adjustable Electric Stroke Control With Scale
Electric Remote Foot Pedal
14" Flat Bar Shear With 4-Way Reversible Blade
Rectangle Notcher: 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" x 3/8"
Tool Table Work Area
Slug Receptacle
Electrical Box Supplied With Emergency Palm Button and Lock-Out
Tag-Out Accommodations
230/460 Volt/3 Phase Electrics (Must Specify Voltage)
All Guards Necessary To Comply With ANSI B 11-5 Standards
Forklift Accommodations
Three-Year Warranty On Parts
Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 50 Ton
1-1/4" In 1/2"
13/16" In 3/4"
Special Tooling: 2-1/4" Maximum Diameter
Throat Depth: 6"
Flat Bar Shear: 14" Length
3/4" x 4"
1/2" x 8"
3/8" x 10"
1/4" x 14"
Optional Saber Blade: 1/2" x 10"
3/8" x 12"
Angle Shear, 90 Degrees: 4" x 4" x 3/8"
45 Degrees: 2" x 2" x 3/8"
Rectangle Notcher: 2-1/2" x 2-3/4" x 3/8"
Brake 8"*: 30 Ton
Brake 12*: 25 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
90 Degree V-Notcher*: 6" x 6" x 1/8"
3" x 3" x 1/4"
Square Tube Shear*: 1/2" to 1", 12 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"
Strokes Per Minute, Light Material: 40 SPM
Strokes Per Minute, Heavy Material: 17 SPM
Hydraulics: 2350 PSI
Standard Motor: 3 HP, 3 Phase 230/460/208//380/575 V
Optional Motor: 5 HP, 1 Phase 220 V

*Optional Equipment Available

Rod Shear $1875.00

Pipe Notcher Package $1510.00

3/4" & 1" Square P & D $72.00 & $97, $92.00 & $110.00

Punch Table W/Fence $365.00

Shear Table W/Fence $365.00

Angle Iron Miter Guide $70.00

12" Brake Package $2360.00

Freight from Philip, SD to Cincinnati $980.00

Dimensions: 29"W x 47"L x 59"H
Approximate Weight: 1500 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
