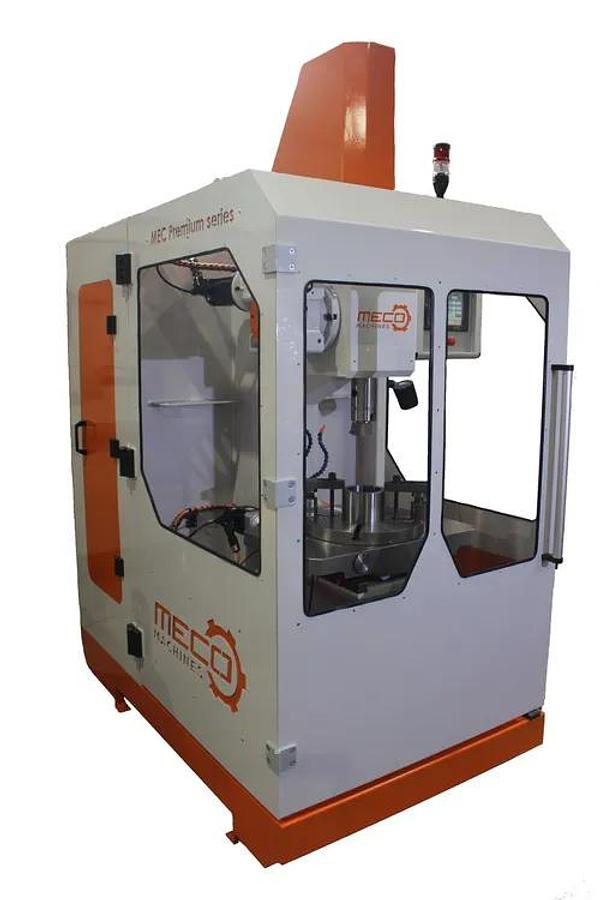

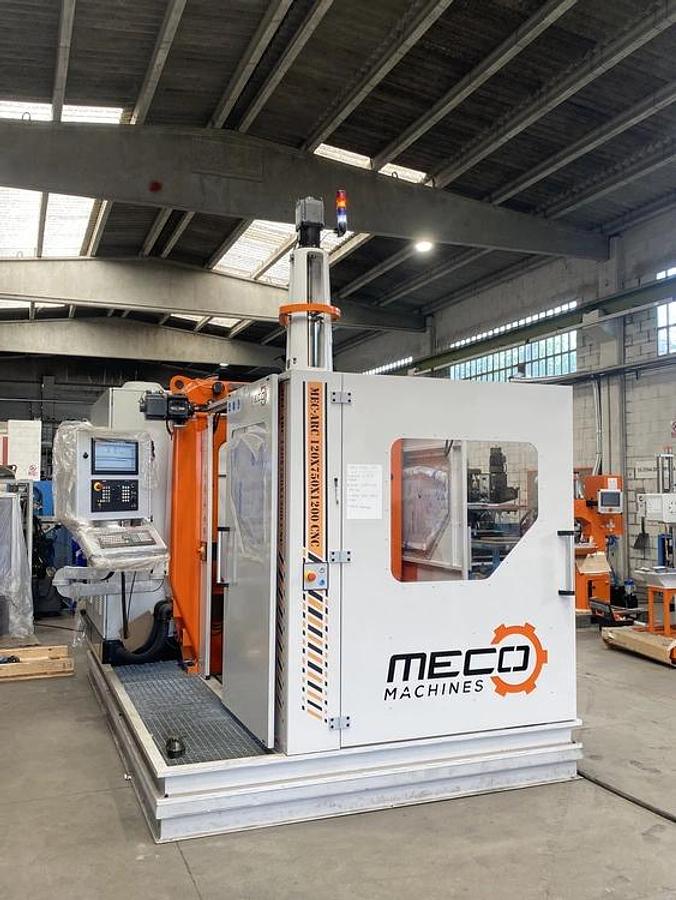

4" x 17.35" Meco #MEC-80 Premium CNC, keyseater, 3 automatic axes, 17.385" keyway length, 2020

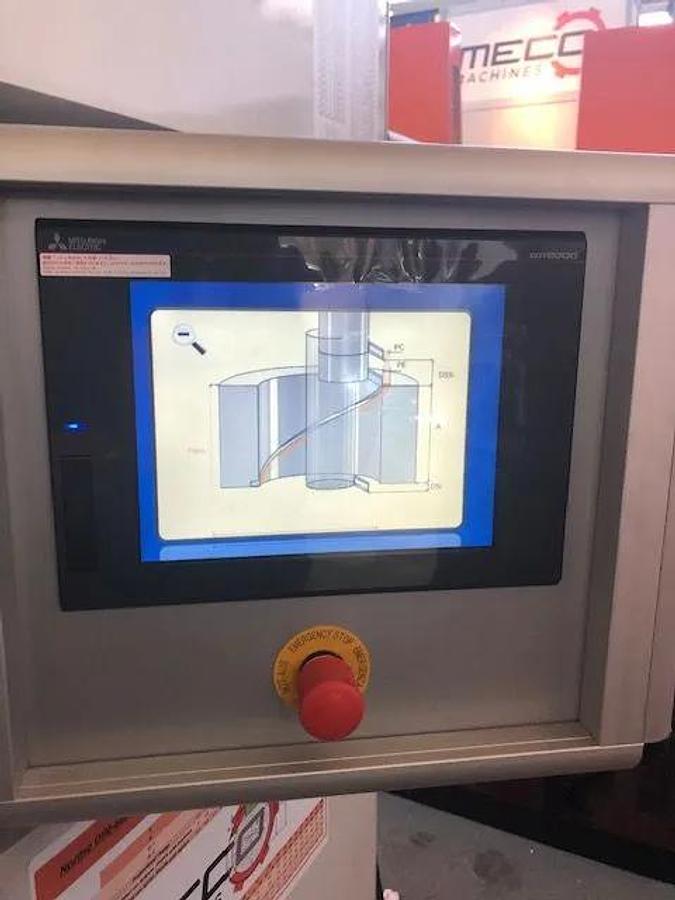

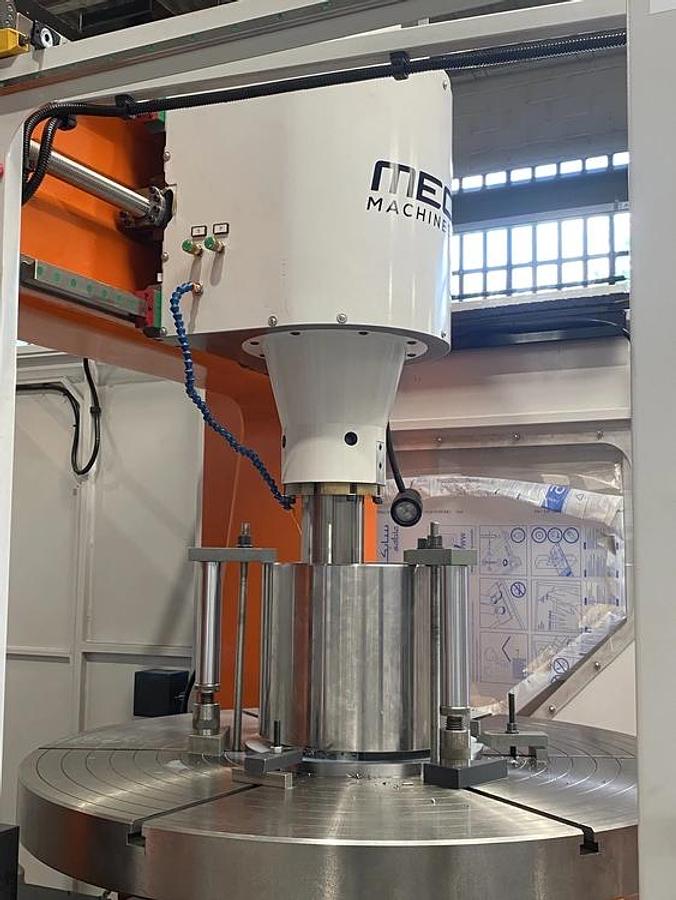

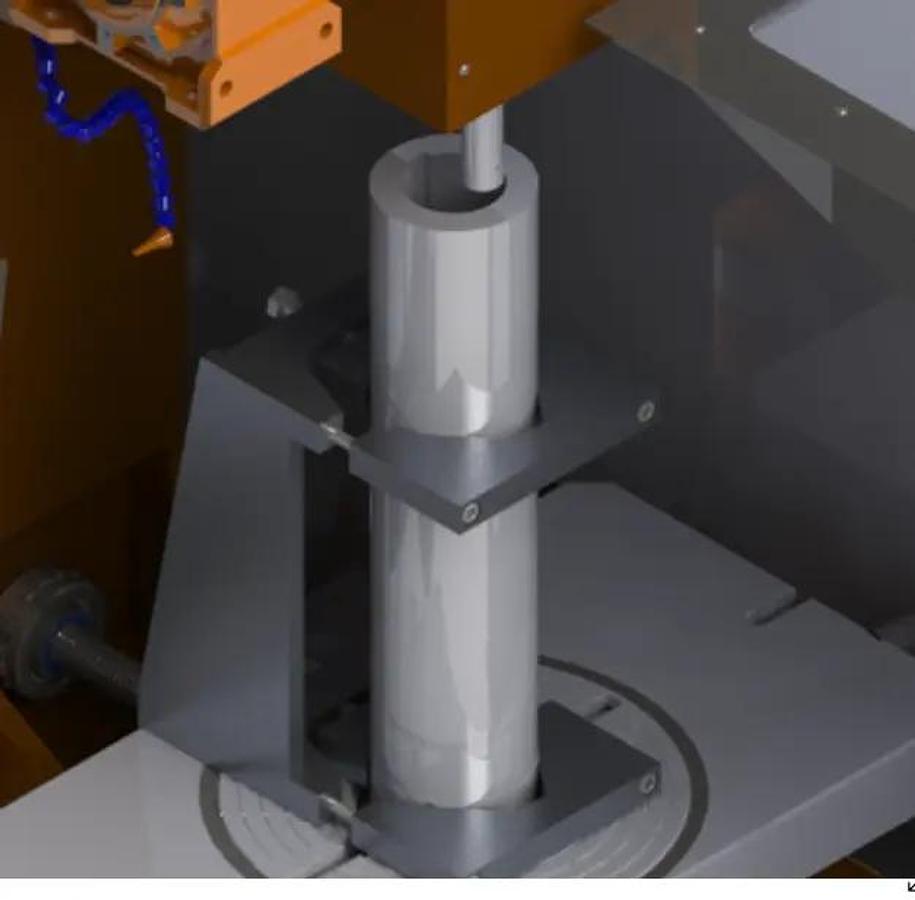

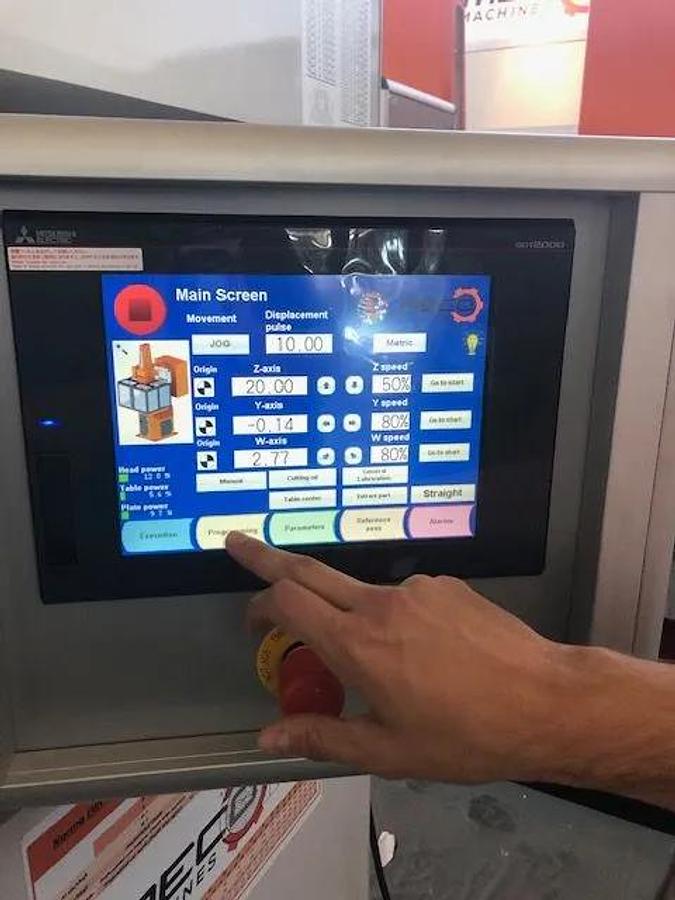

2025 MECO MEC-80 CNC Premiun keyseater  3 AUTOMATIC AXES, 17.7" z stroke Thanks to the electronic control systems of last generation that have been incorporated in this model for its three axes is achieved greater precision and a higher degree of automation. The machine can work in automatic mode, so that the operator can simply handle replace the part once the machine has finished the process of pre-programmed machining. Undoubtedly, the MECO broaching machines are designed to increase the production capacity of our customers.  LOWER GUIDED SYSTEM Z AXIS. Through a removable guide bar running through a clamping sleeve located at the bottom, we set the Z axis. As a result we suppress the bending of the shaft and the tool holder, and thus we cut absolutely straight and precise. This system allows us to remove more material in each pass and thus greatly shorten production times. Main characteristics: Vertical stroke adjustable from 0 to 440 mm directly with the touch screen. Keyway width from 3 to 100 mm according to current regulations (or other dimensions under request). Working table with room for samples up to 800 mm diameter (approx), equipped with an Automatic dividing plate for executing multiple keyways in samples (multi slots, gears, external slots…). Includes: servo-engine controlled from the touch screen, electronic equipment by CPU. Total range of division: 360º. 2 HP-Servo-engine with the electrical security equipment. Automatic system by means of servo-engine equipment for: approximation of the tool to the sample (initial working point) and adjust of the stroke and separation of the tool from the sample each time working cycle begins. Adjustable from 0 to 1,5 mm. CNC control for the main servo-engine and for the working table. CNC advantages: - Conical keyways mechanization in blind holes or through samples (with the appropriate software). - Regulation of the vertical stroke. - Vertical stroke adjust tolerance of +/-0,05 mm. - Regulation of the main stem working speed. - Regulation of the translation working speed. - NC control over the keyway depth. - All the functions can be adjusted from the touch screen. - Select user language. - Select different working units (pounces or S.M.I.). Standard Equipment Complete Electrical Panel UL Approved Siemens and Omron Electrical Components 14-1/8” Built-In Rotary Table 360 Degree Rotary Scale Upper and Lower Adjustable Stroke Limits Cutter Retract During Upstroke Electrically Interlocked Safety Guards Omron PLC Premium Version differences Brake motor is replaced with servo motor NC control of cutter stroke and servo motor NC control of table infeed increment and depth, program storage of 10 jobs, programmable safety clearances for stroke and table, programmable cutter retract during non-cutting up stroke, UL approved electrical panel, Mitsubishi PLC, wired for 220V or 440V/60Hz/3Ph operation Machine Dimensions Highly Recommended Options Lower guide/support for long keyways (note: requires special holder for use with lower guide)… $1,743.00 The centering fixture is highly recommended for centering on a I.D. bore during set-up. The lower guide for very long slotting. The cutters are paired with individual toolholders by size. Special for longer centers or special widths are the same price as normal cutters. Special toolholders are 35% higher.
