4' x 12 gauge GMC #PBR-0412E, Power Bending Roll, 3-Roll, 3.5" Roll diameter, 4.75" min. Bending diameter, 0.07" Pre-Bend, 1/2" Rolls Opening, 20 FPM, 2 HP, new

Description

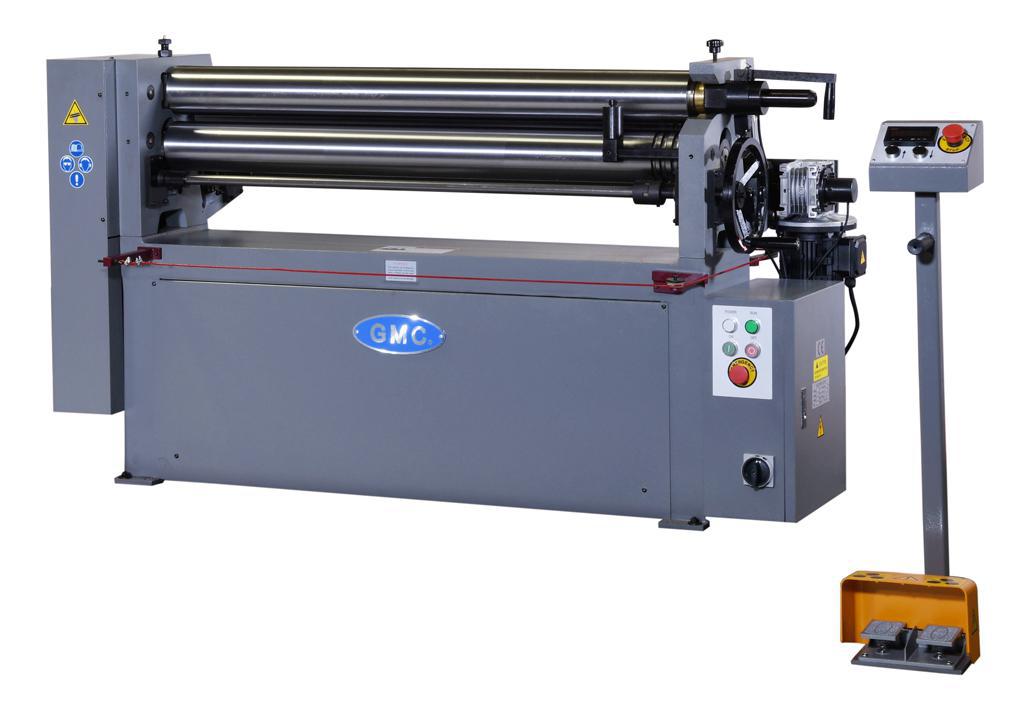

GMC 4′ x 12 Gauge Power Bending Roll, PBR-0412E

Inventory # 7761

Model: PBR-0412E

Specifications:

Capacity:

Mild Steel: 4′ 3″ x 12 Gauge

Stainless Steel: 4′ 3″ x 16 Gauge

Roll Diameter: 3 1/2″

Min. Bending Diameter: 4 3/4″

Pre-Bend: 0.07″

Rolls Speed: 20 ft. per min.

Rolls Opening: 1/2″

Motor: 2 HP / 220v OR 440v / 3ph

Standard Features:

All three rolls are hardened

3-rollers are driven to perform high accuracy

Adjustable cone attachment included

3/8″, 1/2″, and 5/8″ grooves on rollers

One wheel one-side operated for bending roll

One wheel one-side operated for pinch roll (E Model is powered)

E models come with motorized bending roll up and down with a push button and digital display for easy operation of repeat jobs

Heavy duty casting frame

Heavy duty all steel welded construction

Ends of roller are crowned to compensate for deflection while bending

Quiet running operation

Easy swing-out top roller

Safety line all around the machine for emergency stop

All rolls run forward and reverse

Safety type forward/reverse foot pedal

Operation & parts manual

One year industrial warranty for parts

Mechanical Specifications:

Dimensions: 78″ x 30″ x 50″ H

Weight: approx. 1,950 lbs.

FOB Factory – Contact us for availability
