4" KMT #C-370-A-NC, Automatic Non-Ferrous Cold Saw, 12.5"-14.5 Blade Size, 4 HP, 13-89 RPM, 208/230/460 V, new

Description

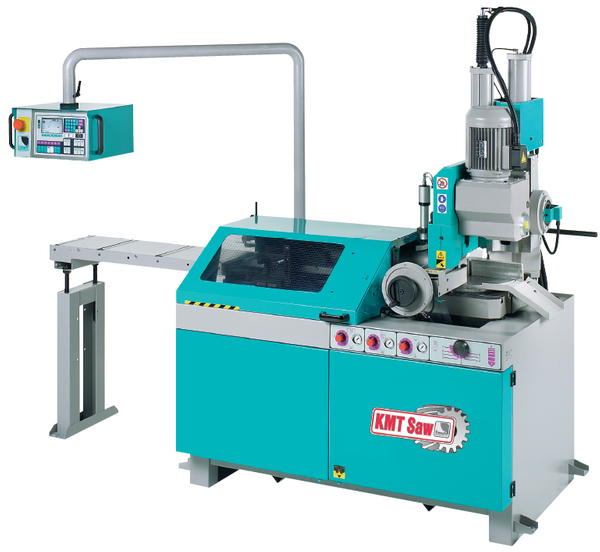

Kalamazoo Machine Tool 15″ Automatic Non-Ferrous Cold Saw, C 370 A-NC

Inventory # 3205

Model: C 370 A-NC

Made in Italy

Description:

The C 370 A-NC is a rugged, heavy-duty vetical column ciruclar sawing machine. Vertical column constructions provides extremely stable saw frame guidance and stability with vibration free sawing. Infinitely variable blade speeds offer flexibility to fine tune the settings for sawing even the most difficult materials. The C 370 A-NC operaters control is the easiest to use programmable saw control on the market

Specifications:

Capacity:

Round:

@ 90°: 4″

@ 45° Right: 4″

@ 45° Left: 4″

@ 60° Right: 4″

Square:

@ 90°: 4″

@ 45° Right: 4″

@ 45° Left: 4″

@ 60° Right: 3 1/2″

Rectangular:

@ 90°: 3.5″ x 7″

@ 45° Right: 4 3/4″ x 3 1/2″

@ 45° Left: 4 3/4″ x 3 1/2″

@ 60° Right: 3 1/2″ x 3 1/2″

Blade Speed: 13 – 89 RPM (Variable)

Blade Size: 12 1/2″ – 14 1/2″

Mounting: 40mm Arbor, with 2 Pins, 10mm on 63mm Bolt Circle

Motor: 4 HP / 208v, 230v, 460v / 3ph

Standard Features:

Heavy Duty Drive, TEFC Motor

Rotary Blade Brush

Power Top Clamp Vise

Full Electronic Control/Information System

Height/Depth Cut Adjustments

Hydraulic Oil

Variable Clamping Pressure

Blade Speed Indicator

Disconnect Switch

Totally Enclosed Transmission

24 Volt Controls

HSS Sawblade

Full Coolant System

Operators Tools

All Safety Guards

6′ of In-Feed Conveyor

Mechanical Specifications:

Dimensions: 98″ x 36″ x 64″ H

Weight: approx. 1,875 lbs.

Contact us for special pricing and availability

FOB Factory

Optional Equipment:

47″ Feeder: Contact for Pricing and Availability
