For Sale by Frank Bacon Machinery Sales
Surplus Record Dealer Since 1956
Sales Team
586-75...> Show Seller's Phone Number 586-756-4280 Let the seller know you found their listing on Surplus Record!
Description
60K (300kN) Instron 4208
60K (300kN) Satec Instron Appex/60UD Unidrive
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 54"
Compression Testing Opening (Less Tooling): 54"
Distance Between Columns/Screws: 33"
Testing Stroke: 56"
Table Size (W x D): 33" x 30"
Testing Speed (IPM): .0002 – 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 25" x 27" x 36"
Load Frame (W x D x H): 68" x 30" x 102"
Approximate Weight (lbs): 4,000
Electrical Requirements (V,Hz,PH): 230, 60, 3
EQUIPPED WITH:
- New Computer System with Keyboard
- 24" LED-Backlit LCD Color Monitor
- Microsoft Windows 11 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- AC Servo Motor with Incremental Encoder and AC Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 300kN Tension & Compression Load Cell
FOB Warren, MI
30 Day Satisfaction Guarantee Return Privilege
1 Year Parts and Labor Warranty
*Representative Image
| #13061-00
DOWNLOAD SPEC SHEET
Get Your Price from Frank Bacon Machinery Sales!
Buyers Who Viewed This Listing Also Viewed …

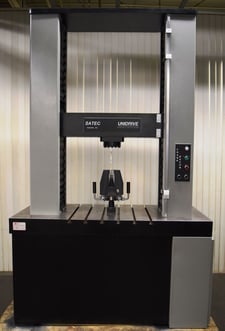

60000 lb. (300kN) Satec Instron #Appex/60UD Unidrive, reconditioned, 1 yr warranty
