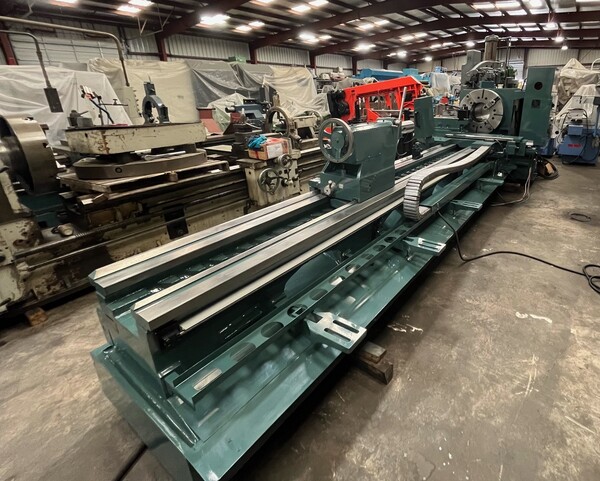

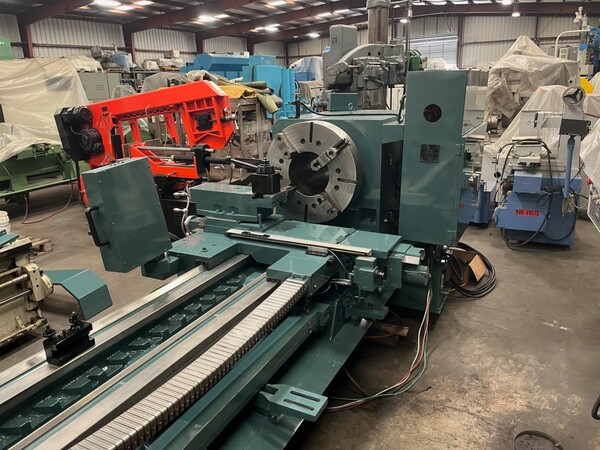

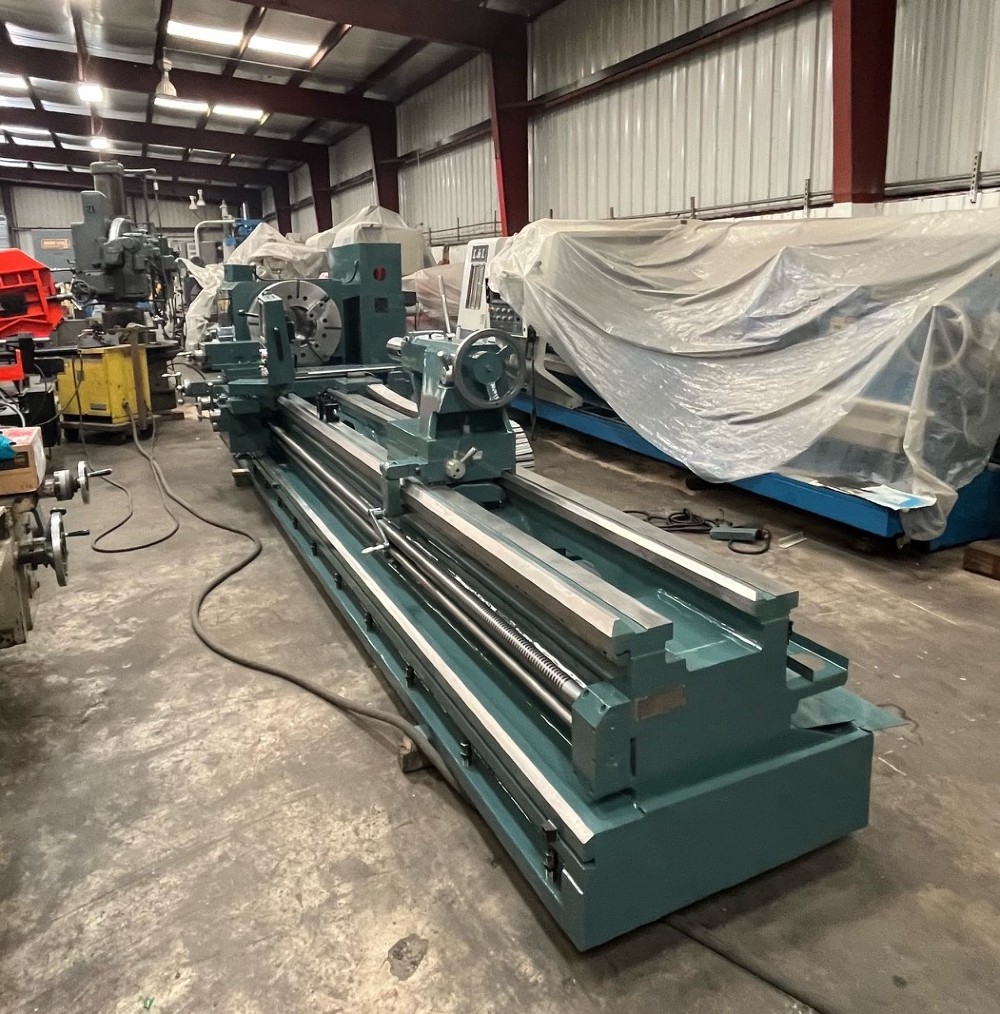

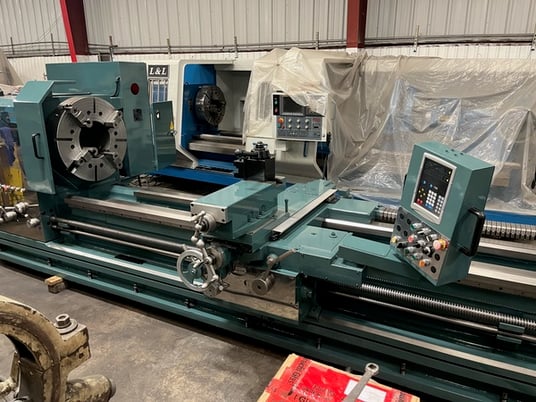

35" x 120" Vantage #PA3512U, 12.5" hole, 400 RPM, 4-jaw 28" chuck, 40 HP, taper, DRO' s, chip conveyor, 2008

Model PA3512U-120”

Serial number/YOM 07010477/2007

Swing over bed 35”

Swing over cross slide 24”

Swing over gap 53”

Center distance 120”

Spindle bore 12.5”

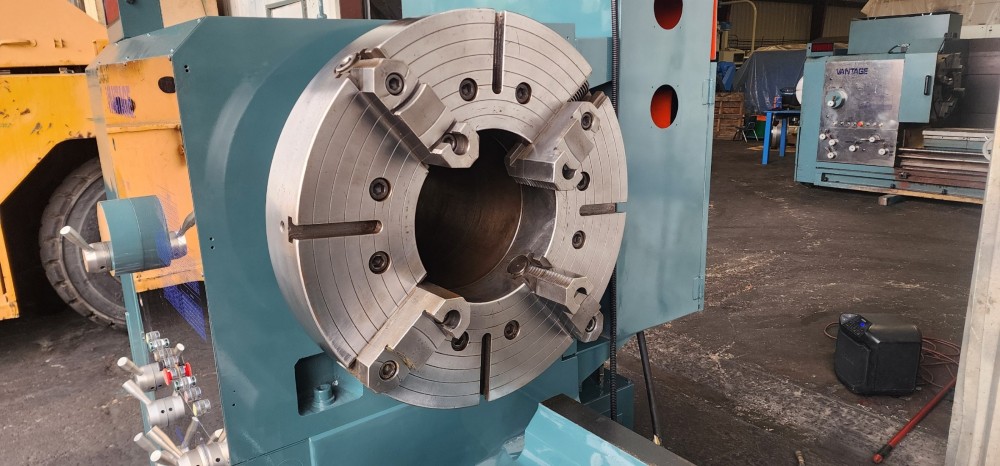

Chuck, steel body 28” 4-jaw with 12.5” bore

Spindle speeds 0-400 rpm (4-speed variable frequency drive)

Spindle nose A-2-20

Main motor 40 hp.

Threading Inch, Metric, Module

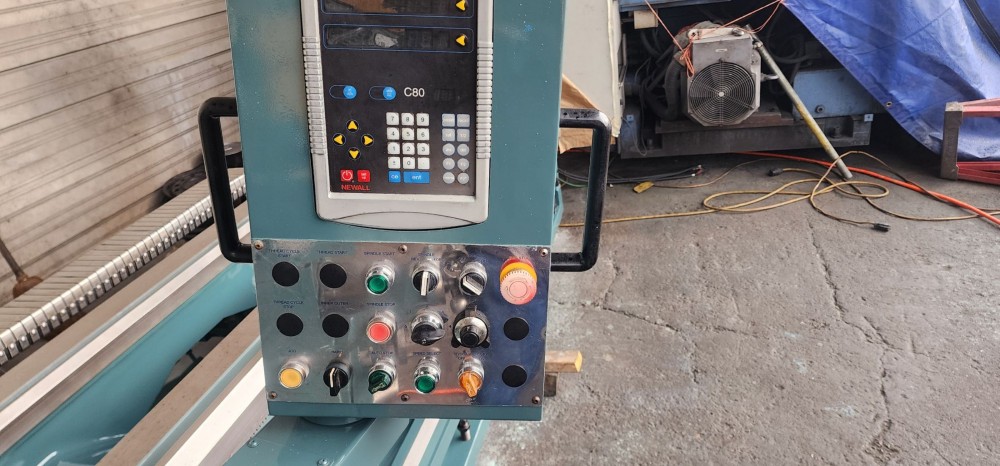

Readouts Digital readouts

Taper attachment Hydraulic tracer

Feeds, X-Z 0.001-0.07 ipr., 0.002—0.14 ipr.

Rapids, X-Z 40”/min; 59”/min

Leadscrew diameter 2”

Cross slide travel 31.5”

Compound travel 17.7”

Quill diameter 4.5”

Quill travel 11.75”

Center MT 6

Ratio of two speed quill 1:1 and 4:1

Steady rest, roller jaws 1.25”—13 3/4”

Coolant 40 gallon capacity

Electrics 220/3/60

Weight 24,800 lbs.

Standard accessories:

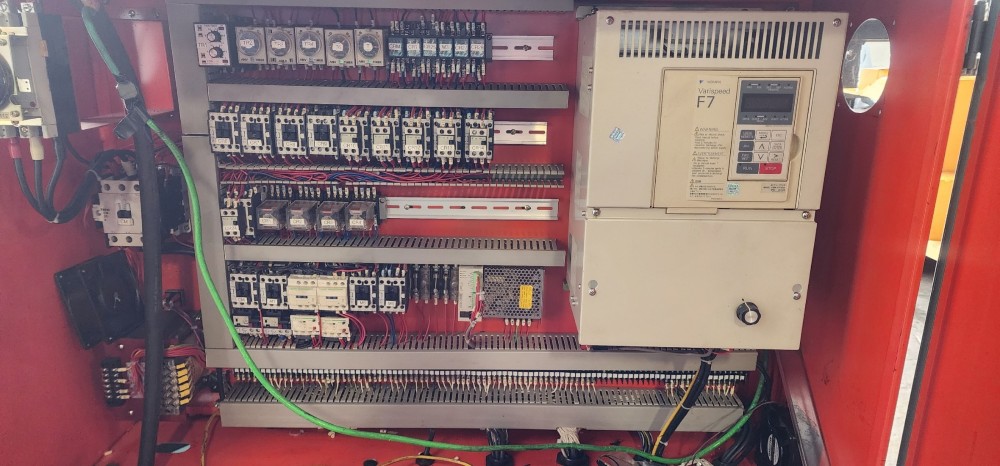

- Spindle variable speed, 4-range speeds by inverter frequency control,

each range gear changed by air power.

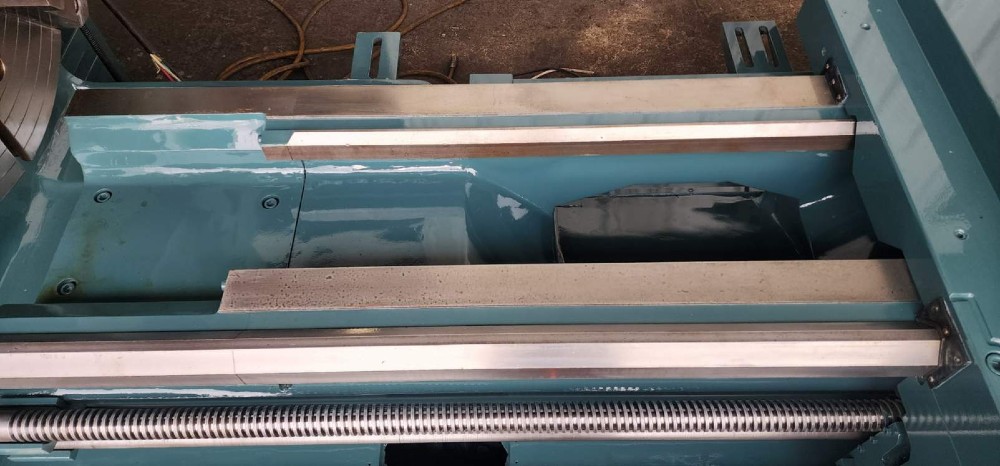

- Hardened and ground bed and cross slide ways, lubrication with adjustable

timer control pump.

- 6-way rapid traverse and feed- Two speed tailstock quill

- Automatic lubrication with way selection system

- Thread chasing dial - Low voltage control

- Work light - Tool box - Spindle speed with constant surface speed selection switch
