Standard Specifications

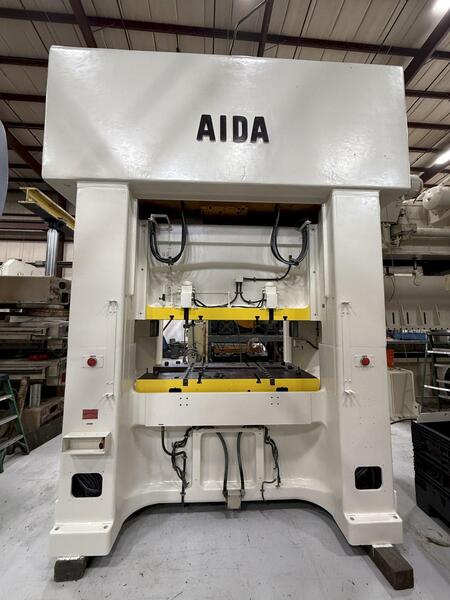

Used Aida PMX-L2-300(1)
Serial Number 12903-0230
Progressive Die Link Drive Stamping Press
300-ton Capacity (Metric)
330-ton US Capacity
7.87" Stroke
31.4" Shut Height to Bed
19.6" Die Height to Bolster
3.93" Adjustment
72.83" LR x 39.3" Bed Area
72.83" LR x 34.6" Bolster Area
30-80 VSPM
Equipment and Features
Air Clutch and Brake
Progressive Link Motion Drive
- Reduces Snap-through
- Increases Time in the Forming Portion of Stroke
Dynamic Slide Balancing
Automatic Recirculating Lube System
Hydraulic Overload Protection
8-Point Oil Film Slide Guide System
Micro Inch Capability
50 HP Main Motor, 460V 60HZ
11.8" Thick T-Slotted Bolster

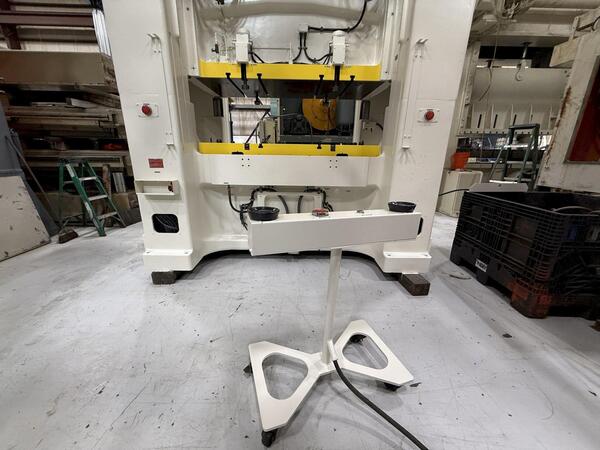

T-Stand Palm Buttons
35.5" Wide Windows
Safety Doors Front and Back
Flush Floor Standing

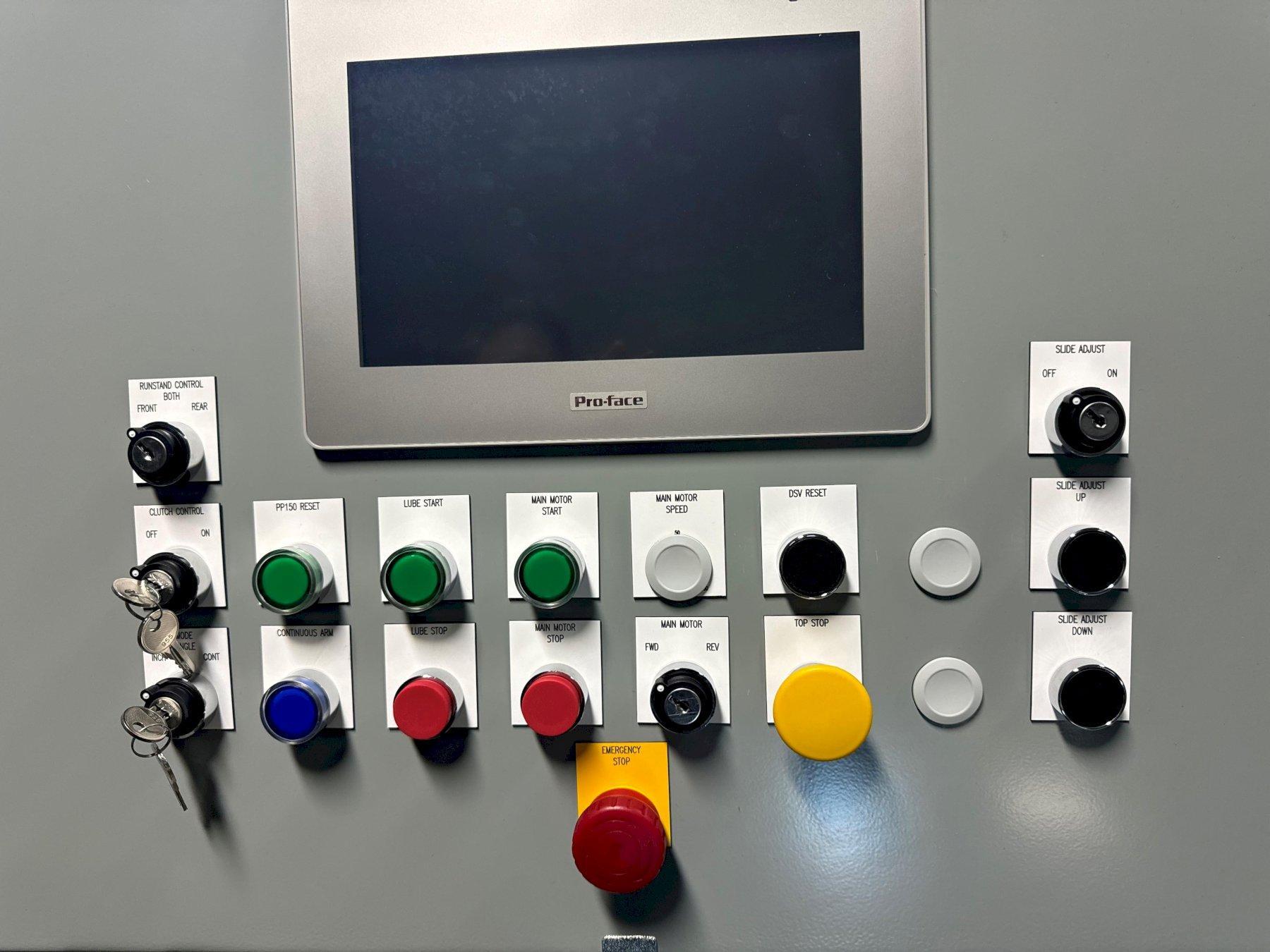

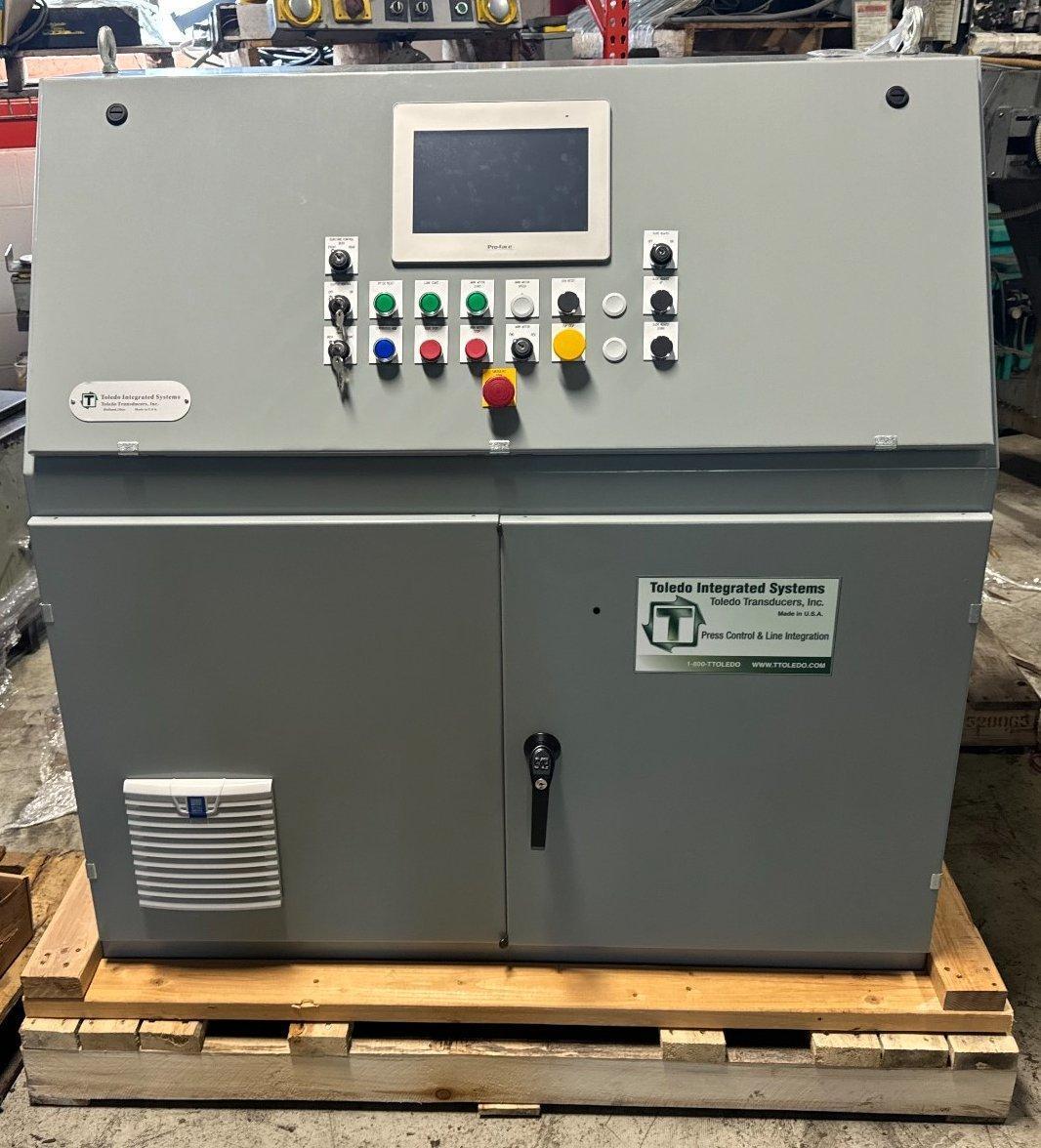

Price includes "New" Toledo Integrated System - DPPlus 2.0 Total Press Control with 10" DPPlus Color Touch Screen - For A Complete List of Included Toledo Control Options or Additional Press Control Manufacturer Options Please contact your salesperson.
Weight 101,400 lbs.
Overall Height: 15' 2" Tall
Shipping Dimension: 11' 6" Wide

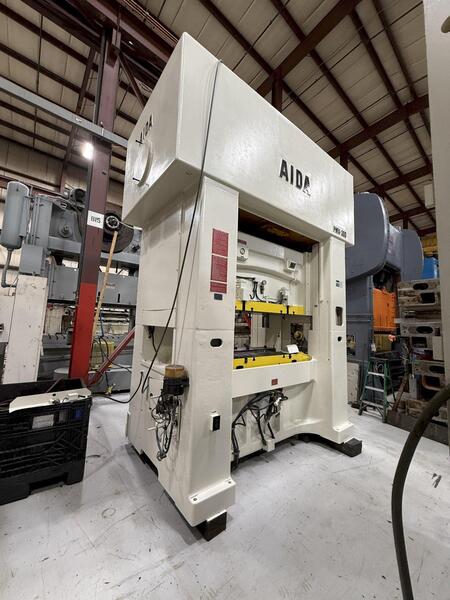

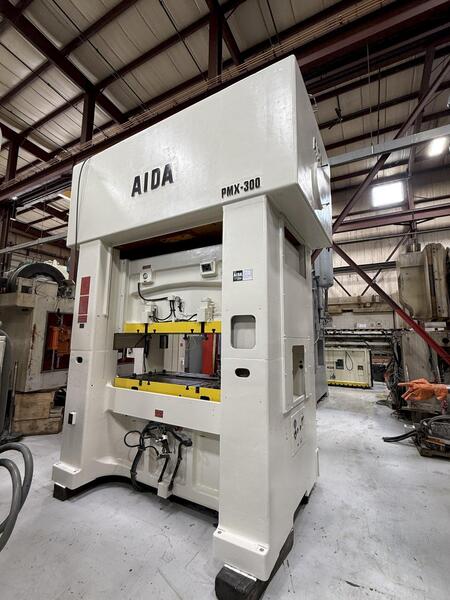

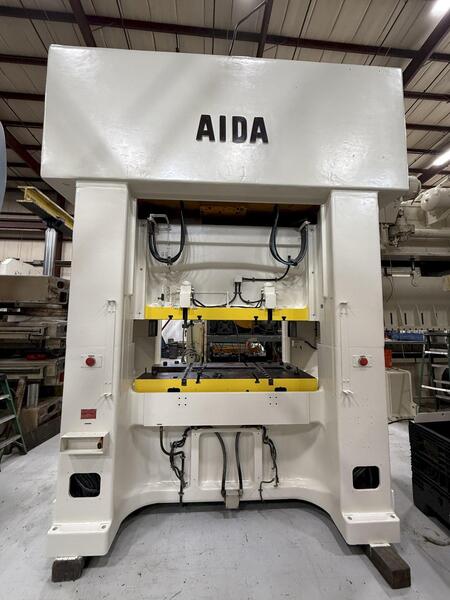

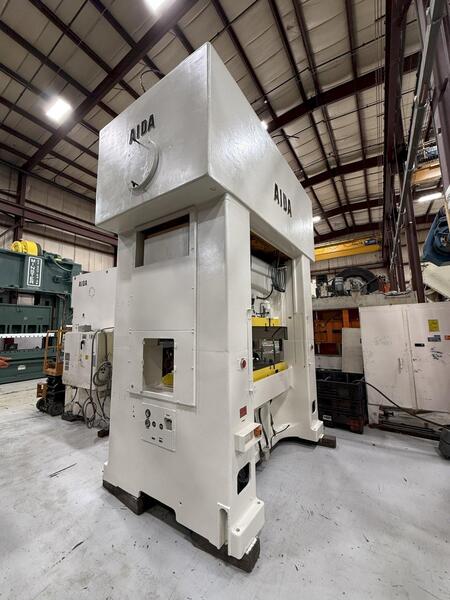

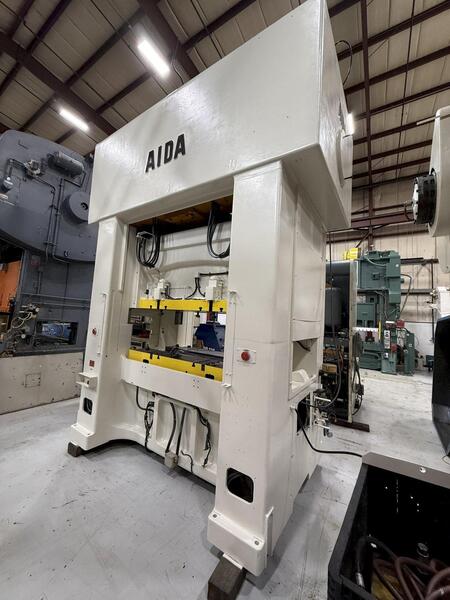

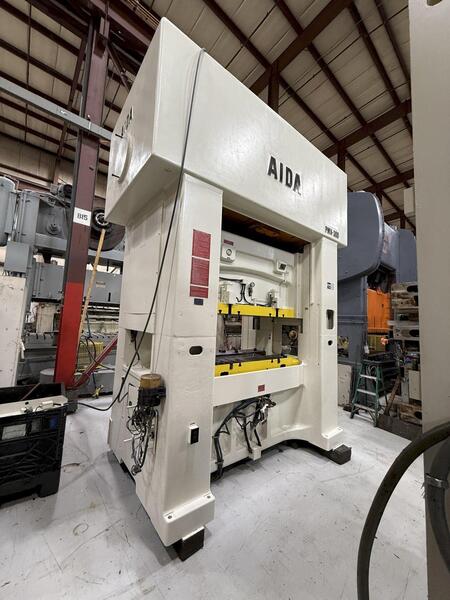

This Used 300-ton Aida PMX Press can be seen underpower in the S&G Press Livonia Michigan Warehouse.
More 300-ton Presses For Sale:
This 1990 Aida PMX-L2-300(1) is a used 300-ton straight side mechanical stamping press, now available. It boasts a 7.87-inch stroke, a 31.4-inch shut height, and a substantial bed size of 72.83 by 39.3 inches. Notably, the press comes with brand-new press controls, enhancing its operational capabilities. Located in Livonia, Michigan, this machine offers a robust solution for demanding metal stamping applications.
