***FREE SHIPPING INCLUDED TO CONTINENTAL USA ONLY***

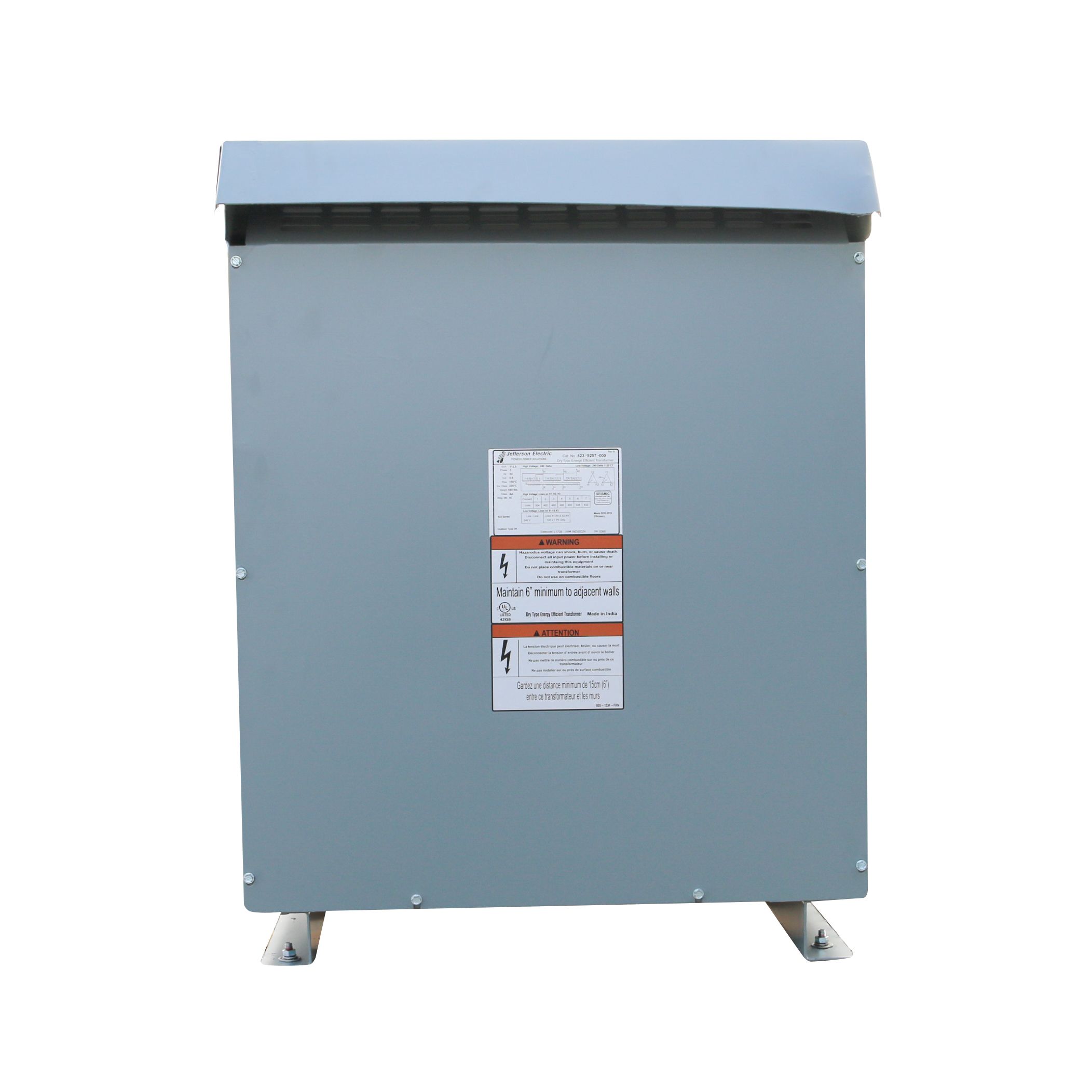

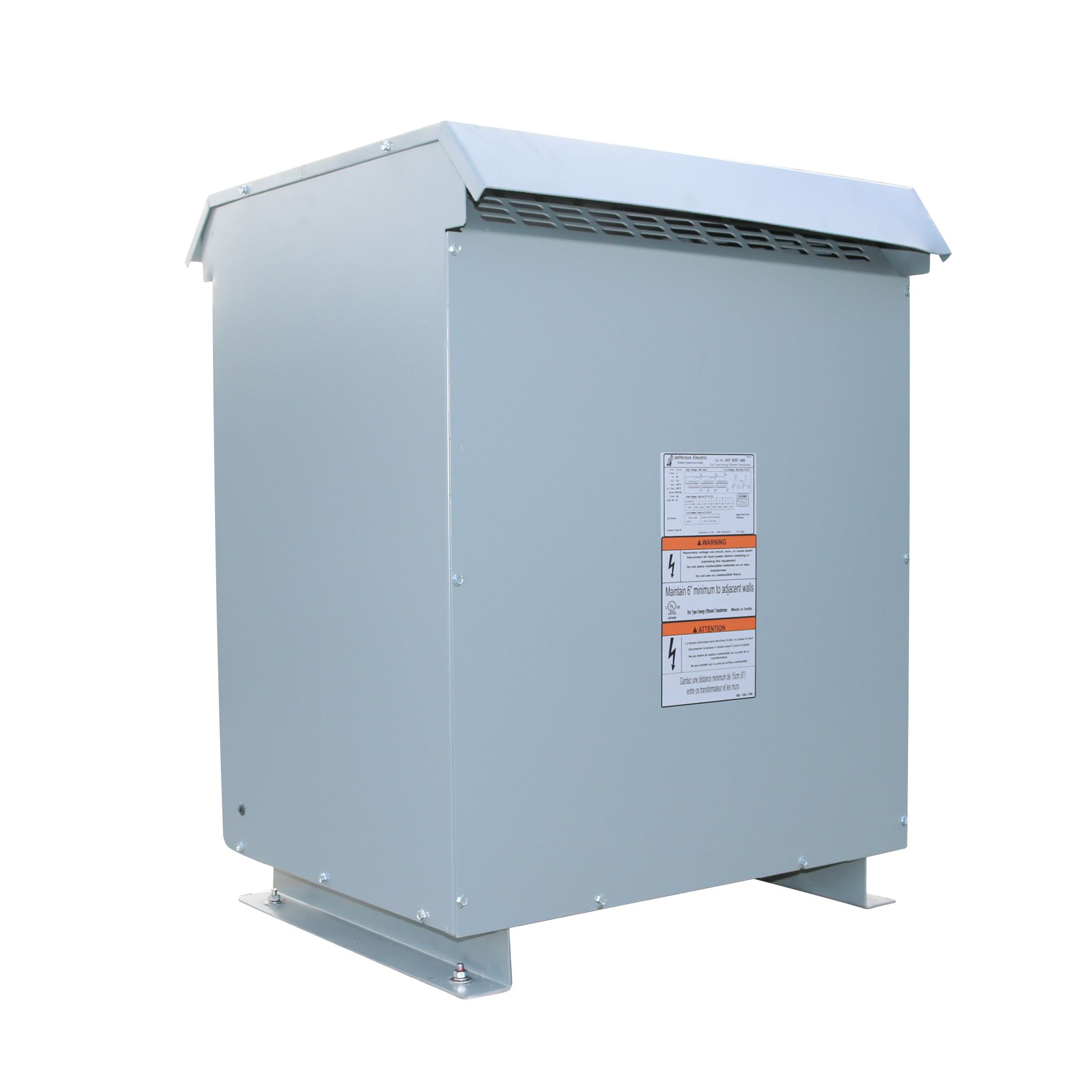

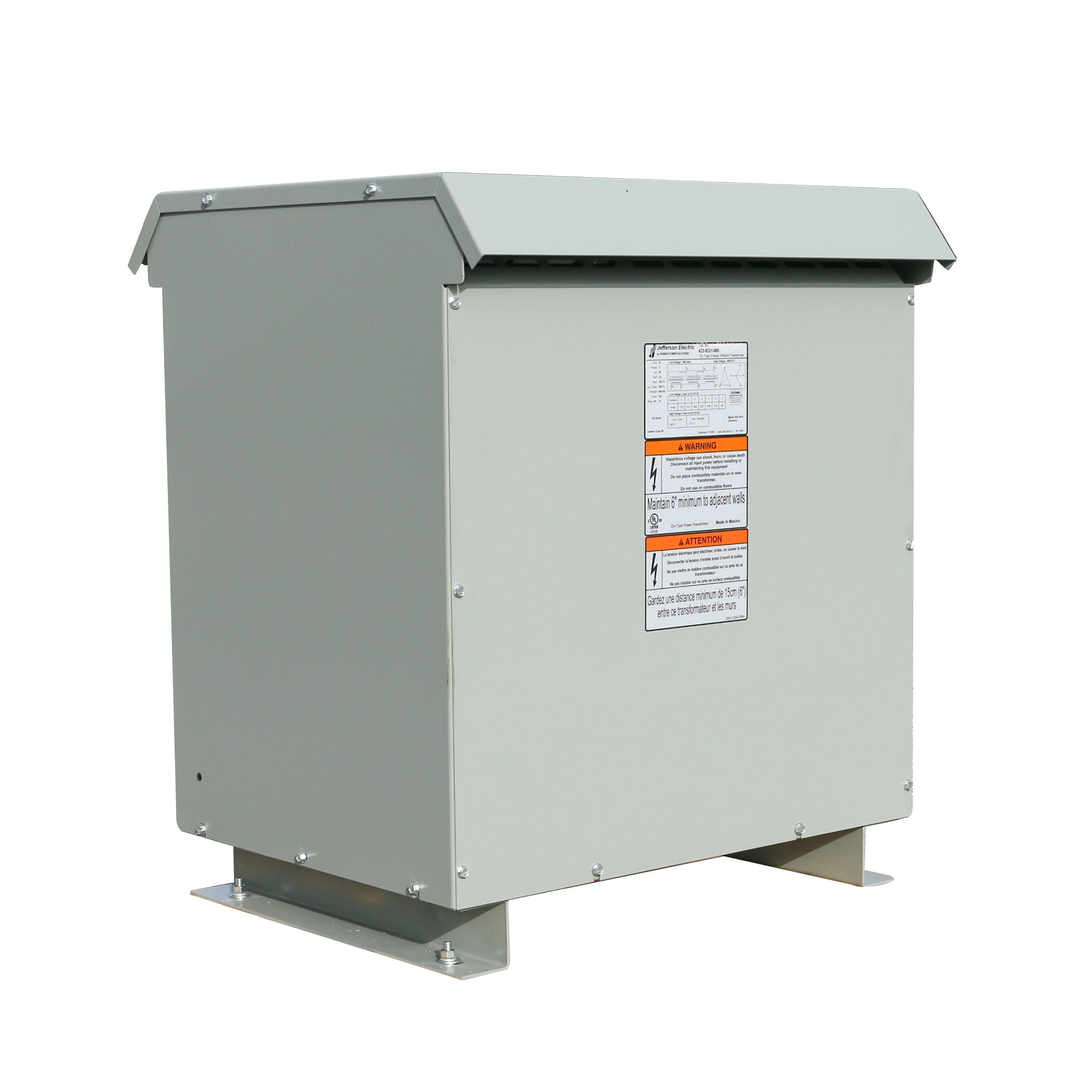

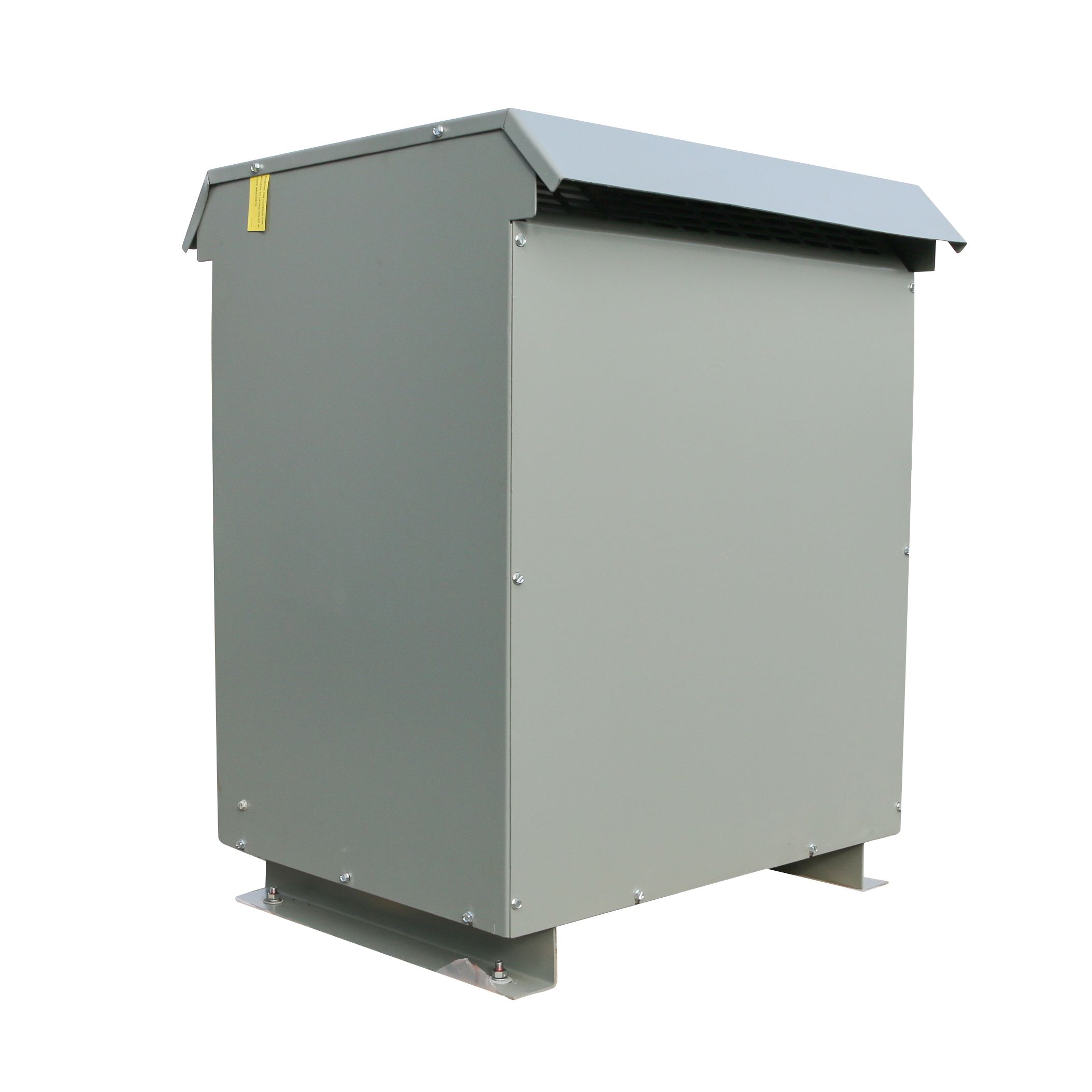

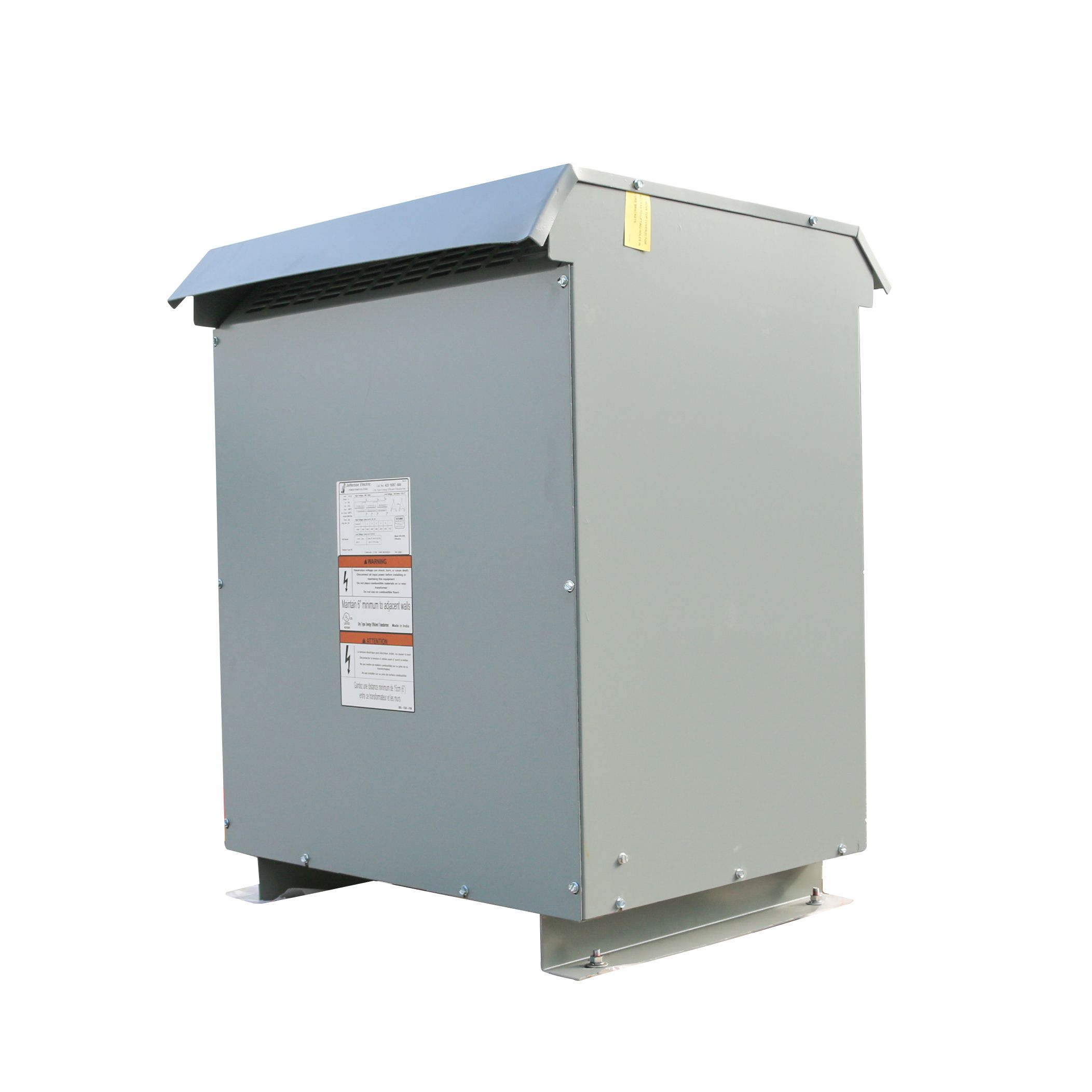

This is a FACTORY NEW Jefferson Electric dry type transformer for sale. We are a Wisconsin based authorized Jefferson dealer with many transformers IN STOCK and ready to ship! -We can also custom order any voltage in nearly any size, just ask! We are here to help!

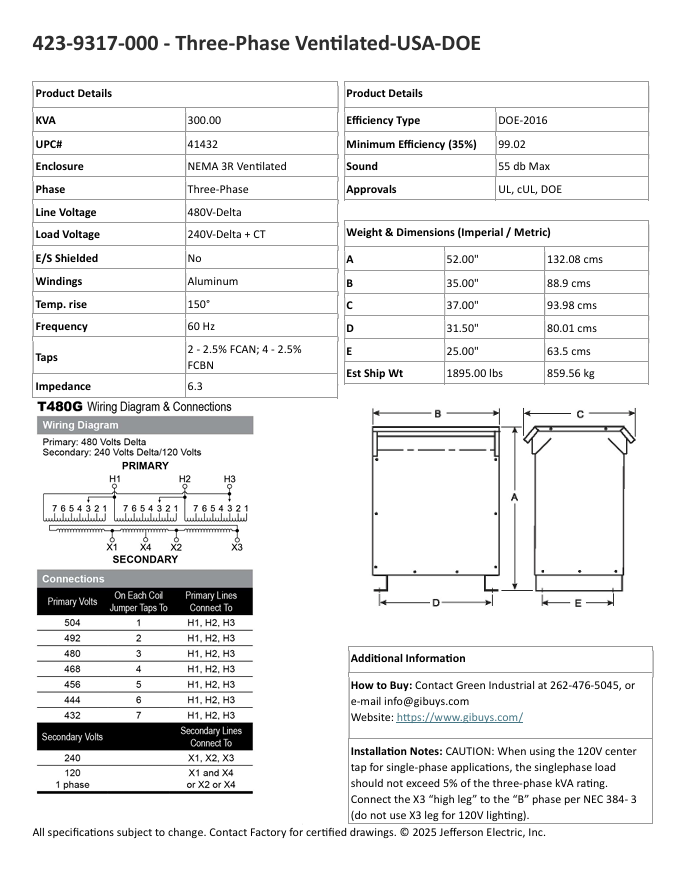

Manufacturer : Jefferson Electric Catalog Number : 423-9317-000 KVA : 300 Phase : 3
PRIMARY VOLTAGE / INPUT / LINE SIDE : 480 Delta, 3 Wire (3 Phase) Primary Feed Input Amps / Line Side : 361 Amps of 480 volt, 3 phase, 3 Wire SECONDARY VOLTAGE / OUTPUT / LOAD SIDE : 240 DELTA 3 Wire / Center Tap (CT) 4 Wire (3 Phase) Secondary Output Amps / Load Side : 722 Amps of 240 Delta CT, 3 or 4 Wire (Center Tap Delta gives you a single phase leg of 120V, not intended for use of more than 5% of total kva amount) (Using the CT, Neutral 4th wire is optional) This means that you feed this transformer 361 Amps of 480 Delta, 3 Phase, 3 Wire and you will receive 722 amps of 240 Delta, 3 wire or 4 wire. (4 Wire using the Center Tap-Neutral 4 th wire is optional.) Max Temp Rise : 150 Deg C Efficiency : Meets DOE-2016 Efficiency Standards Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated) Winding Material : AL / AL Primary Side Taps : YES 504, 492, 480, 468, 456, 444, 432 Condition : Factory New Warranty : 10 Year Limited Warranty
GIBUYS Item Number : JH-423-9317-000

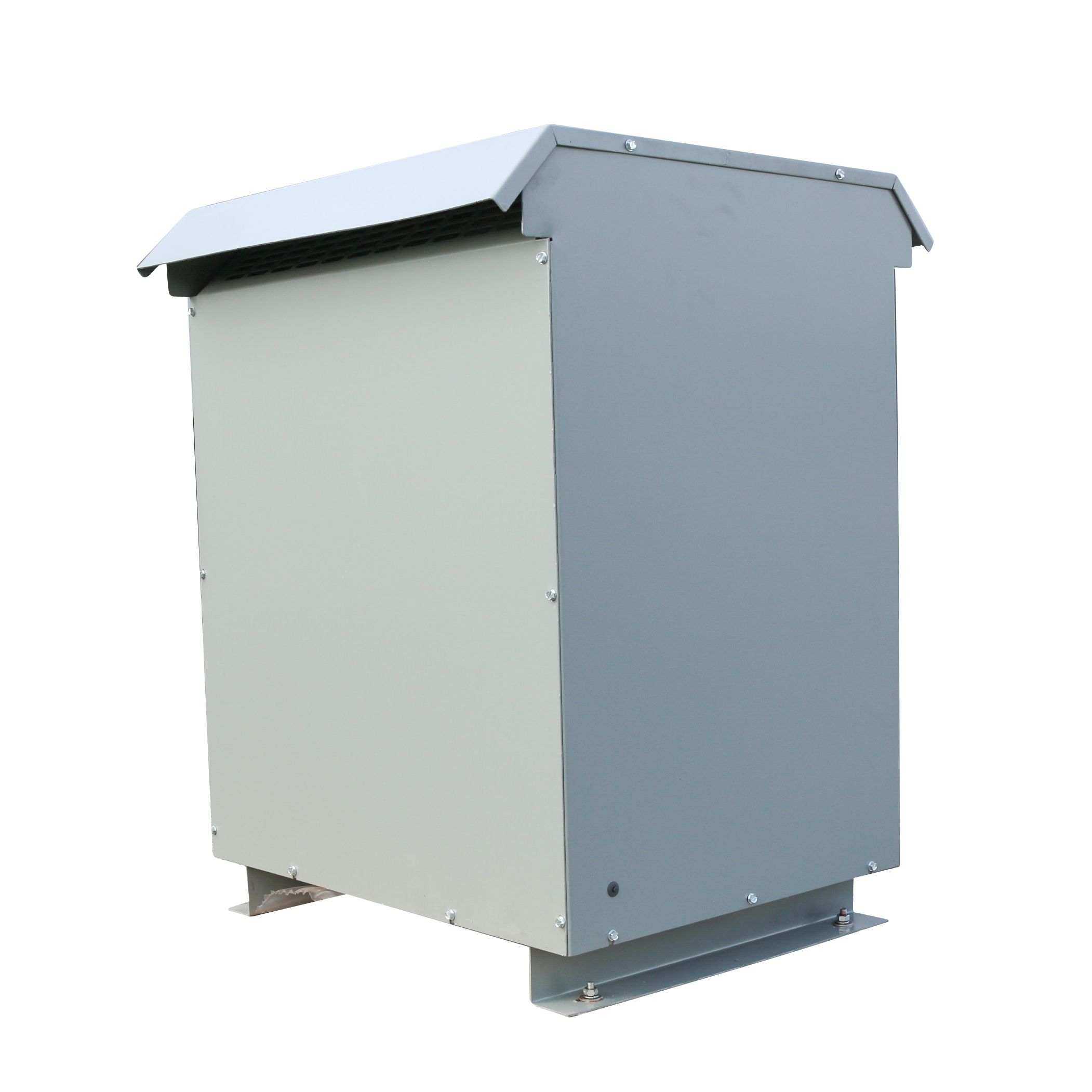

Many of our Jefferson transformers come standard with a NEMA 3R, Rainproof outdoor enclosure allowing them to be installed both outdoors or indoors! All units come with a 10 year limited factory warranty!
Save thousands and buy NEW from Green Industrial today!
CONDITION: -Factory New Dry Type Energy Efficient Transformer -10 YEAR LIMITED WARRANTY

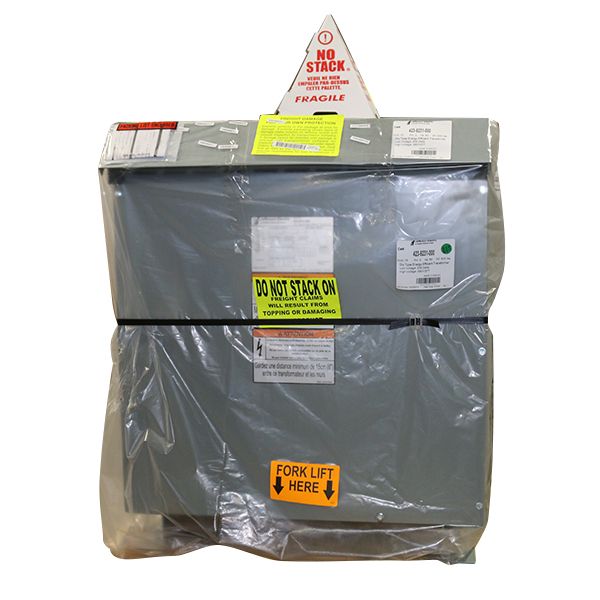

***FREE Shipping to Business Addresses only*** Continental USA Only. LIFTGATE FEE is $150.00. We NEED to know if a liftgate is needed at the time of order. NO RESIDENTIAL ADDRESSES
