Description

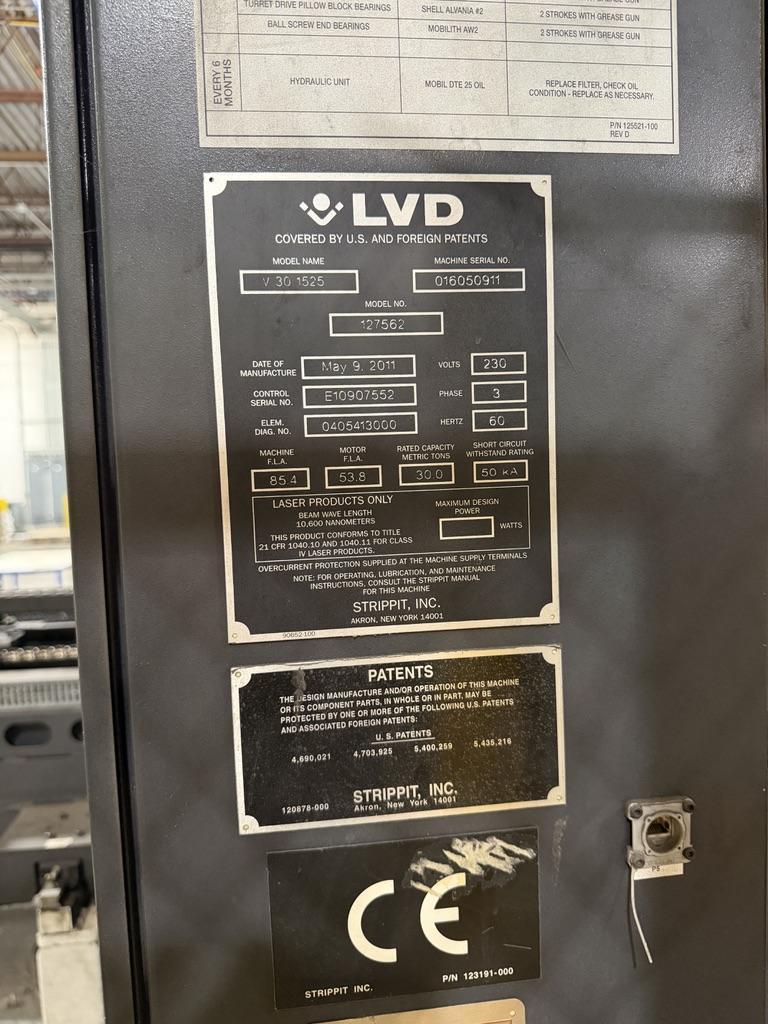

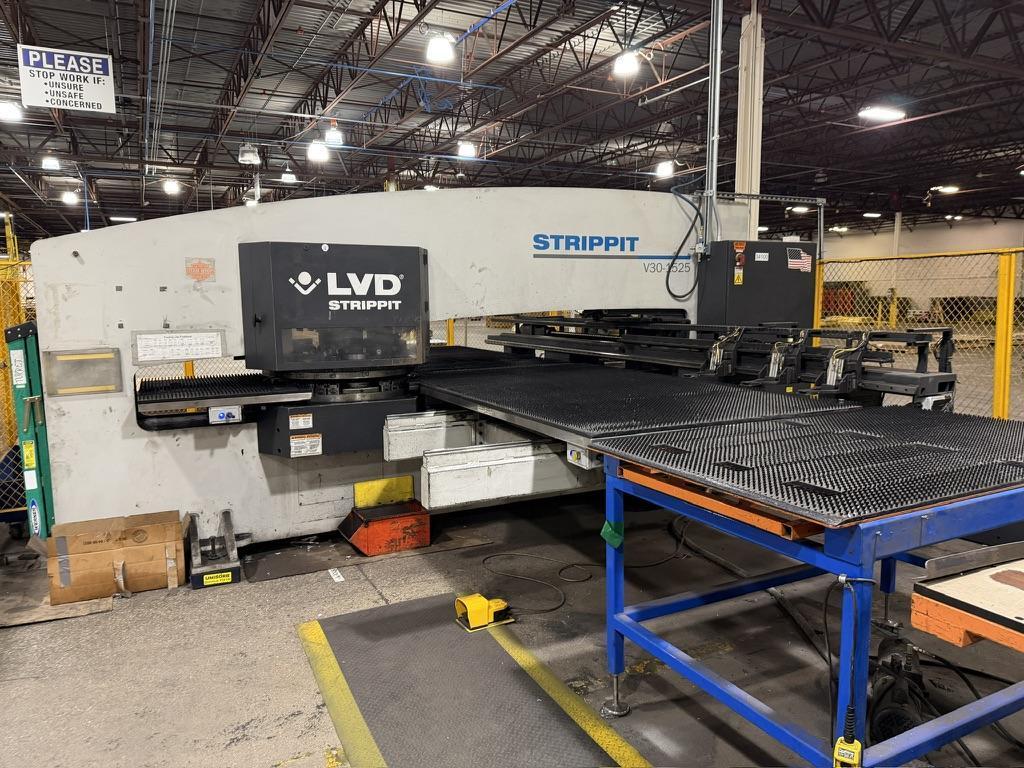

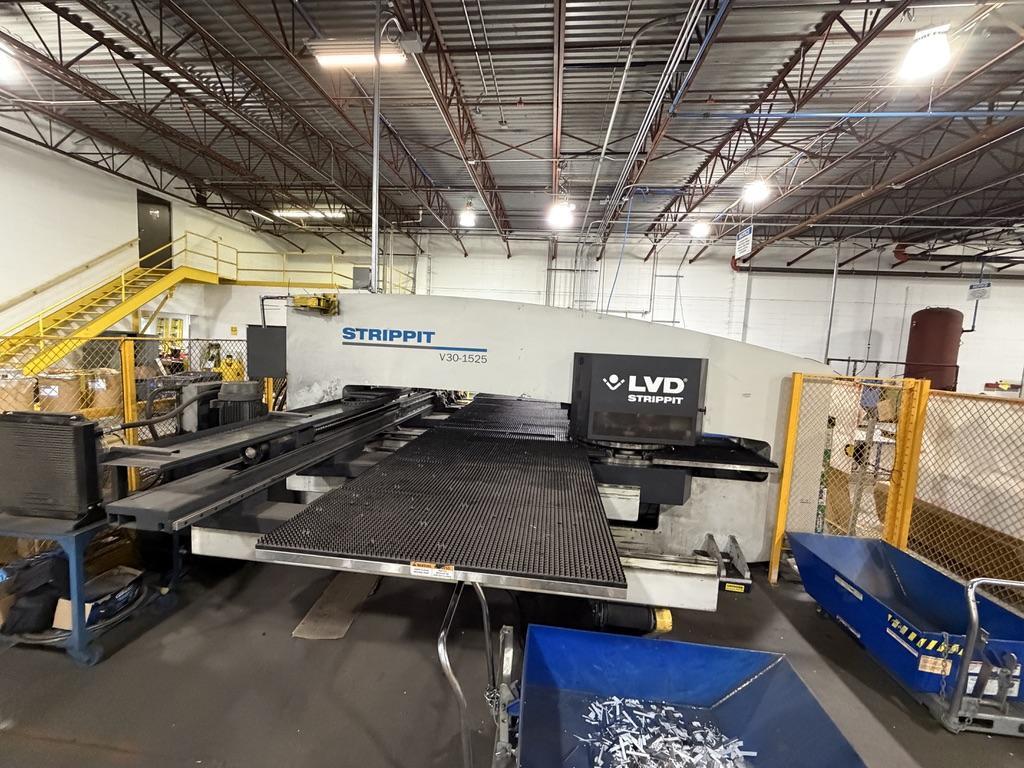

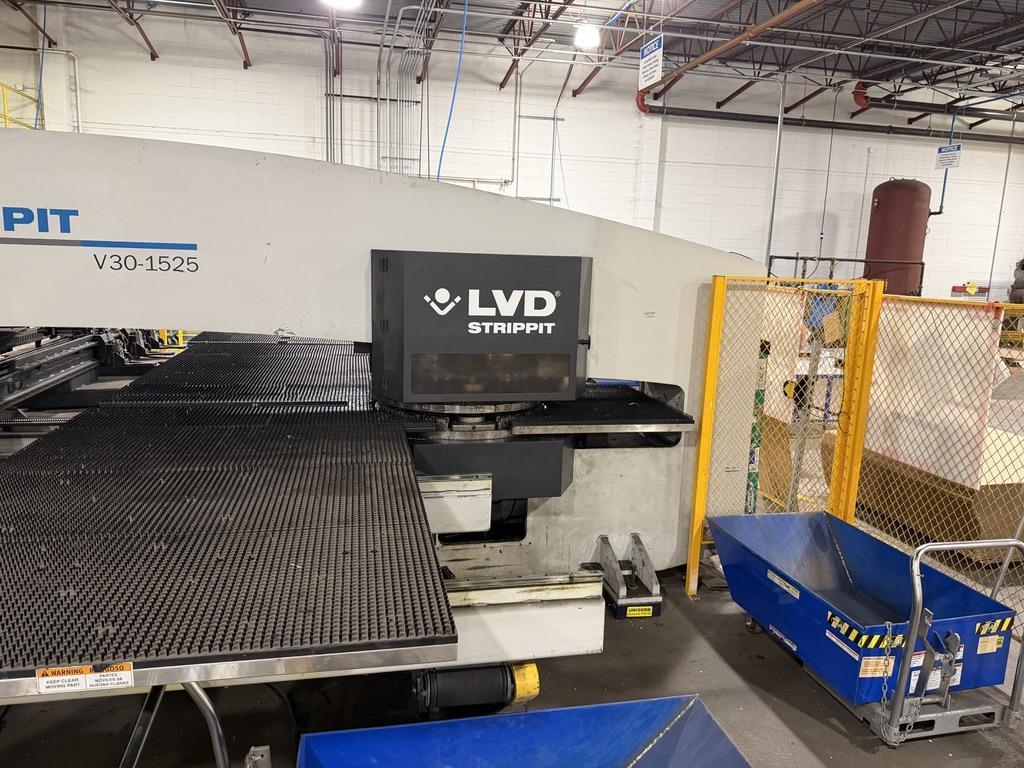

LVD Strippit V30-1525 New 2011
Performance and Capacity
- Punching Force: Delivers 30 metric tons (300 kN) of punching capacity.
- Maximum Material Thickness: It can process mild steel up to 0.250 inches (6.35 mm) thick.
- Worksheet Size: The "1525" designation typically refers to a nominal worksheet size of 1524 mm x 2500 mm (60" x 100").
- Hit Rate: It achieves a maximum hit rate of up to 1,000 hits per minute (HPM) at a 1 mm pitch and approximately 440 HPM on 25.4 mm (1-inch) centers.
- Accuracy: The machine offers a punching accuracy of ± 0.1 mm (± 0.004") and a repetitive accuracy of ± 0.05 mm (± 0.002").
Turret and Tooling

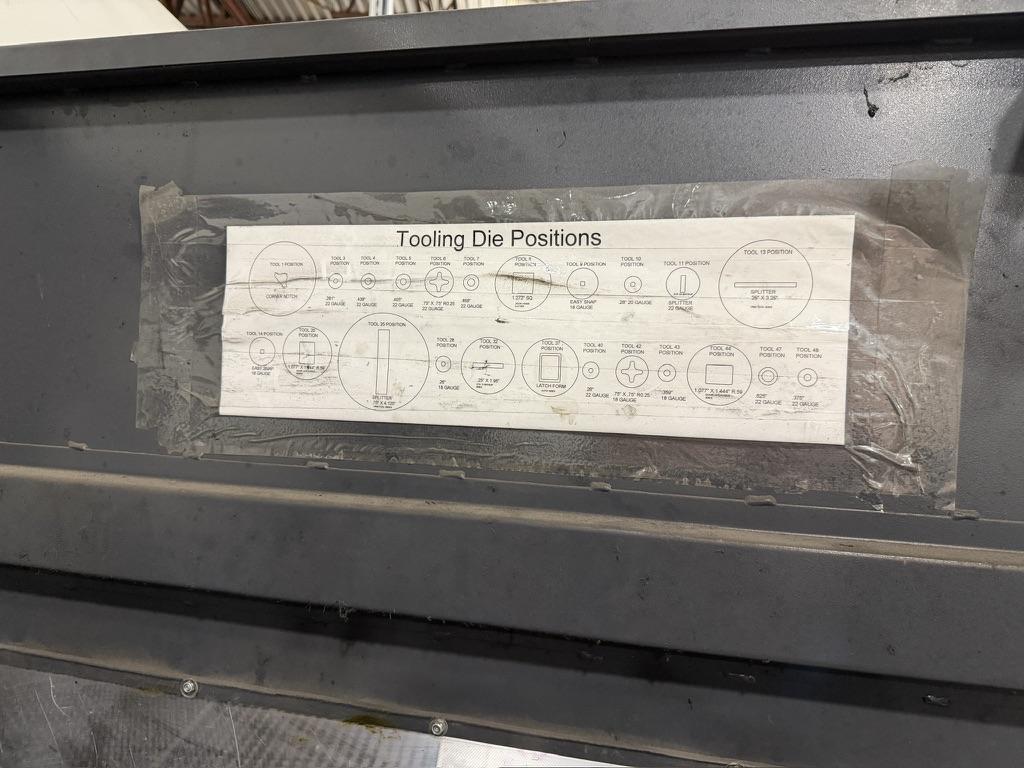

- Turret Capacity: Typically features a 48-station thick-style turret, though some configurations may vary.
- Auto-Index Stations: Usually includes three or four 3.5" (88.9 mm) auto-index stations to enhance flexibility for complex geometries.
- Feed Clearance: Features a large feed clearance of 0.984" (25 mm) between the upper and lower turret, allowing for high forming operations like louvers and embossments.
- Tooling Style: Designed for thick-turret style tooling with hardened steel guide bushings for alignment.
Physical Specifications
- Machine Weight: 40,000 lbs Approx.
- Table Load: The table can support a maximum workpiece mass of 100 kg (220 lbs) at full speed.

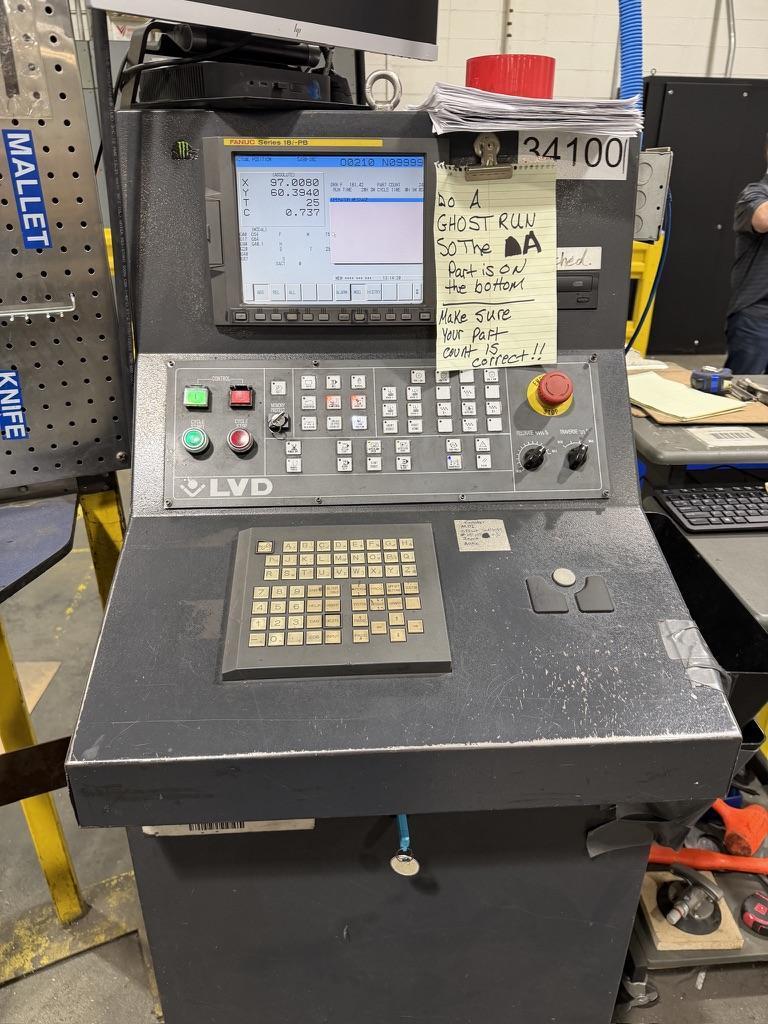

- Control Unit:FANUC 18iPB CNC controls
Equipped With:
Fencing with laser safety beams

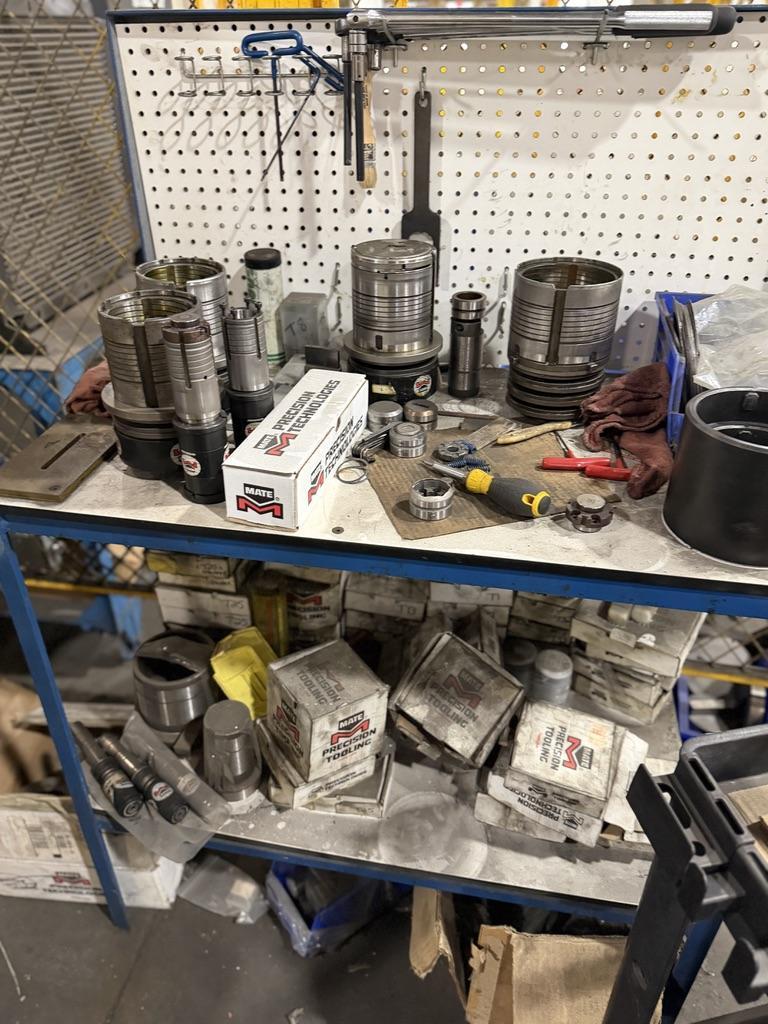

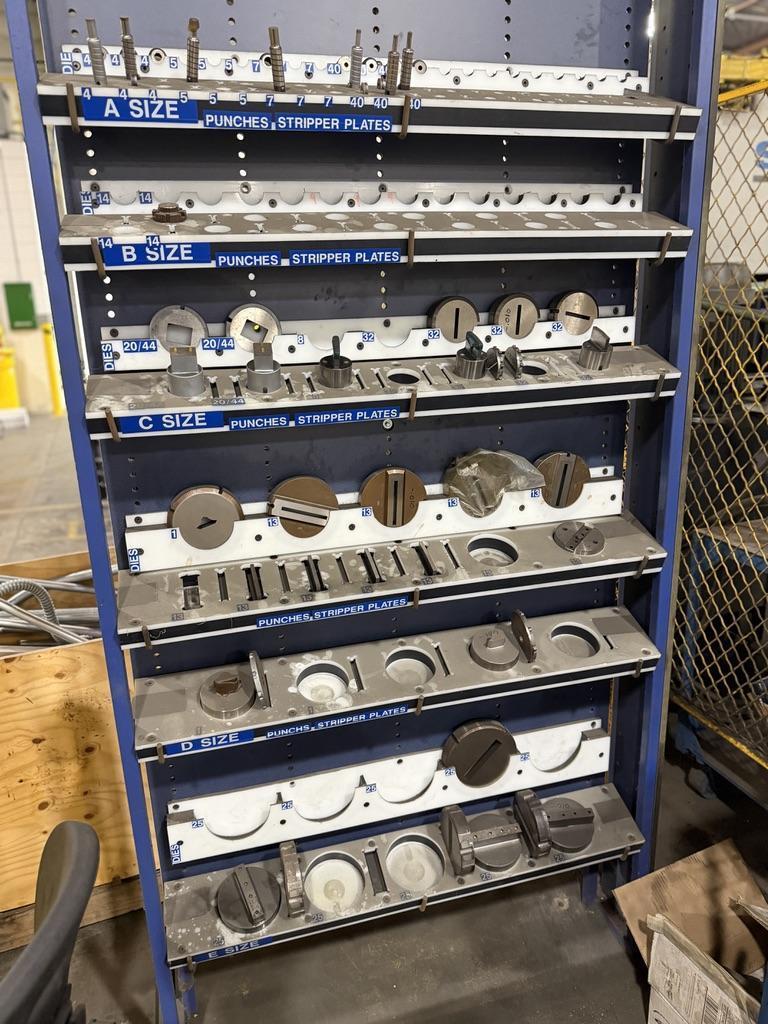

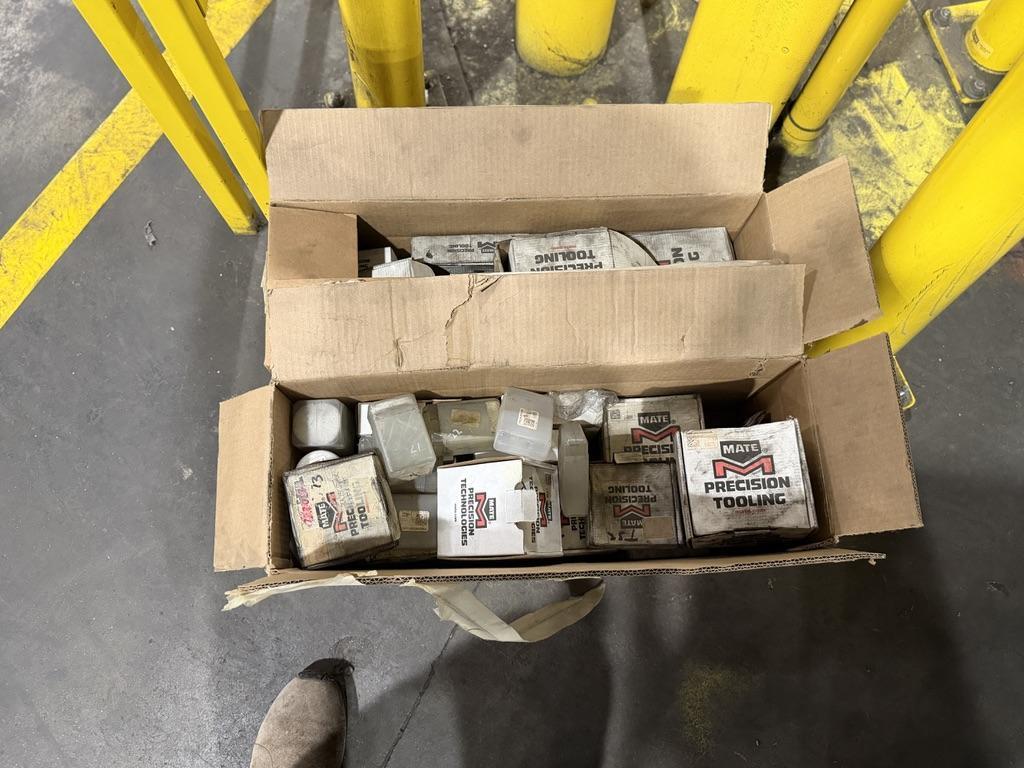

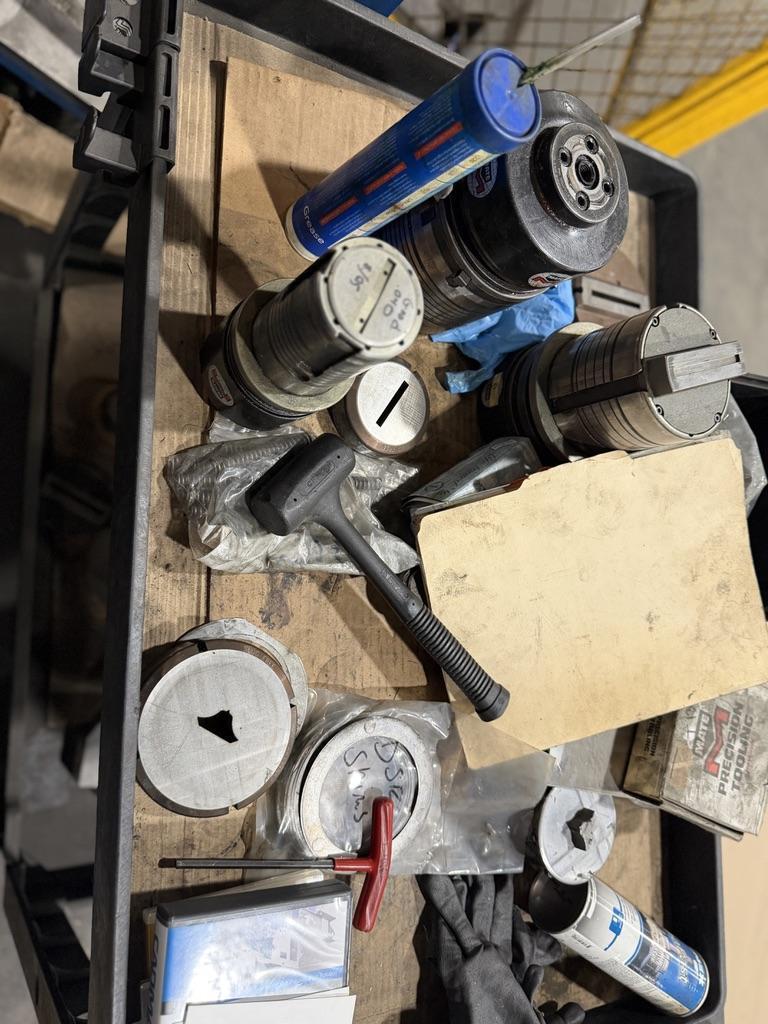

Large quantity of tooling
Spare parts
Scrap carts
Fencing with laser safety beams
Large quantity of tooling
Spare parts
Scrap carts
