30 Ton, Amada #Pega-305072, turret punch press, 58 station, 4 automatic index, 300 SPM, Amadan-04P-C, hydraulic work clamp, 1993

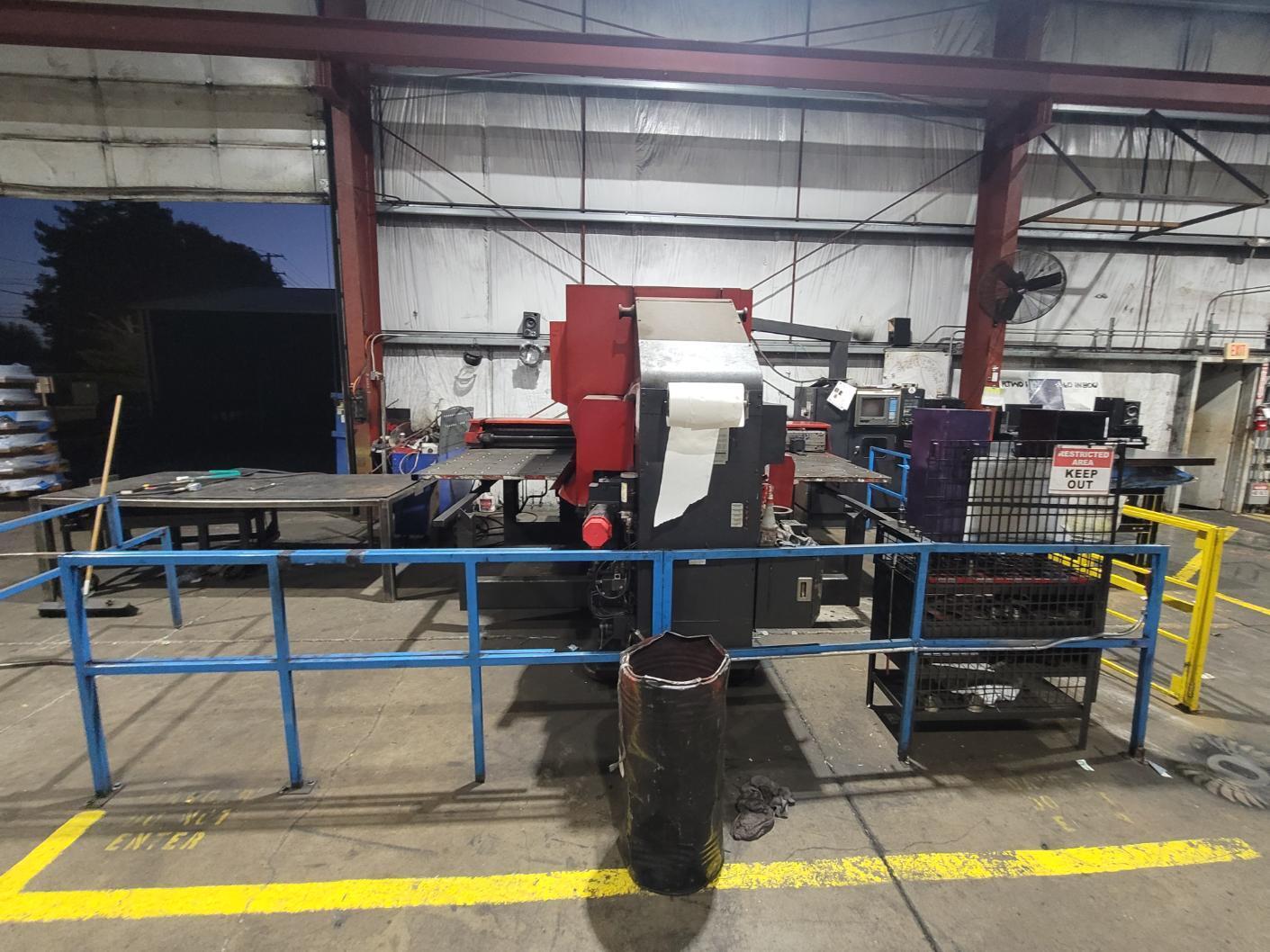

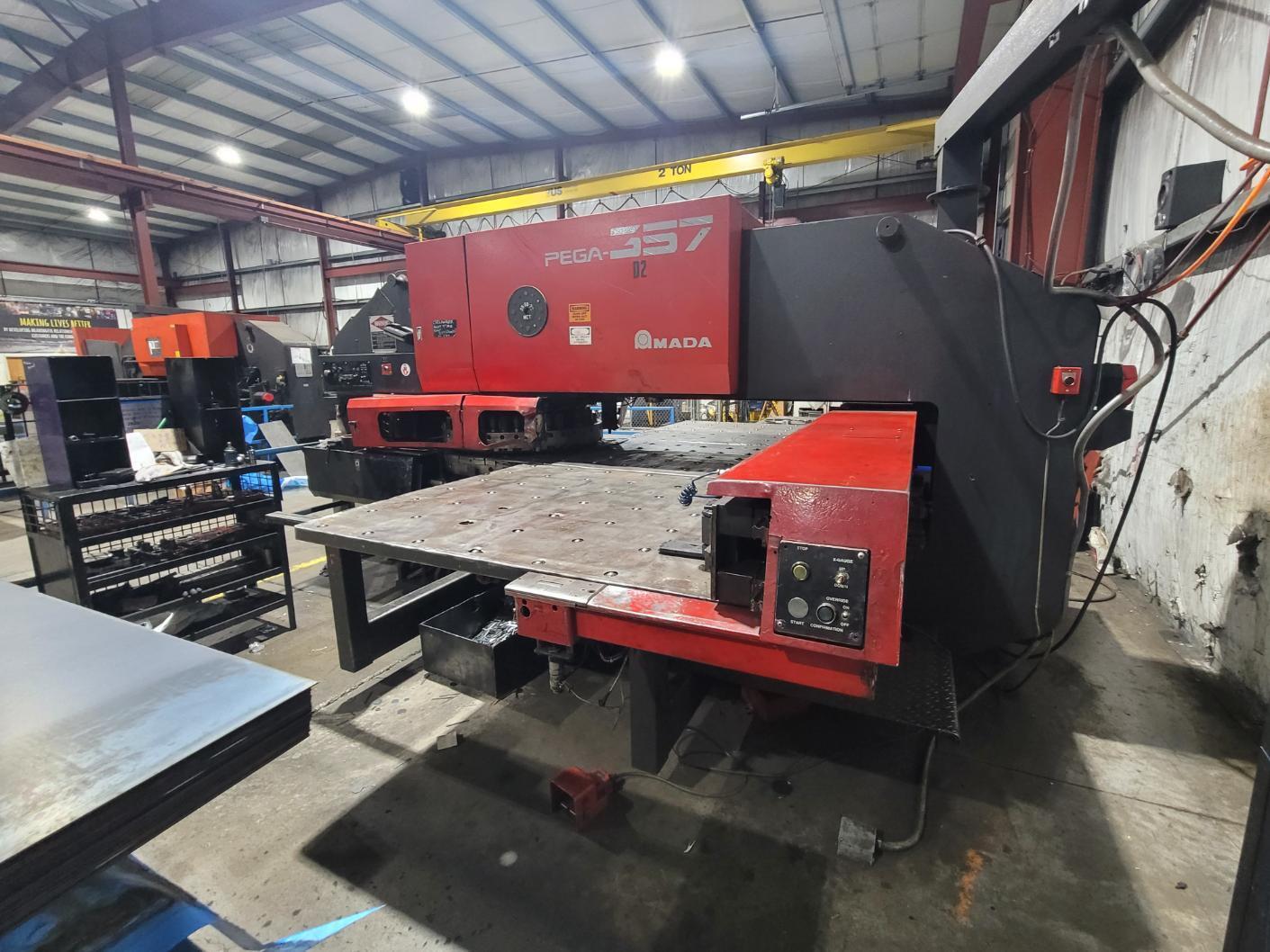

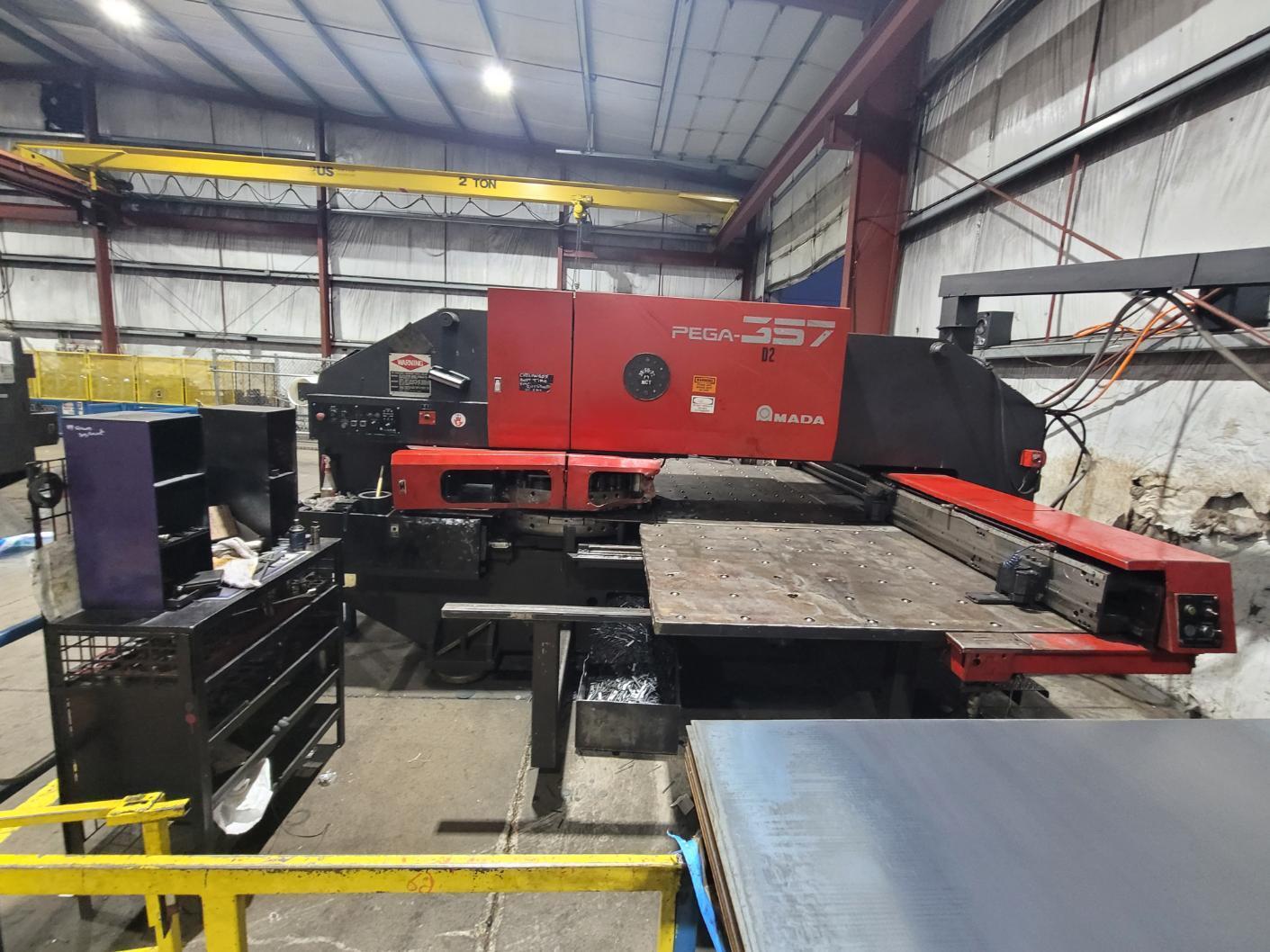

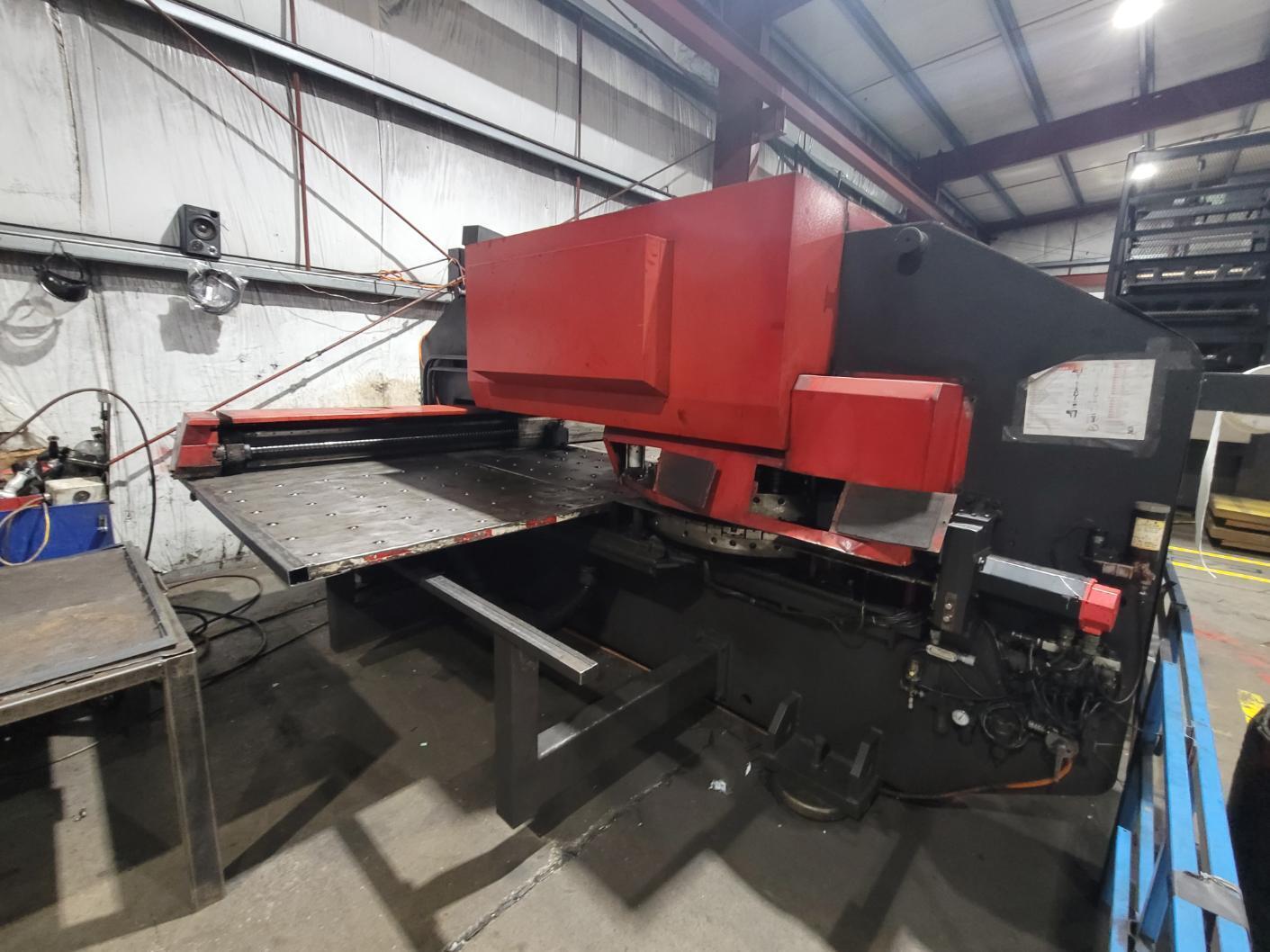

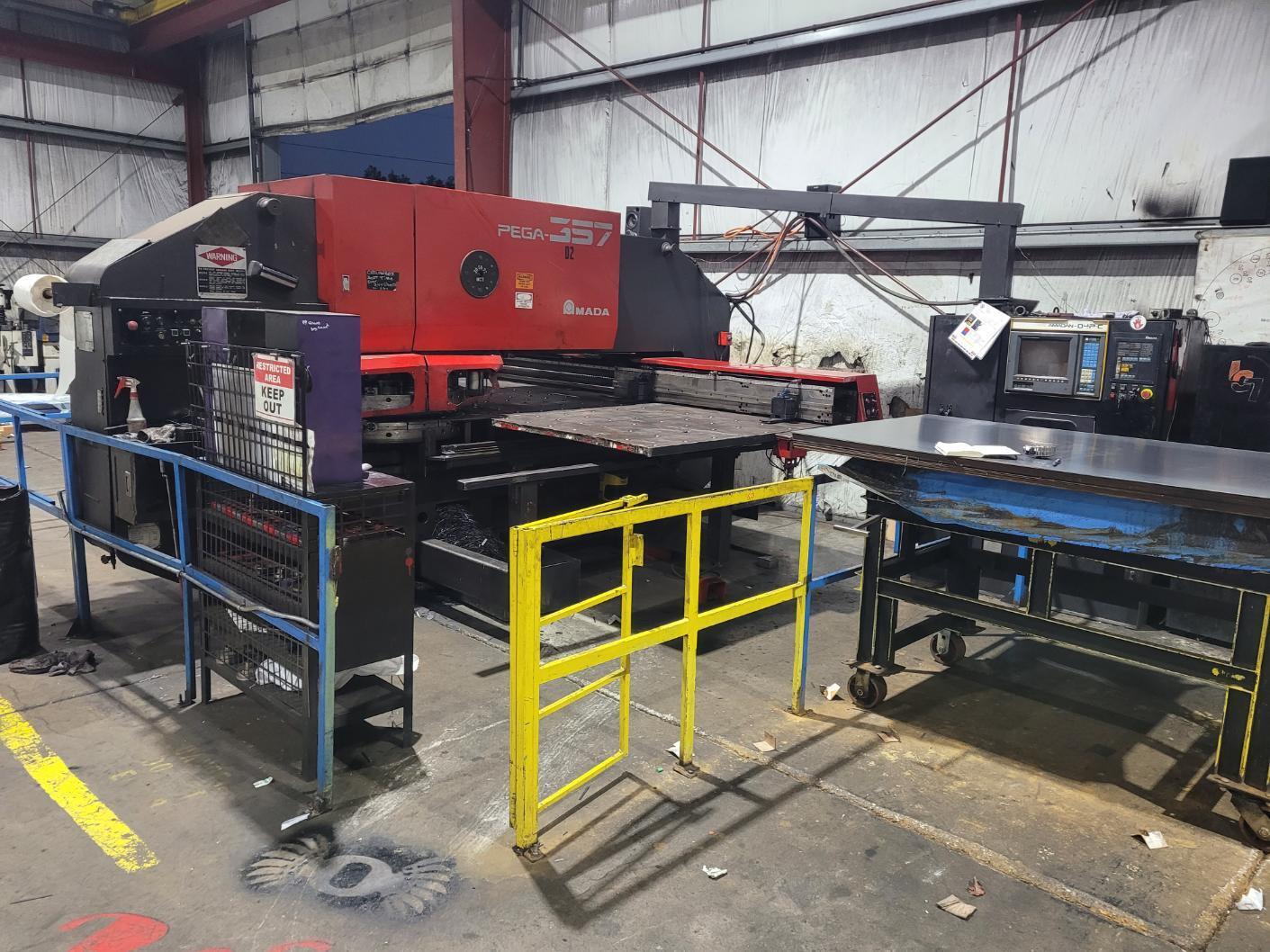

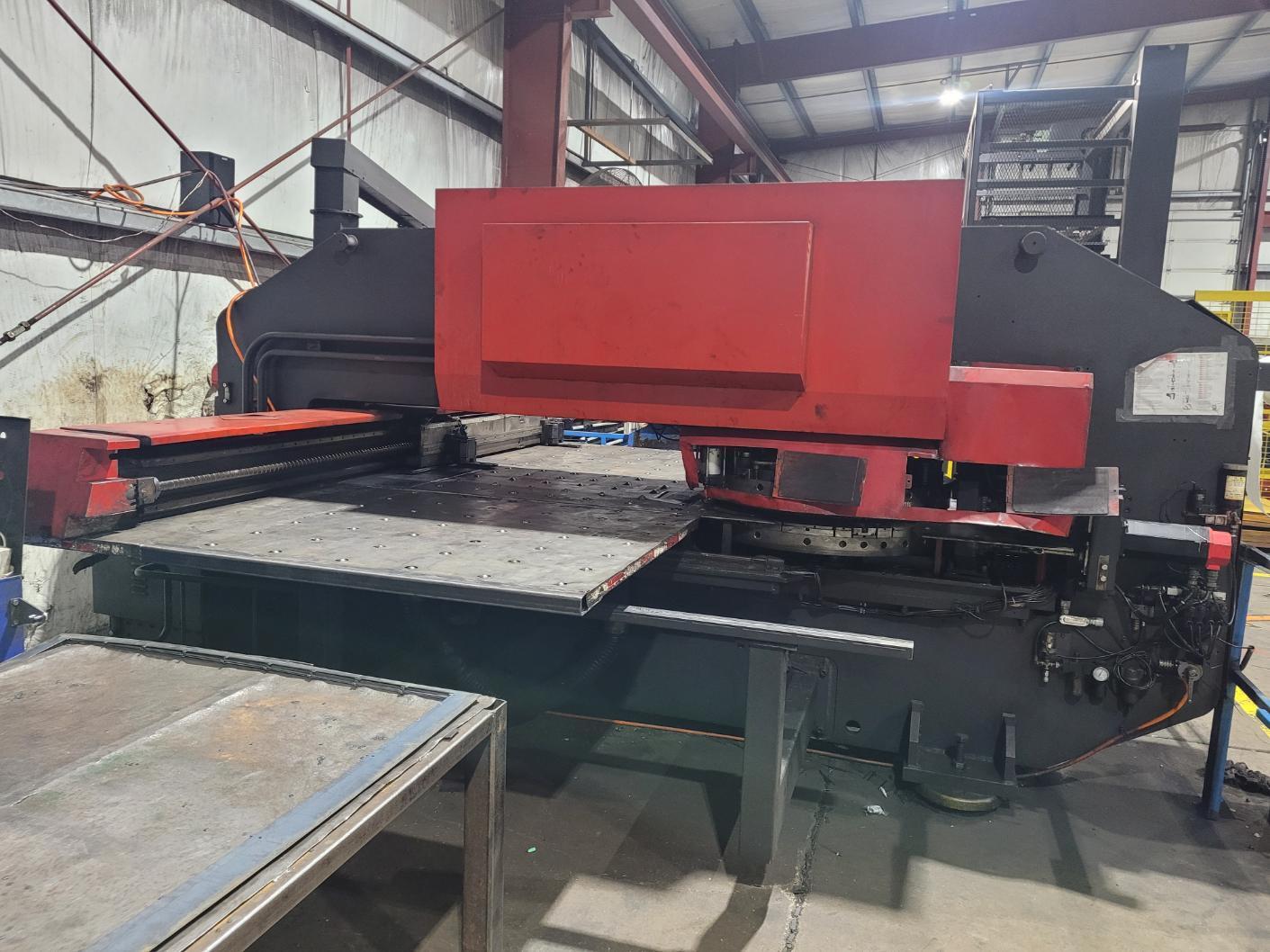

Amada NC Turret Punch Press
Model: PEGA 305072
DOM: 1993
Electrics: 230 Volt, 3 Phase, 60 Cycle, 18 KVA
Main Motor: 5 or 7.5 HP
Features & Specifications:

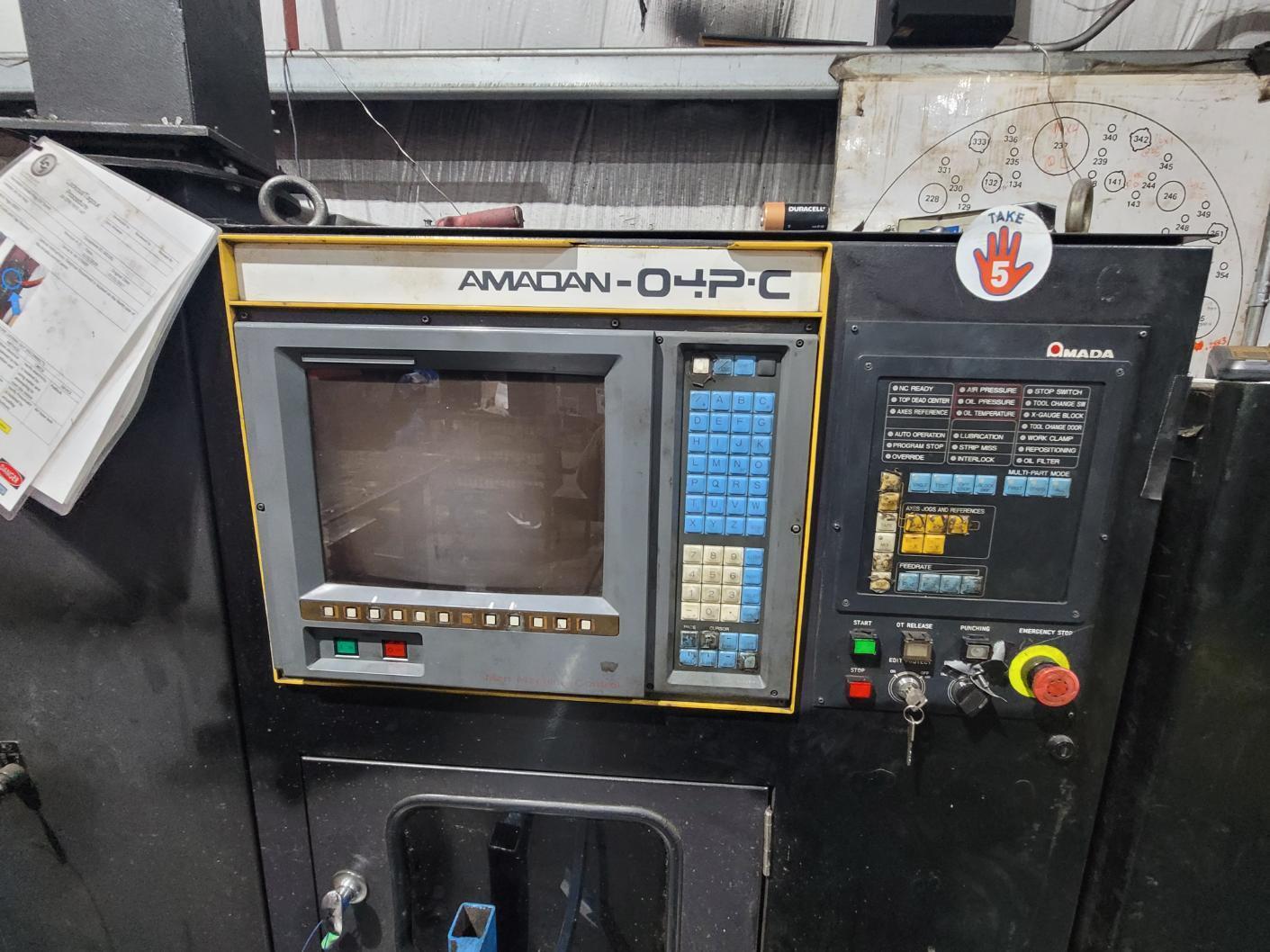

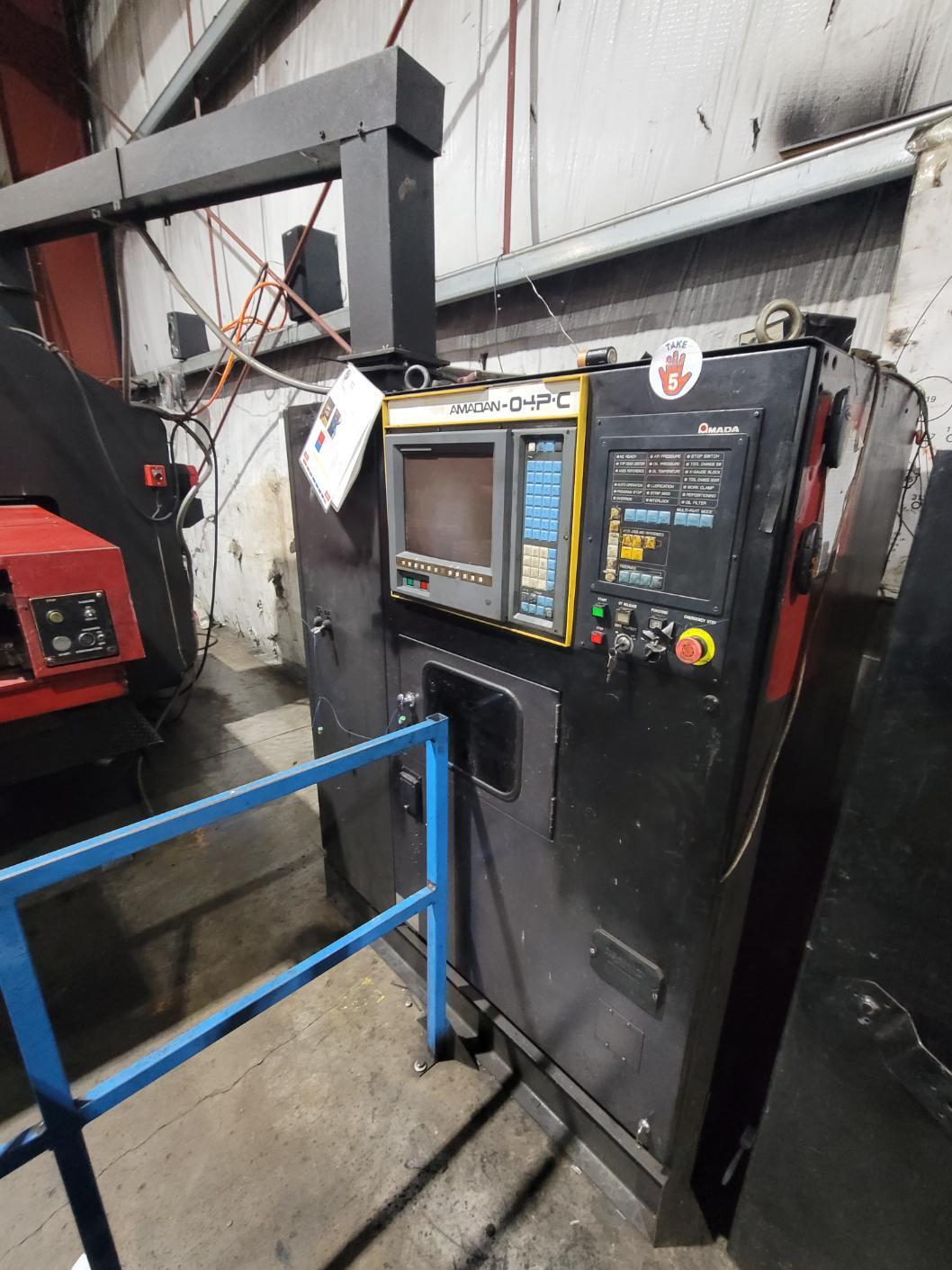

...CNC Controller: Amadan-04P-C
......GE Fanuc
......Type: 00-PC PEGA
......Serial: F3031904
...Capacity: 30 Tons
...Turret Stations: 58 H-Type Thick Style
...3-Axis: X, Y, C (rotational)
...Travels:
......X-Axis: 50”
......Y-Axis: 72”
...Sheet Size: 50” x 144”
...Max. Hole Diameter: ¼”
...Turret Speed: 30 RPM
...Max Punch Rate: 200 Hits/Minute
...Positioning Speed: 1,968.5 IPM
...Strokes Per Minute: 300
...Automated Index: 4 Stations
...E Station for Slitting

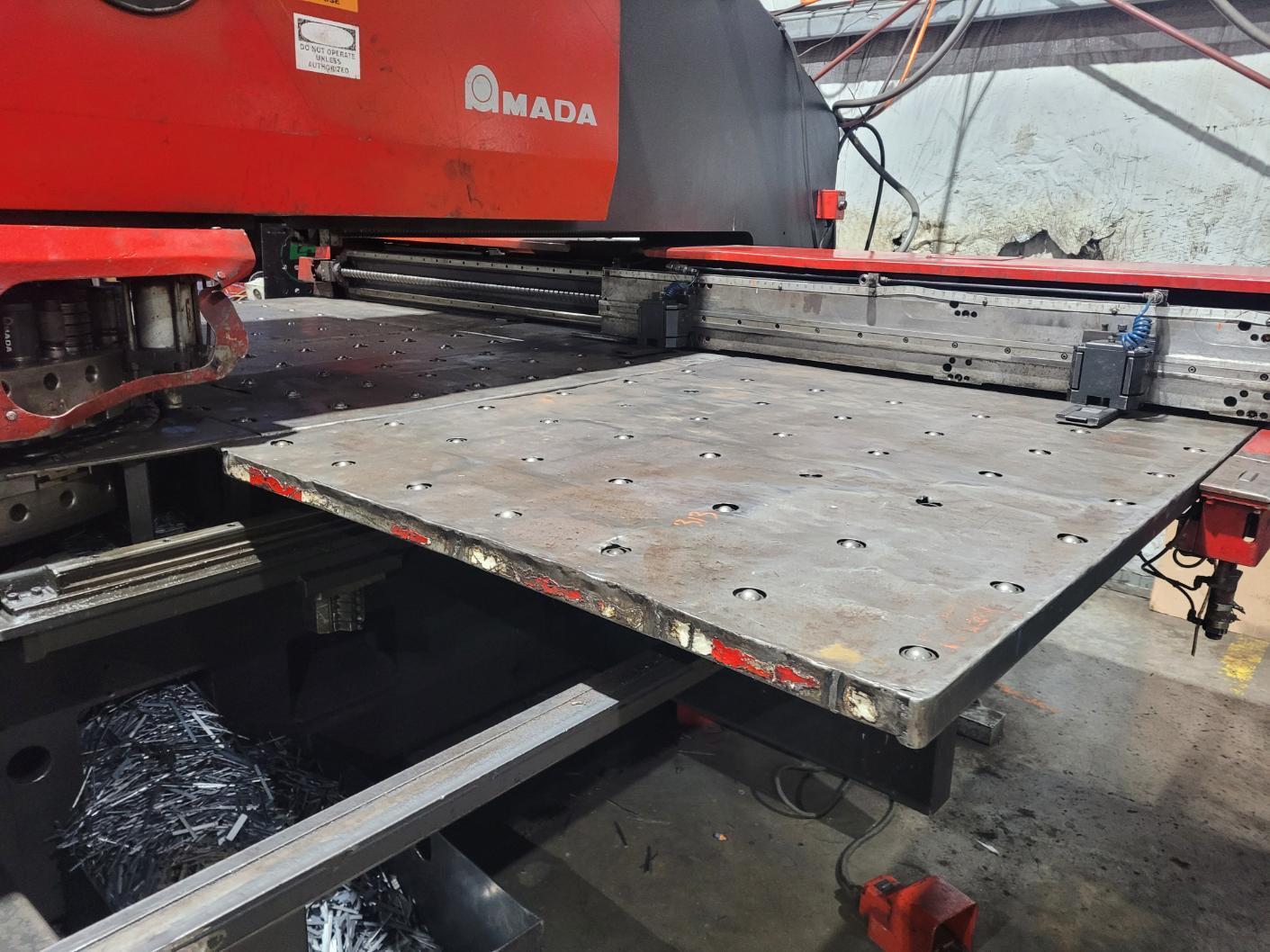

...Hydraulic Work Clamps
...Auto Repeating
...Clamp Sensors

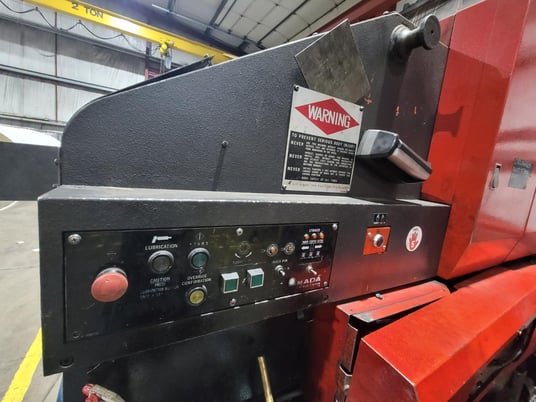

...Foot Pedal
Machine Dimensions (approx.): 12’ x 14’ x 9.2’ (144” x 168” x 110”)
Machine Weight (approx.): 23,200 lbs. (approx.)
Approximate specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.
Functionality Notes & History:
Present owner is not the original owner of this unit; they have owned the machine for a relatively long time. Have used it regularly for punching parts for automobile undercarriage frames. Machine is well used but a good runner.
Owner is closing this location and relocating to an existing facility. Liquidating equipment inventory.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR Metro Area
Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
