Manufacturer: Scotchman
Model: PORTA-FAB-45
90° Angle Shear Capacity" L: 3.00
90° Angle Shear Capacity" W: 3.00
Shear Capacity: .312
Ton: 45
Stock # 19687
For Sale by C.W. Wood Machinery Inc
Surplus Record Dealer Since 1965
Sales Dept.
800-74...> Show Seller's Phone Number 800-745-6008 Let the seller know you found their listing on Surplus Record!
Description

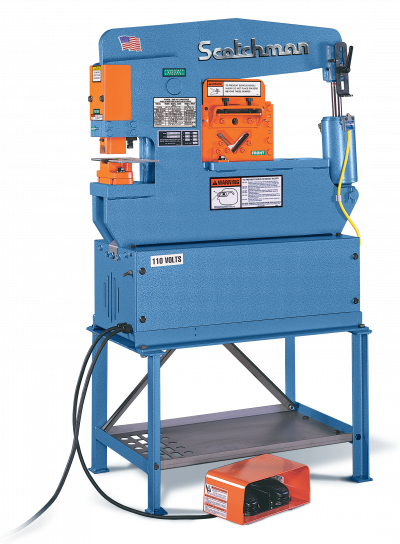

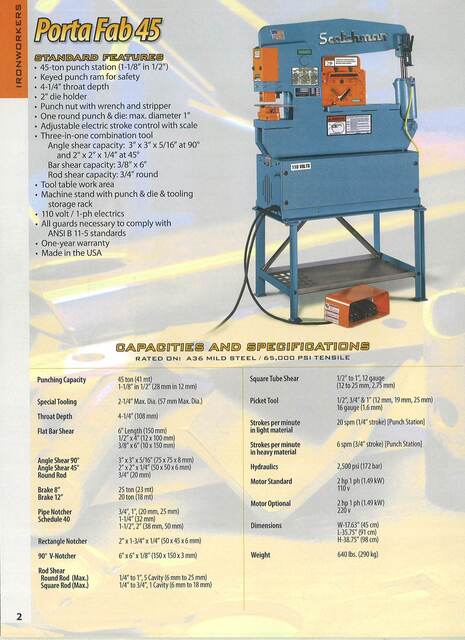

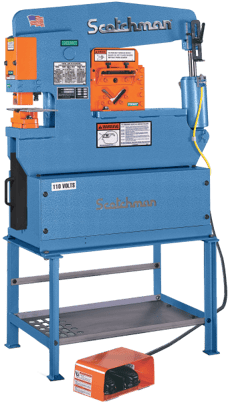

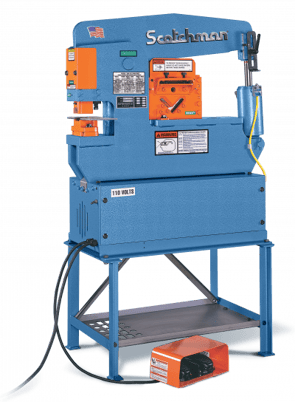

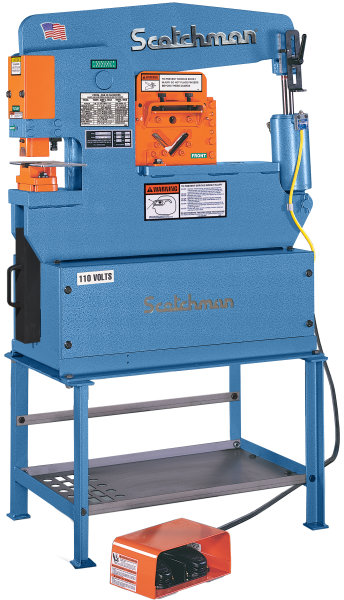

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER
MODEL: PORTA-FAB 45
STANDARD FEATURES
45 Ton Punch Station
Keyed Punch Ram For Safety
2" Die Holder
Punch Nut With Wrench and Stripper
One Round Punch and Die: Maximum Diameter 1"
Electric Remote Foot Pedal
Adjustable Electric Stroke Control With Scale
Tool Table Work Area
Machine Stand With Punch and Die and Tooling Storage Racks
110 Volt/1 Phase Electrics
All Guards Necessary To Comply With ANSI B 11-5 Standards
Three-Year Warranty
Made In USA
CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile
Punching Capacity: 45 Ton
1-1/8" In 1/2"
Special Tooling: 2-1/4" Maximum Diameter
Throat Depth: 4-1/4"
Flat Bar Shear: 6" Length
1/2" x 4"
3/8" x 6"
Angle Shear, 90 Degrees: 3" x 3" x 5/16"
Angle Shear, 45 Degrees: 2" x 2" x 1/4"
Brake 8"*: 25 Ton
Brake 12*: 20 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher*: 2" x 1-3/4" x 1/4"
90 Degree V-Notcher*: 6" x 6" x 1/8"
Rod-Angle Combo*
Angle Shear: 2" x 2" x 1/4"
Round Rod: 1/4" to 1"
Square Rod: 1/4" to 3/4"
Square Tube Shear*: 1/2" to 1", 14 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"
Strokes Per Minute, Light Material: 10 SPM
Strokes Per Minute, Heavy Material: 4 SPM
Hydraulics: 2500 PSI
Standard Motor: 2 HP, 1 Phase 110 V
Optional Motor: 2 HP, 1 Phase 220 V
*Optional Equipment Available
Dimensions: 18"W x 36"L x 39"H
Approximate Weight: 700 Lbs.
F.O.B. Philip, South Dakota
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
MODEL: PORTA-FAB 45
STANDARD FEATURES
45 Ton Punch Station
Keyed Punch Ram For Safety
2" Die Holder
Punch Nut With Wrench and Stripper
One Round Punch and Die: Maximum Diameter 1"
Electric Remote Foot Pedal
Adjustable Electric Stroke Control With Scale
Tool Table Work Area
Machine Stand With Punch and Die and Tooling Storage Racks
110 Volt/1 Phase Electrics
All Guards Necessary To Comply With ANSI B 11-5 Standards
Three-Year Warranty
Made In USA
CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile
Punching Capacity: 45 Ton
1-1/8" In 1/2"
Special Tooling: 2-1/4" Maximum Diameter
Throat Depth: 4-1/4"
Flat Bar Shear: 6" Length
1/2" x 4"
3/8" x 6"
Angle Shear, 90 Degrees: 3" x 3" x 5/16"
Angle Shear, 45 Degrees: 2" x 2" x 1/4"
Brake 8"*: 25 Ton
Brake 12*: 20 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher*: 2" x 1-3/4" x 1/4"
90 Degree V-Notcher*: 6" x 6" x 1/8"
Rod-Angle Combo*
Angle Shear: 2" x 2" x 1/4"
Round Rod: 1/4" to 1"
Square Rod: 1/4" to 3/4"
Square Tube Shear*: 1/2" to 1", 14 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"
Strokes Per Minute, Light Material: 10 SPM
Strokes Per Minute, Heavy Material: 4 SPM
Hydraulics: 2500 PSI
Standard Motor: 2 HP, 1 Phase 110 V
Optional Motor: 2 HP, 1 Phase 220 V
*Optional Equipment Available
Dimensions: 18"W x 36"L x 39"H
Approximate Weight: 700 Lbs.
F.O.B. Philip, South Dakota
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
Get Your Price from C.W. Wood Machinery Inc!
Buyers Who Viewed This Listing Also Viewed …
3" x 3" x 5/16" Scotchman #PORTA-FAB-45, 45 ton, NEW
Category: Ironworkers
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Scotchman
Model: PORTA-FAB-45
PUNCH STATION 45 TON (1-1/8 in IN 1/2 in ) THROAT DEPTH 4.25 inches MAX DIAMETER 1 inches ANGLE SHEAR 3 in X 3 in X 5/16 in ROD SHEAR.75 inches BAR SHEAR 6 in (3/8 in X 6 in ) ELECTRICS 110V, S:, - MACHINE STAND WITH PUNCH & DIE & TOOLING STORAGE RACK, - KEYED PUNCH RAM FOR SAFTEY, - 2 in DIE HOLDER, PUNCH NUT ...more
JUST ADDED!
3" x 3" x 3/8" Uni-Hydro #ST56-14, Super Turret Ironworker, 56 ton, 10-station, 6" throat, 14" bar shear, 7 SPM, 5 HP, 220 Volt, 1PH, new
Category: Ironworkers
Seller: Naab Sales Corporation
Location: Blaine, MN
Mfr: Uni-Hydro
Model: ST56-14
Here We Have:, NEW Uni-Hydro 56 Ton Super Turret 10 STATION Ironworker, 1 PHASE 220v, SERIAL #, 1 PHASE 220v, This is What’s INCLUDED With The Machine You Are Buying:, INCLUDED 56 Ton Super Turret, 1 Phase, INCLUDED SLUG TYPE ANGLE SHEAR: 3”X3”X3/8” $1300 Option, INCLUDED SQUARE NOTCHER: ...more
JUST ADDED!

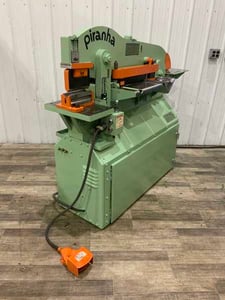

3" x 3" x 3/8" Piranha #P50, hydraulic ironworker, 50 ton, 5" punch throat, 3-3/4" stroke, 8" x 16" table
