3" x 3" x 3/8" Rogers #Presshear-30, Ironworker, 30 Ton capacity, 3" Stroke, 8.5" Shut height, 1" Puch Hole thru 3/8" Material, 2 HP, 1750 RPM, new

Description

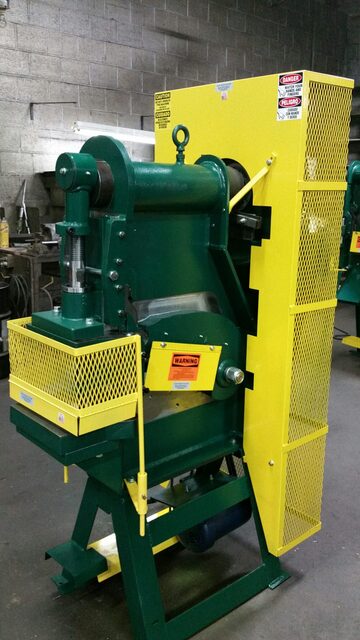

Rogers 30 Ton Power Ironworker, Presshear 30

Inventory # 8228

Model: Presshear 30

Made in USA

Specifications:

Punch Capacity: 30 Tons

Angles: 3″ x 3″ x 3/8″

Rounds: 1 1/4″

Squares: 1 1/4″

Flats: 3/8″ x 6″

Punch: 1″, Round Hole Thru 3/8″ Material

Stroke: 3″

Shut Height: 8 1/2″

Floor to Shear Blade: 30″

Standard Features:

This machine is both a punch and a shear

Welded steel frame

Operates on 2 HP, 1,750 RPM motor. Three phase or single phase available

Foot operated, one stroke safety clutch

Front is conventional press and can be used for punching or forming

Regular die sets will fit this machine

Adjustable ram

Hold-downs easily adjusted

Blades are tool steel – can be re-sharpened and adjusted

Punch to back of throat – 3 5/8″

Comes equipped with guards for operators protection

Approximately 48 strokes per minute

Mechanical Specifications:

Dimensions: 39″ x 27″ x 66″ H

Shipping Weight: approx. 1,800 lbs.

FOB Factory – Contact us for Pricing and Availability

Please Note: Blades, Punches, and Dies are Sold Separately

Optional Equipment:

Flat Bar and Angle Iron, Set “A”
