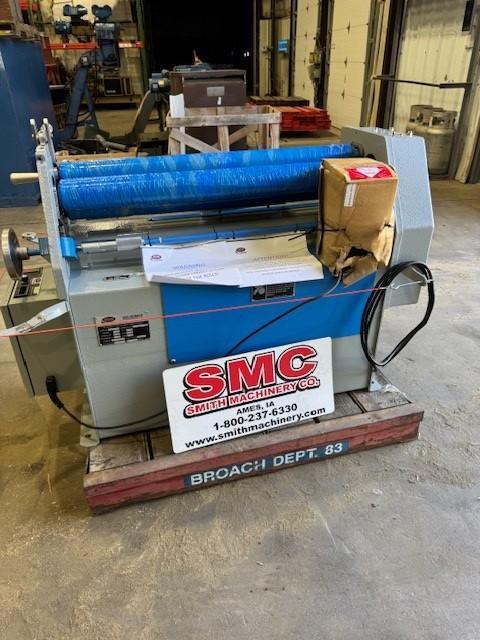

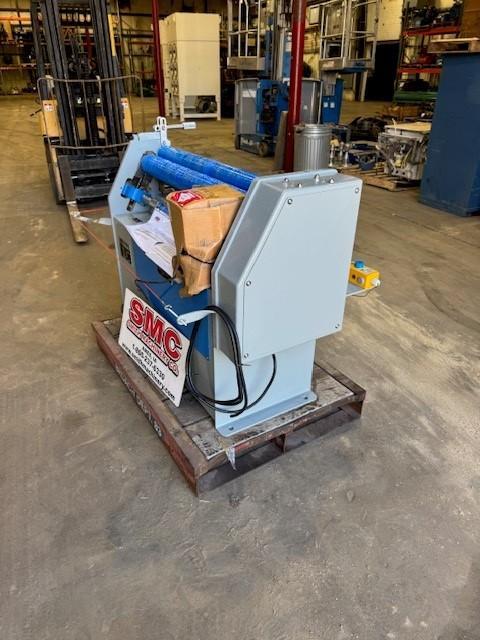

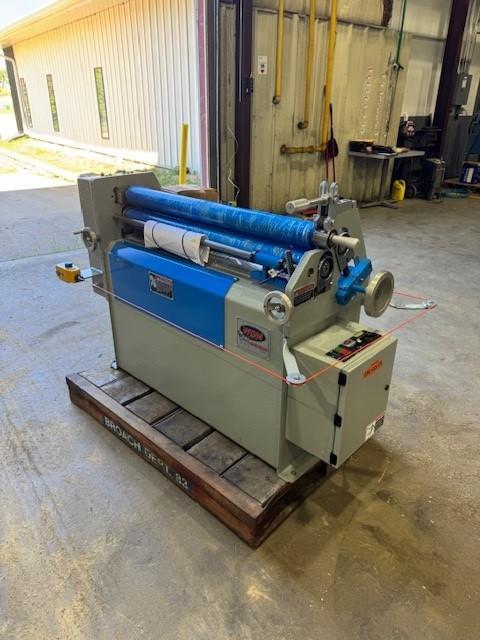

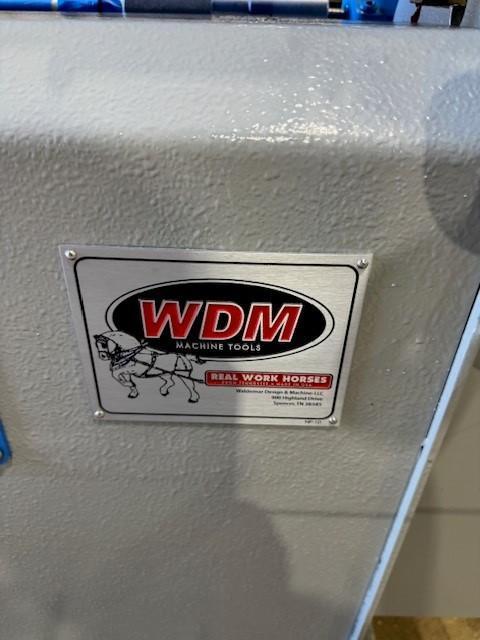

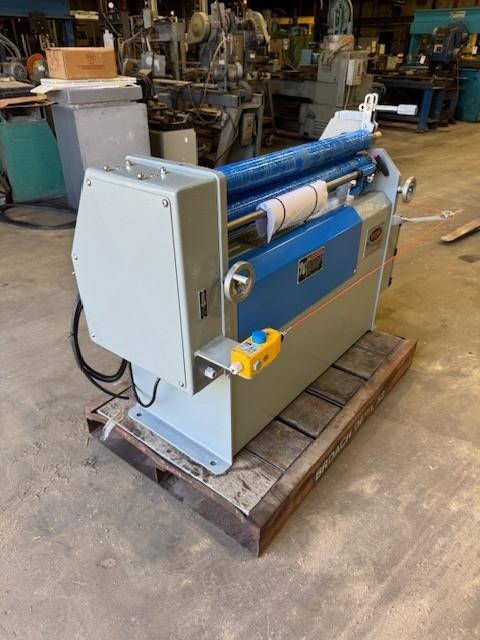

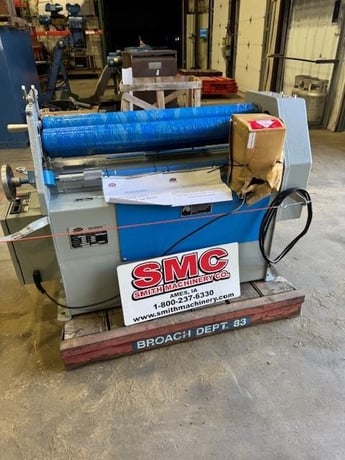

Manufacturer: Wdm
Model: 310-3-36
Year: 2025
Length': 3.00
CapacityInches or Gauges: .09000
Stock # 86837
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Jim Smith
515-23...> Show Seller's Phone Number 515-233-6330 Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Rated prebend capacity | 0.09 mild steel plate to 12 diameter, by 3 wide |
| Top Roll Diameter | 3 inches |
| Weight | 800 pounds |
Equipped With
Equipped With
EQUIPPED WITH:
• 1 hp TEFC main drive motor
• 1 hp TEFC PBA motor
• NEMA 12 electrical enclosures
• Electrics to NFPA 79 Specifications
• 230/460-volt 3 phase 60 hertz electrics

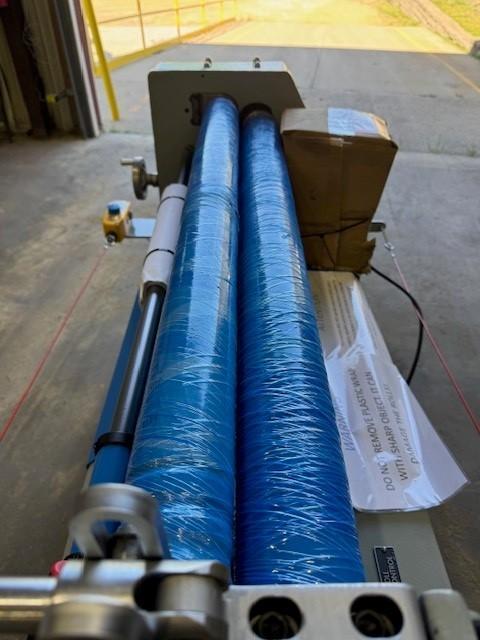

• 1045 steel rolls
• 20 FPM rolling speed
• All gear drive
• Sealed ball & roller bearings on all rolls and idler gears
• Unique all electric drive via gear motors
• Infinitely variable speed via variable frequency drives
• No Hydraulics
• 30% more effective than hydraulic machines

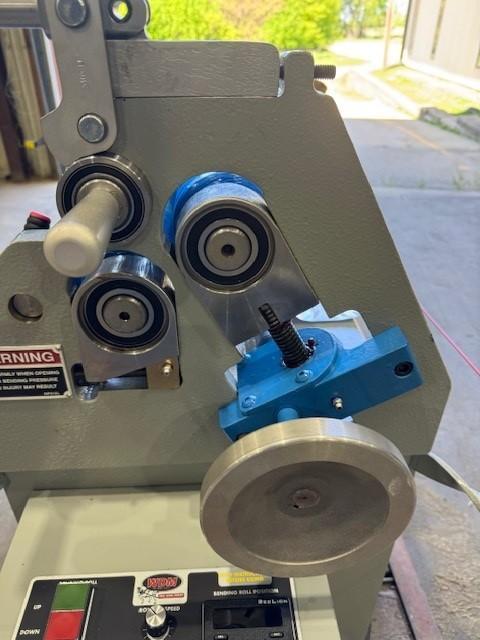

• Independent adjustment of the pinch roll via a handwheel-wedge-screw arrangement
• Steel bearing cases and bronze wedges

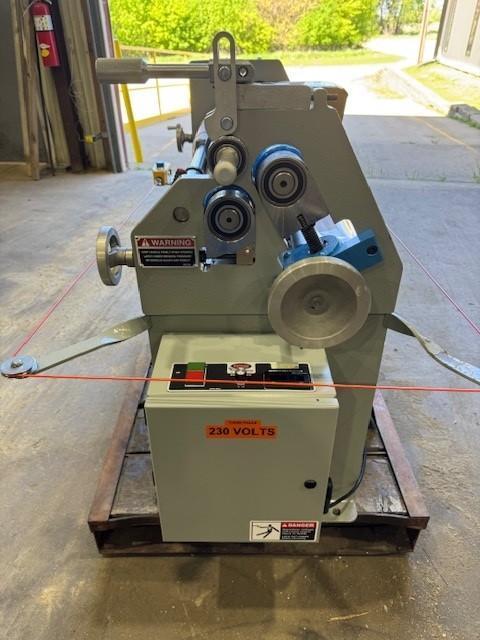

• Bending roll adjusted with handwheel via bronze worm gear/alloy steel screw arrangement, tiltable for cone rolling.
• Instant start, stop, and reverse via guarded foot pedal

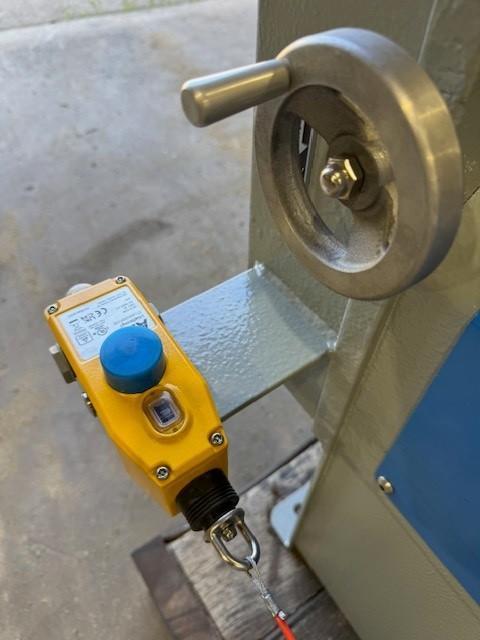

• Safety cable on three sides of the machine
• Swing out top roll for easy work piece removal with new easy unlock feature
• Starting groove in pinch roll to facilitate rapid work piece pre-bending and rolling.

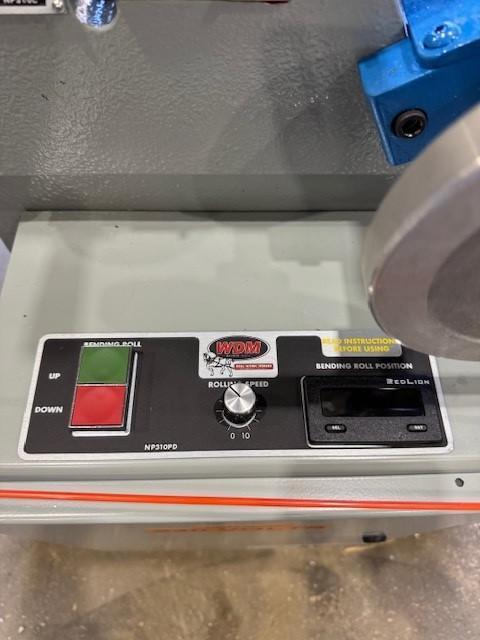

• Aluminum scale and pointer to show bending roll position
• Haze gray epoxy and safety blue enamel finish
• Cone Attachment
• Hardened and Polished Rolls
• Circular Grooves 3/8, 1/2, 5/8
• Electric Digital Readout Option
• Power Bending Adjustment
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• Cone Attachment -$1025
• Hardened and Polished Rolls -$1450
• Circular Grooves 3/8, 1/2, 5/8 -$750
• Additional Starting Groove - $125
• Third Roll Drive - $1,050
• Electric Digital Readout - $2,800
• Power Bending Adjustment - $3,125
• Power Disconnect - $950
• Single Axis Side Support (manual) - $3,600
• Overhead Support 8' Max (manual) - $5,650
• Extended Shafts - $2,000
• Section Dies - $3,200
• Pipe/Profile Dies 3.5” wide - $2,500
• Guide Roll Attachment - $1,500
• Anti-Twist Attachment - $1,500
DELIVERY:
IMMEDIATE, SUBJECT TO STOCK
• 1 hp TEFC main drive motor
• 1 hp TEFC PBA motor
• NEMA 12 electrical enclosures
• Electrics to NFPA 79 Specifications
• 230/460-volt 3 phase 60 hertz electrics
• 1045 steel rolls
• 20 FPM rolling speed
• All gear drive
• Sealed ball & roller bearings on all rolls and idler gears
• Unique all electric drive via gear motors
• Infinitely variable speed via variable frequency drives
• No Hydraulics
• 30% more effective than hydraulic machines
• Independent adjustment of the pinch roll via a handwheel-wedge-screw arrangement
• Steel bearing cases and bronze wedges
• Bending roll adjusted with handwheel via bronze worm gear/alloy steel screw arrangement, tiltable for cone rolling.
• Instant start, stop, and reverse via guarded foot pedal
• Safety cable on three sides of the machine
• Swing out top roll for easy work piece removal with new easy unlock feature
• Starting groove in pinch roll to facilitate rapid work piece pre-bending and rolling.
• Aluminum scale and pointer to show bending roll position
• Haze gray epoxy and safety blue enamel finish
• Cone Attachment
• Hardened and Polished Rolls
• Circular Grooves 3/8, 1/2, 5/8
• Electric Digital Readout Option
• Power Bending Adjustment
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• Cone Attachment -$1025
• Hardened and Polished Rolls -$1450
• Circular Grooves 3/8, 1/2, 5/8 -$750
• Additional Starting Groove - $125
• Third Roll Drive - $1,050
• Electric Digital Readout - $2,800
• Power Bending Adjustment - $3,125
• Power Disconnect - $950
• Single Axis Side Support (manual) - $3,600
• Overhead Support 8' Max (manual) - $5,650
• Extended Shafts - $2,000
• Section Dies - $3,200
• Pipe/Profile Dies 3.5” wide - $2,500
• Guide Roll Attachment - $1,500
• Anti-Twist Attachment - $1,500
DELIVERY:
IMMEDIATE, SUBJECT TO STOCK
