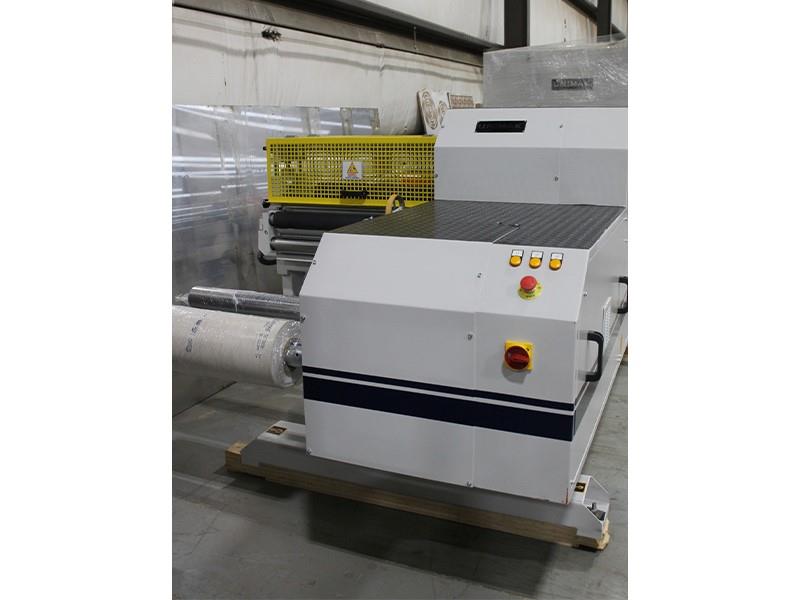

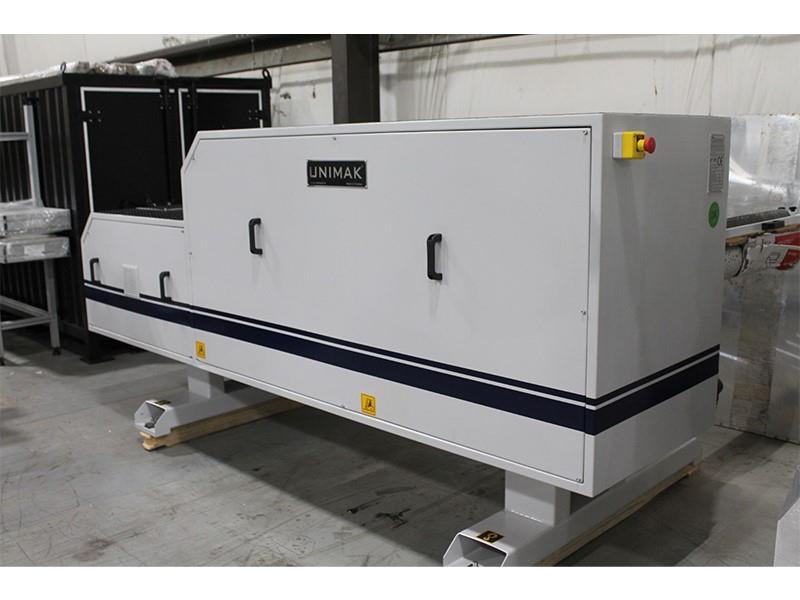

27.5" Unimak #ESM-700-F1, Foil Slitter w/ Rewinder, 23-5/8" roll diameter, 1 mm thickness, 328 FPM, (34) knives, 2026, new

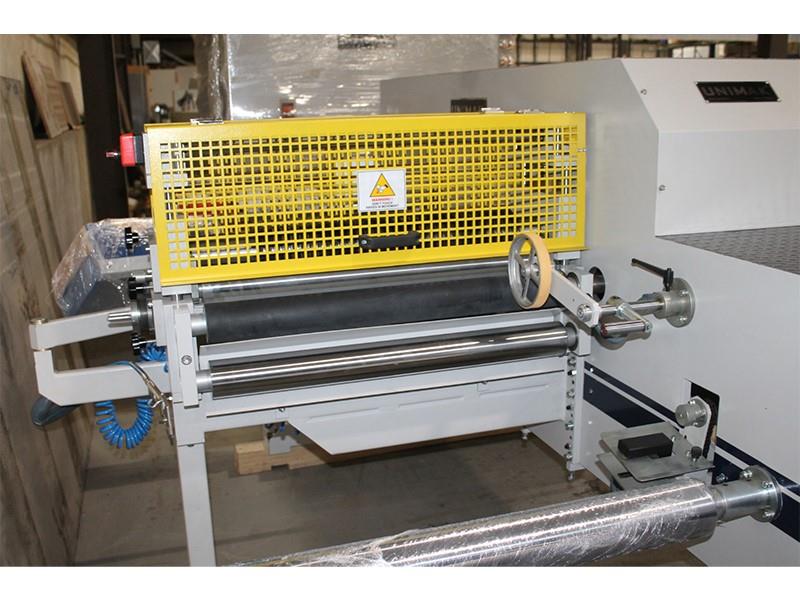

UNIMAK ESM 700 F1 Rewind Slitter with Rotary KnivesUNIMAK offers a well-built machine with air shafts and rotary knives for slitting heavier products up to 1 millimeter thick. This machine is set up for slitting edgebanding stock from a bulk roll. Technical Specifications: -- Working Width 700 mm (27.5"). -- Max. Roll Diam. 600 mm ( 23-5/8"). -- Max. Foil. Thickness 1 mm. -- Slitting Speed Max. 100 MPM (328 FPM). -- Min. Slitting Width 15 mm, max. Slitting width 19 mm. -- Qty of Knives (34) -- Unwind Shaft Diameter 76 mm (3") -- Machine Weight 1610 kG (3550 Lbs). -- Power Requirement 6 kW -- Machine size Length 2400 mm x width 3000 mm x Height 1500 mm.Machine Features & Includes: The machine includes (34) sets of knives and knife holders, pneumatic air shaft rewind, and a safety enclosure over the knives. -- One pneumatic unwinding shaft with caliper brake unit (3’’– 76 mm). -- One winding shaft with self-tension control clutches (6’’– 152 mm). -- Slitted strips separator bar at rewind shaft. -- Machine speed indicator and Slitted Foil measuring indicator are also standard equipment. -- Safety system with cable for an emergency stop along the whole machine, according to CE standards. NOTE: This machine is specially set up for slitting of material such as Edgebanding or other thicker materials. This model can handle up to 1 mm but there is a model that can handle up to 2 mm material thickness.
