26" Dake #987031, Industrial Vertical Band Saw, 1/4" -1" width x 184.25" L Blade, 50-415 FPM low, 550-5000 FPM High, 13" Work Height, 3 HP, 220/440 V, new

Description

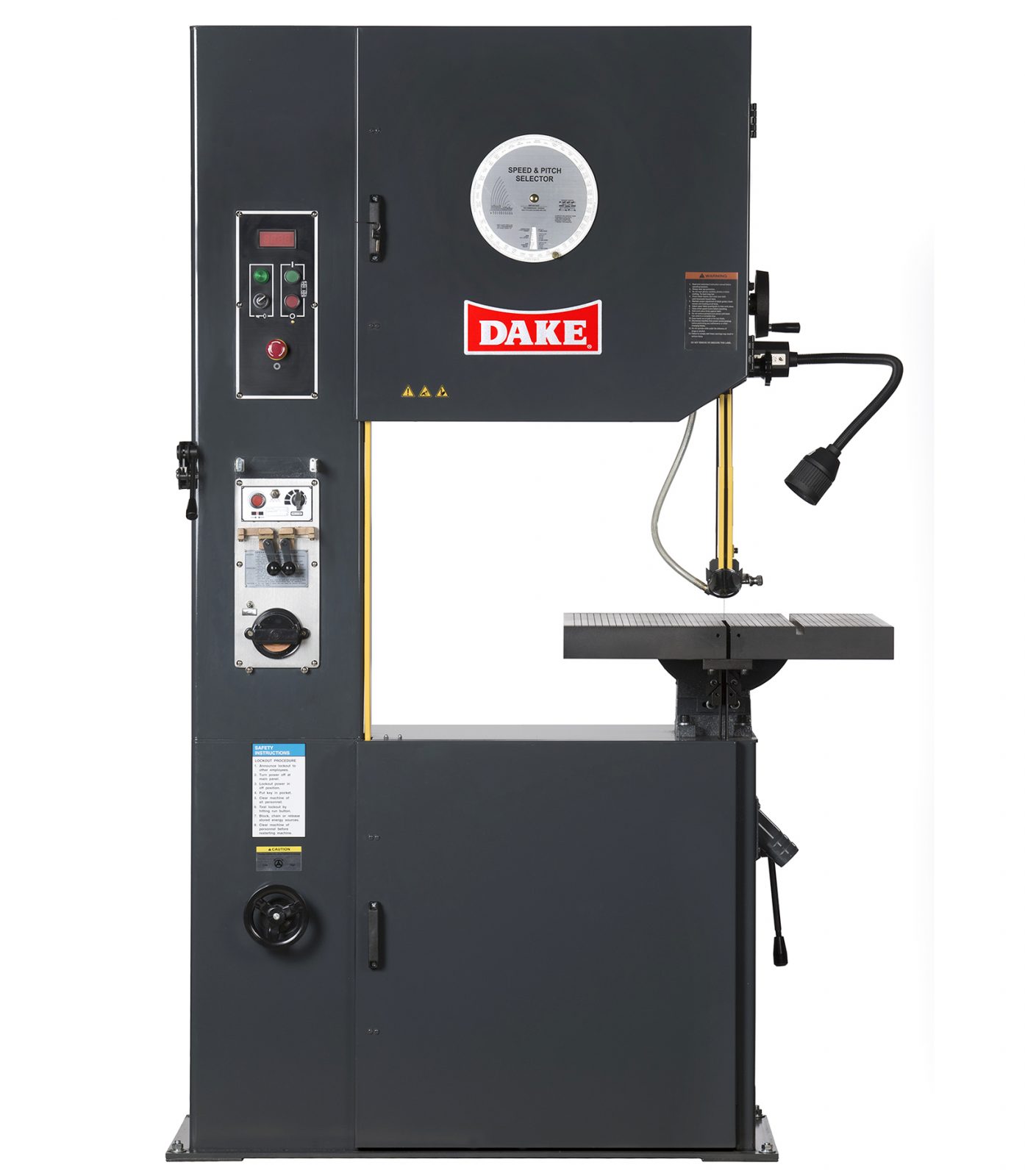

Dake 26″ Industrial Vertical Band Saw, V-26

Inventory # 8456

Model: V-26

Model: 987031

Description:

This heavy duty vertical band saw is designed for large production pieces. A 26″ capacity, multi-tilting table, and variable
speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch
selector, door safety switches, and a work light. Complete with a built-in welder/grinder/cutter, this saw is sure to get the
job done

Specifications:

Blade Width: 1/4″ – 1″

Blade Length: 184 1/4″

Blade Speed:

Low: 50 – 415 FPM

High: 550 – 5,000 FPM

Band Wheels Number: 2

Band Wheels Size: 26 1/4″

Throat Size, Band to Column: 26″

Max. Work Height: 13″

Work Table Dimensions: 23 1/2″ x 27 1/2″

Worktable Tilt: 45° Right, 10° Left

Worktable Height: 84″

Motor: 3 HP / 220v, 440v / 3ph

Standard Features:

Variable speeds with 50 – 145 feet per minute in low range and 550 – 5,000 feet per minute in the high range

26″ saw for intermediate-size work-pieces

Adjustable table

Digital speed indicator for clear readout

Work light comes standard for increased visibility

Low voltage controls, main power lock out switch and door limit switches

Heavy cast, tilting table with chip clearance grooves

Built-in blade welder with grinder and shear to easily fix broken blades

Standard Equipment:

Heavy Duty Frame

Rip Fence

Work Light

Blade Welder / Grinder / Shear

Speed Indicator (Digital Readout)

Blade Tension Indicator

Digital Tachometer

Chip Blower and Blade Brush

One Standard Blade

Mechanical Specifications:

Floor Space: 51″ x 32″

Weight: approx. 1,540 lbs.

FOB Factory – Contact us for Availability
