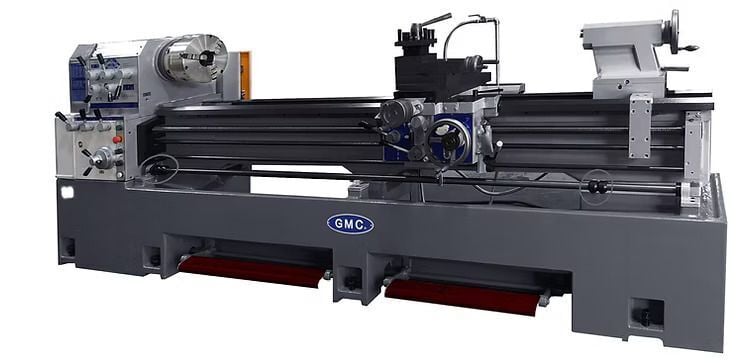

Made in Taiwan Meehanite casting high performance cast iron ISO 9001 certified Large spindle bore 4-3/4 (120mm) Heavy Duty spindle D1-11 Heavy Duty main motor 15HP 16 spindle speeds from 10-1,000 rpm, 12 speeds 2-speed tailstock 54 kinds of inch threads, and 54 kinds of metric threads Threading and feeding rate change without changing gears Spindle is balanced, hardened and precision ground Spindle is supported at 3-point by high precision bearings All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box One year industrial warranty for parts Max. swing over bed 26" Max. length of workpiece 120" Max. swing over cross slide 17 1/4" Max. Swing in gap 35" Width of Bed 15 3/4" Effective length in gap to spindle 9" Effective length in gap to chuck jaws 4 1/2" Spindle bore 4 3/4" D1-11 Taper of spindle center M.T. #7 Spindle speeds 10-1,000 rpm / 12 steps Longitudinal feeds 0.002-0.032 IPR, 35 kinds Cross feeds 0.001-0.0094IPR, 35kinds Inch threads 2-56 TPI, 44kinds Metric threads 0.5-14mm , 24 kinds Max. travel of top slide 8" Max. travel of cross slide 13 1/2" Leadscrew length X TPI 1-1/2 x 4 TPI Diameter of tailstock quill 3-1/2 Max. travel of tailstock quill 7-1/2 Taper of tailstock quill center M.T. # 5 Main motor Amperage draw 15HP, 220V or 440V, 3 phase 55Amp on 220V / 30Amp on 440V Rapid traverse motor 1HP, 220V or 440V, 3 phase Coolant pump motor 1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid Machine Oil #30 weight machine oil, 8 Gallons Machine weight, approx. LBS 6,720 LBS Overall dimensions, LxWxH 187" x 46" x 72" Free CARMAR DRO, installed Rapid traverse on carriage on Longitudinal way Automatic kick-out longitudinal carriage stop system 2-speed tailstock 12 3-jaw chuck with top reversible jaws, direct mount 20 Face plate 12 steady rest with roller jaws 5 follow rest with roller jaws Removable gap 4-way tools post Foot brake Halogen Work light and coolant system Splash guard on carriage Dead center Thread chasing dial Reducing sleeve MT7/MT5 for spindle Tool box and leveling pads OPTIONS: ALORIS type QC tool post set # 3900-5160, 6 pcs ................... Call for pricing Live Center # 3900-5005 Call for pricing Taper attachment, installed Call for pricing Chuck . Call for pricing 20 steady rest with roller jaws Call for pricing
Capacity 26" x 120" Swing Over Bed 26" Swing Over Cross Slide 13-3/4" Swing in Gap 31" Length of Gap 16" Distance Between Centers 120" Hole Thru Spindle 4-1/8" Width Of Bed 21-21/32" Headstock Spindle Nose D1-11 Camlock Spindle Speeds 7.5 - 1,000 RPM Spindle Taper MT #5 Feeds & Threads Longitudinal Feeds.002 -.96 ...more
Swing Over Bed 26 inches Swing Over Cross Slide 17.5 inches Swing In Gap 35.1 inches Gap Width in Front of the Face Plate 10.625 inches Distance Between Centers 120 inches Width of Bed 15.75 inches Height of Center from Leg Bottom 44.3 inches Spindle Bore 4.0625 inches Taper of spindle bore and center MT#7 x #5 Type ...more
Lehigh 25” x 120” Gap Bed Engine Lathe 4.75” Bore, Lehigh 25” x 120” Gap Bed Engine Lathe, 4.75” Bore, Tooling Package, Stock R861, Model 25”x120”, Serial# 960830, CAPACITY, Swing over bed: 26”, Swing over cross slide: 12 inches, Swing in gap: 32 inches, Distance ...more
Catilog :, Model CW6263C, SWING OVER WAYS. 24.8", SWING IN GAP.31.5", SWING OVER CROSS SLIDE. 14, DISTANCE BETWEEN CENTERS. 118.11", SPINDLE SPEEDS. 8.5 TO 800 RPM, DIAMETER OF HOLLOW SPINDLE HOLE. *** 5.11" ***, THREADS STANDARD. 1 TO TPI, THREADS METRIC. 1 TO 240 MM, DIAMENTRAL THREADS. 1 TO 28 DP ...more
