250 HP Cleaver-Brooks #CB-100-200, Packaged Steam Boiler, Natural Gas, 150 PSI, 230 Volts, 10 HP blower, 1981

Overview

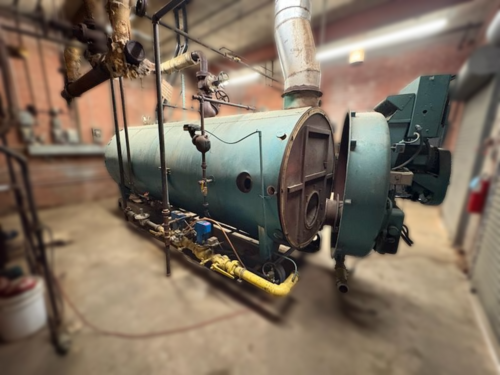

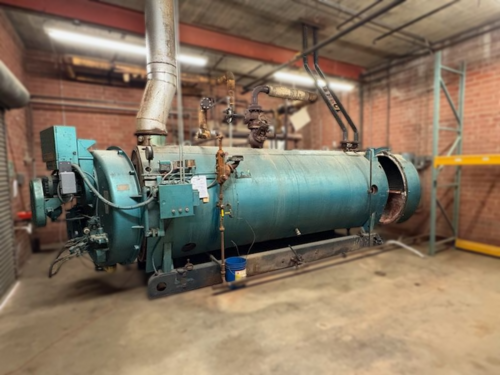

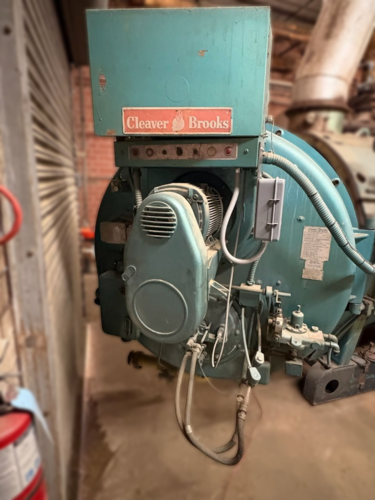

This Cleaver Brooks CB-100-200 packaged steam boiler was manufactured on August 5, 1981. With 200 horsepower capacity (8,369,000 BTU/HR input) and 150 PSI maximum working pressure, this natural gas-fired steam boiler includes integrated burner assembly, 10 HP blower motor, control systems, and factory-insulated jacket on skid-mounted base.
Design and Performance

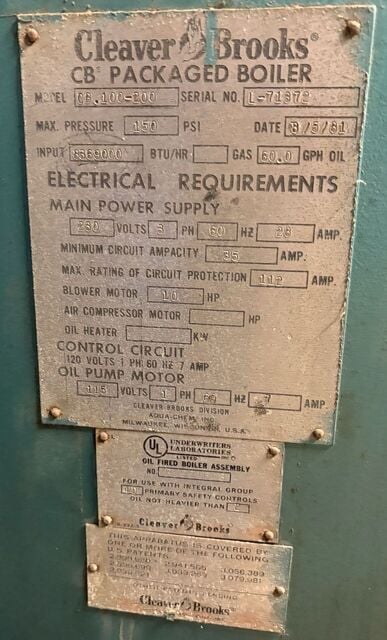

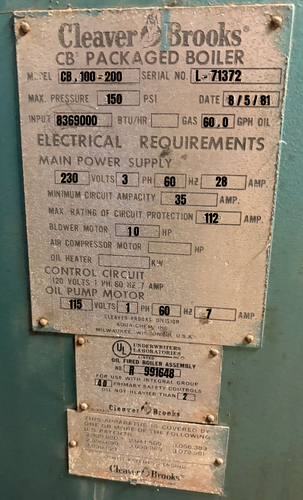

Boiler Specifications:
- Manufacturer: Cleaver Brooks
- Model: CB-100-200
- Serial Number: L-71372
- Manufacturing Date: 8/5/81
- UL File Number: R-991648
Pressure and Capacity Ratings:
- Maximum Pressure: 150 PSI
- Input Rating: 8,369,000 BTU/HR
- Horsepower: 250 HP (calculated)
- Fuel Type: Natural Gas / Diesel.
- Blower Motor: 10 HP
Electrical Requirements:
- Main Power Supply: 230 Volts, 3-Phase, 60 Hz, 28 Amp
- Minimum Circuit Ampacity: 35 Amp
- Maximum Rating of Circuit Protection: 112 Amp
- Control Circuit: 120 Volts, 1-Phase, 60 Hz, 7 Amp
- Oil Pump Motor: 115 Volts, 1-Phase, 60 Hz, 7 Amp
Construction:
- Packaged steam boiler design
- Insulated jacket panels
- Skid-mounted base
- Front access door
- Rear access panels
- Aqua/teal painted finish

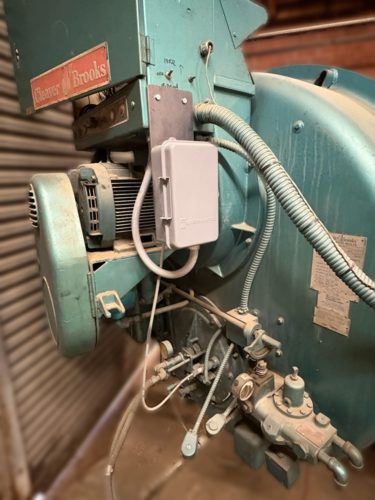

- Integrated burner assembly
- Pressure gauge mounting points
- Sight glass ports
System Components:
- Cleaver Brooks CB-100-200 steam boiler
- Integrated natural gas burner
- 10 HP blower motor assembly

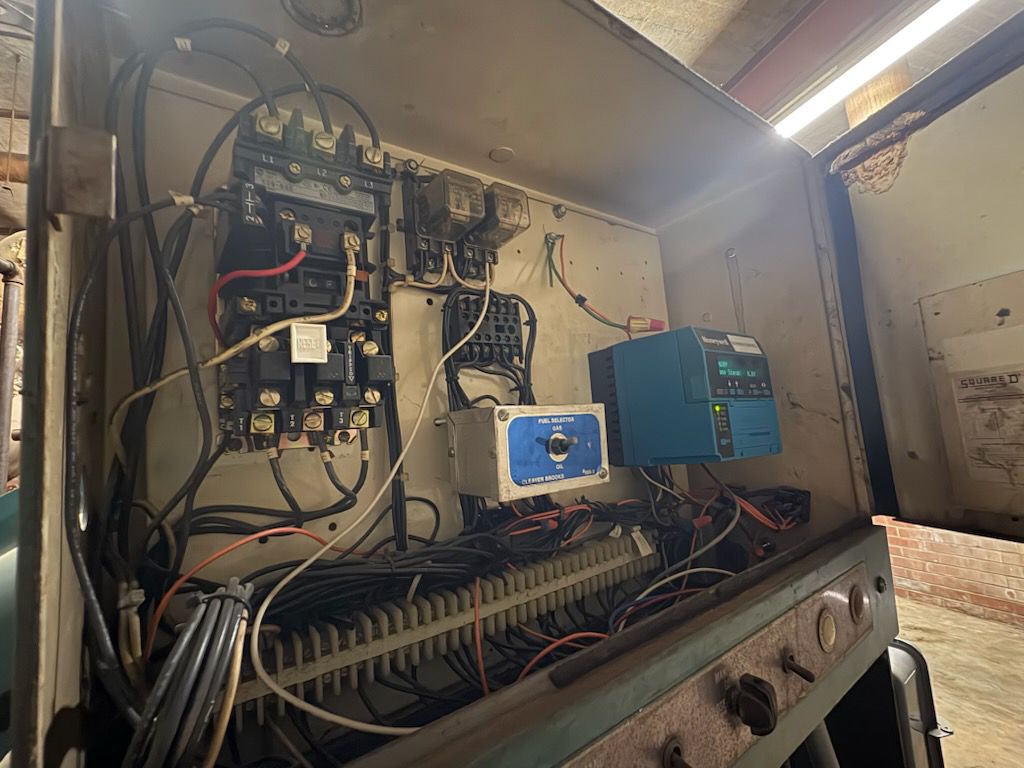

- Control panel with switches
- Oil pump motor system
- Pressure gauges
- Safety valve
- Electrical junction boxes
- Insulated jacket panels
- Sight glass viewing ports
- Valve manifolds and piping connections
Control Features:
- Integrated control panel
- Flame safeguard system
- Operating indicator lights
- Burner management controls
- Safety switches
Safety Features:
- UL Listed (File #R-991648)
- Integral primary safety controls
- Pressure relief valve
- Flame monitoring
- Circuit protection systems
- Safety interlocks
Key Specifications
- Condition: Used - 1981 Manufacture
- Brand: Cleaver Brooks
- Model: CB-100-200
- Serial Number: L-71372
- UL File: R-991648
- Manufacturing Date: 8/5/81
- Equipment Type: Packaged Steam Boiler
Performance Data:
- Horsepower: 200 HP
- Input: 8,369,000 BTU/HR
- Maximum Pressure: 150 PSI
- Fuel Type: Natural Gas diesel
- Blower Motor: 10 HP
Electrical Specifications:
- Main Supply: 230V, 3-Phase, 60Hz, 28A
- Minimum Circuit Ampacity: 35A
- Maximum Circuit Protection: 112A
- Control Circuit: 120V, 1-Phase, 60Hz, 7A
- Oil Pump Motor: 115V, 1-Phase, 60Hz, 7A
Physical Specifications:
- Configuration: Packaged steam boiler
- Mounting: Skid base
- Jacket: Insulated panel construction
- Color: Aqua/teal painted finish
- Access: Front and rear doors/panels
Burner Specifications:
- Type: Integrated natural gas burner
- Gas Input: 8,369,000 BTU/HR
- Blower Motor: 10 HP
- Controls: Flame safeguard system
Ideal Applications
- Commercial Buildings
- Institutional Facilities
- Manufacturing Plants
- Schools and Universities
- Hospitals and Healthcare Facilities
- Office Buildings
- Apartment Complexes
- Food Processing Plants
- Laundries and Dry Cleaners
- Warehouses
- District Heating Systems
- Process Steam Requirements
- Industrial Process Applications
Benefits
- 1981 Cleaver Brooks manufacture
- 200 HP steam capacity
- Natural gas fired / Diesel
- 150 PSI maximum pressure
- 8.369 MMBtu input
- UL Listed for safety
- Packaged design
- 10 HP blower motor included
- Integrated control system
- Insulated jacket construction
- Skid-mounted base
- Factory-assembled unit
- Sight glass viewing capability
- Front and rear access
Additional Information
- Condition: Used - 1981 Manufacture
- Manufacturer: Cleaver Brooks,
- Model: CB-100-200
- Serial Number: L-71372
- Manufacturing Date: 8/5/81
- UL File Number: R-991648
Capacity Ratings:
- Horsepower: 200 HP
- Maximum Pressure: 150 PSI
- Input: 8,369,000 BTU/HR
- Fuel Type: Natural Gas / Diesel
- Blower Motor: 10 HP
Electrical Requirements:
- Main Power: 230 Volts, 3-Phase, 60 Hz, 28 Amp
- Minimum Circuit Ampacity: 35 Amp
- Maximum Circuit Protection Rating: 112 Amp
- Control Circuit: 120 Volts, 1-Phase, 60 Hz, 7 Amp
- Oil Pump Motor: 115 Volts, 1-Phase, 60 Hz, 7 Amp
Construction: Packaged steam boiler with factory-insulated jacket on skid base
Made In: USA (Milwaukee, Wisconsin)
Patents: U.S. Patents 3,205,865, 3,941,566, 3,056,389, 3,079,881
Location: Miami, FL
