For Sale by D & H Machinery Inc
Surplus Record Dealer Since 1963
Sales
419-84...> Show Seller's Phone Number 419-841-3586 Let the seller know you found their listing on Surplus Record!
Description
24" x 5.0" x 10,000# Ruesch Slitting Line
Consisting of:
-Entry Coil Car: K&S
40" Wide Bed
60" O.D. Capacity
Self-Contained Hydraulics
Coil Retaining Arms
Overall Size: 66" L x 55" W x 68" High

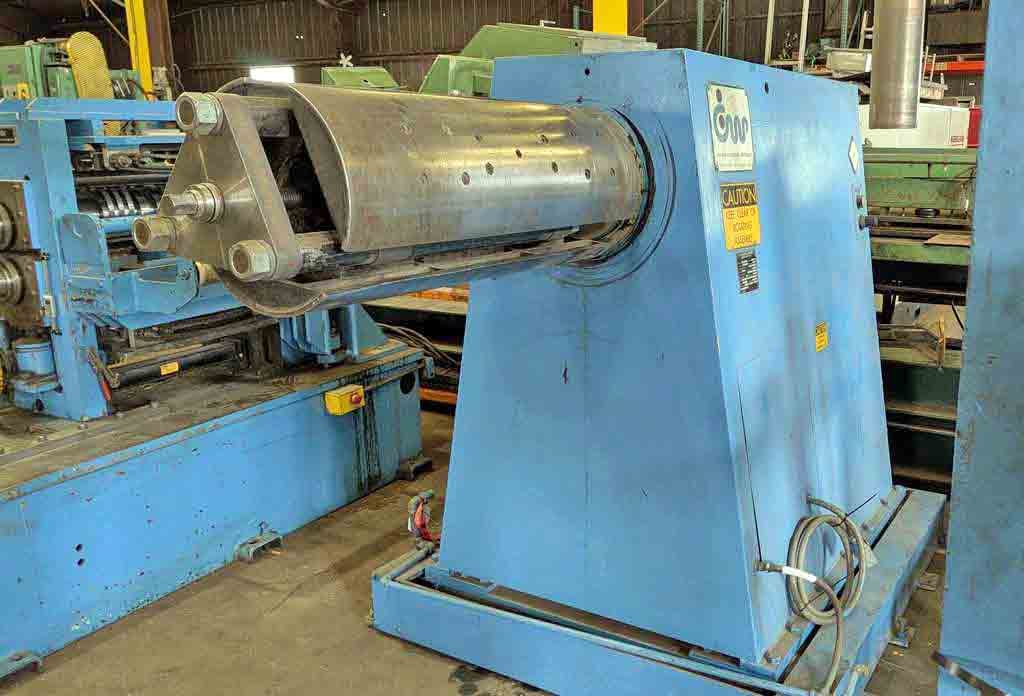

-Uncoiler: Cooper Weymouth
Model: 4.5 RM - 24
S/N: 053476
Hydraulic Expansion: 15.5" - 20.5"
38" Face Mandrel
60" O.D. Coil Capacity
DC Motor Drive W/Blower
Wichita Air Brake
60" from Floor to center of Mandrel
Overall Size: 114" L x 68" W x 74" High
-Edge Control Stand: Cooper Weymouth
Adjustable Edge Control Arm
Loop Control Arm
Overall Size: 61" L x 57" W x 110" High

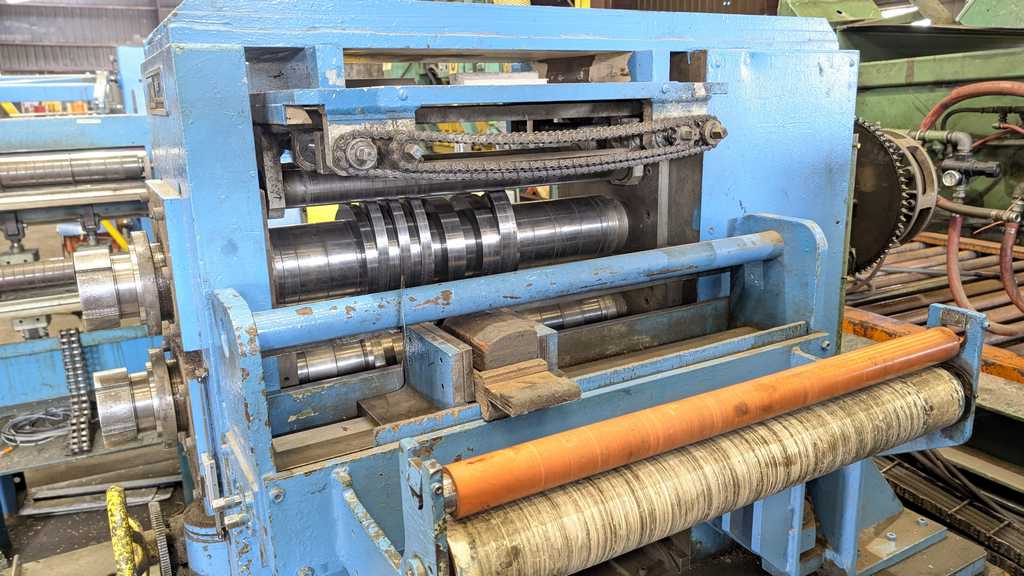

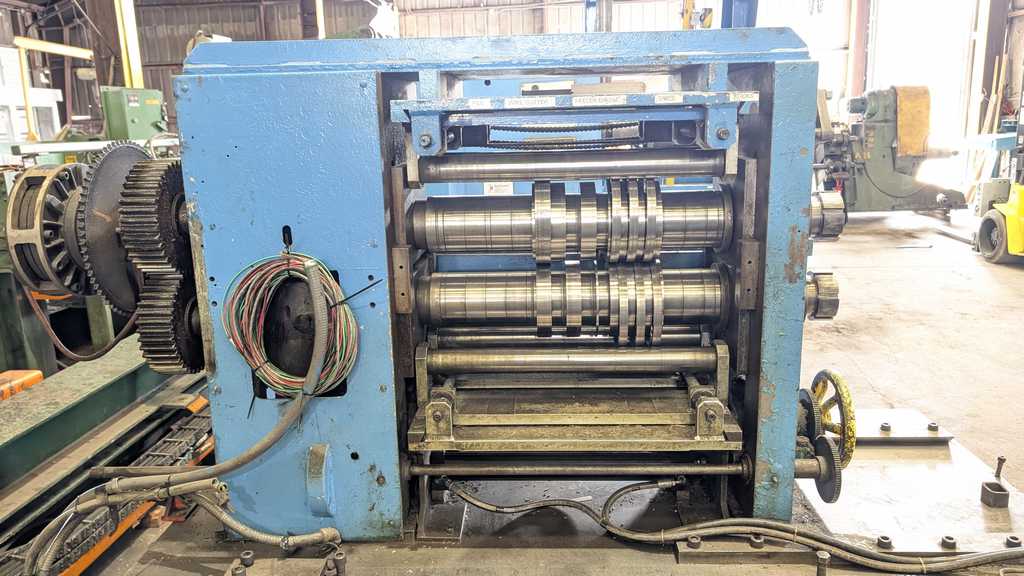

-Slitter Head: Ruesch
Model 300
5" Dia. x 28" Face Arbors
Steel Stripper Ring Assembly
Entry Passline Rolls
Entry Side Guides, Manual Adjustment
40 HP DC Motor, 1750 RPM, 500 V
2 Speed Transmission
Chain Drive to Slitter Head w/Air Clutch
Passline: 48"
Overall Size: Head - 102" L x 53" W x 68" High
Drive - 62" L x 37" W x 46" High

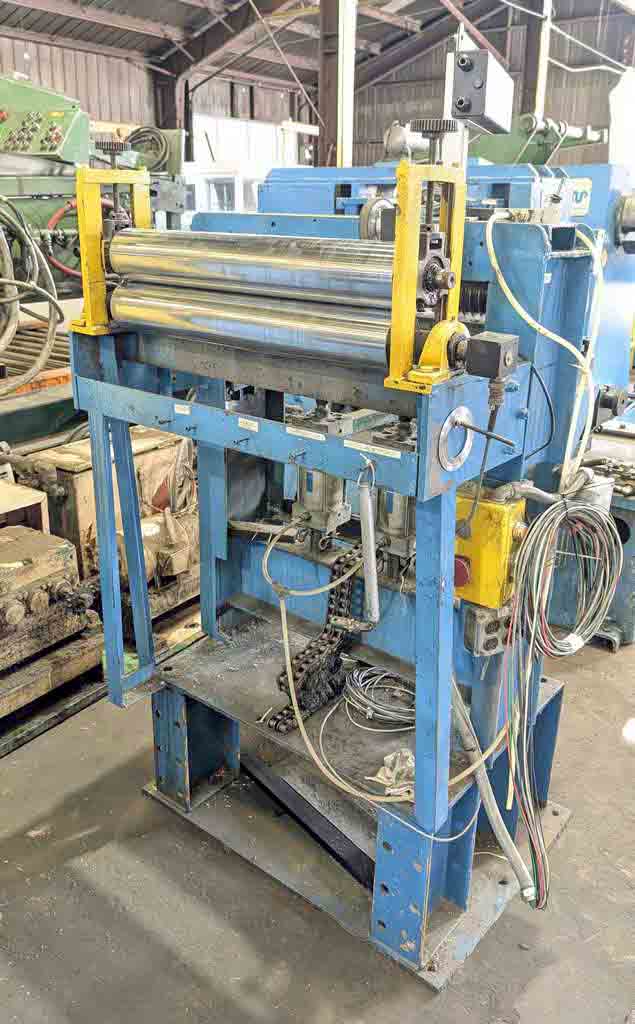

-Tension Stand:
Entry Pit Separator Tooling Bar
Entry Separator Tooling Bar
Pad Tension Device
27" Long Pad
(2) Hydraulic Cylinders for Tension
Exit Pinch Rolls, 4" Dia. x 28" Face, Manual Screw Adjustment
Overall Size: 45" L x 44" W x 74" High
-Scrap Winder: K&S
Hydraulic Motor Driven
Oscillate Wind
16" W x 27" O.D. Scrap Ball Capacity
Manual Ball Removal
Overall Size: 55" L x 39" W x 37" High

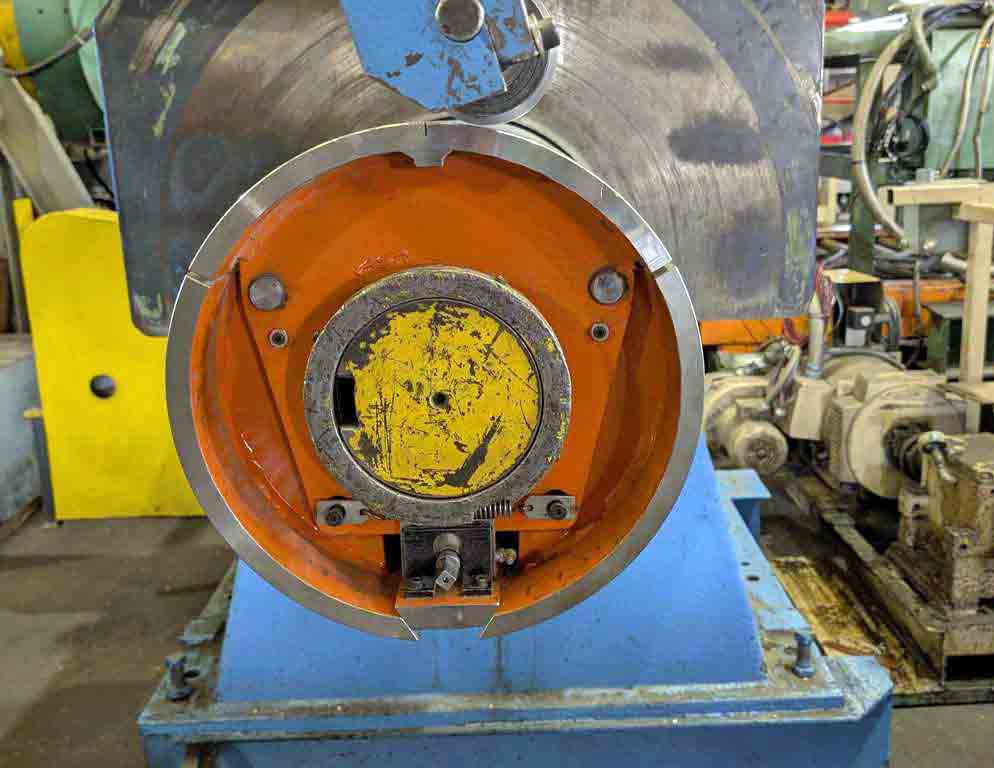

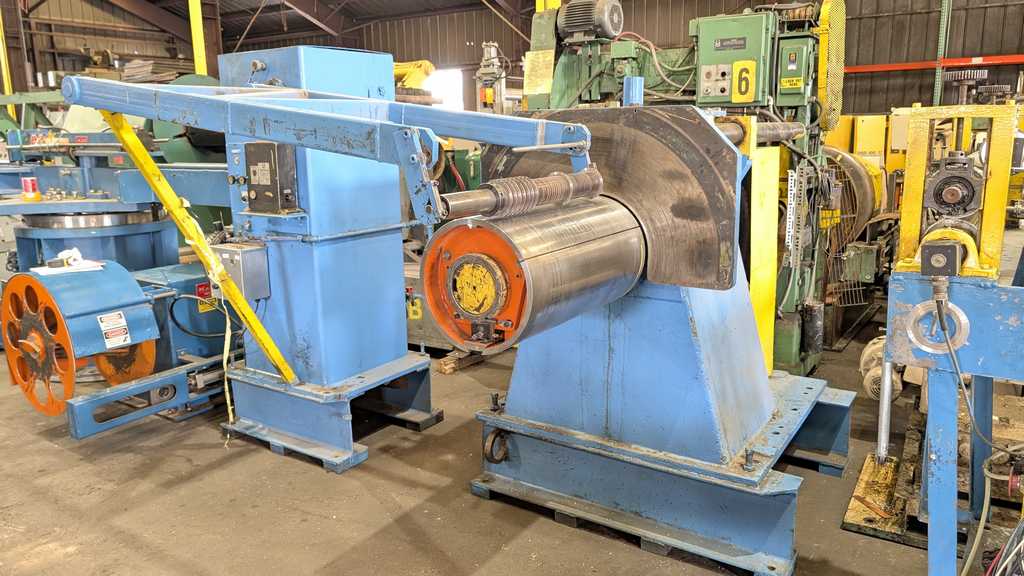

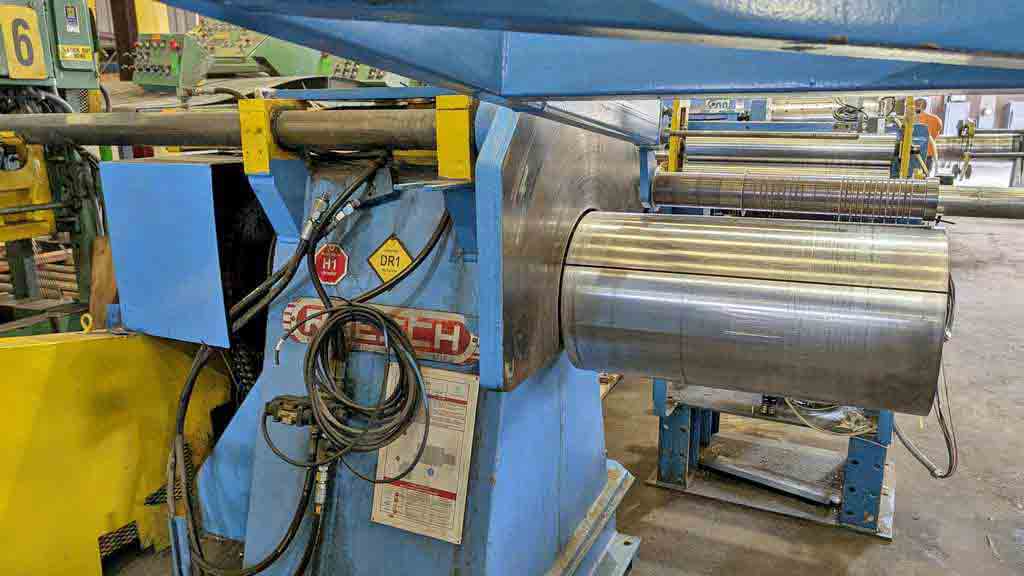

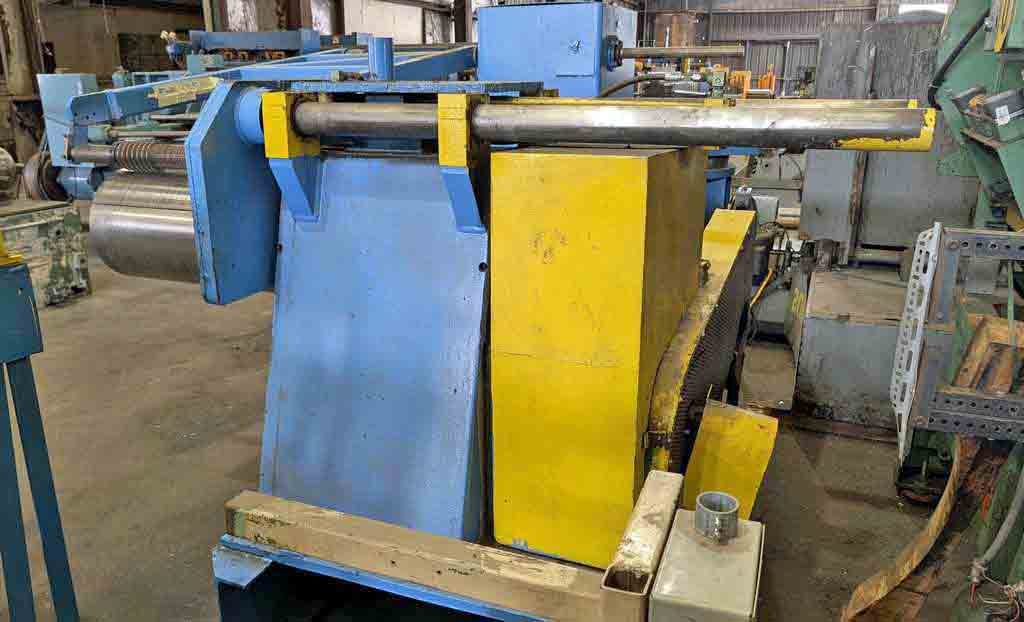

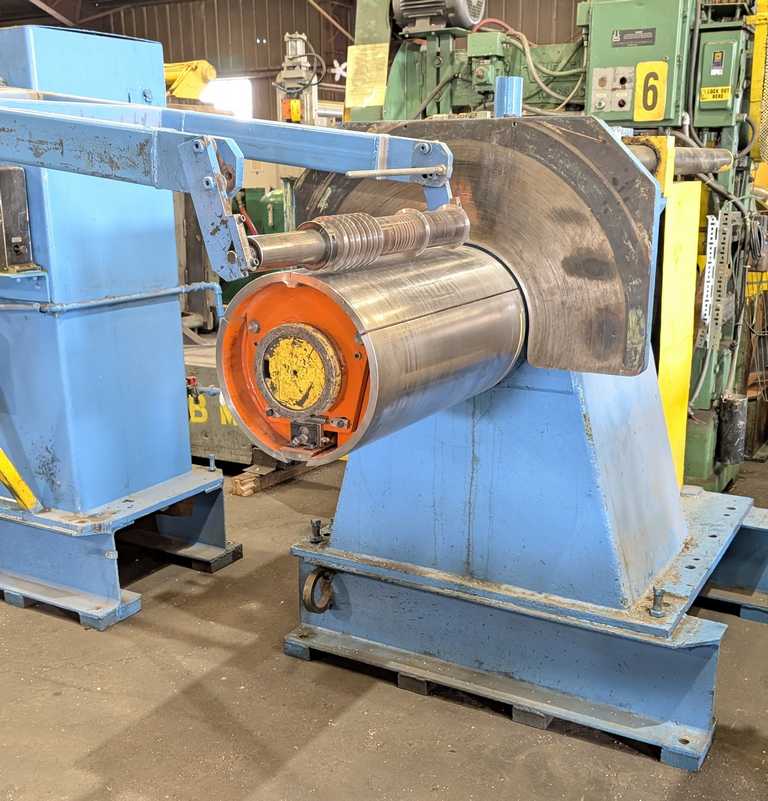

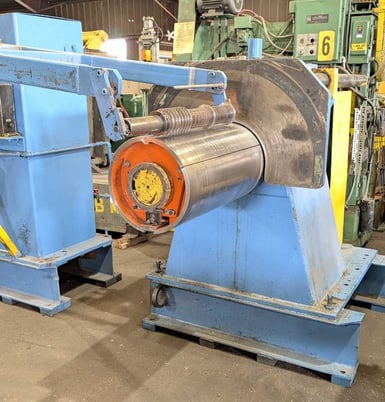

-Recoiler: Ruesch
Model: N2381A
S/N: 5715
16" Dia. x 30" Face Drum
Manual Expansion
Material Slot (No Gripper)
Hydraulic Pushoff
46" from Floor to center of Drum
25 HP Reliance DC Motor, 500/1800 RPM, 230 V
Chain Drive to Recoiler
Overall Size: Recoiler - 101" Long x 83" W x 71" High
DC Motor - 41" L x 37" W x 42" High

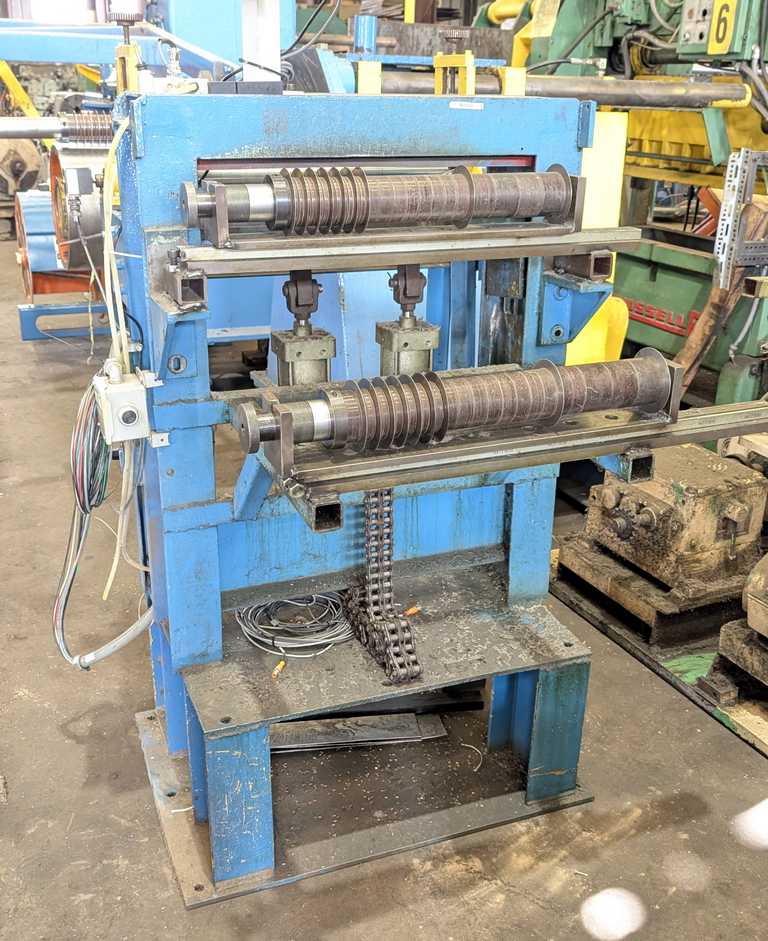

-Freestanding Overarm Separator: Ruesch
Model: N2381
S/N: 5715
Overall Size: 90" L x 82" W x 79" High
-Exit Coil Car: K&S
40" Wide Bed
60" O.D. Capacity
Self-Contained Hydraulics
Coil Retaining Arms
Overall Size: 66" L x 55" W x 68" High
-Exit Turnstile: K&S
S/N: 5258B
4 Arms
C-Hook Type Arms w/4.5" W x 8.5" H Slot
42" Usable Arm Length
57" from Floor to Top of Arm
Hydraulic Pushoff
Powered Rotation
Approx. 38" Dia. Base
2 Arms Unbolt for Shipping
Overall Size: 150" L x 60" W x 66" High
-Main Operators Control Panel:
-(2) DC Drive Cabinets:
#1 - Quantum III Drive
#2 - Nidec Control Techniques Quantum MP Drive (New in 2020)
-Hydraulic Power Unit:
-Line Direction: Right to Left
-In Storage: Toledo, OH.
