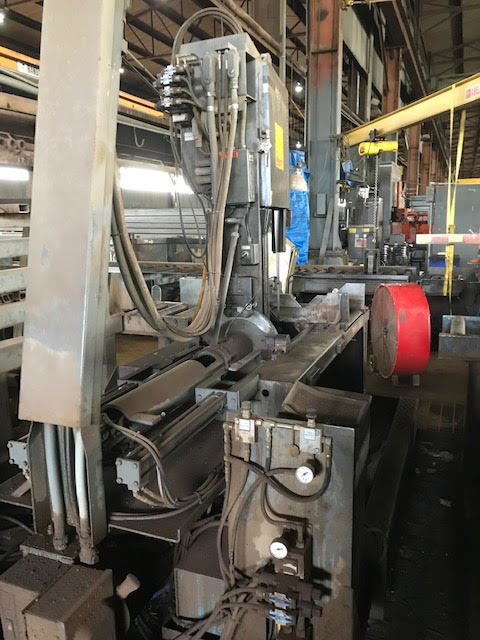

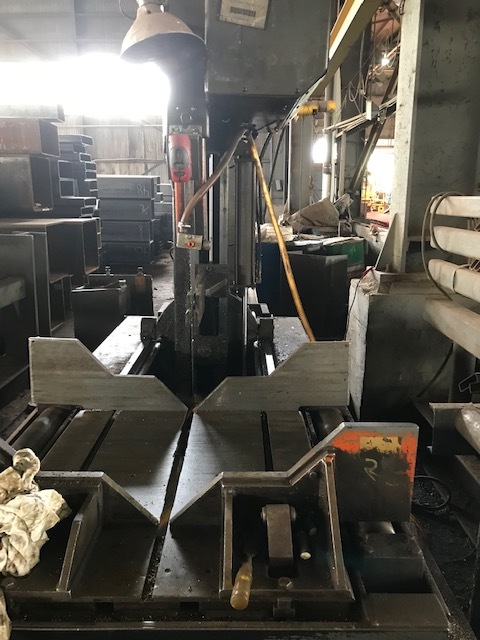

DESCRIPTION: HEM Model V130HM Vertical Bandsaw Can be seen under power in IL. 20" x 24" capacity These HEM Vertical Band Saws are time proven band saw designs for cutting materials up to 45 degrees, both left and right. Capacities for these vertical band saw work horses range from (18-25) wide to (20-36) high.
SPECIFICATIONS:
THROAT CAP 24" WORK HEIGHT 20" POWER 10 hp BLADE WIDTH 1.5" BLADE LENGTH 17.5' FPM 400 CONTROL CNC (Manual Swing Away) HEM Model V130HM Vertical Bandsaw Machine Details:
MODEL ............................... V130HM YEAR NEW ............................ 2000 CAPACITY ............................ 20" X 24" CAPACITY MITTER LEFT ................ 20" X 16" CAPACITY MITER RIGHT ................ 20" X 15" CAPACITY (ROUNDS) ................... 18" BLADE SPEEDS (VARIABLE) ............. 72 TO 400 FPM BLADE SIZE .......................... 1 1/2" X 19' GUIDE ARM ........................... HYDRAULIC HYDRAULIC VISE PRESSURE ............. 0 TO 1500 LBS HYDRAUCIC BLADE TENSION ............. YES HEAD TILTS ......................... HYDRAULIC DIGITAL READOUT DISPLAYS ............ YES COOLANT ............................. YES MOTOR ............................... 10 HORSEPOWER
HYD-MECH V-20 VERTICAL BAND SAWPRICE: Loaded on Truck, Our Warehouse, York, PA …… $34,500.00, HMC Stock # 26007, Serial No.: VM0818012, Model: V-20PT, Year: 2018, Capacity at 90 Degrees:, Round: 20", Rectangle: 25" x 20", Capacity at 45 Degrees:, Round: 17", Rectangle: 20" x 17", Capacity at 60 Degrees ...more
, 4 canted head, 60 bar feed, left side, Shuttle s automatic multi-indexing up to 60 (120 optional) in a single stroke w/automatic kerf, compensation. Powered by a rack and pinion servo drive, Automatic programmable mitering w/go to angle functionality from 60 left to 60 right, Hydraulic head tilt, Cast iron band ...more
Product Information, Band Saws PRODUCT NEW - ON REQUEST: Type:Vertical Coolant system:Yes Angle cut:From 60° to 60° Band Size:1-1/4" x 16'3" Engine:5 HP Voltage / Phase:230v o 480v Weight:2,700 lbs Dimensions:36" x 95" x 96" 1 YEAR WARRANTY ON PARTS*: Additional options: ::Work stop ::Variable vise ...more
