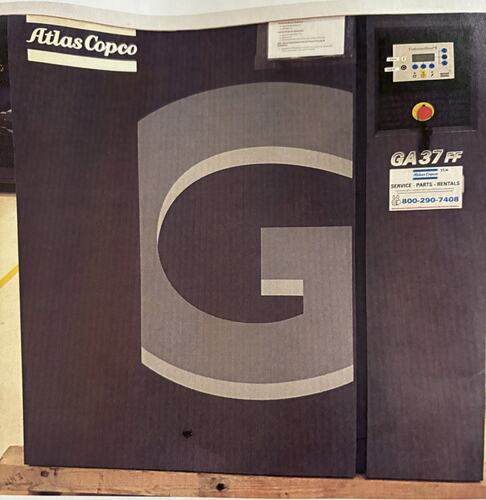

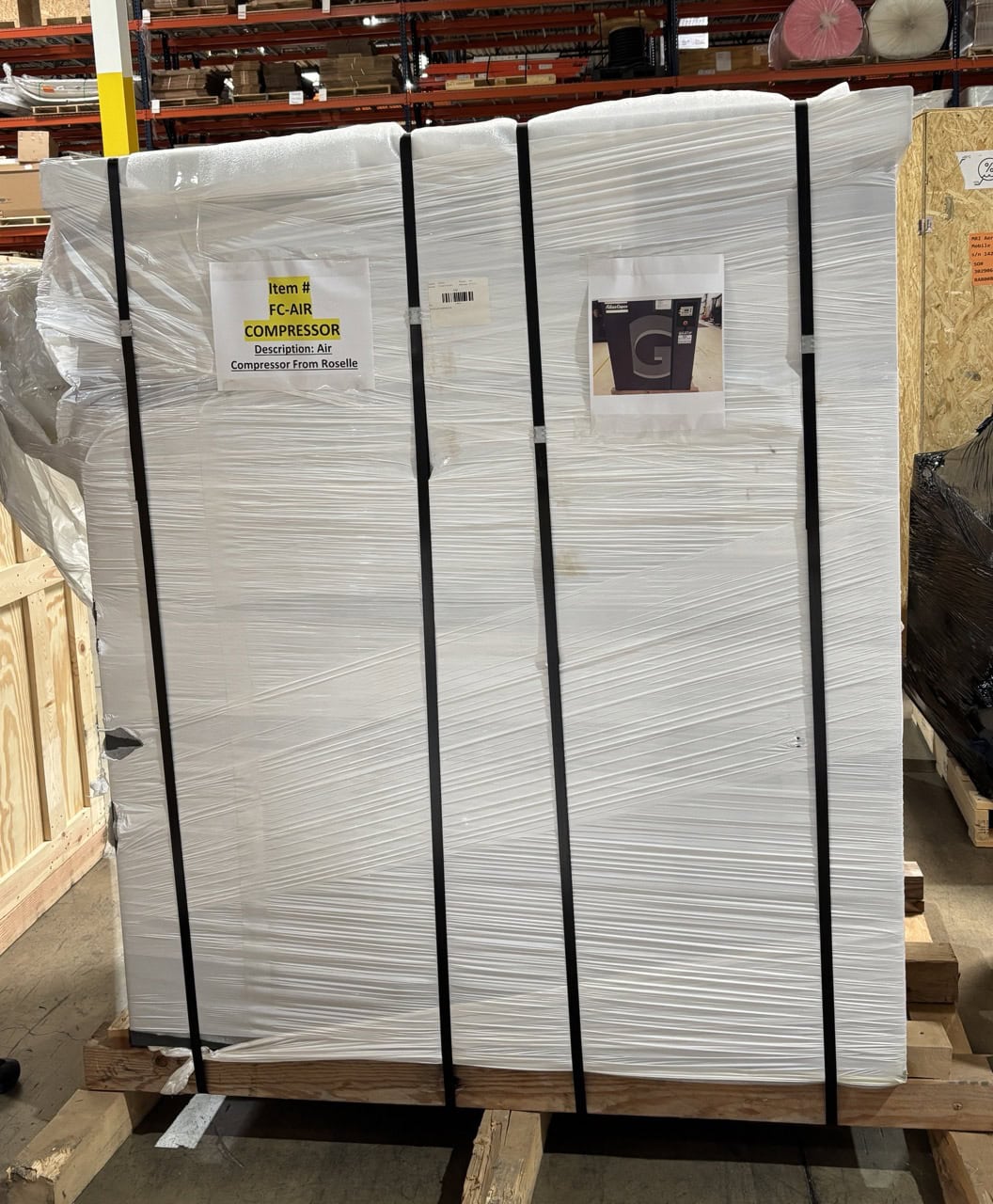

233 CFM, 104 psi, Atlas Copco #GA37-FF, Screw Compressor w/ Integrated Dryer, Tank & Parts, 50 HP, Elektronikon Graphic Mk5 Control, sound attenuated enclosure, fully enclosed

General System Features
Compressor Type: Rotary Screw (Oil-Injected)
Configuration: Full-Feature (FF) – integrated refrigerated dryer
Cooling Method: Air-cooled (standard)
Drive Type: Direct drive (gear-driven), no belts
Controller: Elektronikon Graphic Mk5
Enclosure: Sound-attenuating, fully enclosed steel cabinet
Noise Level: ~67 dB(A)
Ambient Temp Range: 0°C to +45°C (32°F to 113°F)

480V

Performance Specifications
Motor Power: 50 HP / 37 kW
Rated Pressure: 7.2 bar / 104 psi
Max Pressure Range: 7.5 – 13 bar (unit is 7.2 bar rated)
Free Air Delivery (FAD):
233.1 CFM / 6.6 m³/min @ 104 psi
Flow verified per ISO 1217 Annex C
Motor Speed: 3550 RPM (fixed speed)
Thermal Protection: Yes – integrated into Elektronikon controller

Physical Specifications
Dimensions (Compressor):
Approx. 72″ L x 36″ W x 60″ H
Weight: 842 kg / 1856 lbs
Base Frame: Skid-mounted, forklift accessible

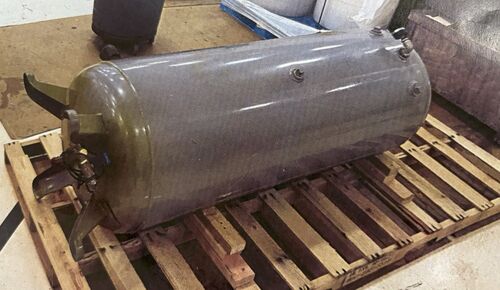

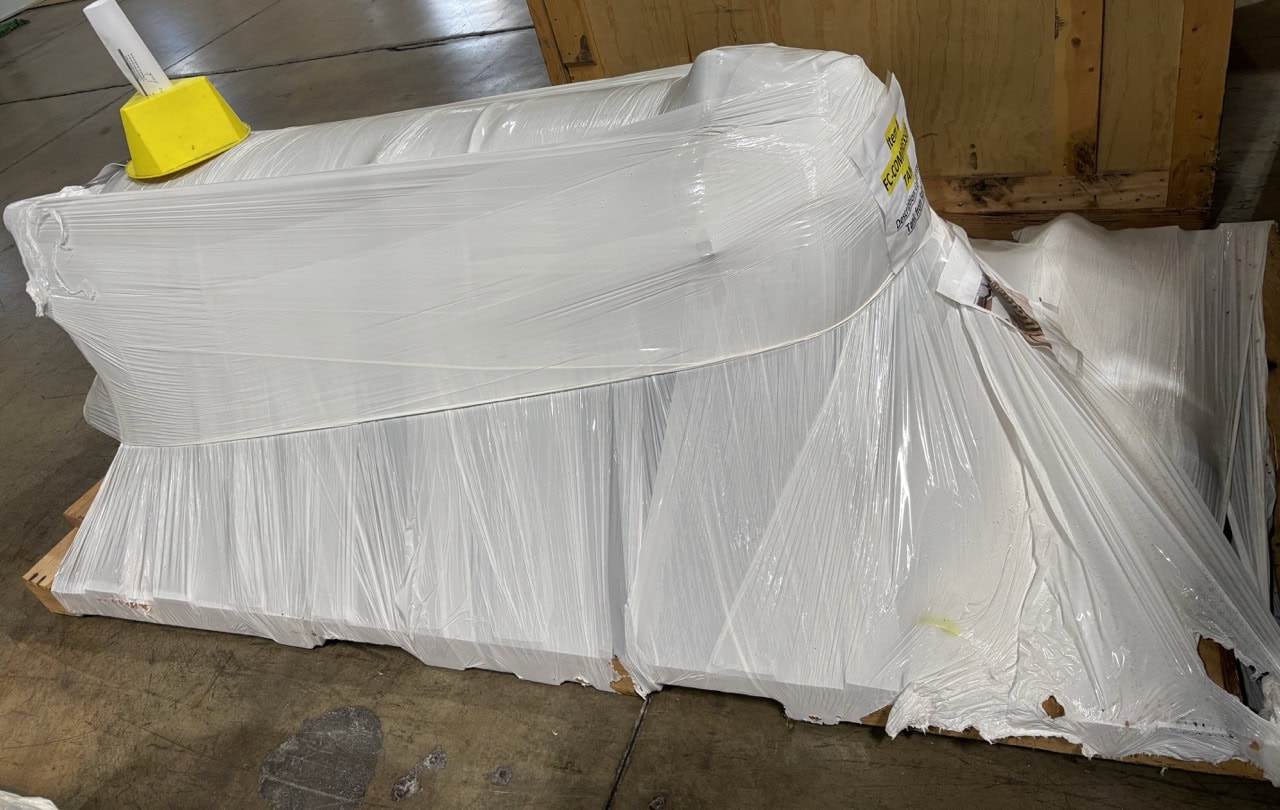

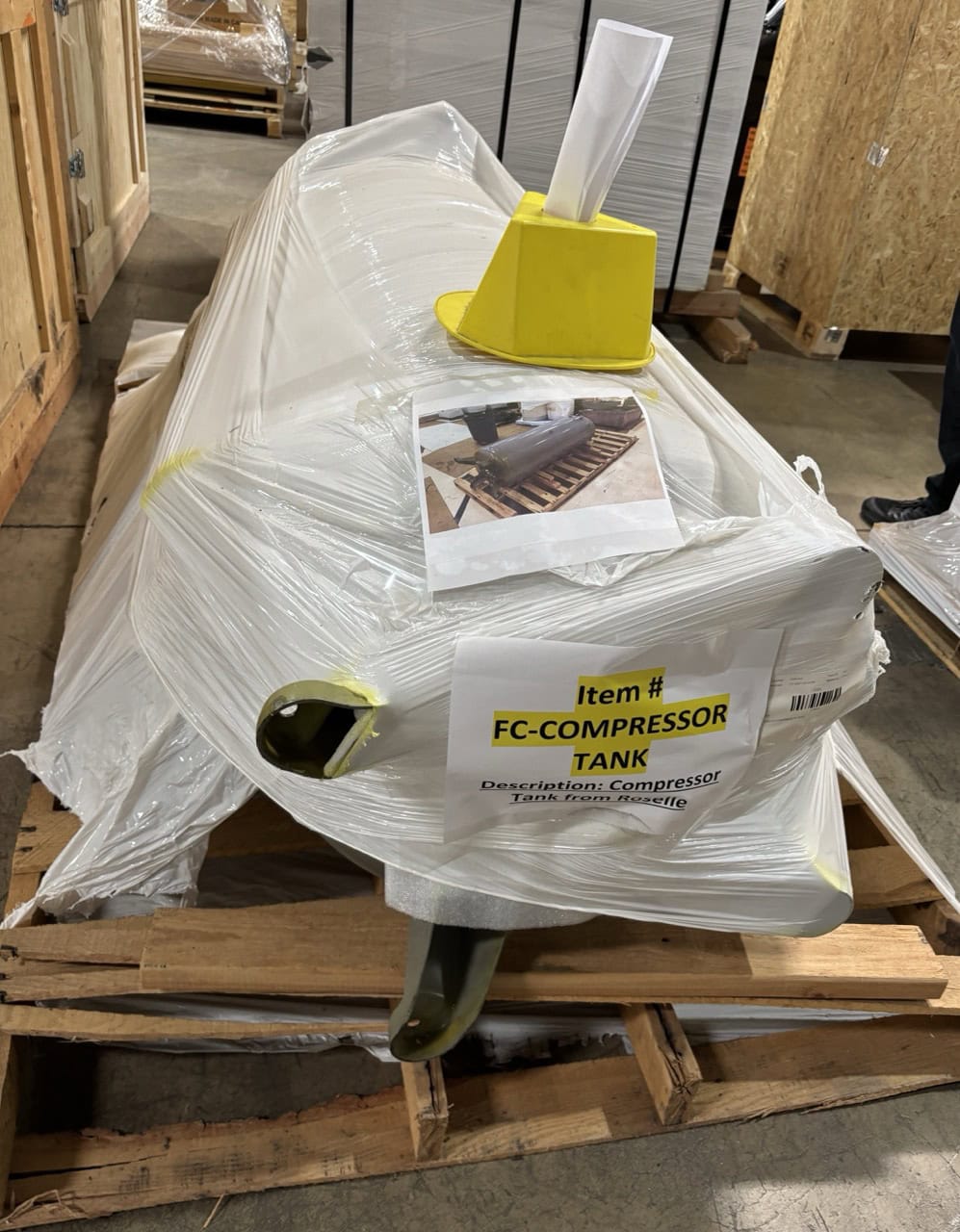

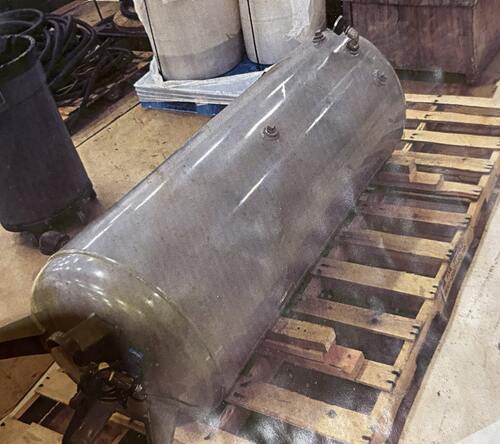

Receiver Tank:
Orientation: Horizontal
Est. Capacity: 120 gallons
Mount: Welded feet with pallet base
Material: Steel, with OEM ports and valve fittings

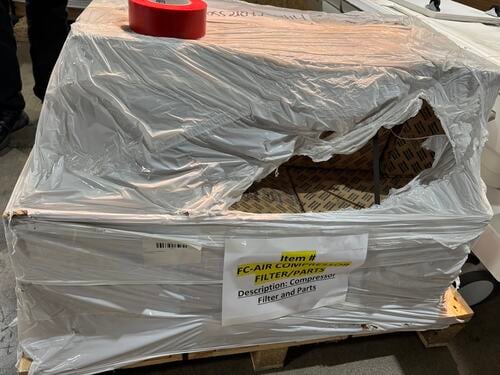

Parts Pallet: Sealed OEM filters and accessories for GA37

Integrated Dryer (FF Model)
Dryer Type: Refrigerant cycle dryer
Function: Removes moisture downstream of compressor
Dew Point Control: ~+3°C (37°F) standard
Drain System: Electronic Water Drain (EWD) standard
Power Source: Shares power/control with GA unit
Protection: Thermal switch and pressure sensor interlock

Control System
Elektronikon Controller
Graphic LCD display
Maintenance alerts
Real-time pressure, load status, and fault diagnostics
Optional remote control / SMARTLINK integration
Password protection and configurable service intervals
