For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Ken King
615-36...> Show Seller's Phone Number 615-369-7788 Let the seller know you found their listing on Surplus Record!
Description
| CAPACITY | 250 TON | STROKE | 8" | MAX SHUT HEIGHT TO BED | 21" | BED AREA | 72" RL X 48" FB | SPEED | 40 - 80 SPM | SLIDE ADJUSTMENT | 6" MOTORIZED | SLIDE AREA | 72" RL X 48" FB | slide plate | 3" h x 72" rl x 48" fb | BOLSTER PLATE | 6" H X 72" RL X 48" FB (T-SLOTTED) | DISTANCE BETWEEN UPRIGHTS | 74" | DISTANCE FLOOR TO BED | 32" | WINDOW SIZE | 28" w x 14" h | CLUTCH | MINSTER AIR CLUTCH / BRAKE COMBINATION | ELECTRICS | 40 HP 1750 RPM 480V-3-60 eddy current drive & new cieco press control for reconditioned price | APPROX DIMENSIONS | 195" h x 82" RL X 72" FB | APPROX WEIGHT | 92,000 LBS | Equipped With | floor standing, tie rod construction, single geared twin drive, heavy duty uprights for rigidity, eight point gibbing for precision slide guiding, heavy duty slide & connections, cast iron frame, dual air counterbalances, & removable bed arms for quick die change | Note |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
Get Your Price from Alma Machinery Co-Columbia TN!
Buyers Who Viewed This Listing Also Viewed …
220 Ton, Aida #PMX-L2-200(1), straight side double crank, 7.8" stroke, 19.6" Shut Height, 3.93" adj., 40-80 SPM, 61" x37.4" bed, 33" windows, air clutch & brake, 1992
Seller: Rygate, LLC
Location: Clarkston, MI
Mfr: Aida
Model: PMX-L2-200
Year: 1992
Capacity: 200 Metric Tons, Model Number: PMX-L2-200(1), Year of Manufacture: 1992, Bed Area: 61” x 32.6”, Slide Area: 61” x 37.4”, Stroke: 7.87”, Adjustment: 5.9”, Shut Height: 19.6” SDAU, Strokes per Minute: 30-80, Windows: 33.5” wide, Bolster Plate: 9” thick ...more
250 Ton, Niagara #PN250-84-42, straight side double crank press, 8" stroke, 23" Shut Height, 6" adj., 15030 VSPM, air clutch, 1991
Seller: S & G Press & Machinery Sales
Location: Shelby Township, MI
Mfr: Niagara
Model: PN250-84-42
Year: 1991
Tonnage 250, Stroke 8 inches, Shut Height 23 inches, Adjustment 6 inches, Bed Size 84" LR x 42" FB, Ram Area 84" LR x 42" FB, SPM 15-30 VSPM, Standard, 250 ton Straight Side Mechanical Stamping Press, Niagara Press Model PN2-250-84-42, 275 ton Capacity (US-Short Tons), SN/ P53564, 8" Stroke, 23" Shut Height, 6" ...more
250 Ton, Blow #SDG-250-84-48, straight side double crank, 8" stroke, 22" Shut Height, 84" RL x 48" FB bed, 30-60 SPM, 1985
Seller: Alma Machinery Co-Columbia TN
Location: Columbia, TN
Mfr: Blow
Model: SDG-250-84-48
Year: 1985
capacity250 us tons stroke8" max shut height to bed22" sdau bed area84" x 48" (rl x fb) speed30 - 60 spm slide adjustment8" motorized slide area84" rl x 48" fb - (BEING REBUILT) bolster plate5.75" h x 84" rl x 48" fb dist uprights / floor to bedapprox 85" / 40" window size26" w x 23.5" h clutchair clutch / brake ...more
JUST ADDED!

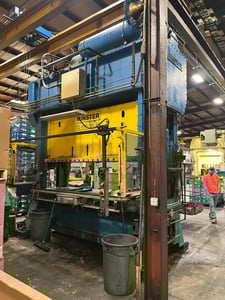

250 Ton, Minster #E2-250-120-36, straight side double crank press, 8" stroke, 24" Shut Height, 6" adj., 42 SPM, 120" x 36" bed
