22" x 40" W.F. Wells #B25-2C, Semi-Automatic Horizontal Band Saw w/6 deg. Cant, 5000 lbs. capacity, 318" x 1.5" Blade, 26" Bandwheel, 60-500 FPM, 10 HP, new

Description

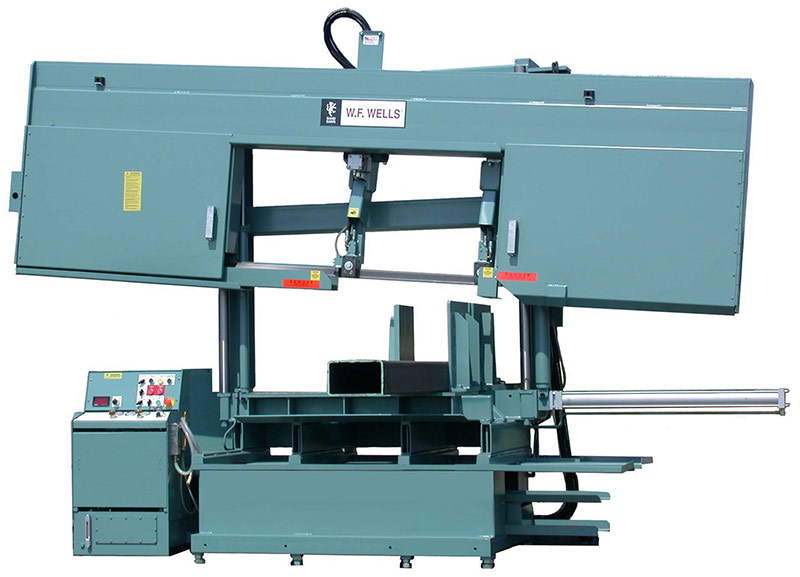

W.F. Wells 22″ x 40″ Semi-Automatic Horizontal Band Saw with a 6° Cant, B25-2C

Inventory # 8001

Model: B25-2C

Made in USA

Specifications:

Capacity:

Round:

@ 90°: 25″

Rectangular:

@ 90°: 22″ x 40″

@ 45°: 22″ x 24″

Square:

@ 90°: 24″

Weight Capacity: 15,000 lbs.

Blade Speed: 60 – 500 FPM

Blade Size: 318″ x 1 1/2″ x .050″

Bandwheel Size: 26″

Sawing Force: 0 – 1,000 lbs.

Work Height: 34″

Vise Jaw Height: 17″

Outfeed Table: 24″ x 40″

Motor: 10 HP / 208v, 230v, 460v / 3ph

Standard Features:

Spring Tensioned Carbide Blocks with Idle Roller Backup Blade Guide

Hydraulic Blade Tension

Hydraulic Vise

Hydraulic Positioned Guide Arm

Hydraulic Powered Blade Brush

Blade Tension Indicator

Blade Break/Stall Switch

Electronic Door Interlocks

Electrics Wired to NFPA 79 Machine Tool Standards

Mechanical Specifications:

Dimensions: 170″ x 55″ x 105″ H

Shipping Weight: approx. 6,800 lbs.

FOB Factory – Contact us for Pricing and Availability
