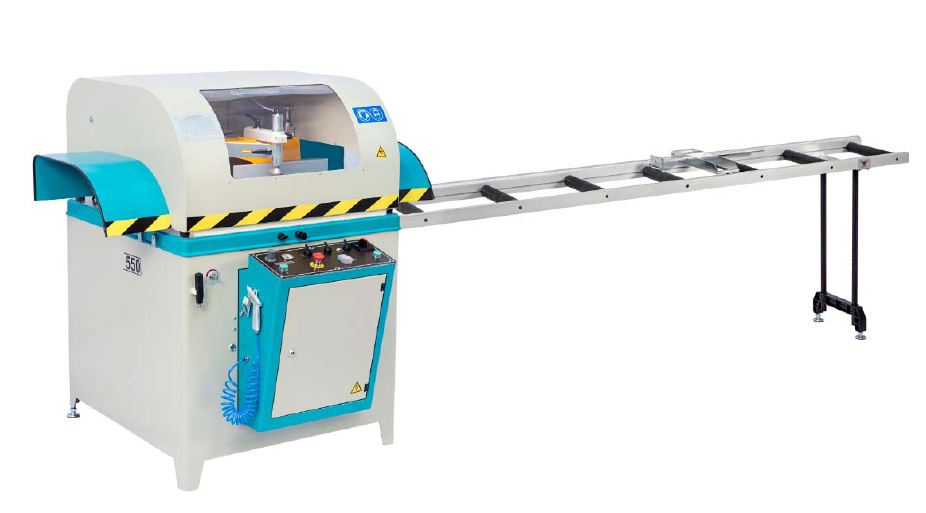

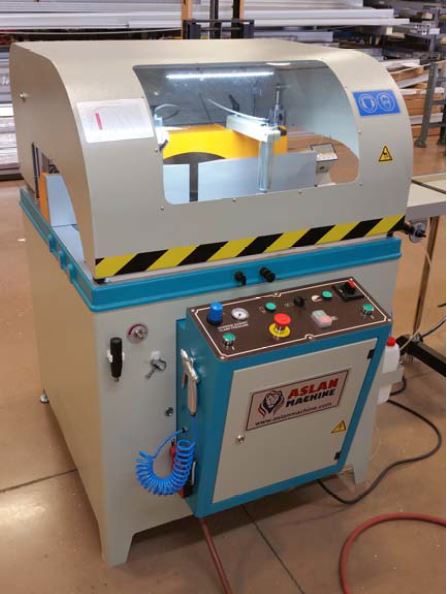

Aslan 22″ Semi-Automatic Non-Ferrous Aluminum Upcut Saw, US1-550
Inventory # 8222
Model: US1-550
Specifications:
Max. Profile Height: 8.08″
Max. Profile Width: 13.78″
Cutting Angles: All angles from 0° to 75°
Saw Blade Diameter: 22″
Saw Blade Bore Diameter: 1.18″ / 1 1/4″
Saw Blade Rotation: 2,880 RPM @ 50 Hz. 3,445 RPM @ 60 Hz.
Motor Rotation: 2,880 RPM @ 50 Hz. 3,445 RPM @ 60 Hz.
Motor: 5.5 HP / 220v, 440v / 3ph
Standard Features:
For cutting aluminum, vinyl profiles, and wood
Can cut profiles at all angles from 0° to 75°
Adjustable saw blade rising speed
Multiple profile cutting in one sequence
Safety guard protection
Easy-to-use control panel
Standard vertical clamps
Pneumatic and hydraulic systems for smooth cutting
Cooling system is included to cut aluminum on this machine
Two dust ports
One horizontal clamping
One saw blade is installed on the machine
Two-hand operation for worker safety with an anti-tie-down feature
Top cover with a safety switch to stop the machine when opened
Front door with a safety switch to stop the machine when opened
Mechanical Specifications:
Dimensions: 48″ x 56″ x 57″ H
Weight: approx. 760 lbs.
FOB Factory – Contact us for Availability
Optional Equipment:
Right and Left Conveyor System
Second Unit of Horizontal Clamping
