2100 cfm GMC #WDC-2100, Wet Dust Collector, 8" Inlet Opening, 5 HP, 208-230/460 V, new

Description

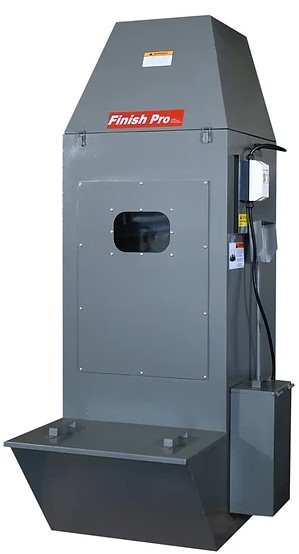

GMC Finish Pro Wet Dust Collector, WDC-2100

Inventory # 7778

Model: WDC-2100

Description:

Wet dust collection systems offer a more safe and efficient method for the collection of hazardous grinding/sanding/cutting dust generated by a variety of processes

Specifications:

Inlet CFM: 2,100

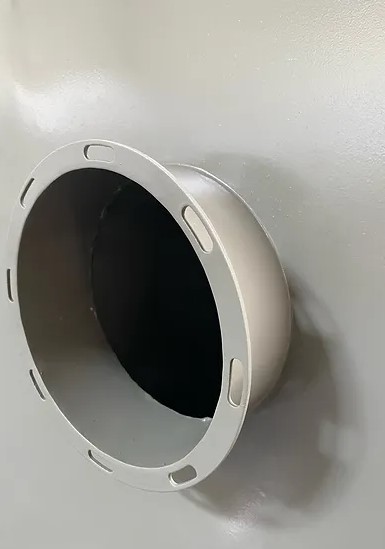

Inlet Opening: 8″

Motor: 5 HP / 220v, 440v / 3ph (Amperage draw 30A on 220v, 20A on 440v)

Standard Features:

Cabinet: Made of welded grade #316 stainless steel construction

Front Door: Easily removed for maintenance and cleaning. Equipped with an explosion relief flap

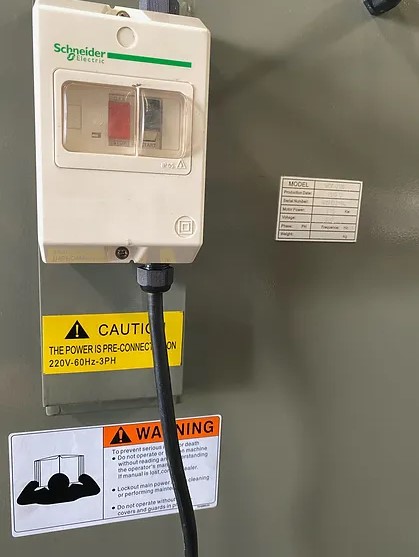

Electrical Control: Push-button motor starter with thermal overloads

Impeller: Standard, precision balanced, and directly coupled to the motor for maximum CFM with minimum vibration (also stainless steel)

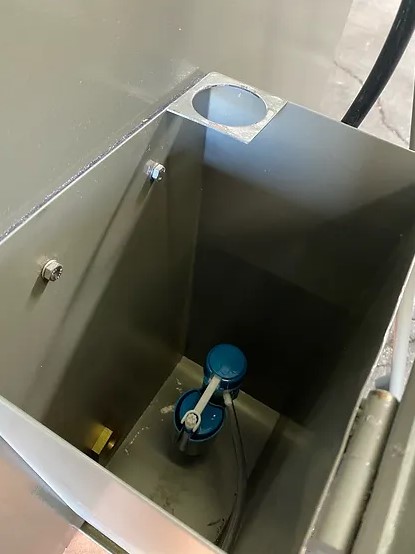

Internal Inducers: A system of internal spray inducers removes dust particles from the air flow and causes them to settle in the water tank

Sound Suppressor: The unique motor cover design keeps the noise level to a minimum

Cleaning Tool: Made of stainless steel and provided for the easy removal of grinding dust from the water tank

Mechanical Specifications:

Dimensions: 37″ x 47″ x 76″ H

Weight: approx. 950 lbs.

FOB Factory – Contact us for availability

Please Note: This Machine Does NOT Work with a Rotary Phase Converter. Warranty Will be Voided
