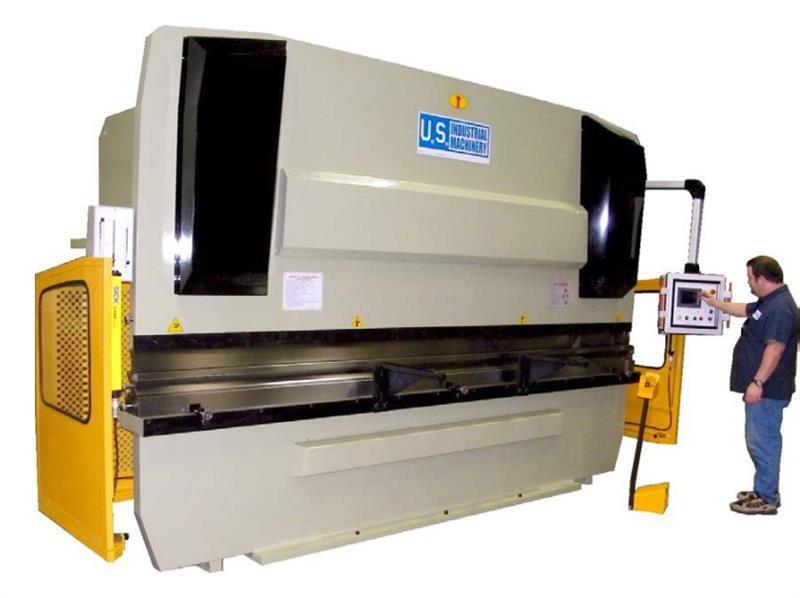

200 Ton, U.S. Industrial #USHB200-10, CNC hydraulic press brake, 10' overall, 102.3" between housing, 2.75" stroke, 12.5" throat, 17.5" open, 24" Back Gauge, 20 HP, 2026, new

US INDUSTRIAL USHB200-10 CNC Hydraulic Press BrakeSpecifications: -- Working Pressure: 200 Tons -- Length of Working Table: 125.9" . -- Distance Between Housings: 102.3" -- Throat Depth: 12.5" -- Stroke Adjustment of Ram: 2.75" -- Ram Travel: 7.0" -- Open Height: 17.5" -- Rapid Ram Travel Speed: 2.4"/sec. -- Rapid Ram Retreat Speed: 2.0"/sec. -- Backgauge Travel: 24" -- Pressing Speed: Dependent on Tool Load -- Hydraulic Oil Capacity: 79 Gal -- Motor Horsepower: 20 HP -- Net Weight: 25,357 lbs. -- Length: 148" -- Width: 64" -- Height: 101" Equipped With: -- CNC 2-axis Color Graphic Computer Control -- Sick Model deTec 4 Light Curtain System – Minimum OSHA Requirement -- CNC Controlled Mechanical Auto Crown -- Ram Deflection Adjustment Setting for ram speed slowdown and return position -- Massive Torsion Bar for Parallelism Forged Heavy Duty Cylinder and Cylinder Body -- Three Speed Ram Rapid Approach, Bending Cycle and Rapid Retreat -- Bottom Time Delay -- All Steel Construction -- Inching, Single Cycle and Auto Run -- Bed tools are held with standard slot for ½"; x 5/8"; tang w/set screws, plus die clamps are included -- Ram takes standard American Tang Tooling (1/2"; x 5/8";) and American Safety Tang Tooling, and Z1 -- Space between Ram Tool Clamps allows for deep box bending -- Free Gooseneck Punch and multi-opening Die for up to 90 forming up to 10-gauge mild steelNote: The CNC 2-Axis Color Graphic Control controls BOTH Bend Angle and Backgauge Position. Comes with 6"; LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.Options: -- Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4) -- Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4) -- Add Third Axis (Back Gauge Height controlled from operator panel. -- Upgrade to Cam-Lever Quick Action Ram Clamps -- High Speed Servo Back Gauge -- Training in our facility -- Training at customer site
