Manufacturer: Dake
Model: 19-525
Ton: 200
Stroke: 40.00
Stock # 29365
Price: $69,500 USD - Finance for as low as $1,409/mth
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Mr. Secord
513-77...> Show Seller's Phone Number 513-771-1952 Let the seller know you found their listing on Surplus Record!
Description

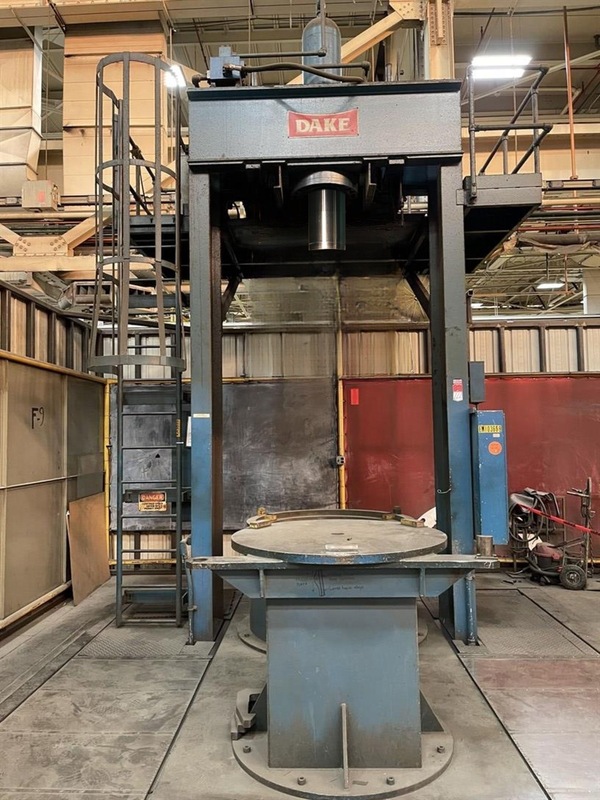

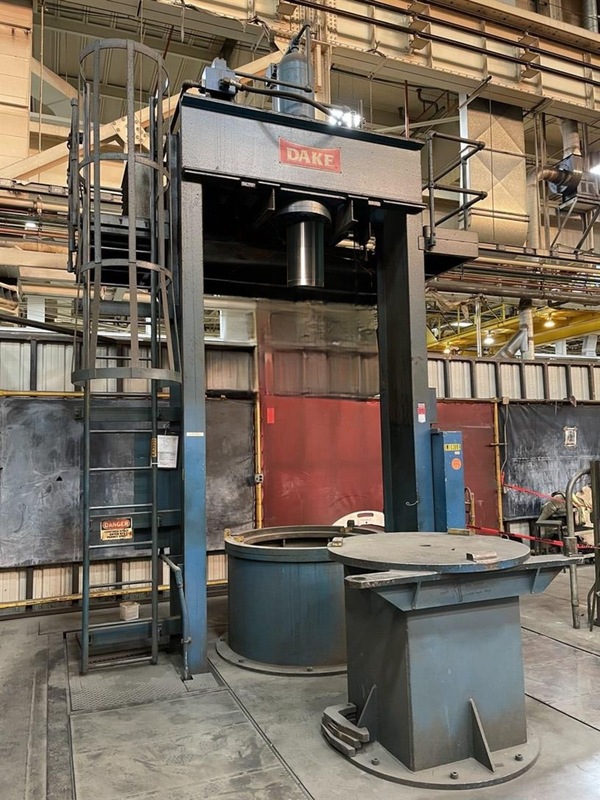

200 TON DAKE "H"-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS
SERIAL NO 190373, MODEL 19-525,
200 TON DAKE "H"-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS
SERIAL NO 190373, MODEL 19-525,
EQUIPPED WITH:

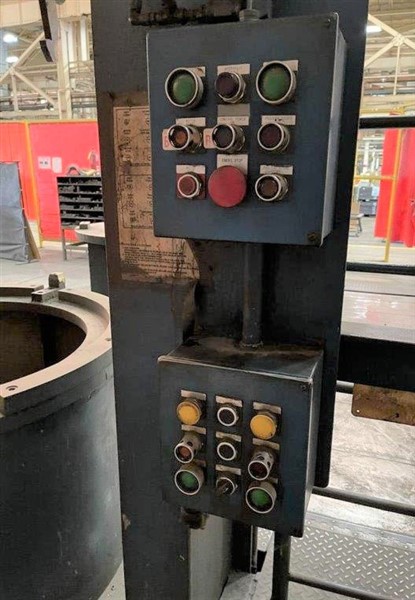

PUSHBUTTONS & CONTROLS CONSISTING OF: FAST DOWN,
SLOW DOWN, FAST RAISE, FRAME FORWARD, SLOW RAISE,
LOCK FRAME, FRAME REVERSE, UNLOCK FRAME, FAST DOWN,
SLOW DOWN, START, STOP.
HYDRAULIC GAUGE
BELL HOUSING & WORK SUPPORT TABLE
CATALOG SPECIFICATIONS:
Tonnage Capacity 200 TON
Stroke Length, Maximum 40"
Daylight to Ram, Maximum 130"
Daylight to Ram, Minimum 90"
Distance Between Housings 78"
Ram Speed, Pressing 8 IPM
Ram Speed, Advance 115 IPM
Ram Speed, Return 300 IPM
Ram Speed, Breakaway 20 IPM
Head Travel, Speed 28 FPM
Motor Horsepower 25 HP
Electrical System 460/3/60
Frame Traverse 150"
CONDITION: APPEARS TO BE IN GOOD CONDITION
AS TAKEN FROM SERVICE.
PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity: 200 TON
Stroke length, maximum: 40"
Daylight to ram, maximum: 130"
Daylight to ram, minimum: 90"
Distance between housings: 78"
Ram speed, pressing: 8 IPM
Ram speed, advance: 115 IPM
Ram speed, return: 300 IPM
Ram speed, breakaway: 20 IPM
Head travel, speed: 28 FPM
Motor horsepower: 25 HP
Electrical system: 460/3/60
Frame Traverse: 150"
SERIAL NO 190373, MODEL 19-525,
200 TON DAKE "H"-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS
SERIAL NO 190373, MODEL 19-525,
EQUIPPED WITH:
PUSHBUTTONS & CONTROLS CONSISTING OF: FAST DOWN,
SLOW DOWN, FAST RAISE, FRAME FORWARD, SLOW RAISE,
LOCK FRAME, FRAME REVERSE, UNLOCK FRAME, FAST DOWN,
SLOW DOWN, START, STOP.
HYDRAULIC GAUGE
BELL HOUSING & WORK SUPPORT TABLE
CATALOG SPECIFICATIONS:
Tonnage Capacity 200 TON
Stroke Length, Maximum 40"
Daylight to Ram, Maximum 130"
Daylight to Ram, Minimum 90"
Distance Between Housings 78"
Ram Speed, Pressing 8 IPM
Ram Speed, Advance 115 IPM
Ram Speed, Return 300 IPM
Ram Speed, Breakaway 20 IPM
Head Travel, Speed 28 FPM
Motor Horsepower 25 HP
Electrical System 460/3/60
Frame Traverse 150"
CONDITION: APPEARS TO BE IN GOOD CONDITION
AS TAKEN FROM SERVICE.
PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity: 200 TON
Stroke length, maximum: 40"
Daylight to ram, maximum: 130"
Daylight to ram, minimum: 90"
Distance between housings: 78"
Ram speed, pressing: 8 IPM
Ram speed, advance: 115 IPM
Ram speed, return: 300 IPM
Ram speed, breakaway: 20 IPM
Head travel, speed: 28 FPM
Motor horsepower: 25 HP
Electrical system: 460/3/60
Frame Traverse: 150"
Inquire Further with Mohawk Machinery Inc!
Buyers Who Viewed This Listing Also Viewed …
200 Ton, Dake #19-525, H-frame trvling head hydraulic straightening press, 40" stroke, 10.8' daylight, 78" between housing
Category: H Frame Hydraulic Press Machines
Seller: Machinery Central
Location: Cincinnati, OH
Mfr: Dake
Model: 19-525
Year: 1996
, For sale: 1996 DAKE 19-525 200 TON H-frame hydraulic press. s: 150" travel, 40" stroke length, and max 130" daylight. hydraulic gauge, removable bell housing, and support table. Robust 25 HP motor, 460/3/60 electrical system. Serial: 190373., Spec Sheet:, 200 TON DAKE H-FRAME TRAVELING-HEAD, HYDRAULIC STRAIGHTENING ...more

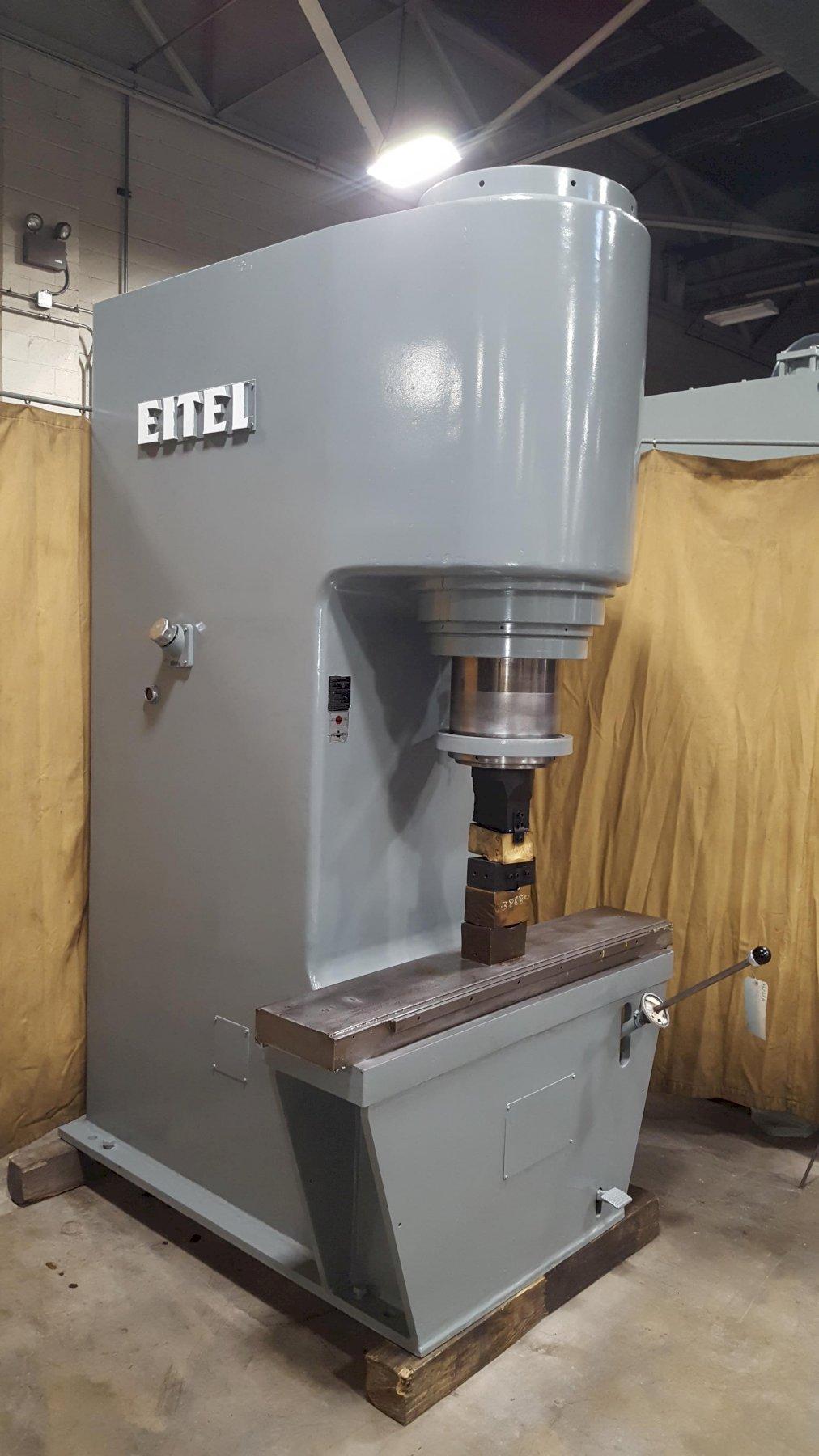

220 Ton, Eitel #RP-200, hydraulic straightening press, 10" stroke, 33" DL, 13-3/4" throat, 1977
