For Sale by EcReCon Inc.
Surplus Record Dealer Since 2017
Sales Dept.
856-29...> Show Seller's Phone Number 856-299-4500 Let the seller know you found their listing on Surplus Record!
Description
Description:

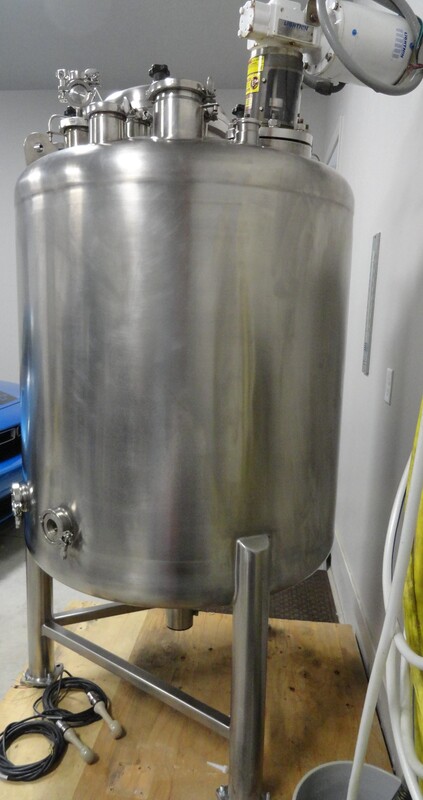

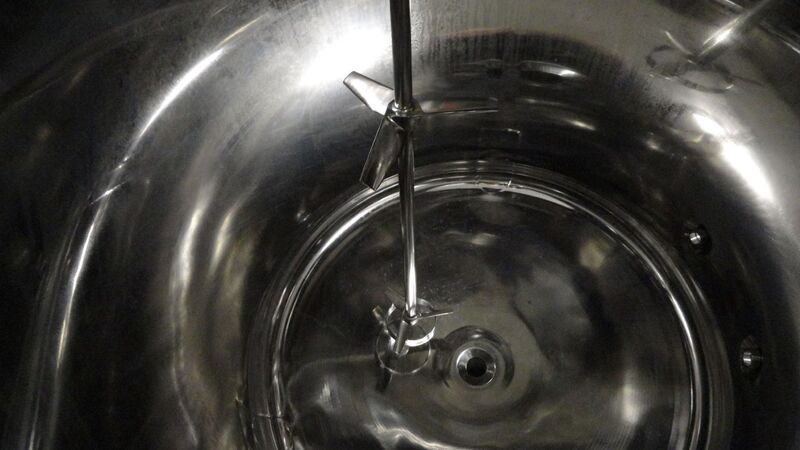

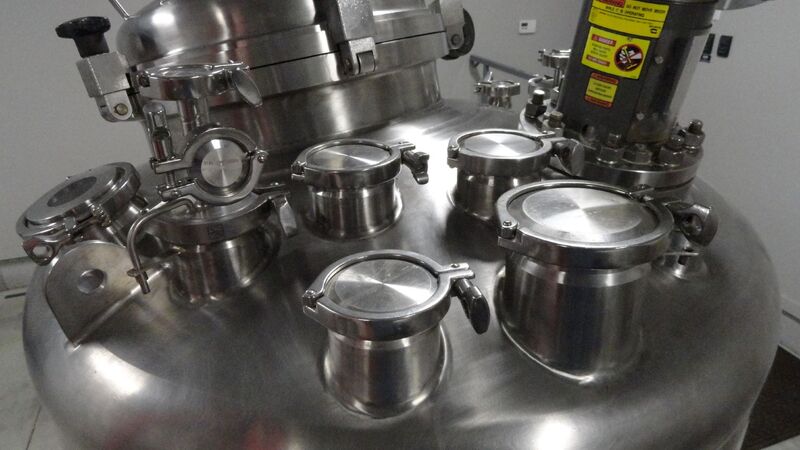

used 750 Liter (~ 200 Gallon) Reactor, Mix Tank. 316L Stainless Steel. Rated 50/Full Vacuum @ 300/-20 Deg.F. internal. 38" dia. x 35" T/T (84" Overall Height) 2" Outlet with flush mount valve. Sanitary Construction. Has Lightnin Mixer model SR3S50, with 0.5 HP, 175 RPM output speed, 208-230/460 volt XP drive.
2010 STAINLESS FABRICATION, INC. .
SPECIFICATIONS:
Gallons.......... 200 gal
Dia. Inches...... 38
Length (T/T)..... 35"
Shell PSIG....... 50/Full Vacuum
Shell (F)........ 300/-20
Shell Material... 316L STAINLESS STEEL
Jacket PSIG...... -
Jacket (F)....... -
Jacket Mat....... -
Stamped.......... NB 2578
Qty.............. 1
Weight........... 1,300 lbs.
used 750 Liter (~ 200 Gallon) Reactor, Mix Tank. 316L Stainless Steel. Rated 50/Full Vacuum @ 300/-20 Deg.F. internal. 38" dia. x 35" T/T (84" Overall Height) 2" Outlet with flush mount valve. Sanitary Construction. Has Lightnin Mixer model SR3S50, with 0.5 HP, 175 RPM output speed, 208-230/460 volt XP drive.
2010 STAINLESS FABRICATION, INC. .
SPECIFICATIONS:
Gallons.......... 200 gal
Dia. Inches...... 38
Length (T/T)..... 35"
Shell PSIG....... 50/Full Vacuum
Shell (F)........ 300/-20
Shell Material... 316L STAINLESS STEEL
Jacket PSIG...... -
Jacket (F)....... -
Jacket Mat....... -
Stamped.......... NB 2578
Qty.............. 1
Weight........... 1,300 lbs.
Get Your Price from EcReCon Inc.!
Buyers Who Viewed This Listing Also Viewed …

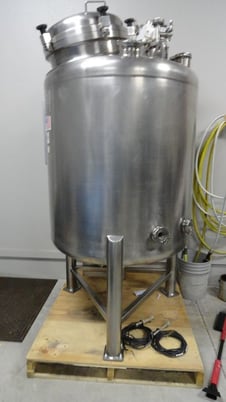

200 gallon Stainless Fabrication Inc., Reactor, 316L Stainless Steel, 38" diameter x 35" L tank, 50 psig @ 300 F shell, 0.5 HP - 175 RPM mixer
