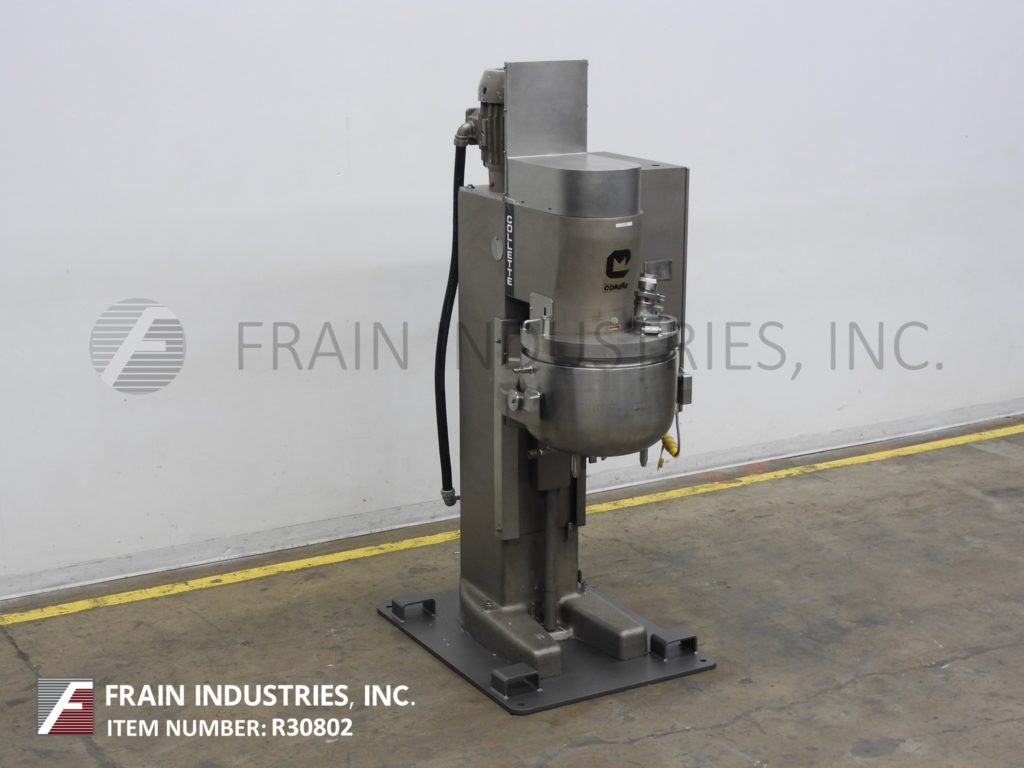

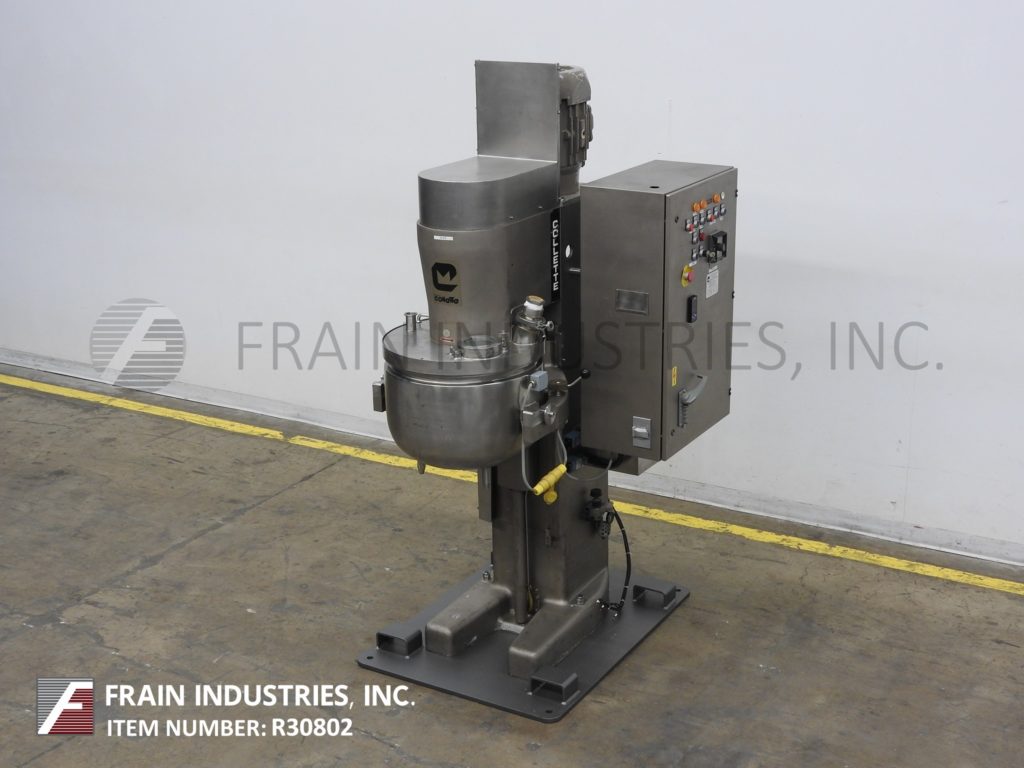

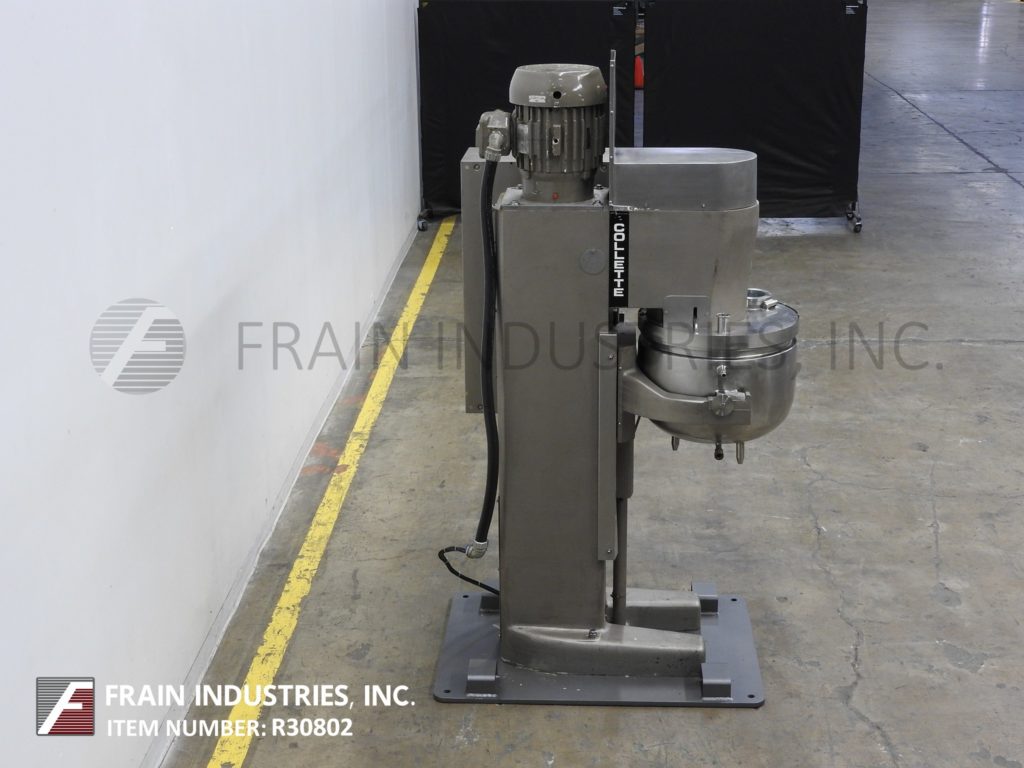

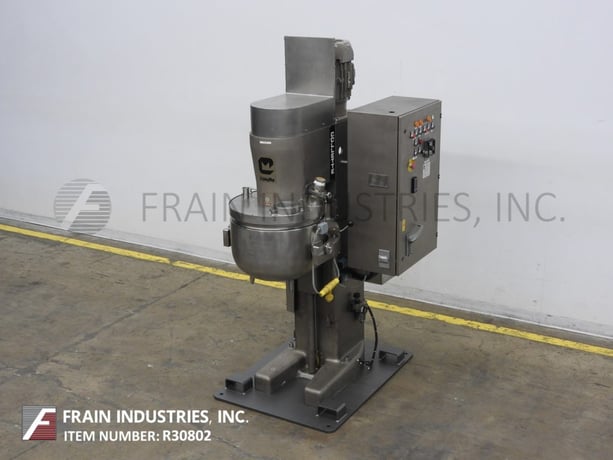

20" x 14" Collette #GRAL75, high speed, high shear 316 Stainless Steel, vertical granulator, jacketed, hydraulic lift up top cover

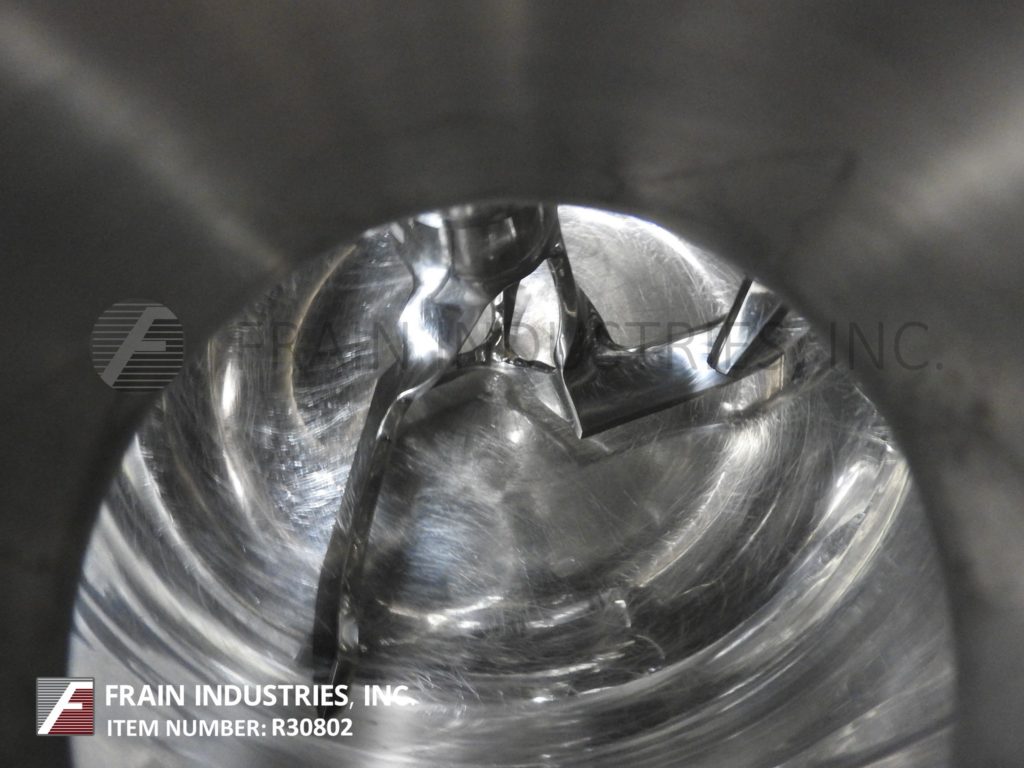

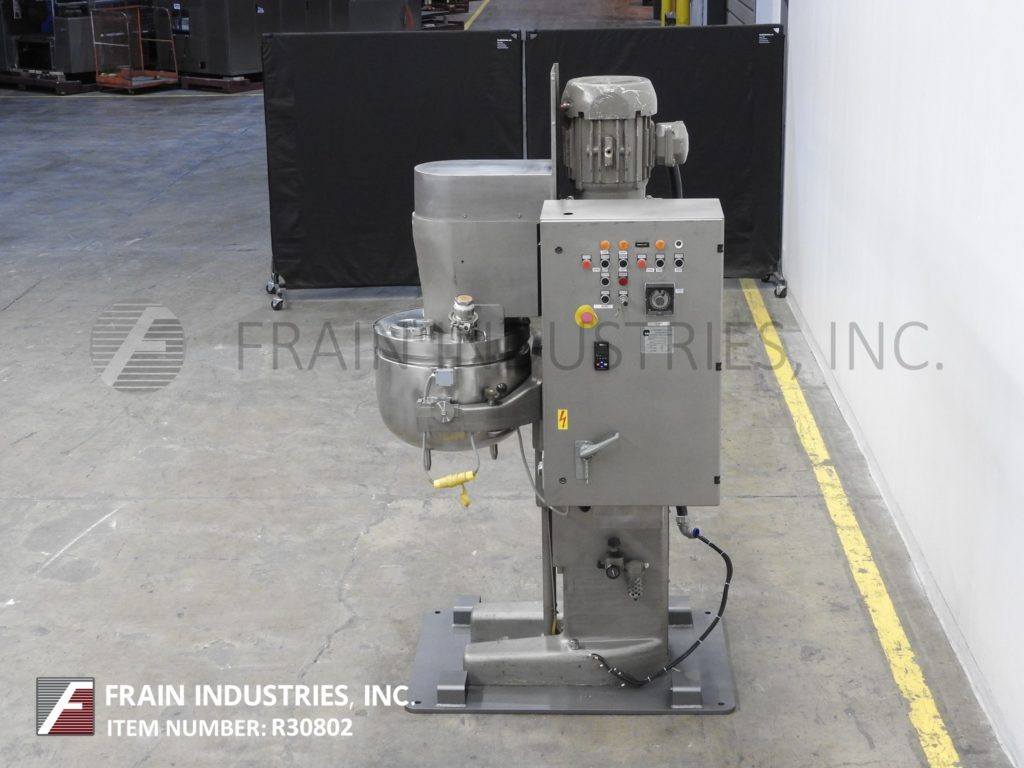

Collette Model GRAL 75, High speed, high shear 316 stainless steel, vertical, single pot, jacketed, GAMP rated granulator, with gross capacity of 75 liters and working capacity of 60 liters per batch. Jacketed and vacuum mixing bowl with dimensions of 20" ID x 14" Deep, and has (2) ¾" NPT side / bottom jacket in / outlets. Equipped with hydraulic lift up top cover with 4¼" ID site port, 16" OD (3) blade anchor style mixer with 8" long x 2" wide blades and 6" OD (4) blade high shear mixer with (4) 3" long x 1" wide blades powered by 7½ Hp belt to motor drive. Control panel with push button start / stop, analog timer and push button up / down controls.
Mounted on forkable platform style base.

Top Access:
(1) 4"OD / 3½"ID Tri Clamp
(1) 2"OD / 1½" ID Tri Clamp

MAWP: 29 psi

Single pot processing is the production of pharmaceutical granules using a wet granulation process in which dry mixing, liquid addition, wet granulation, drying and sizing of the granules is done in one machine.

GAMP (good automated manufacturing practice) design for 25% less granulating liquid use resulting in reduction time in drying with no wet sizing required

OAD: 50" L x 45" W x 92" H
