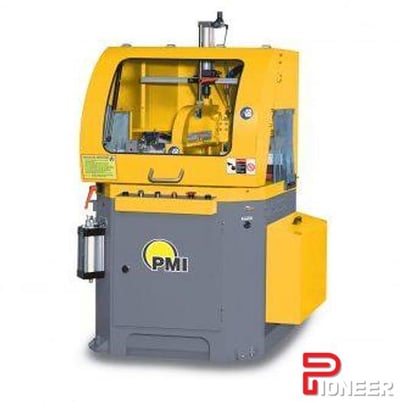

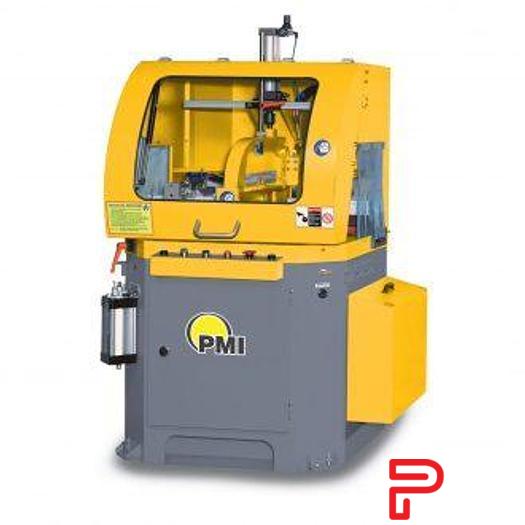

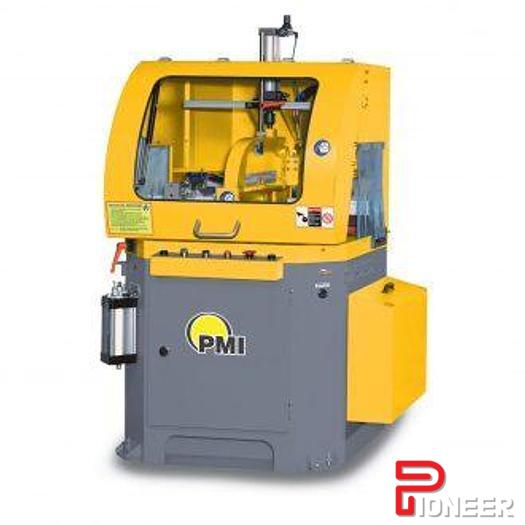

20" PMI #PMI-20, semi-auto miter upcut saw, 5.905" cutcap., 7.5 HP, 2800 RPM, 5.9" H x 11" width sawing, 33-5/8" x 35-5/8" table

  Play Video

Description
The Pat Mooney PMI-20 is a semi-automatic upcut miter saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).
Mitre Capability: The PMI-20 is equipped with a turn table that allows set up of miter cut in seconds. A positive lock of the table is released and then built in handles allow for easy turning of the saw blade approach. Several positive stops via a locking pin allow for rapid and accurate set up of the angle to be cut. The work piece DOES NOT need to be moved from the 90 degree in feed direction.
Upcut Design and Saw Blade Chamber: The PMI-20 is an Upcut saw. The saw blade is housed under the work table and travels up through the work piece. This has several advantages such as safety (less blade exposed during cut), chip removal and longer blade life.
Material Clamping: The pneumatic clamping system has adjustable clamping pressure to prevent distortion of thin wall profiles. The saw comes standard with vertical and horizontal clamps. The top clamp holds the work piece on both sides of the saw blade to deliver a burr free cutoff part. The clamping system is controlled by its own cylinder and is adjustable according to size of the work piece.
Additional Features
Additional Standard Items included with purchase of the PMI-20:
• Tool Kit
• Kanefusa 120T Saw Blade
• Operating Manual
Cutting Capacity
Round-90 Degree 5.905"
Round-45 Degree 5.511"
Square-90 Degree 5.905"
Square-45 Degree 5.511"
Rec a x b-90 Degree 5.511 x 7.874"
Rec a x b-90 Degree 5.905 x 4.724"
Rec a x b-90 Degree .393 x 13.188"
Rec a x b-45 Degree 5.905 x 3.543"
Rec a x b-45 Degree 5.511 x 5.118"
Rec a x b-45 Degree .393 x 9.448"
Specifications
