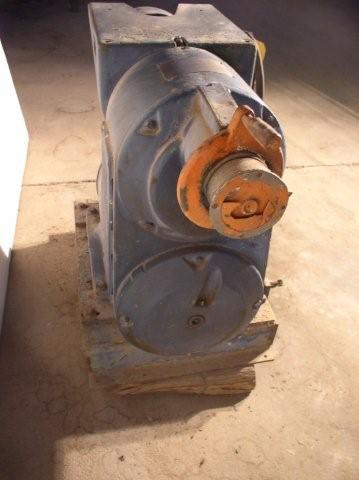

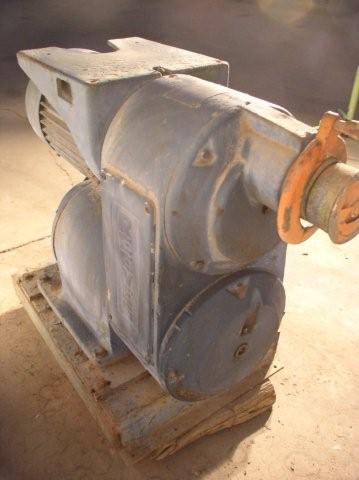

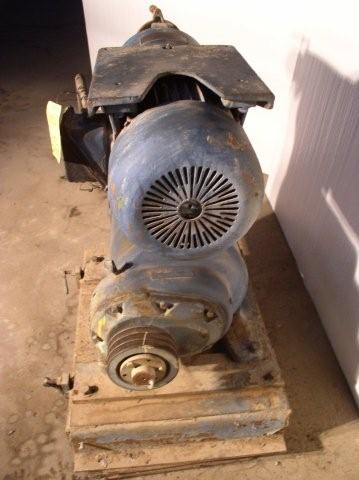

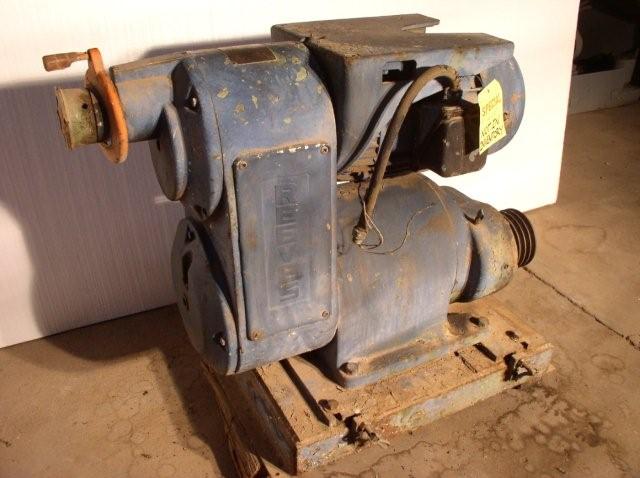

20 HP Reeves, variable speed drive, gear reduction output, 1.2:1 ratio, 230/460 Volts

(1) Used 20 HP REEVES Variable Speed Drive; ID# 303357 35-XH
Specifications:
Gear Ratio......................1.2
Input Shaft.....................(Reference Motor Frame #286TC)
Input RPM.......................1,160
Shaft Out.......................2 " Dia (keyed)
Shaft Length....................4 1/2"

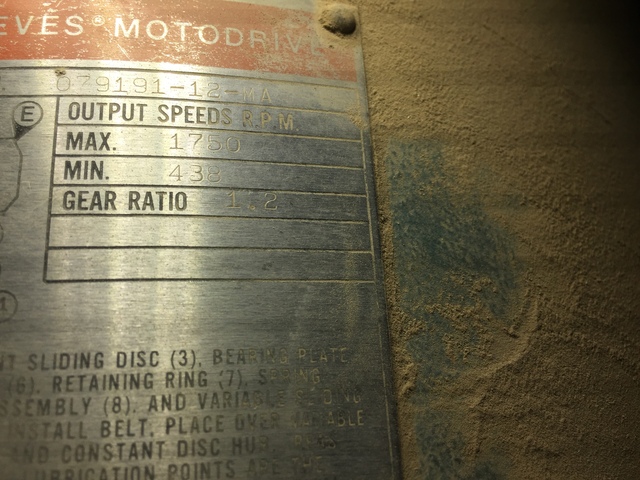

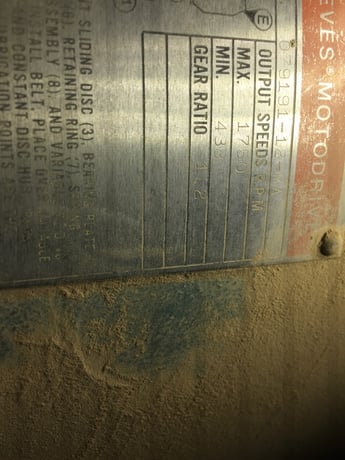

RPM Out.........................438-1750
Drive Type......................Belt

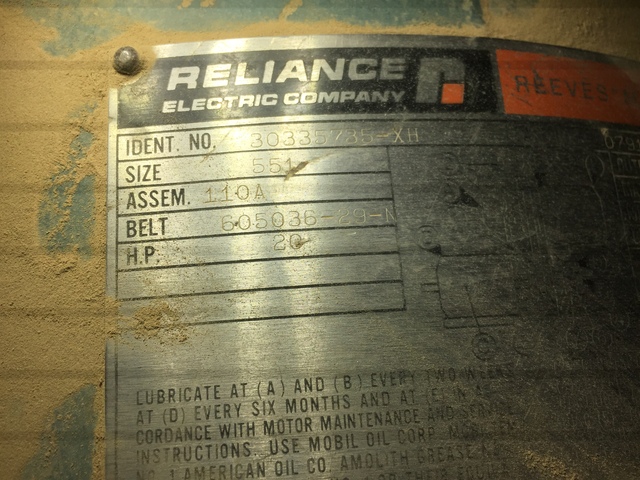

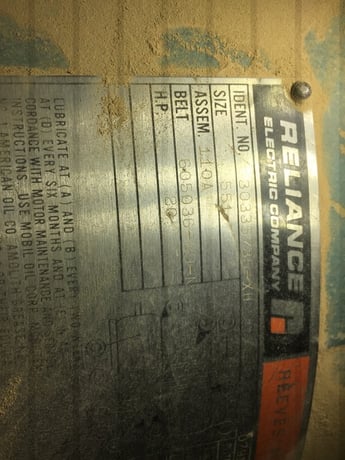

Size............................551
Assembly........................110A
Belt............................605036-29-N
Case#...........................079191-12-MA
Motor...........................Reliance
Horse Power................20
RPM........................1160
Amps.......................30/60
Electrical Characteristics......230/460 VAC / 3 Phase / 60 Cycles
Equipped With:
Complete Electrical Controls
Overall Dimensions..............50" L-R x 32" F-B x 48" High (est.)
Weight..........................850 lbs. (est.)
F.O.B...........................Casa Grande, Arizona
