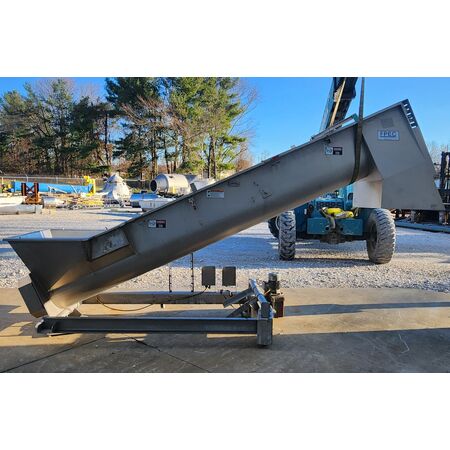

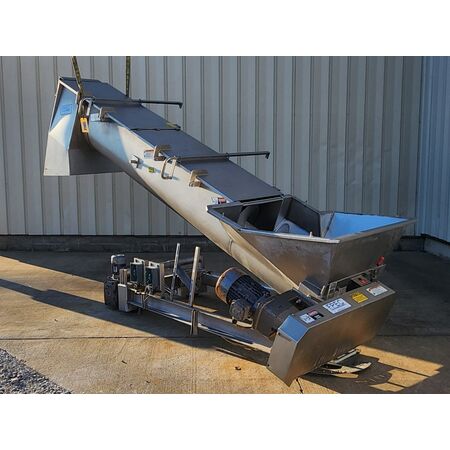

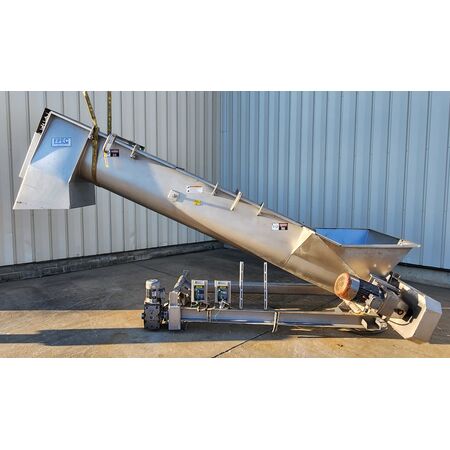

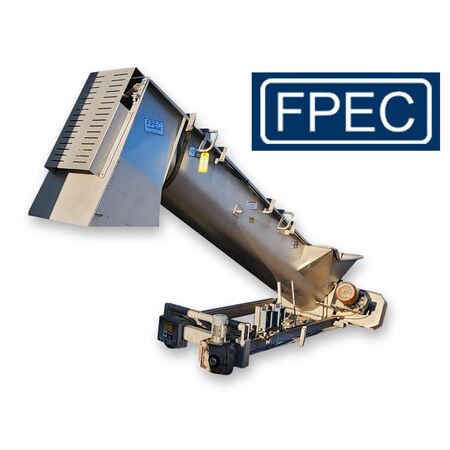

Used FPEC 20" Dia. Stainless Steel Pivoting Screw Conveyor Model SC126 Serial No: 8799 Stainless steel construction. 1HP pivoting drive provides varying discharge drop points. Auger: 20" X 13'-10", 3/8" thk. flights with a 15" pitch Trough: Double flanged u-trough with cover and bottom end drain Feed Hopper: Approx. 47" square, 44" above base. Discharge Chute: 27" X 29", 57" clearance to base (approx. 24 incline) Shipping dimensions: 185" L x 72" W x 56" H. 2,640 LBS.
Used FPEC 20" Dia. X 16' L Stainless Steel Screw Conveyor Model SC126, Serial No: 8798, Stainless steel construction, shaft seals, wash-down duty trough/hopper., Auger: 20" X 16'-0" Long, 3/8" thick flights with a 15" pitch, Trough: Flanged u-trough with cover on approx. 33 incline, Feed ...more
Stainless steel screw conveyor measuring 18" diameter x 16' length, 5 HP end-mounted drive through gearbox rated 100/63 output RPM. Includes 30" x 90" top inlet hopper and twin 8" bottom discharge outlets. Mounted on structural steel supports., Measurements: 18" Diameter X 16' Long, Dimensions: 19'6" L x ...more
one(1) used 18" diameter Screw Conveyor 18" diameter x 10' long trough Dimple Jacketed trough, 2 zones Shaft if cored and with a rotary union Flights are not jacketed 3" diameter shaft Flights are 2.5" x 1/4" Disharge is 18" wide Chain and sprocket driven with guard Gear reduced ...more
