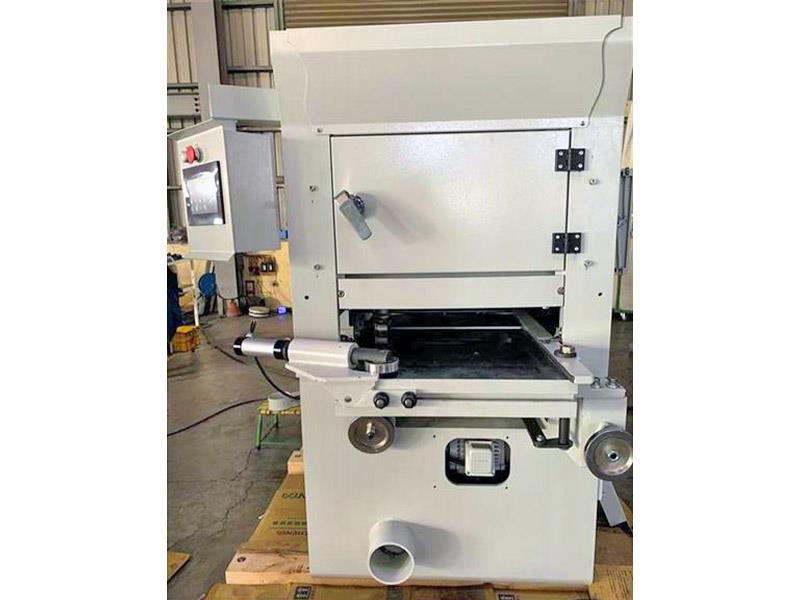

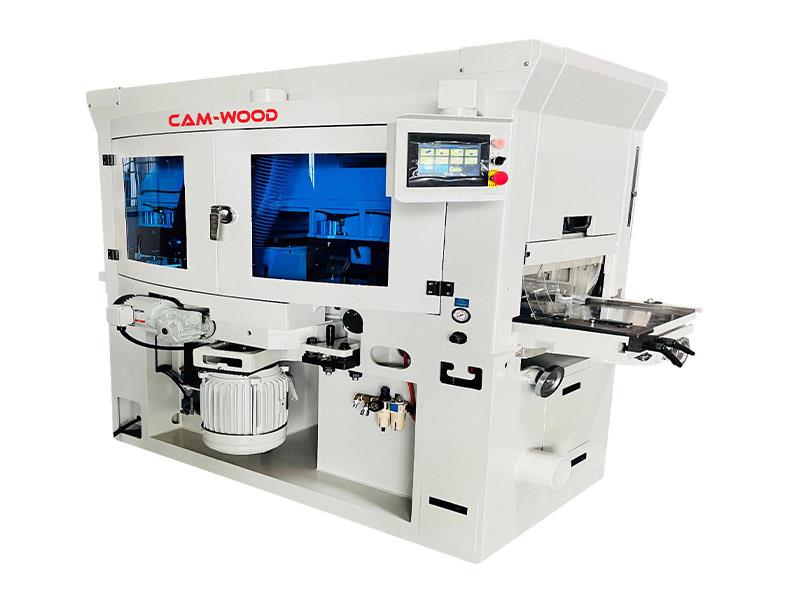

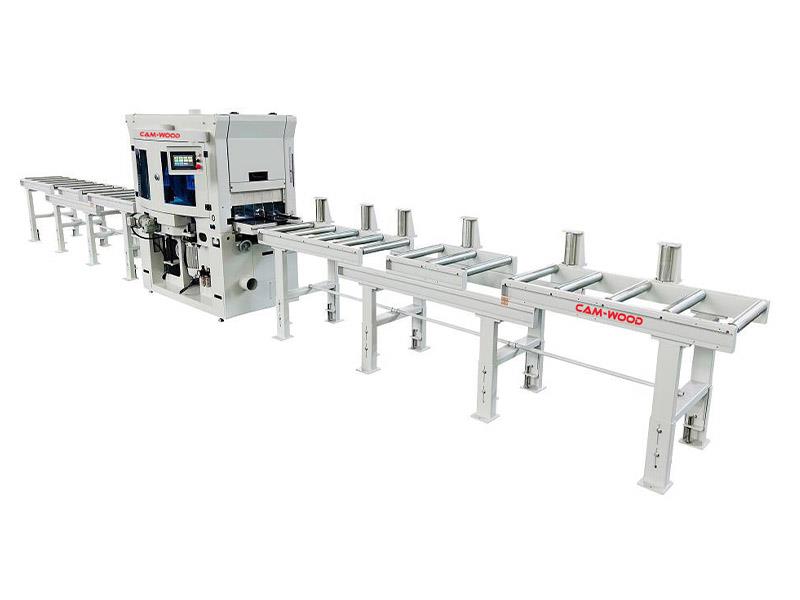

20" Cam-Wood #WP-20L-V4X, Four Sided Planer, 5" H, 20" min. L, 1/2" top & bottom cut depth, 1" side head cut depth, 2026, new

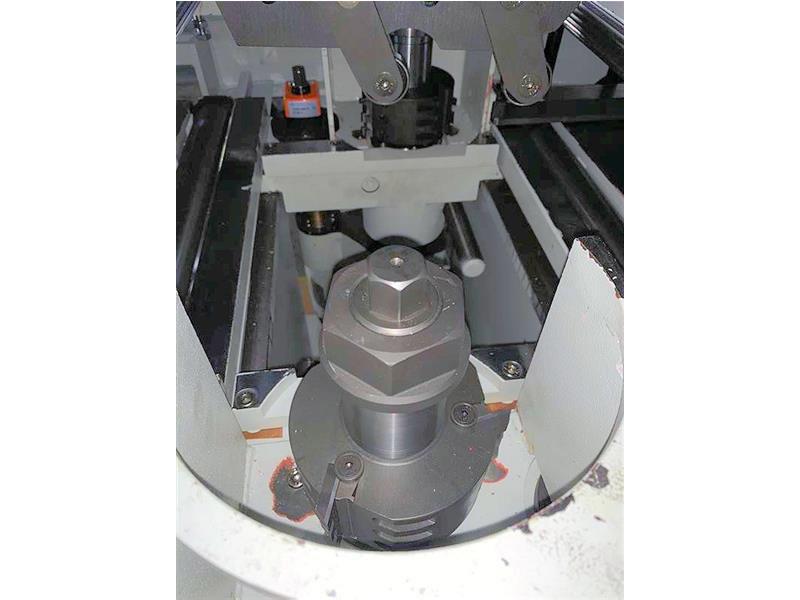

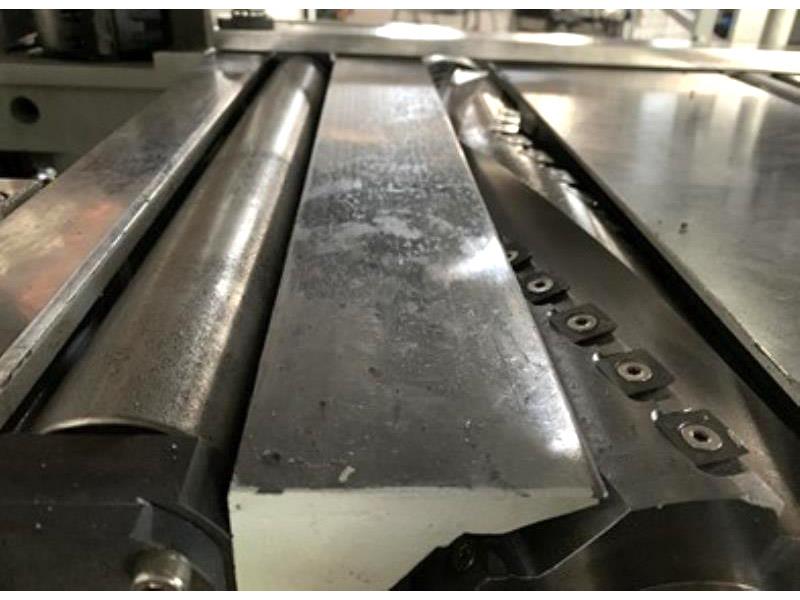

CAM-WOOD WP-20L8-V4X, 20"; WIDE X 5" HIGH 4-SIDED PLANER/MOULDER, (8" Optional)Planer or Combination Planer/Ripsaw is designed for furniture, cabinet, flooring, intermittent planing millwork, and other industrial applications. The perfect Planer for S2S and S4S planing, planing and ripping, tongue & groove flooring, wall paneling, etc. up to approximately 75 FPM depending on the depth of cuts and dimensions of parts.Working Capacities: -- Width: 3/4"; to 20";. -- Height: 3/8"; to 5", (8"; optional additional $5,950). -- Length: 20"; Minimum, Maximum Unlimited. -- Maximum Cutting Depth: Top & Bottom Heads 1/2";, Side Heads 1";. Included Tooling Is Slip-On Spiral or Profile Cutterheads: -- Standard with Slip-On HAR Series Profile / Spiral Cutter head. Profile Knives combined with 15 x 15 mm x 3 Carbide Insert knives. 1/2"; Max depth of cut. The top and Bottom spindles are 60 mm (2.36";) in diameter. Optional Profile Cutterheads Available. -- Left & Right-Side Spindles with Standard HAR Series Profile Heads. -- Max depth of cut 1";. With 40 mm (1.57";) Spindle Diameter. Cutting Circle from 6" to 7";. -- Left & Right-Side Heads will run profiles with owner-provided tooling. Quality Features = Long and Outstanding Performance -- Simple touch screen with Digital Positioning Controllers for width adjustment, thickness adjustment and variable feed speed. -- Hard Chrome Plated Table for long life and smooth feeding. -- Automatic Top Head Adjustment – cutter head height adjustment entered via HMI touch screen control with PLC. -- Floating Bottom Infeed Rolls for smooth, positive feeding. -- Variable Feed Speeds by VFD Controlled from Touch Screen. -- Heavy-duty Spindle Assemblies for durability & smooth finishes. -- Overhead assembly travels up/down and positions via touch screen control. Assembly is support by (4) hard chromed, polished posts and precision screws. -- Tables, fences, etc. are precision ground, polished and hard chromed to provide long life and smooth feeding. -- Massive, heavy-duty sheet metal frame aids in vibration absorbing finishes and extra-long bearing life. Compact construction with exclusive see-through top guard. -- Motor Control Center with under voltage and overload protection. UL and CSA labeled electric components. Motors and Feed Works: -- Top and Bottom Cutter Heads Motors, each: 15 HP, 5,000 RPM. -- Right & Left Side Cutter Motors, each: 10 HP, 5,000 RPM. -- Variable Feed Speeds from 20 to 65 FPM by VFD (invertor). -- Feed is powered by (2) each 2 HP VFD feed motors. -- (1) motor drives the top infeed and (1) Motor drives the top outfeed feed rolls. Top-powered feed rolls are air cylinder loaded / floating. -- (8) non-powered bottom rolls, (4) infeed and (4) outfeed.Machine Sizes / Dimensions and Weight: -- 76"; Length x 52"; Width x 71"; Height. -- Weight 4,920 LbsOptional Equipment: -- Type MP Carbide Side Head Tooling for profile work. Price on request. -- With a 20" spindle length -- 40 mm arbor diameter
