For Sale by Action Machinery Co Inc
Surplus Record Dealer Since 1996
Kim Khoury
610-69...> Show Seller's Phone Number 610-691-6677 Let the seller know you found their listing on Surplus Record!
Description
CAPACITY
SWING OVER BED AND CARRIAGE WINGS: 19-1/4"
SWING OVER CROSS SLIDE: 12-1/4"
DISTANCE BETWEEN CENTERS: 102"

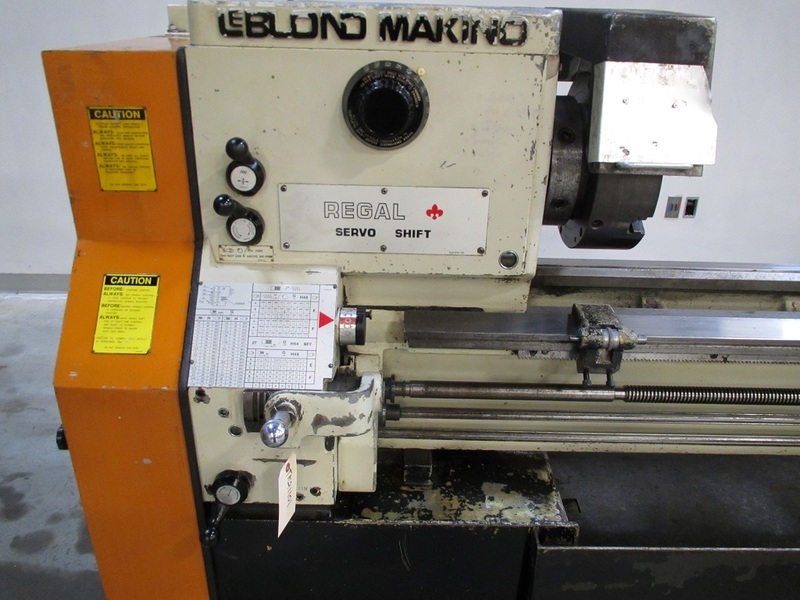

HEADSTOCK
SPINDLE SPEEDS, NUMBER: 12
SPINDLE SPEED RANGE: 40 TO 1,600 RPM
SPINDLE NOSE: D1-8
SPINDLE HOLE STRAIGHT: 3-1/16"
BED
LENGTH, STANDARD: 12’3"
WIDTH: 14-3/8"
DEPTH: 11-1/2"

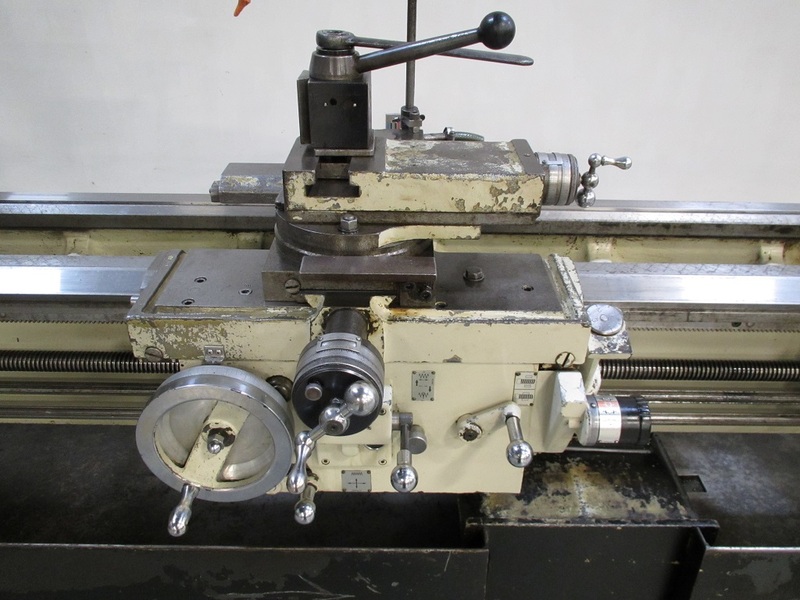

CARRIAGE
LENGTH ON BED: 21"
BRIDGE WIDTH: 7-7/8"
CROSS SLIDE TRAVEL WITHOUT TAPER: 11-1/4"
CROSS SLIDE TRAVEL WITH TAPER: 9-5/8"
COMPOUND REST TRAVEL: 4-3/8"
FEEDS & THREADS
FEED RANGE (48): .0018 - .104 IPR
THREADS, INCH (48): 2 TO 112 TPI
THREADS, METRIC (48): .05 – 2.6 MM
TAILSTOCK
SPINDLE DIAMETER: 2-7/16"
CENTER: 5 MT
MOTOR
RATED: 10 HP
GENERAL
DIMENSIONS: 18’8" LR X 4’ FB X 4’4" H
NET WEIGHT, APPROX.: 4,800 LBS
ELECTRICS: 230 VOLTS, 3 PH, 60 CYC

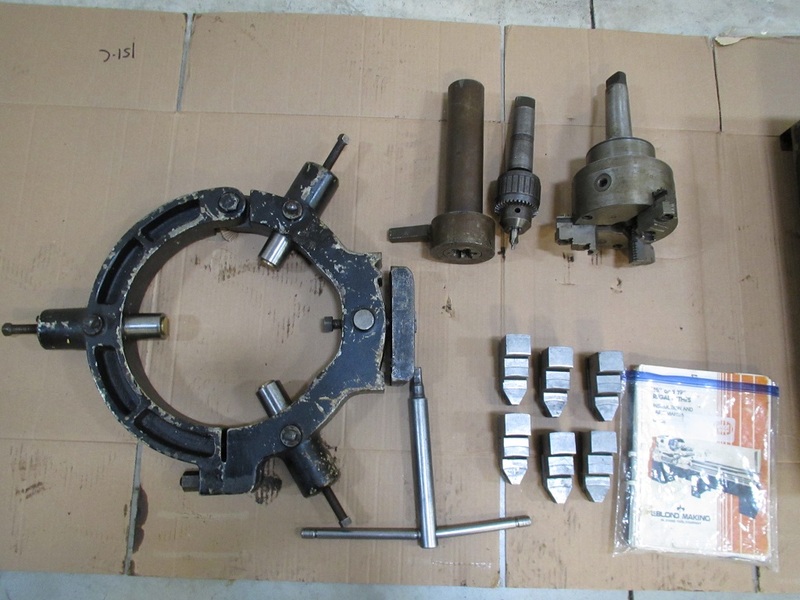

EQUIPPED WITH
INCH/METRIC THREADING

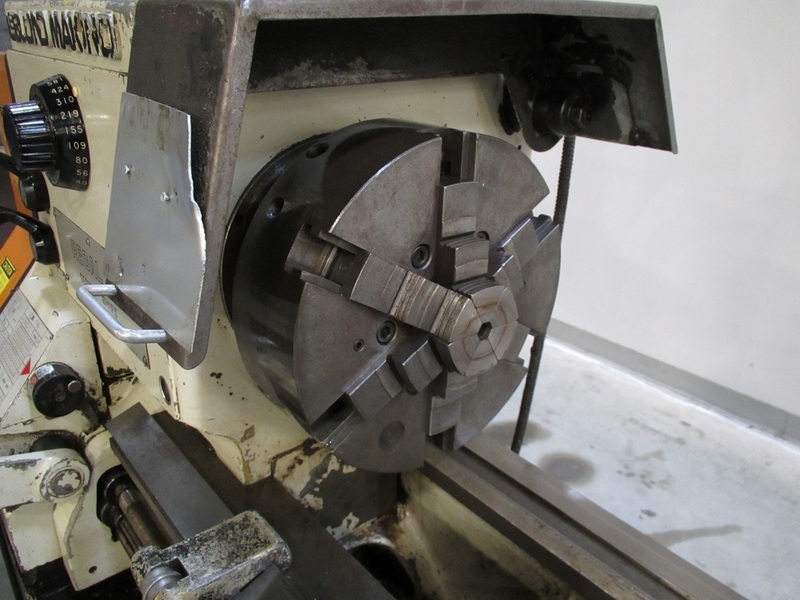

12" 6-JAW CHUCK

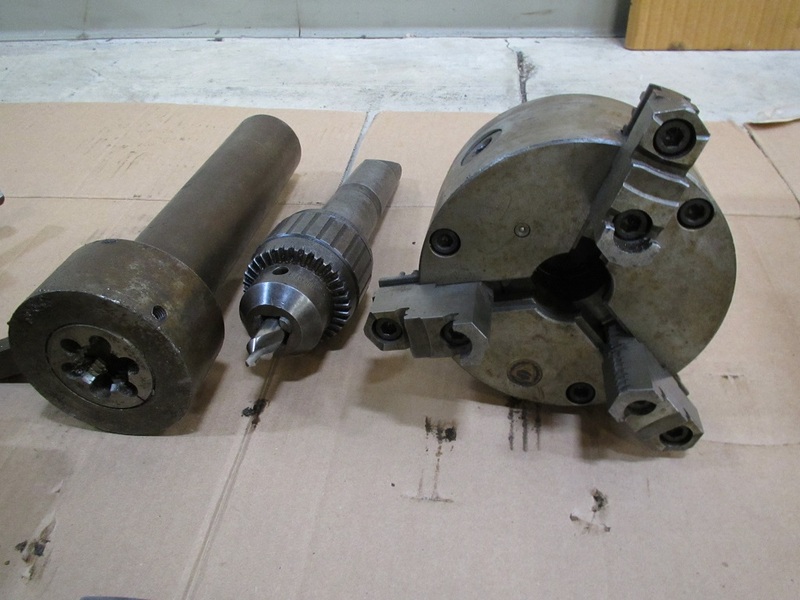

6" 3-JAW CHUCK FOR TAILSTOCK

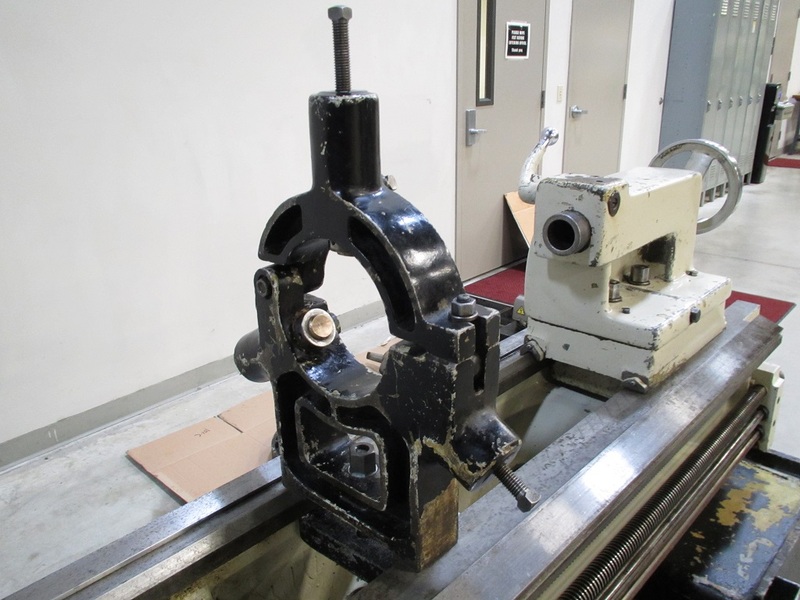

6" STEADY REST
12" STEADY REST
2-WAY QUICK CHANGE TOOL POST WITH HOLDERS
DRILL CHUCK

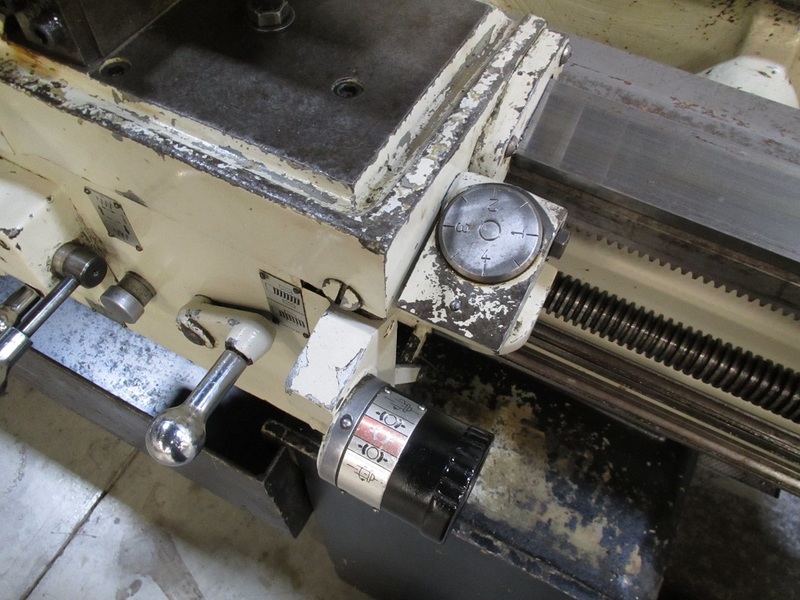

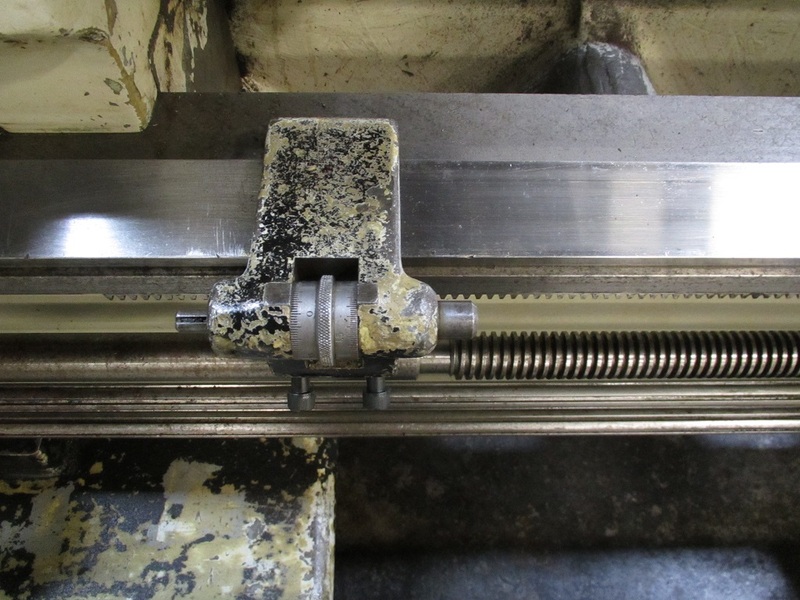

MICRO CARRIAGE STOP
THREAD CHASING DIAL
CHUCK GUARD
SWING OVER BED AND CARRIAGE WINGS: 19-1/4"
SWING OVER CROSS SLIDE: 12-1/4"
DISTANCE BETWEEN CENTERS: 102"
HEADSTOCK
SPINDLE SPEEDS, NUMBER: 12
SPINDLE SPEED RANGE: 40 TO 1,600 RPM
SPINDLE NOSE: D1-8
SPINDLE HOLE STRAIGHT: 3-1/16"
BED
LENGTH, STANDARD: 12’3"
WIDTH: 14-3/8"
DEPTH: 11-1/2"
CARRIAGE
LENGTH ON BED: 21"
BRIDGE WIDTH: 7-7/8"
CROSS SLIDE TRAVEL WITHOUT TAPER: 11-1/4"
CROSS SLIDE TRAVEL WITH TAPER: 9-5/8"
COMPOUND REST TRAVEL: 4-3/8"
FEEDS & THREADS
FEED RANGE (48): .0018 - .104 IPR
THREADS, INCH (48): 2 TO 112 TPI
THREADS, METRIC (48): .05 – 2.6 MM
TAILSTOCK
SPINDLE DIAMETER: 2-7/16"
CENTER: 5 MT
MOTOR
RATED: 10 HP
GENERAL
DIMENSIONS: 18’8" LR X 4’ FB X 4’4" H
NET WEIGHT, APPROX.: 4,800 LBS
ELECTRICS: 230 VOLTS, 3 PH, 60 CYC
EQUIPPED WITH
INCH/METRIC THREADING
12" 6-JAW CHUCK
6" 3-JAW CHUCK FOR TAILSTOCK
6" STEADY REST
12" STEADY REST
2-WAY QUICK CHANGE TOOL POST WITH HOLDERS
DRILL CHUCK
MICRO CARRIAGE STOP
THREAD CHASING DIAL
CHUCK GUARD
Get Your Price from Action Machinery Co Inc!
