Description

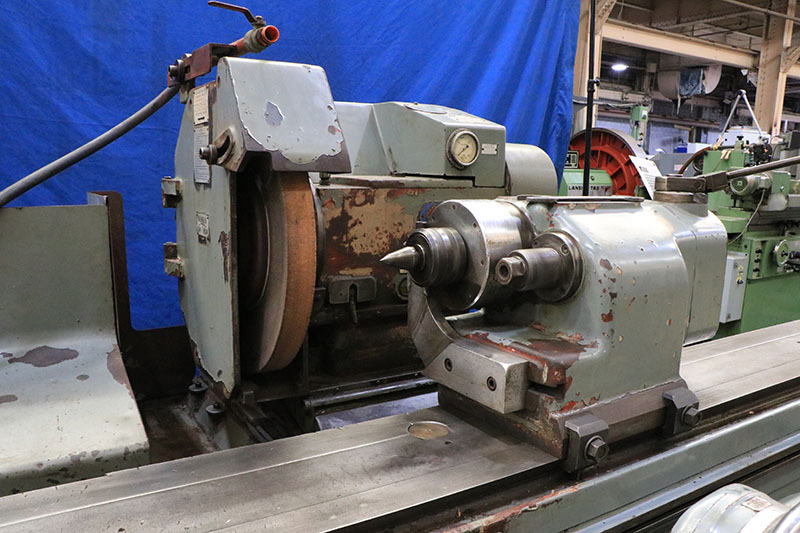

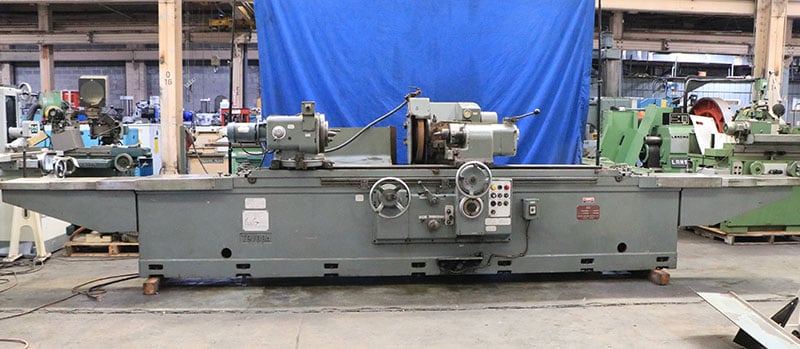

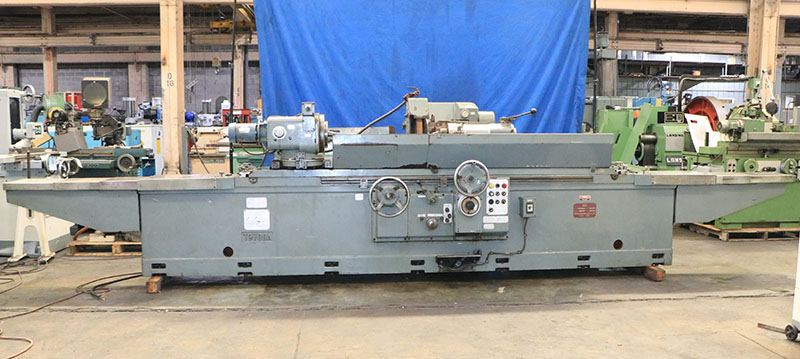

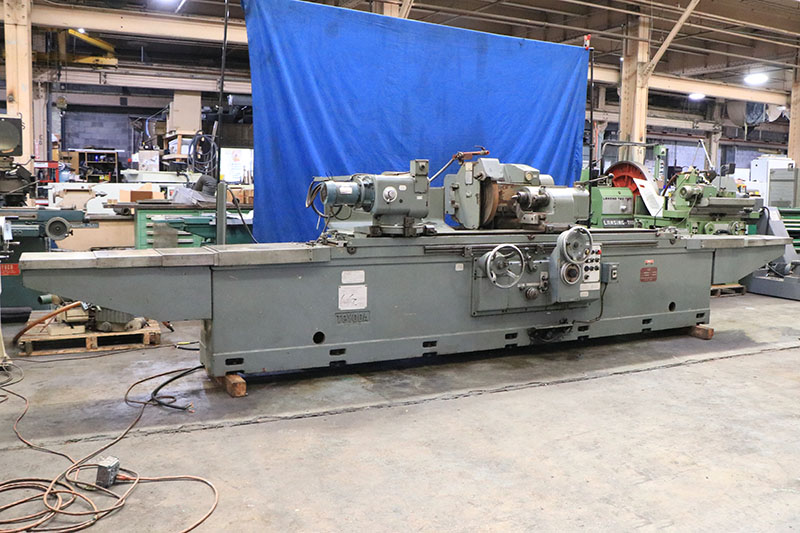

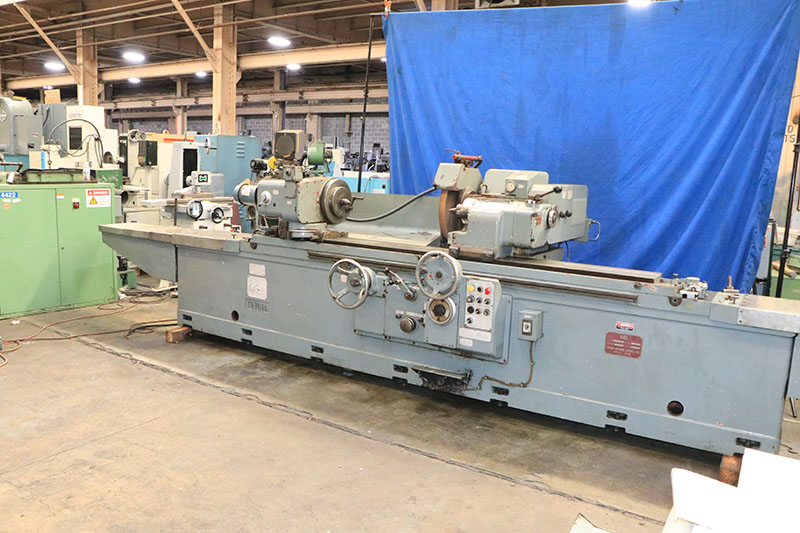

19.685" X 71" TOYODA UNIVERSAL CYLINDRICAL GRINDER
** THIS IS A HIGH-PRECISION…"MADE IN JAPAN" MACHINE TOOL! **
MODEL: GUP40-180… S/N: RB5459… NEW: 1982
GENERAL:
MAX. SWING OVER TABLE ................... 19.685"…
DISTANCE BETWEEN CENTERS ................ 71"
MAX. LOAD BETWEEN CENTERS ............... 1,100 LBS.
TABLE:
TABLE SWIVELS, CCW/CW .................... 8° CCW/3°CW…
LONGITUDINAL TABLE TRAVERSE SPEED ........ 2" TO 157" IPM
MOVEMENT PER TURN OF HANDWHEEL (2-STEP) .. 0.65/0.65"
WHEELHEAD:
WHEELHEAD SWIVELS LEFT… RIGHT ........... +/-″0°…
TOTAL FEED STROKE ........................ 11.6"
HANDWHEEL INFEED STROKE .................. 6.5"…
ADDITIONAL STROKE BY SLIDING ON…
SUB-SLIDE BASE ..........................″.5"…
AUTOMATIC RAPID INFEED STROKE ............ 1.6"…
AUTOMATIC INFEED AT TABLE REVERSALS ...... 0.0001" TO .0016"
AUTOMATIC PLUNGE INFEED .................. YES…
AUTO PLUNGE INFEED W/POSITIVE STOP ....... 0 TO .0315"…
MOVEMENT PER GRAD. OF HANDWHEEL .......... 0.0001"
MOVEMENT PER TURN OF HANDWHEEL ........... 0.040"
GRINDING WHEEL:
GRINDING WHEEL SIZE ...................... 20" X″" X 8"
MINIMUM WHEEL DIAMETER ................... 12"
MAX. WHEEL WIDTH ......................... 4.4"…
WHEEL SPEEDS (3) ................... 1,120/1,300/1,525 RPM
MAXIMUM WHEEL SPEED ...................... 6,560 SFPM

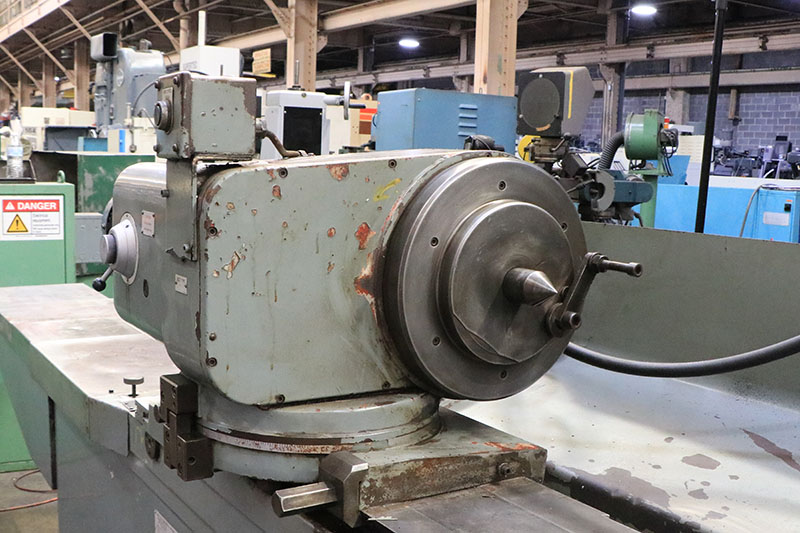

WORKHEAD:…
WORKHEAD SWIVELS ......................... 90° CCW/10° CW…
WORKHEAD SPINDLE TAPER ................... #5 MT
SPINDLE BORE DIAMETER .................... 1.57"…
INFINITELY VARIABLE SPINDLE SPEEDS ....... 1 TO 150 RPM
TAILSTOCK:
TAILSTOCK SPINDLE CENTER ................. #5 MT…
TAILSTOCK QUILL TRAVEL ................... 1.18"
APPROX. MACHINE WEIGHT ................... 13,200 LBS.…
APPROX. MACHINE DIMENSIONS ............... 189" X 76"W x 58"H
MACHINE FEATURES:…
TOYODA…"STAT" HYDROSTATIC WHEELHEAD BEARINGS…
FULLY AUTOMATIC GRINDING CYCLE FEATURING:…
HYDRAULIC TABLE TRAVERSE…
AUTOMATIC INFEED…
AUTOMATIC PLUNGE INFEED…
POWER RAPID WHEELHEAD ADVANCE… RETRACTION… \
SPARKOUT TIMER…
ADJUSTABLE TABLE TARRY…
EXTERNAL HYDRAULIC SYSTEM, 2 H.P. MOTOR…
INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
DUAL LIVE/DEAD WORKHEAD SPINDLE
PUSHBUTTON FOR…"INCHING/JOG", WORKHEAD
JAPANESE MADE MACHINE, FOR THE USA MARKET,…"INCH" GRADUATIONS
ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE)…
GRINDING WHEEL MOTOR, 7.5. H.P./3/60/230-460 VOLTS
TOTAL POWER REQUIRED, 15 KVA SERVICE
EQUIPPED WITH:
EXTERNAL COOLANT TANK, WITH…"GUSHER" PUMP
CENTER IN WORKHEAD
TOYODA MANUAL FOR THE MACHINE
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE… **
** HIGH PRECISION JAPANESE MADE GRINDER - EXCELLENT CONDITION… APPEARANCE **
