1811 cfm, 100 psi, Atlas Copco #XAS-1800-CD, Air Compressor, 6-Cylinder Diesel Engine

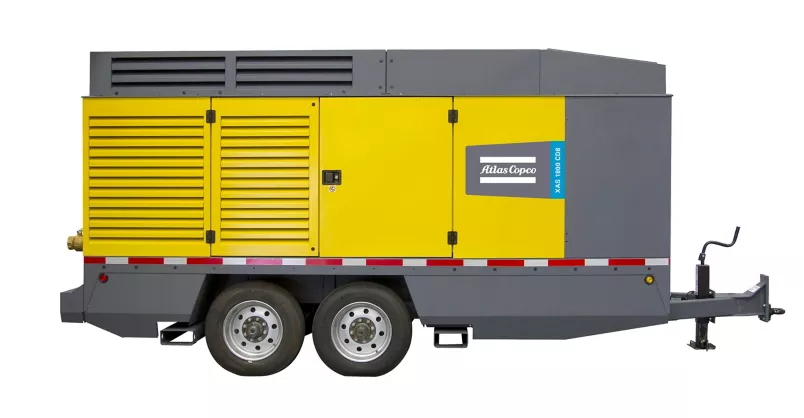

The Atlas Copco XAS 1800 CD is a single-stage, oil-injected, rotary screw type air compressor, powered by a liquid-cooled, 6 cylinder turbocharged diesel engine

The unit consists of two parallel low pressure air ends, diesel engine with exhaust treatment, cooling circuit, air/oil separation and control systems - all within a sound dampened steel enclosure.

A range of factory and locally installed options are available.

Special attention has been given to the overall product quality, user friendliness, ease of serviceability, and economical operation to ensure best in class cost of ownership.

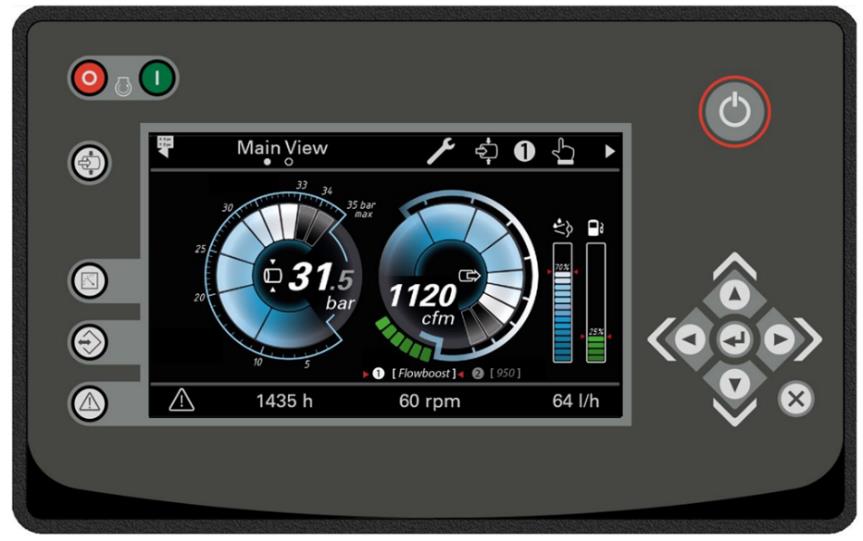

MAIN CONTROLLER

Xc4004 Controller Functionality:

• Main Screen 1

- Vessel Pressure

- Fuel & DEF Level

- Running Hours

- RPM

• Main Screen 2

- Vessel Pressure

- Fuel & DEF Level

- Running Hours

- RPM

- Element Temp

- Regulating Pressure

- Battery Voltage

• General Settings

- Engine Diagnostics

- Auto Start/Load/Stop

- 30 Languages

- Units of Measure

- Auto diagnostic function for the engine

• Alarms

- Structured alarms can be added to alert in

advance to take proactive action

- Active Alarms

- Event Log History

- Alarm Log History

• Measurements

- Fuel Consumption

- Engine Coolant Temperature

- Compressor Element Temperature

- Vessel Pressure

- Air Discharge Pressure

- Inlet Pressure

- Ambient Temperature

- Aftercooler Air Temperature

- E-Stop count

- Oil Stop Valve Pressure

- Engine Load

- Engine Oil Pressure

- Engine Boost Pressure

- DPF Soot Load

- Fuel Temperature

- Battery Voltage

- Regulatory Pressure

- Loaded/Unloaded Hours

- Successful/Unsuccessful Starts

- Service Timers (2 resettable)
