For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Andrew Valitt
973-49...> Show Seller's Phone Number 973-497-7600 Let the seller know you found their listing on Surplus Record!
Description

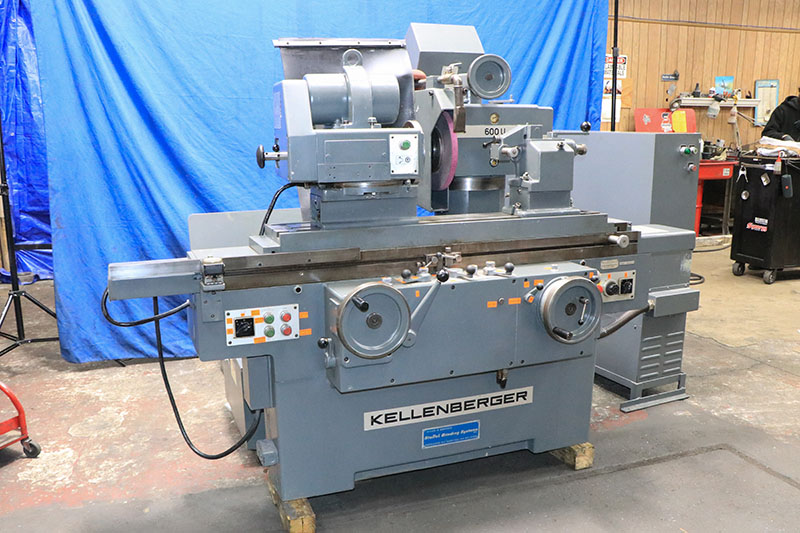

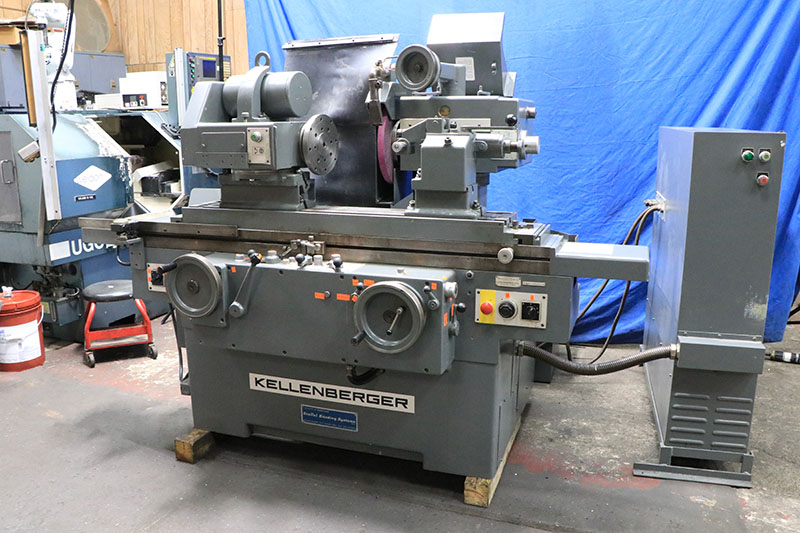

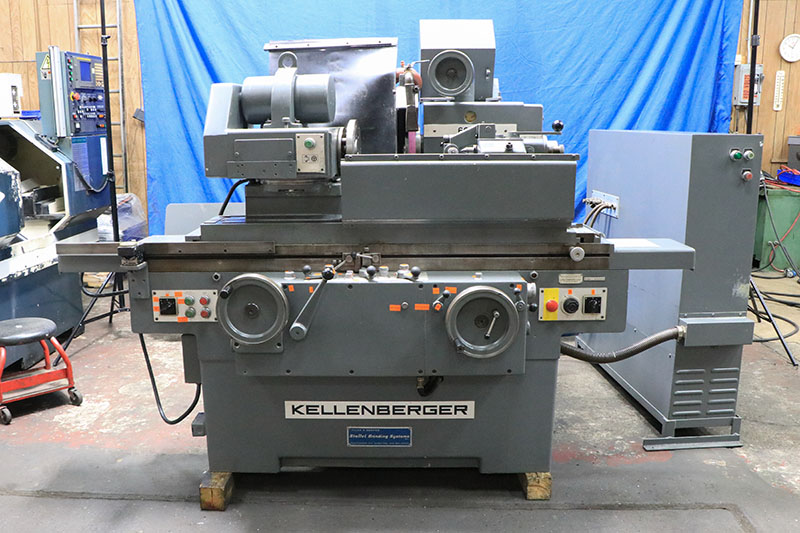

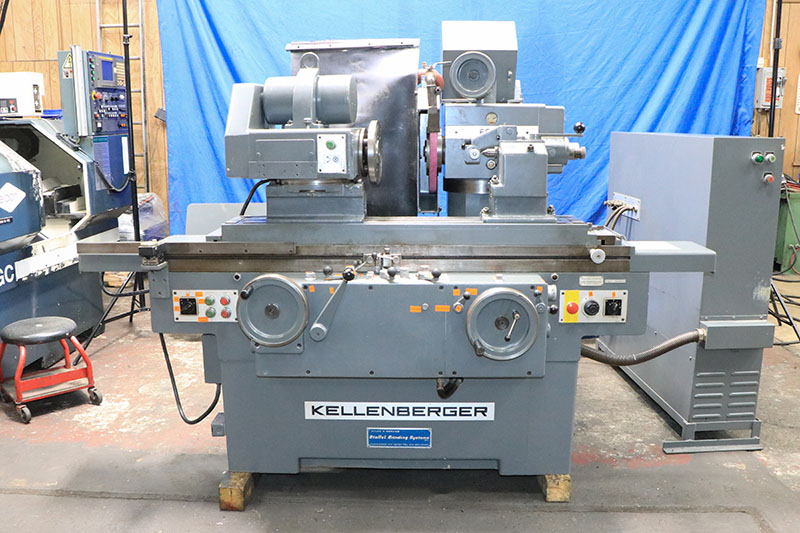

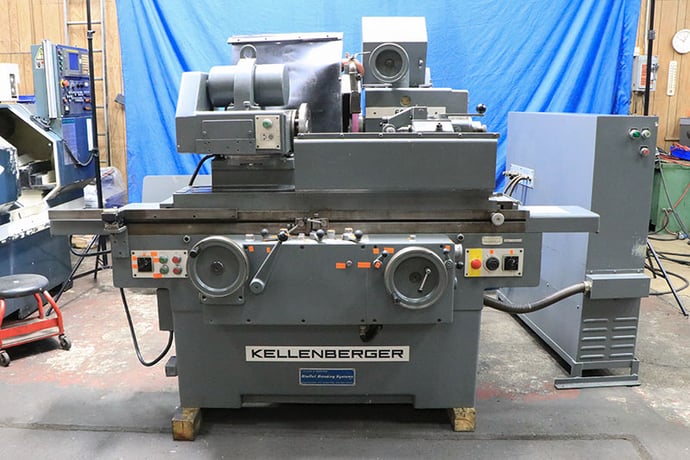

17.8" x 24" KELLENBERGER
"SWISS" -… "HIGH PRECISION"
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
THIS MACHINE HAS 4" FACTORY RISERS,
IT CAN SWING 17.8"
MODEL:… 600U… S/N: 1887/455… NEW: 1982
MAX. SWING w/4" FACTORY RISERS ............ 17.8"…
DISTANCE BETWEEN CENTERS (NOMINAL)......... 23- 5/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK…
OVERHANGING ............................. 29- 1/2"
TABLE:…
LONGITUDINAL TABLE TRAVEL .................″5- 7/16"
LONGITUDINAL TABLE TRAVEL PER
TURN OF HANDWHEEL:…
COARSE .................................. 0.8"
FINE .................................... 0.1"
LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0 TO 20' FPM
TABLE SWIVELS ............................. 11 DEGREES
REVERSING DWELL ........................... 0 TO 5 SECONDS
GRINDING WHEEL INFEED:…
1 GRADUATION OF FEED SCALE .............. 0.0002"…
AUTOMATIC HYDRAULIC INFEED, ............. 0 TO 0.037"…
AUTO INFEED PER TABLE REVERSAL .......... 0.00004" TO 1.18"…
PLUNGE GRINDING: INFEED SPEED ........... 0.00001 TO .0001 IN/S
MICROMETER STOP, 1 GRADUATION ........... 0.00005"…
UNIVERSAL GRINDING SPINDLE HEAD:…
TRANSVERSE MOVEMENT OF WHEEL SLIDE ...... 8- 21/32"
INFEED PER REV. OF HANDWHEEL:… COARSE ... 0.3"
FINE ..... 0.04"…
HYDRAULIC RAPID WHEEL SLIDE
ADVANCE/RETRACTION STROKE .............. 1-9/16"…
GRINDING WHEEL SPEEDS ................... 1500, 1700, 2200 RPM…
GRINDING WHEEL FOR CYLINDRICAL…
GRINDING ............................... 16" X 2" X 5"…
GRINDING WHEEL (SURFACE GRINDING)........ 9" X 1/2" X″"…
SWIVEL OF GRINDING HEAD
W/LOCKING EVERY 90 DEGREES ............. 270 DEGREES…
WORKHEAD:…
INFINIT. VARIABLE SPINDLE SPEEDS ........ 6 - 600 RPM…
WORKHEAD SWIVELS ........................″60 DEGREES…
INSIDE TAPER OF WORK SPINDLE ............ #5MT…
TAILSTOCK:
INSIDE TAPER OF SPINDLE ................. #4MT
STROKE OF SPINDLE ........................ 1-″/16"
APPROXIMATE FLOOR SPACE REQUIRED .......... 102" X 64" X 66"H…
APPROXIMATE MACHINE WEIGHT ................ 6,000 LBS…
MACHINE FEATURES:…
HYDRAULIC OPERATION FEATURING:…
-SINGLE LEVER CONTROL…
-INFINITELY VARIABLE TABLE TRAVERSE…
-AUTOMATIC INFEED…
-PLUNGE INFEED…
-RAPID WHEEL ADVANCE… RETRACTION…
SPARKOUT TIMER…
EQUIPPED WITH:
- 17.8 SWING, WITH 4" FACTORY ISSUE RISERS
FROM KELLENBERGER
- ADJUSTABLE RISE… FALL MECHANISM OF WHEELHEAD
BY TURN OF HANDWHEEL
- SWING AROUND INTERNAL GRINDING ATTACHMENT,
- I.D. SPINDLE PROVIDED WITH THE MACHINE…
- 16" O.D. WHEEL
- WORKHEAD W/DUAL LIVE… DEAD WORKHEAD SPINDLE
- ELECTRONIC VARIABLE SPEED DRIVE, PROVIDING FOR
INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
- 4 H.P. WHEELHEAD MOTOR
- COOLANT TANK… PUMP, BASIC SYSTEM
- LEVELLING PADS
- SWING BACK DIAMOND DRESSER, MOUNTED ON THE TAILSTOCK
- DRAW BAR FOR USE WITH A CHUCK OR FACE PLATE
- FACE PLATE
-…"TRAVADIAL" ANALOG INDICATOR, FOR THE TABLE MOVEMENT
- MACHINE IS PRESENTLY WIRED FOR″/60/480 VOLTS
SPECIAL NOTE:
THIS MACHINE HAS BEEN SERVICED BY OUR STAFF
AND IS AVAILABLE FOR DELIVERY! **
LINK TO VIDEO: https://youtu.be/mMd3YjGvh_Q?si=vU4rSK09KtH0w4gf…
** EXCELLENT CONDITION… APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
