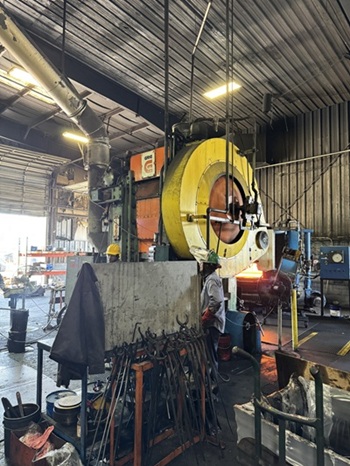

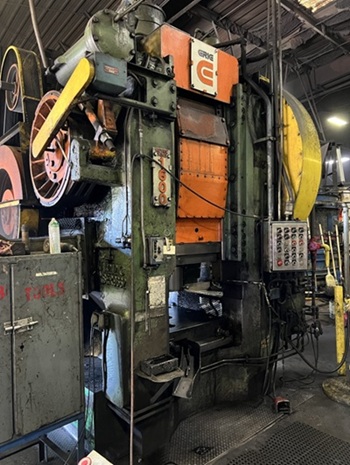

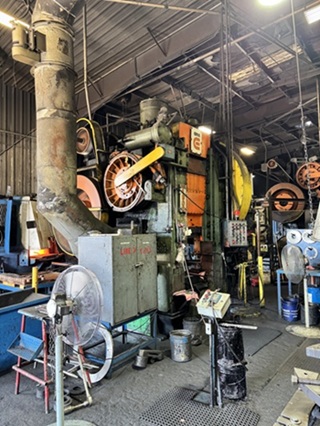

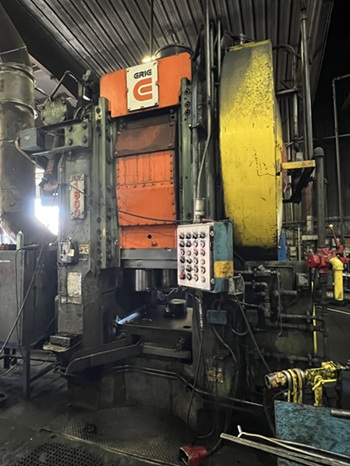

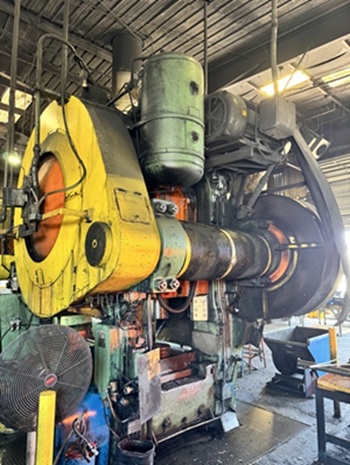

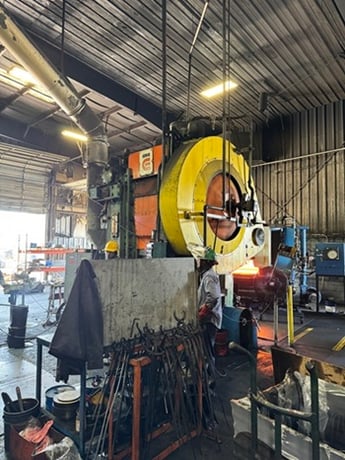

1600 Ton, Erie, forge press, 12" stroke, 30" Shut Height, 65 SPM, 100 HP, 39-3/8" btwn columns

USA
STANDARD METRIC
CAPACITY (AT 1/8" BEFORE B.D.C.) .. 1600 METRIC TONS 1600 METRIC TONS
STROKE ............................ 12" 305 MM
SHUT HEIGHT
(STROKE DOWN) .................... 30" 762 MM
(WITHOUT KICKOUT PLATE) .......... 34-1/2" 876 MM
STROKES PER MINUTE (STANDARD) ..... 65 65
DIE SEAT L-R x F-B ................ 39-3/8" x 43" 1000 x 1092 MM
RAM FACE L-R x F-B ................ 38" x 40-1/2" 965 x 1030 MM
DISTANCE BETWEEN COLUMNS .......... 39-3/8" 1000 MM
LOWER KNOCKOUT STROKE
(STANDARD=CENTER PIN ONLY) ....... 3" 76 MM
UPPER KNOCKOUT STROKE-STANDARD .... 1-1/4" 31 MM
FLOOR SPACE L-R x F-B ............. 9'10" x 10'6" 2997 x 3200 MM
HEIGHT ABOVE FLOOR ................ 13'9" 4190 MM
DISTANCE BELOW FLOOR .............. 15-1/2" 393 MM
STANDARD MOTOR HORSEPOWER ......... 100 100
APPROX. WEIGHT (NET) .............. 188,000 LBS 85 TONS
